Product Description

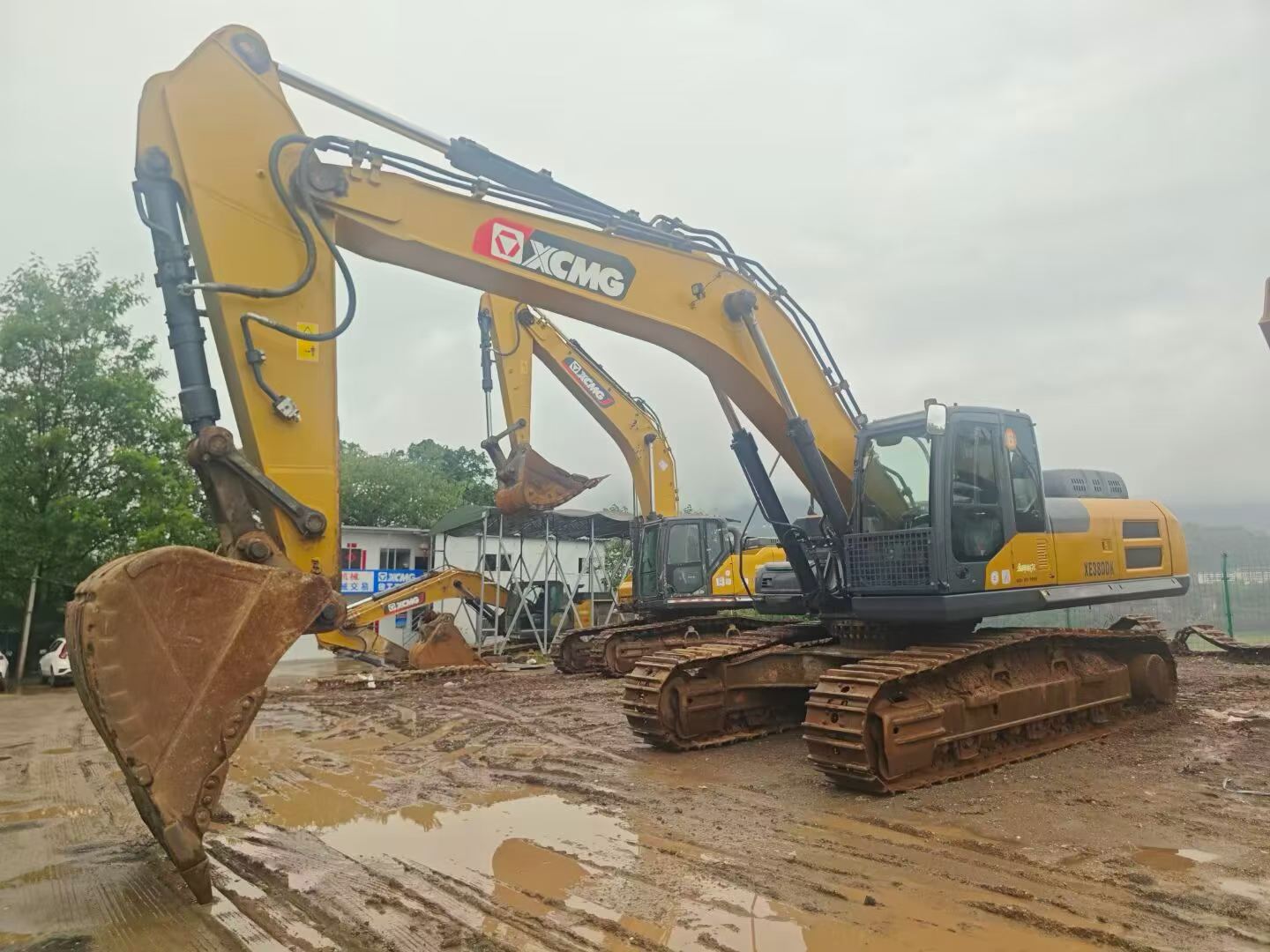

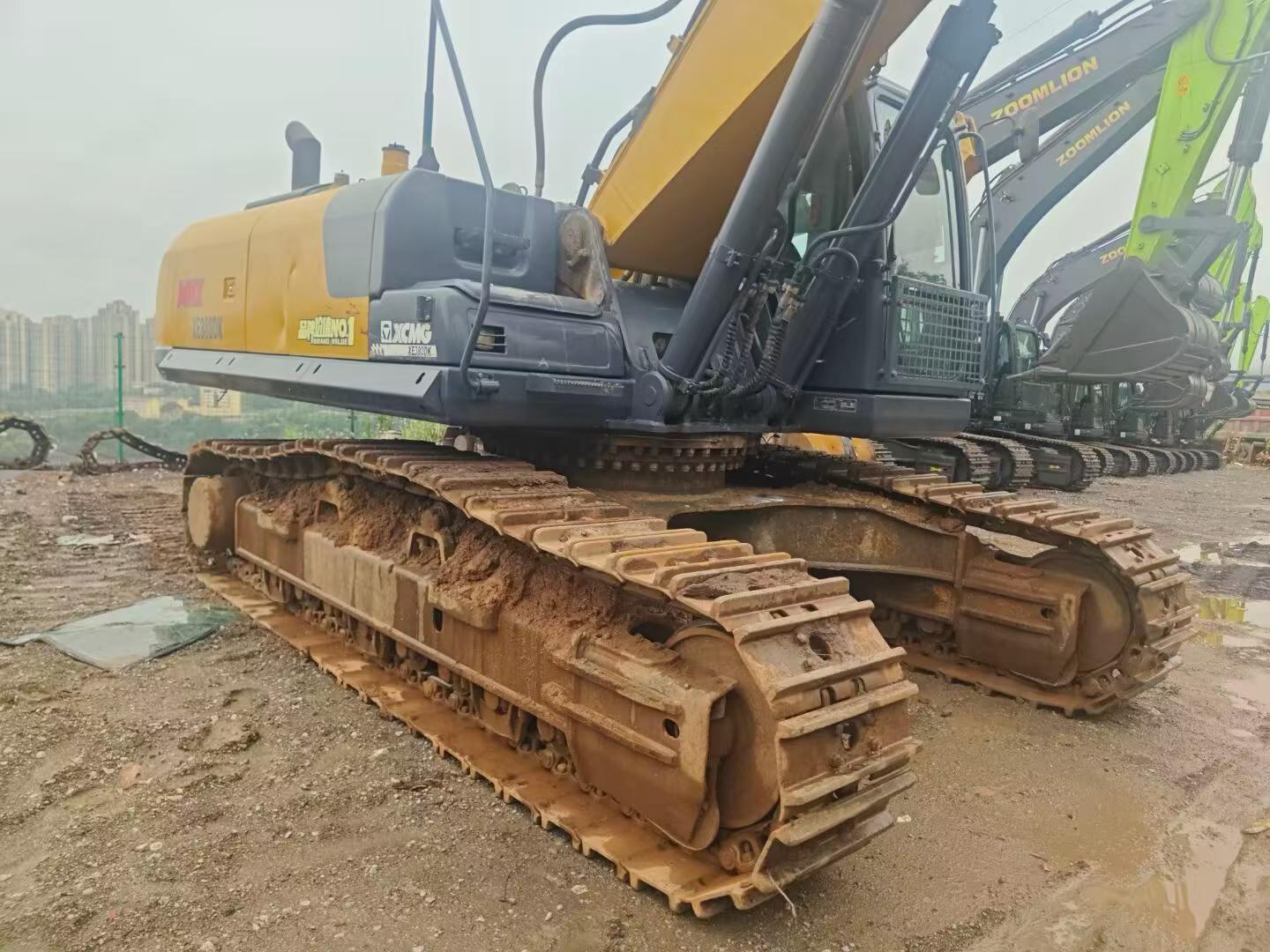

Discover the 2023 XCMG XE380DK, a robust and reliable excavator currently available in Chongqing, China. This machine is ideal for construction, mining, and infrastructure projects, offering exceptional performance and durability. Built with the high standards of XCMG, this excavator is designed to meet the demanding needs of your worksite.

  • Year: 2023
  • Brand: XCMG
  • Model: XE380DK
  • Location: Chongqing, China

Interested buyers are encouraged to inquire about this well-maintained and powerful machine. The XE380DK is ready to enhance your fleet and boost productivity on any job site. Contact us today to learn more and secure this top-quality excavator.

SpecificationsValue
No.1131610
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe

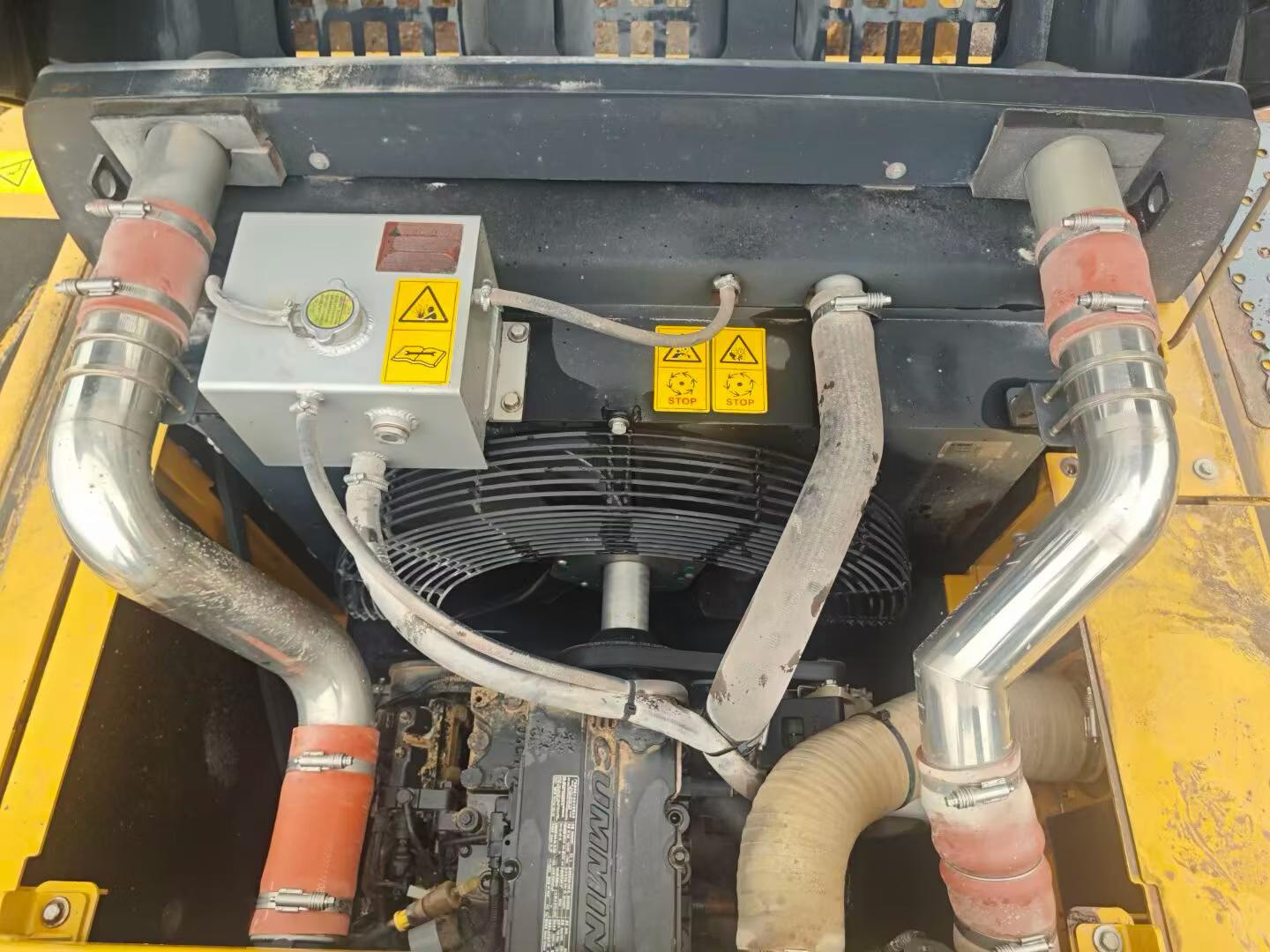

Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
