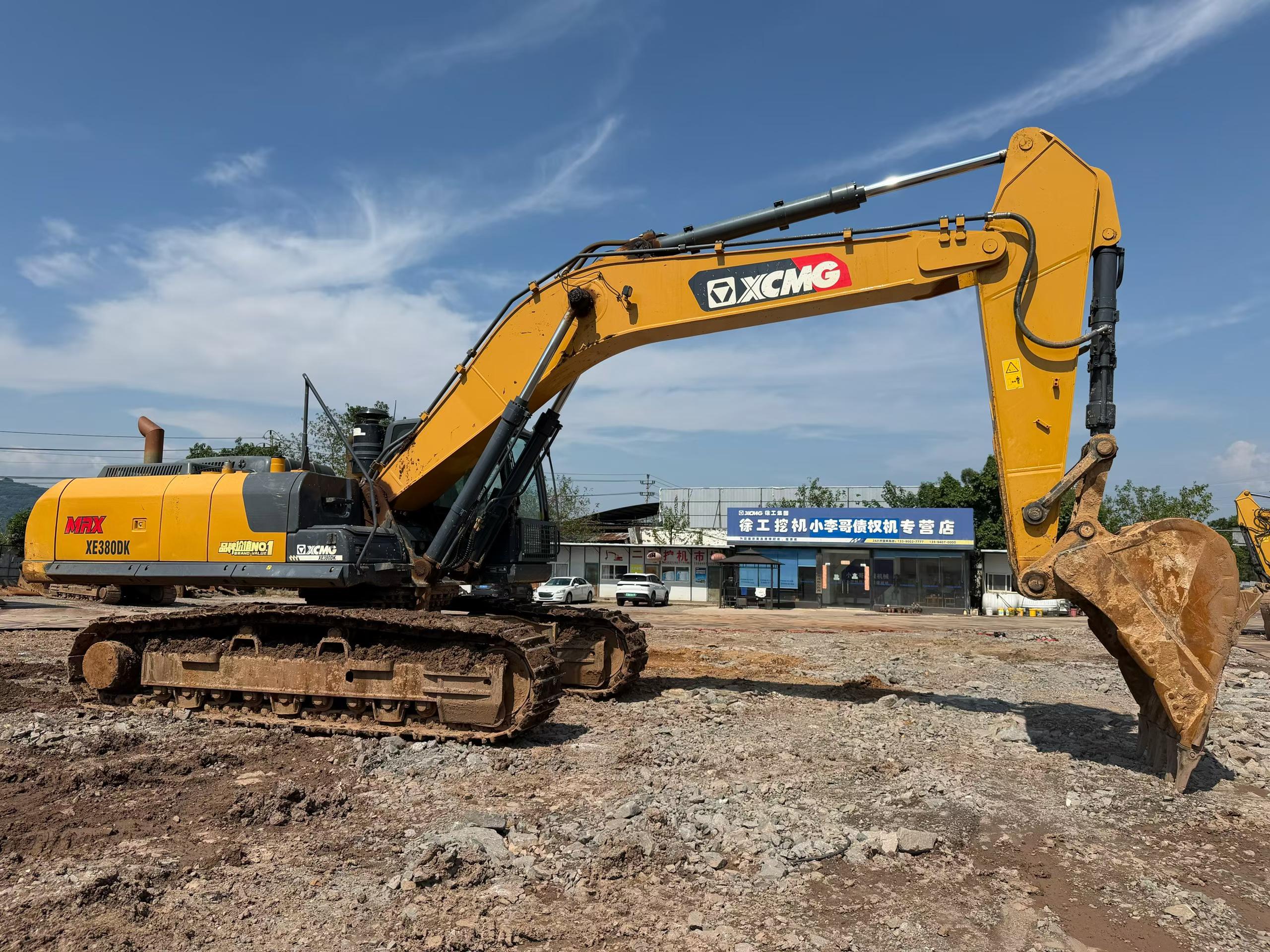

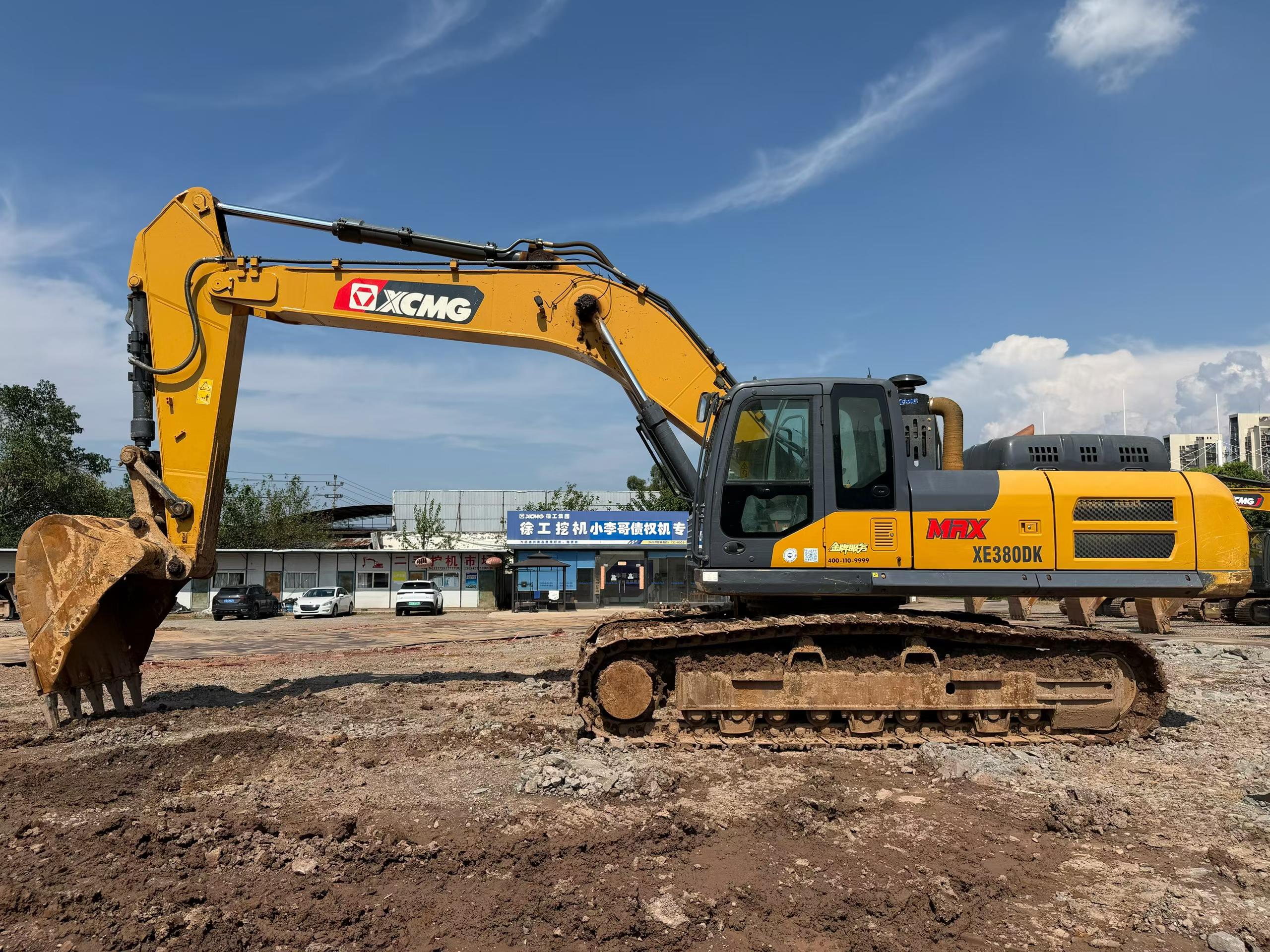

2023 XCMG XE380DK

1/6
Buy XCMG XE380DK Used Excavator / 1
Buy XCMG XE380DK Used Excavator / 2
Buy XCMG XE380DK Used Excavator / 3
Buy XCMG XE380DK Used Excavator / 4
Buy XCMG XE380DK Used Excavator / 5
Buy XCMG XE380DK Used Excavator / 6

Product Description

This 2023 XCMG XE380DK excavator represents a premium opportunity for contractors seeking reliable heavy-duty performance in earthmoving applications. Manufactured at the end of 2023, this machine comes from Chongqing, China, and features the sought-after National III emission standard configuration.

The XE380DK is purpose-built for large-scale excavation and earthwork projects, delivering the robust performance XCMG is known for in demanding job site conditions. This unit has been well-maintained and is available for both purchase and rental arrangements, with financing options available to qualified buyers.

  • Year of Manufacture: 2023
  • Model: XCMG XE380DK
  • Location: Chongqing, China
  • Configuration: National III Emission Standard
  • Primary Application: Earthmoving and excavation
  • Availability: Purchase or rental with financing support
SpecificationsValue
No.1143187
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe

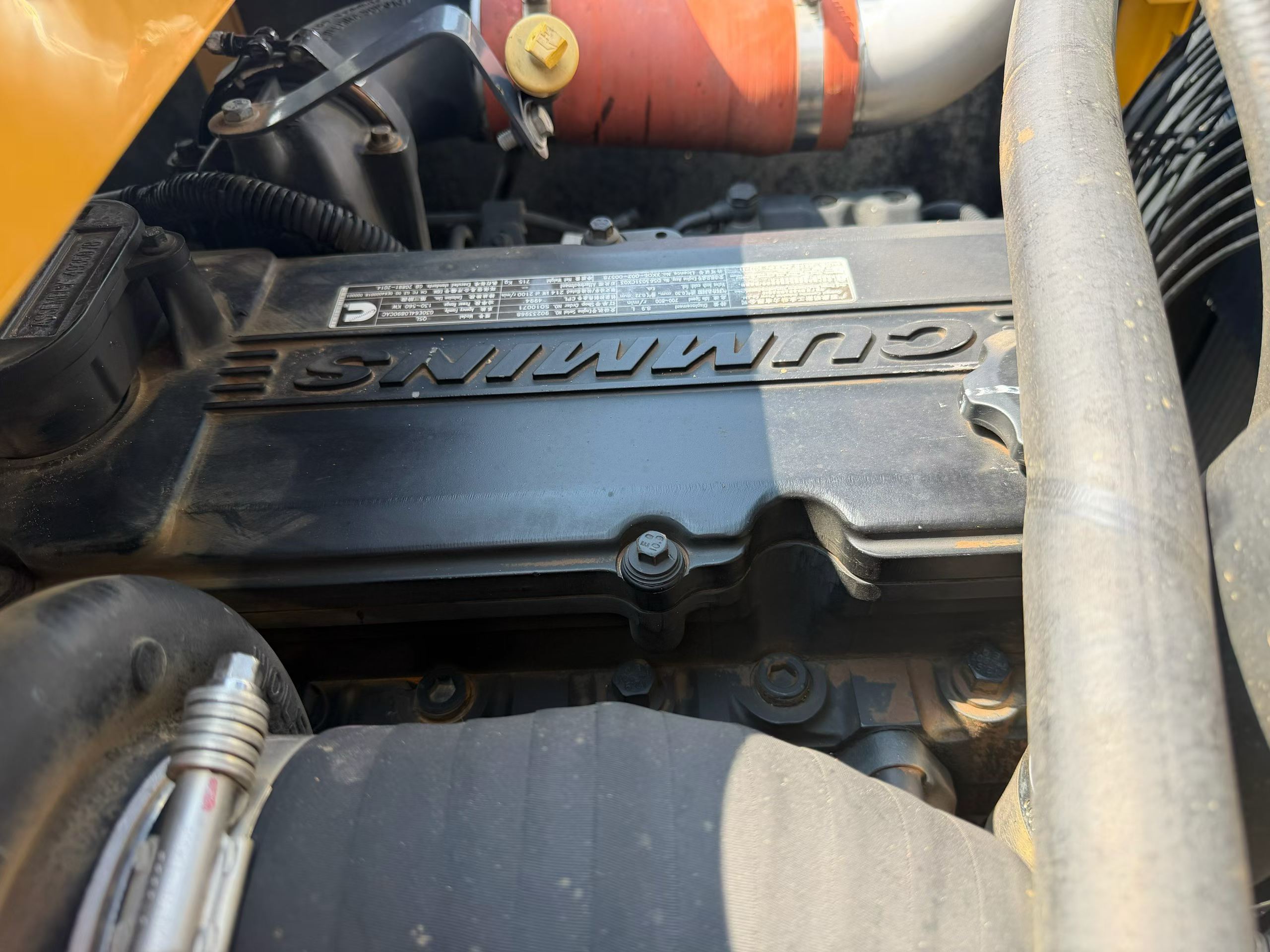

Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
see more

Overview

No.1143187

Brand Name:

XCMG

Model Number:

XE380DK

Year:

2023

Location:

Chongqing China
