Product Description

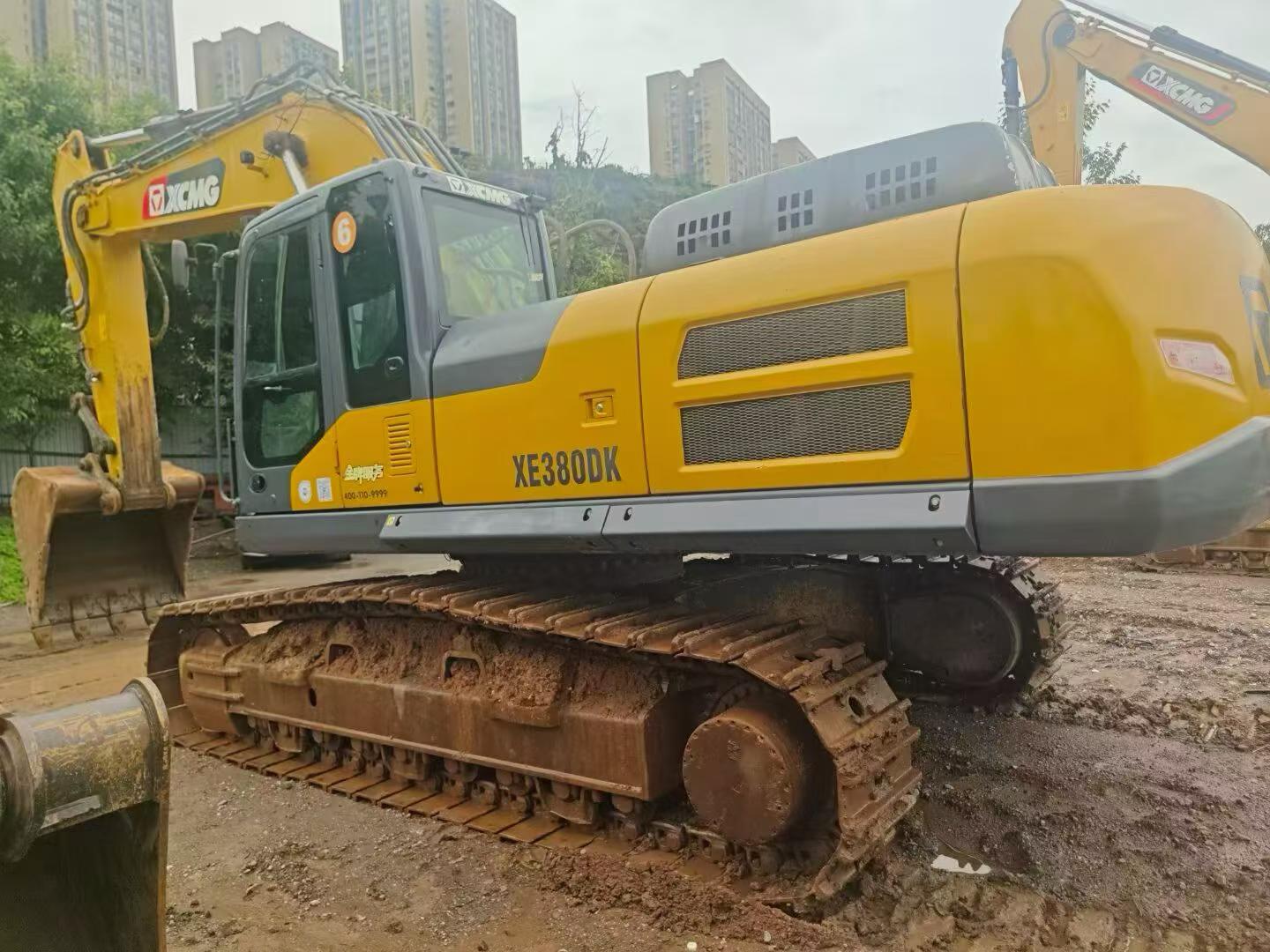

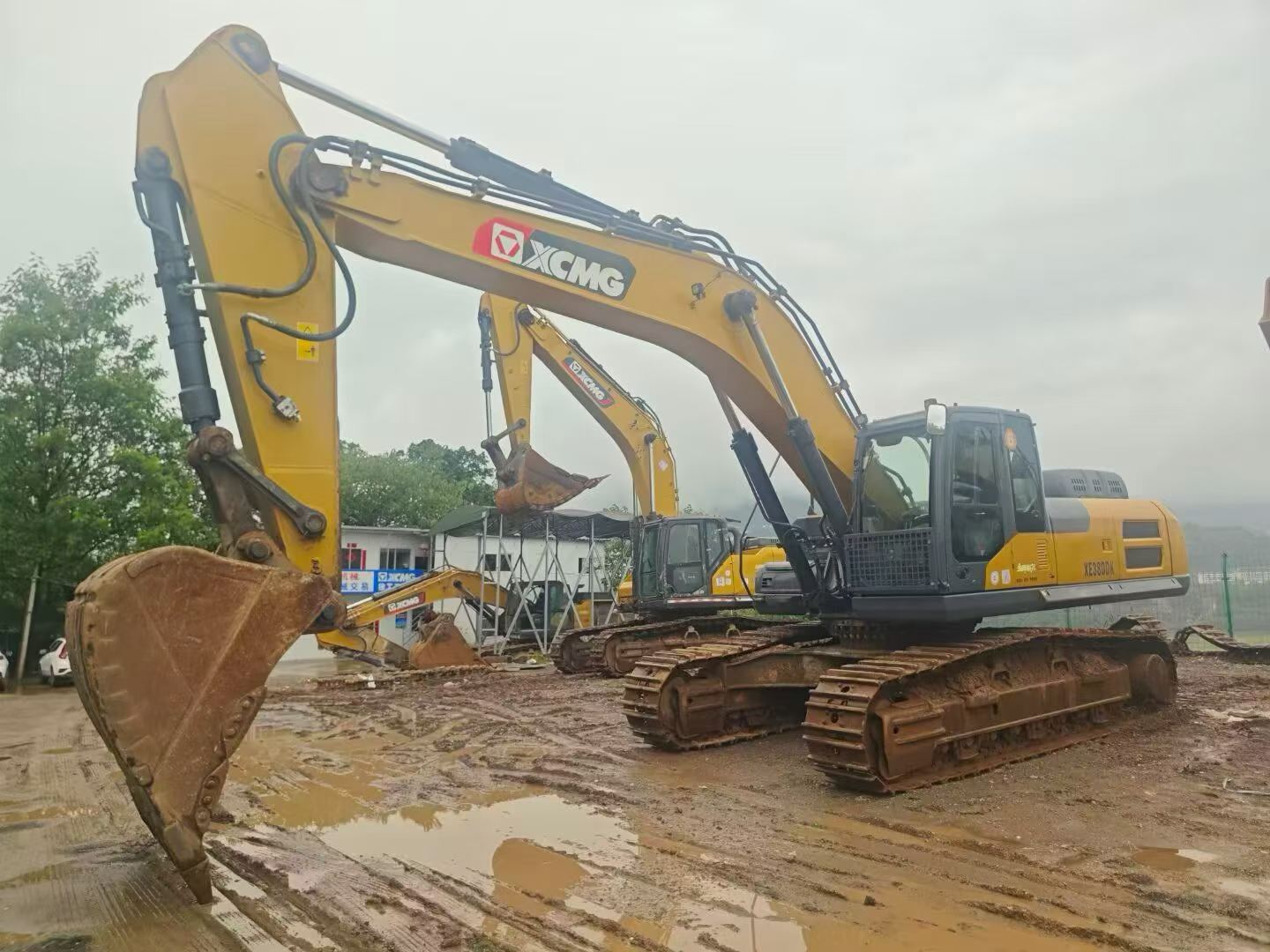

Available for inspection in Chongqing, China, this 2023 XCMG XE380DK hydraulic excavator brings proven performance with approximately 4,000 operational hours. The unit has been actively deployed on construction sites and is ready for immediate verification at its current location.
This crawler excavator represents XCMG's heavy-duty engineering capability, designed for demanding earthmoving and excavation applications. With modest hours for a 2023 machine, it offers substantial remaining service life for contractors seeking reliable production equipment.
- Year of Manufacture: 2023
- Operating Hours: Approximately 4,000
- Current Location: Chongqing, China
- Condition: Operational, site verification available
- Equipment Type: Crawler Hydraulic Excavator
Buyers are encouraged to arrange on-site inspection to verify machine condition and operational status before purchase.
| Specifications | Value |
|---|---|
| No. | 1144750 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

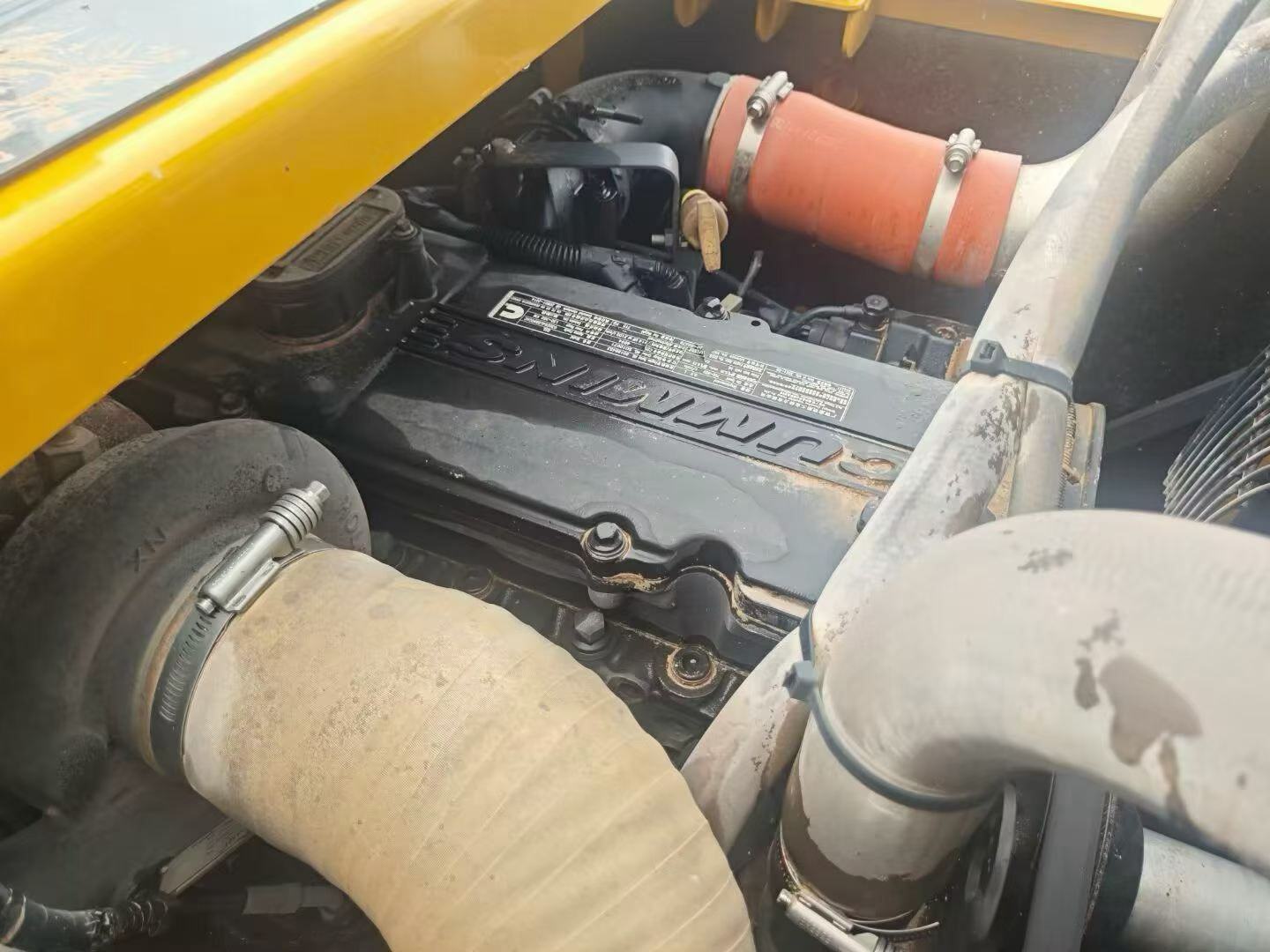

| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
