HOME>>XCMG>>XCMG XE380DK

2023 XCMG XE380DK

1/7

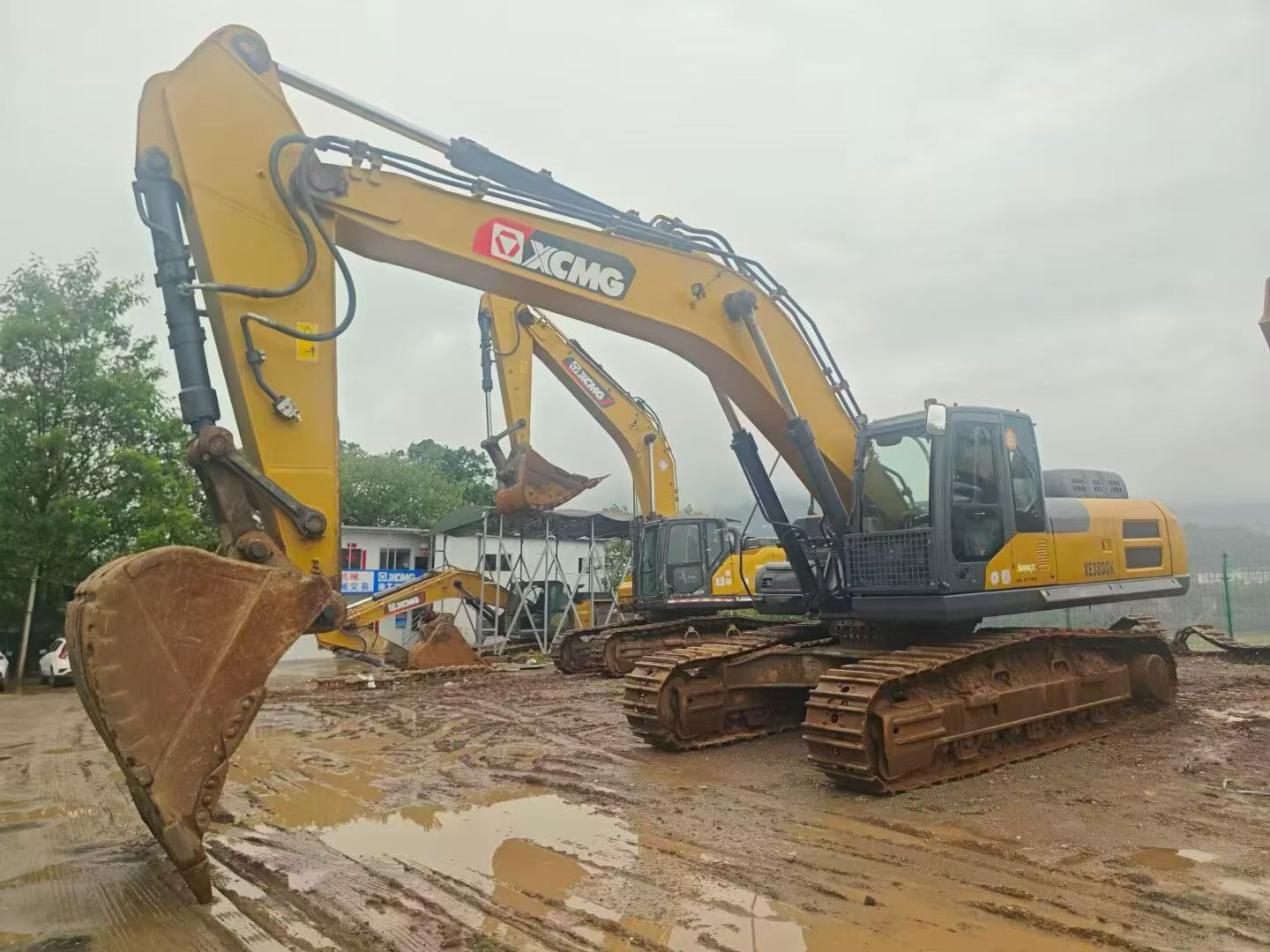

Buy XCMG XE380DK Used Excavator / 1

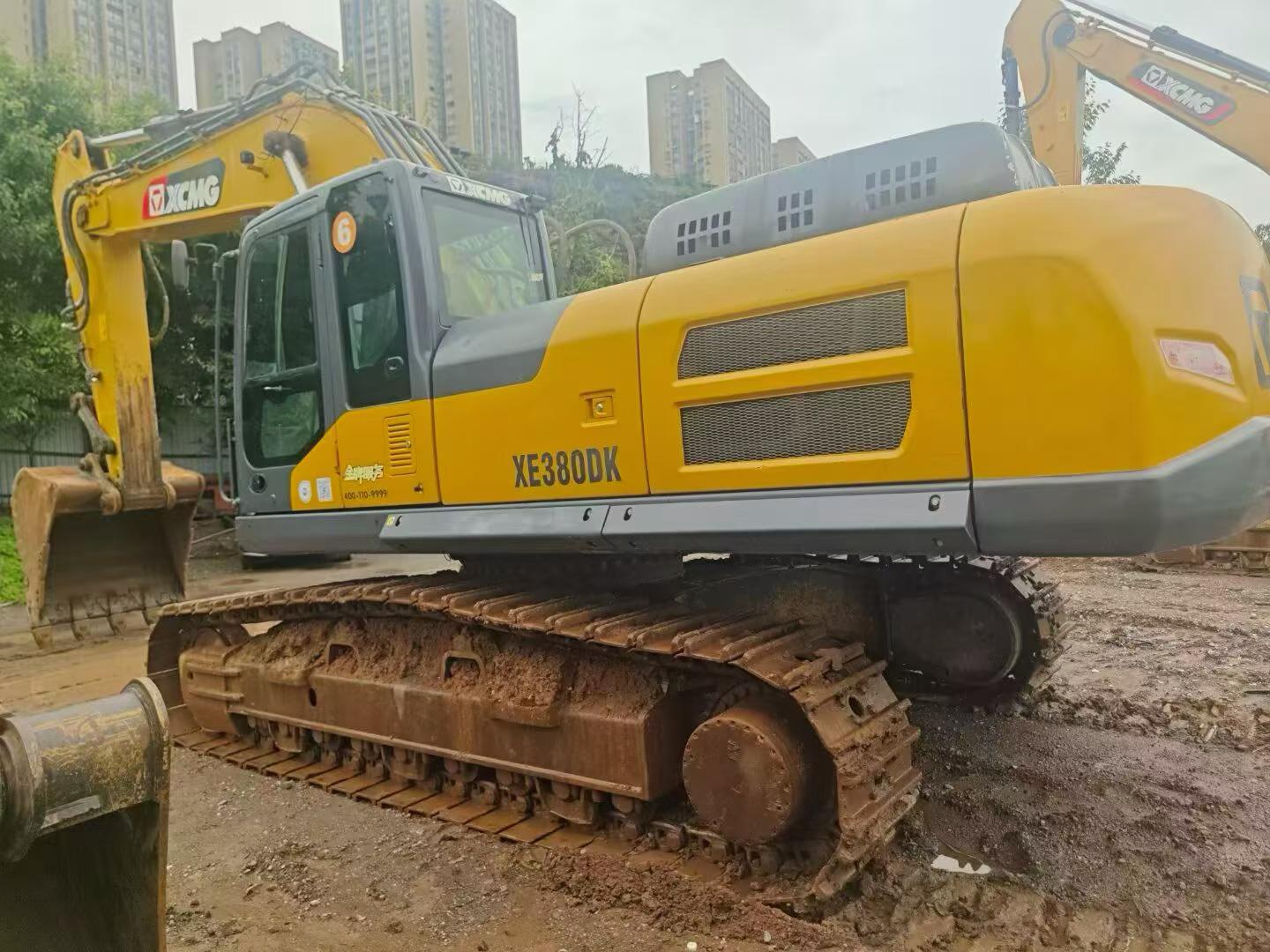

Buy XCMG XE380DK Used Excavator / 2

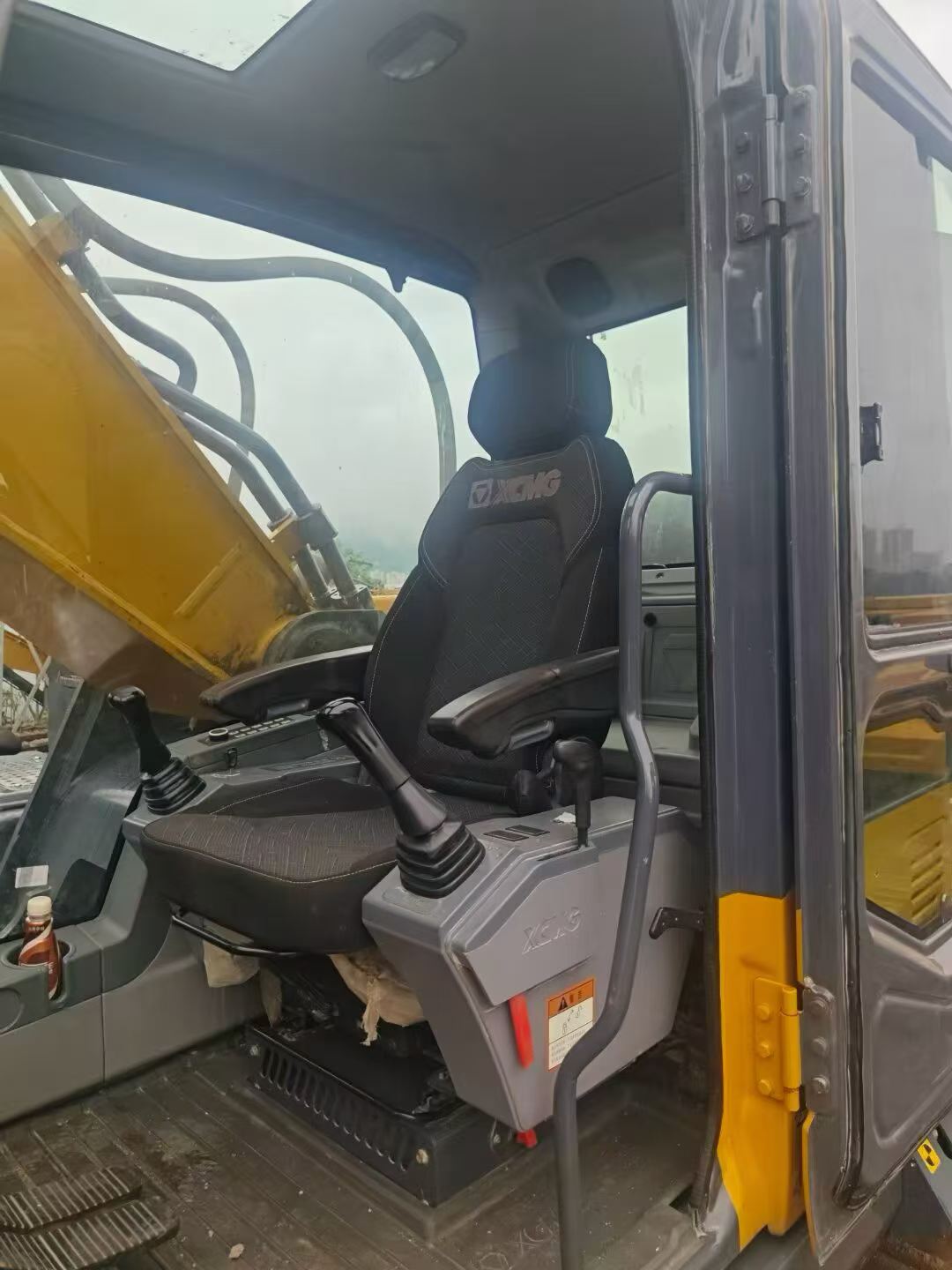

Buy XCMG XE380DK Used Excavator / 3

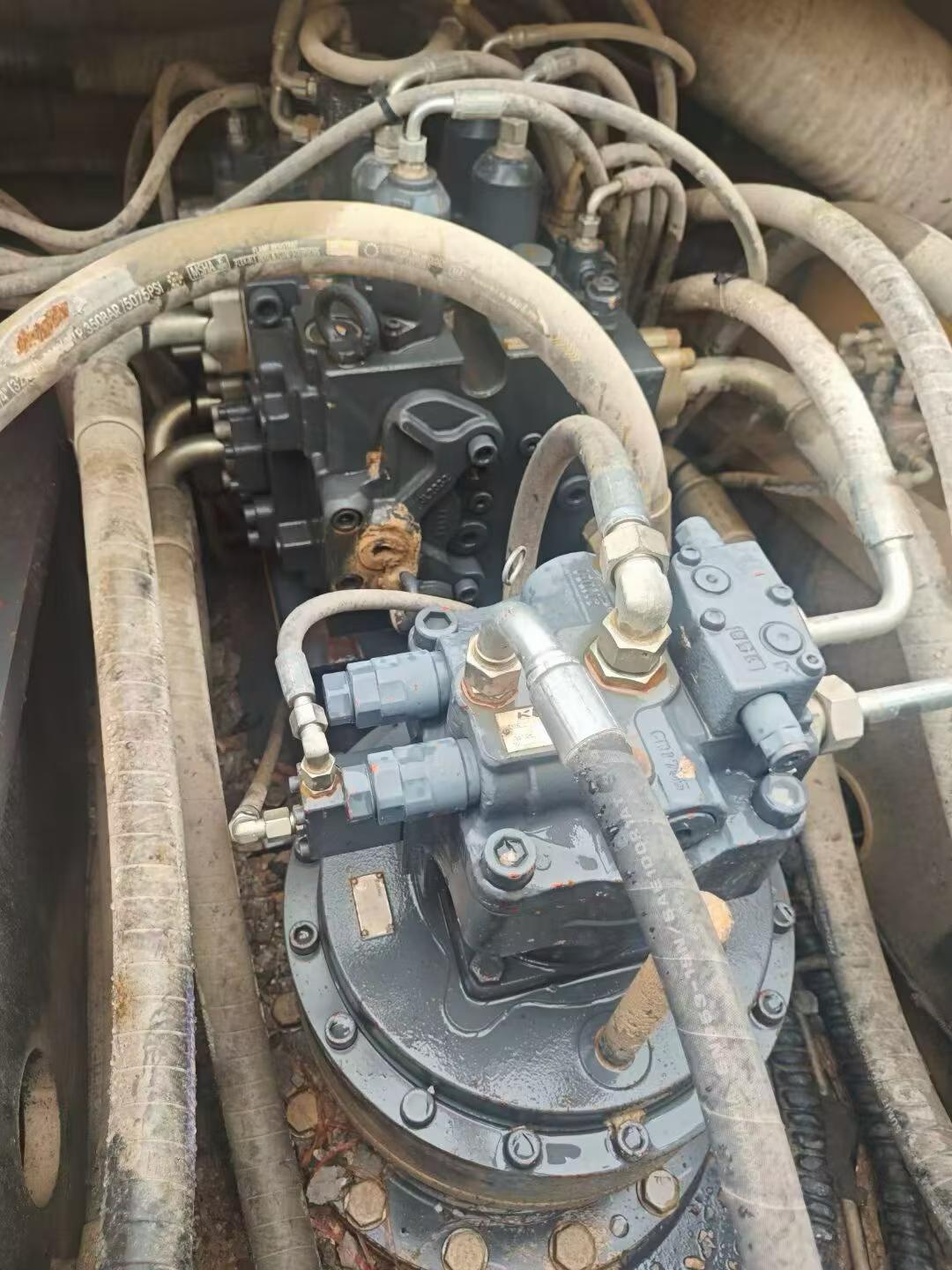

Buy XCMG XE380DK Used Excavator / 4

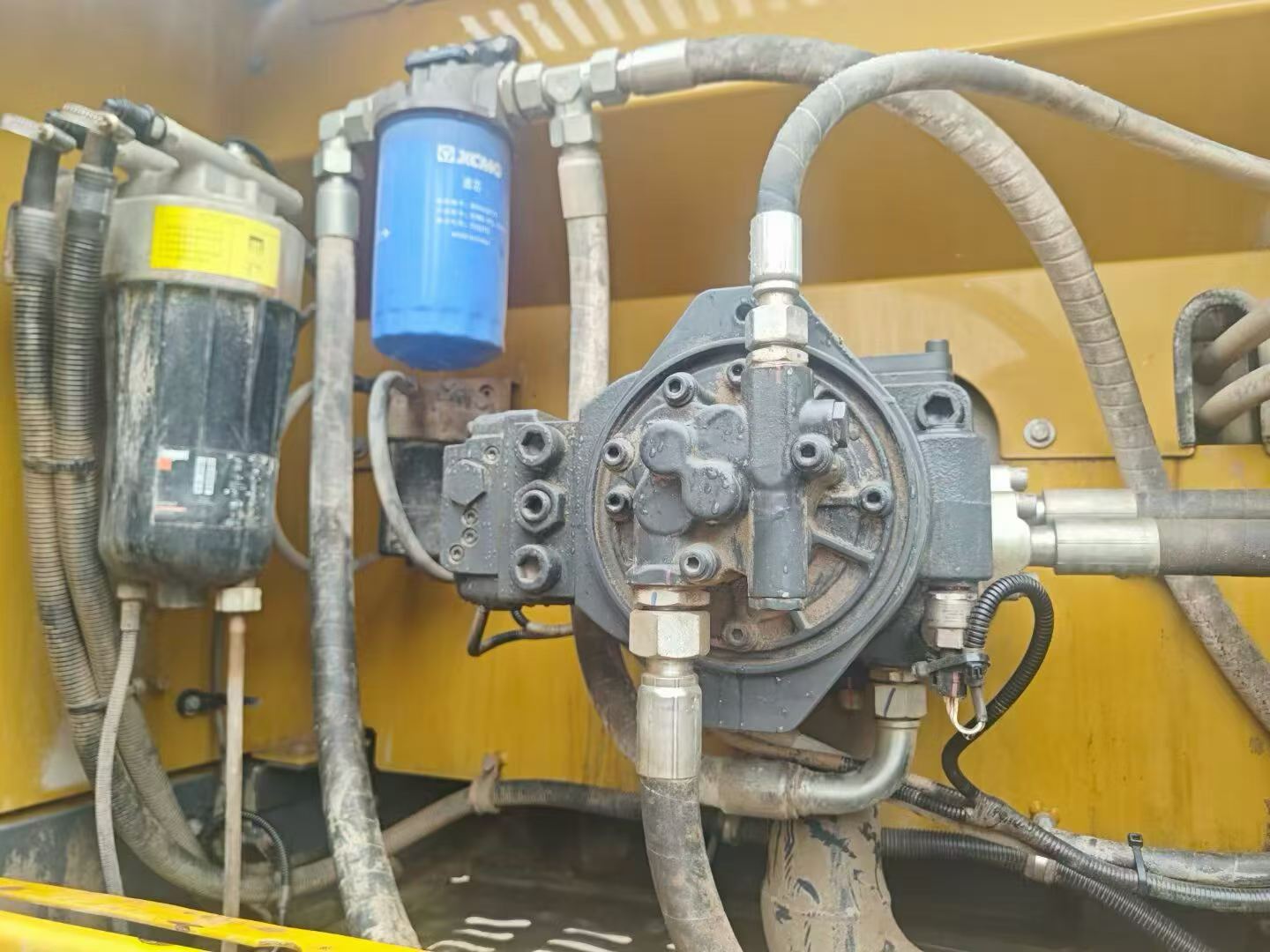

Buy XCMG XE380DK Used Excavator / 5

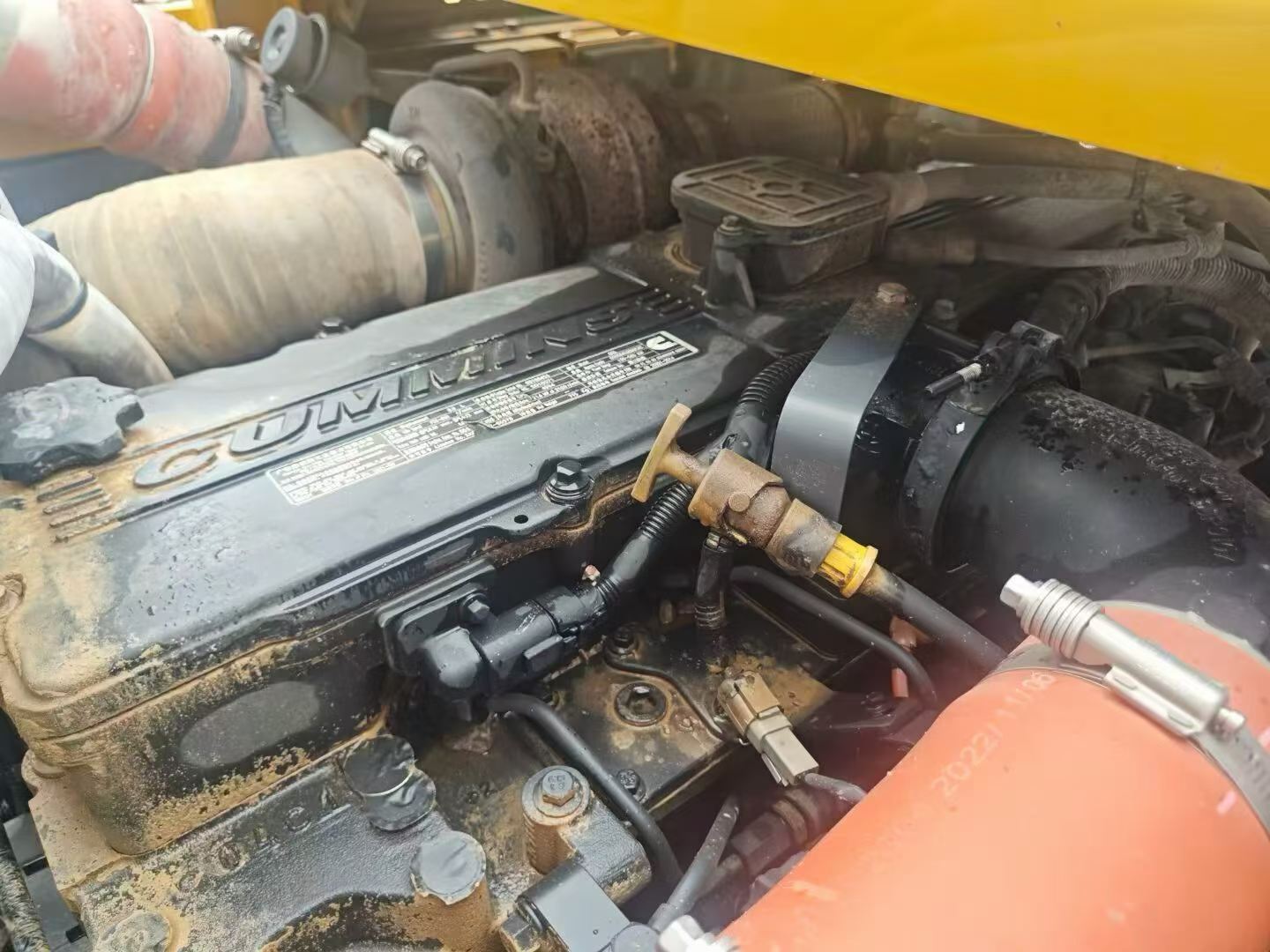

Buy XCMG XE380DK Used Excavator / 6

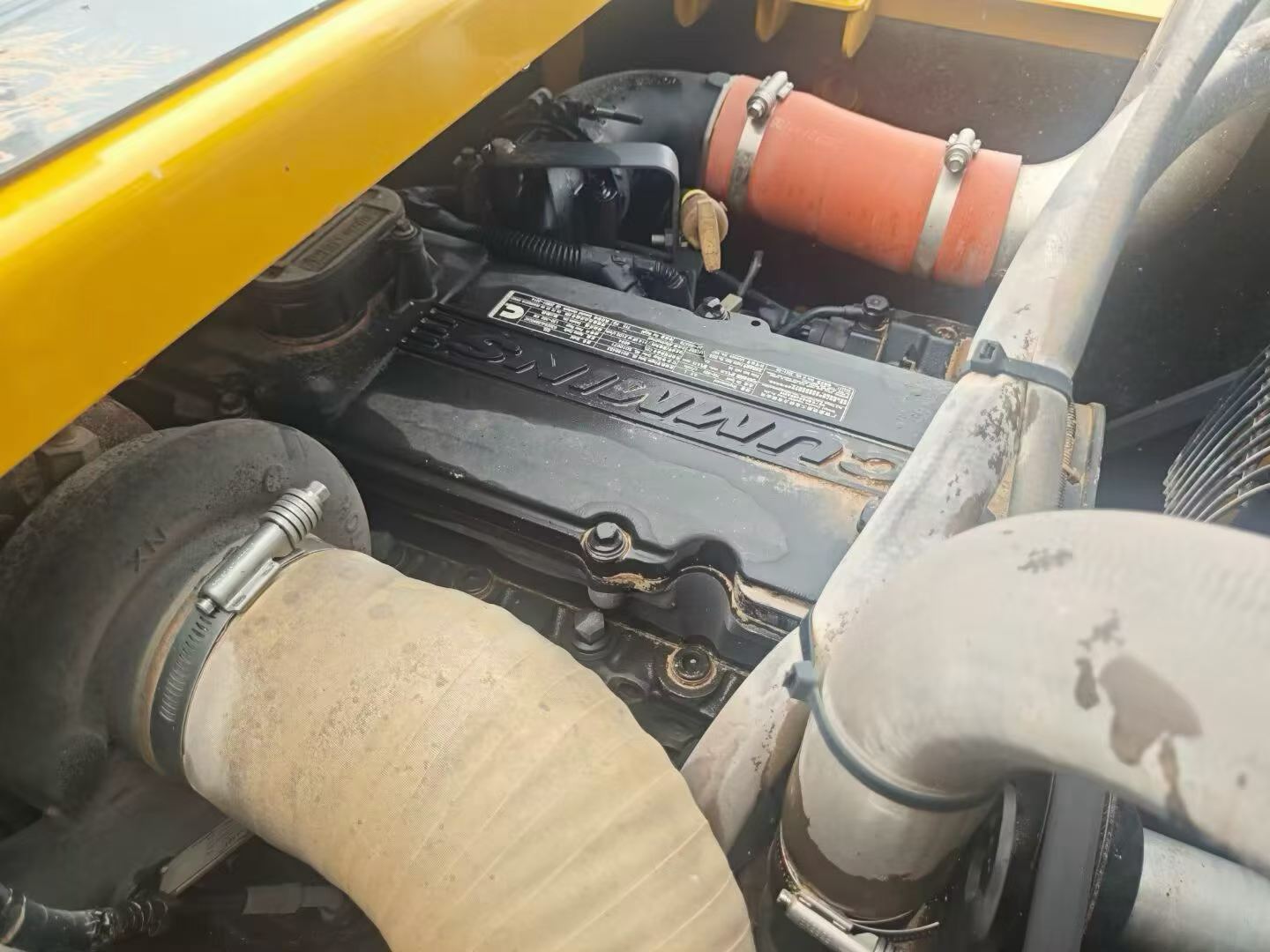

Buy XCMG XE380DK Used Excavator / 7

Product Description

Available in Chongqing, China: 2023 XCMG XE380DK hydraulic excavator with approximately 4,000+ operating hours. This mid-life machine has been in active service on construction sites and is offered with on-site verification available for qualified buyers.

The XE380DK is a 38-ton class excavator designed for heavy earthmoving, demolition, and infrastructure projects. XCMG's proven hydraulic system and reinforced undercarriage deliver consistent performance in demanding applications.

  • Year: 2023
  • Model: XCMG XE380DK
  • Hours: 4,000+
  • Location: Chongqing, China
  • Condition: Used, site-verified

Suitable for contractors and fleet operators seeking a late-model excavator with documented field use. Inspection recommended prior to purchase. Contact us for detailed specifications, service records, and shipping options.

SpecificationsValue
No.1145249
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
see more

Overview

No.1145249

Brand Name:

XCMG

Model Number:

XE380DK

Year:

2023

Location:

Chongqing China

Pub Date
