Product Description

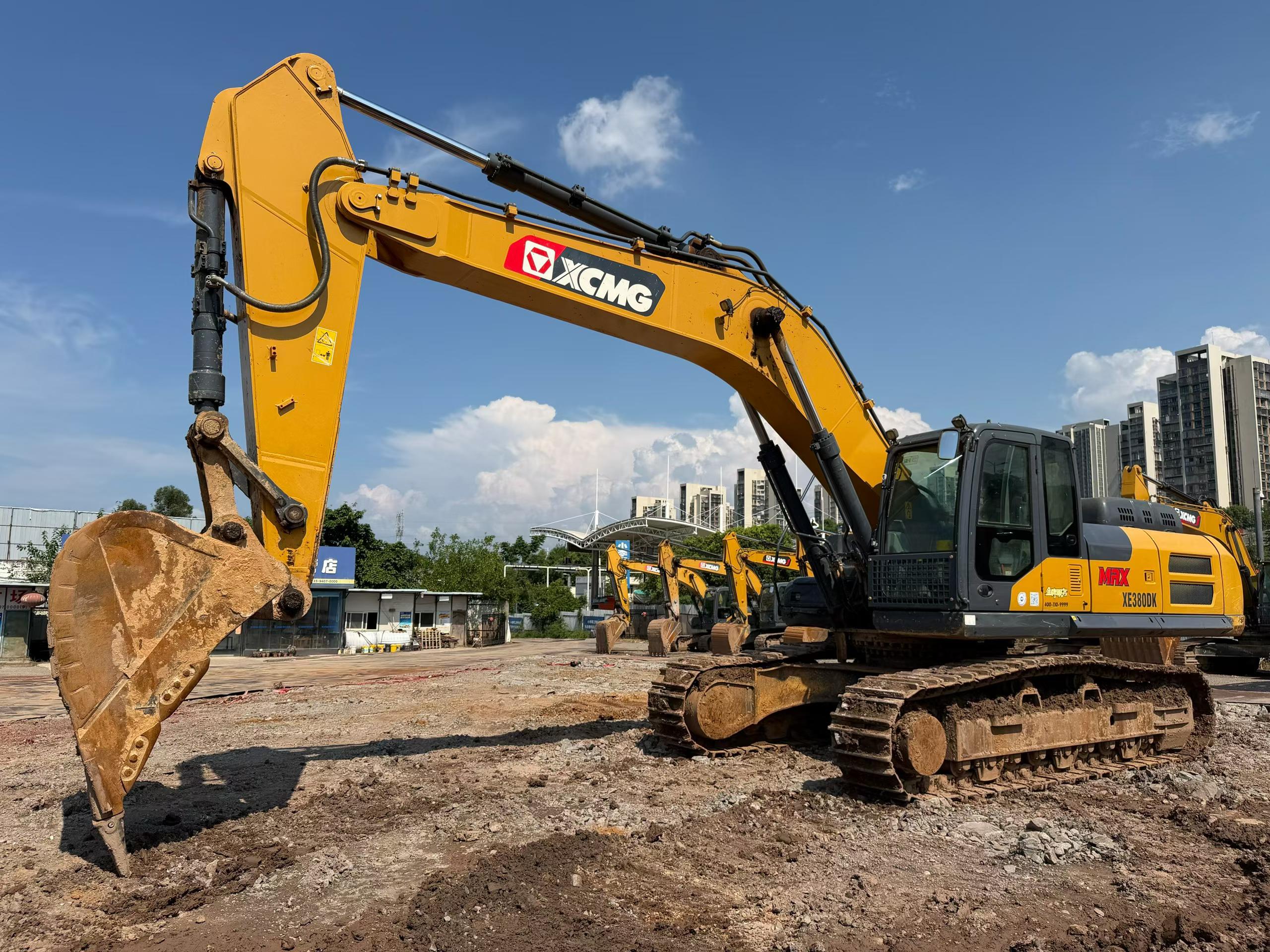

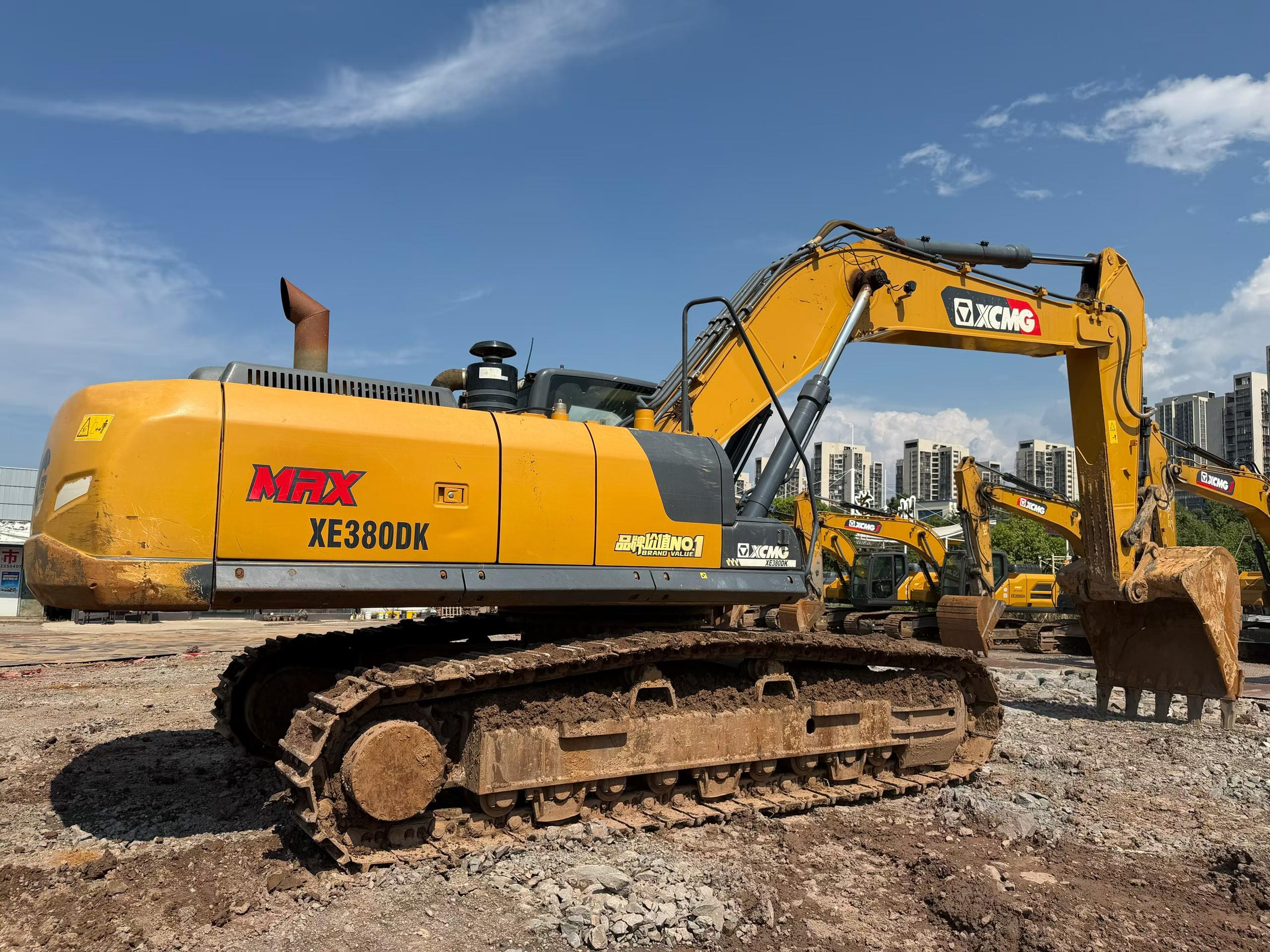

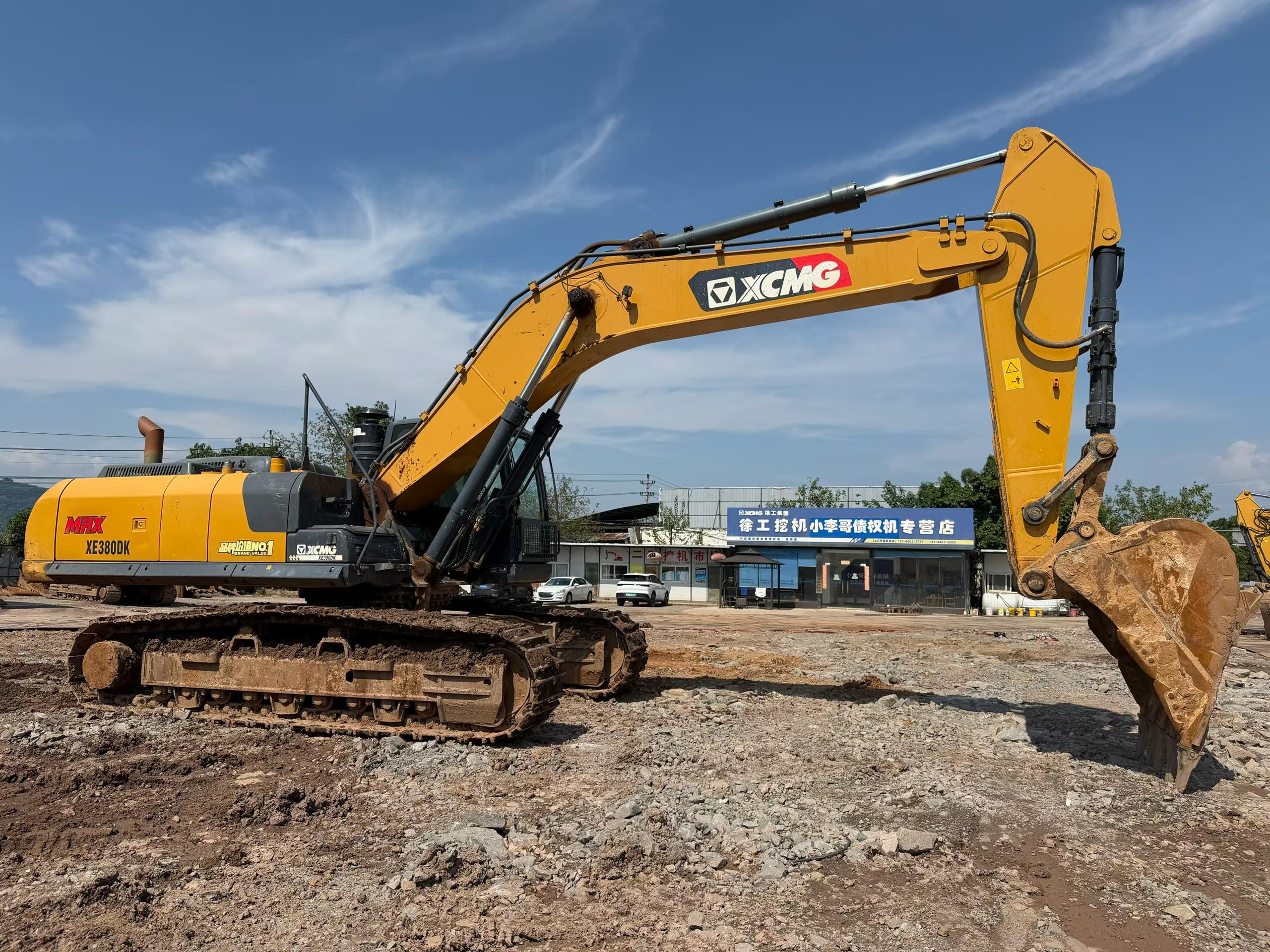

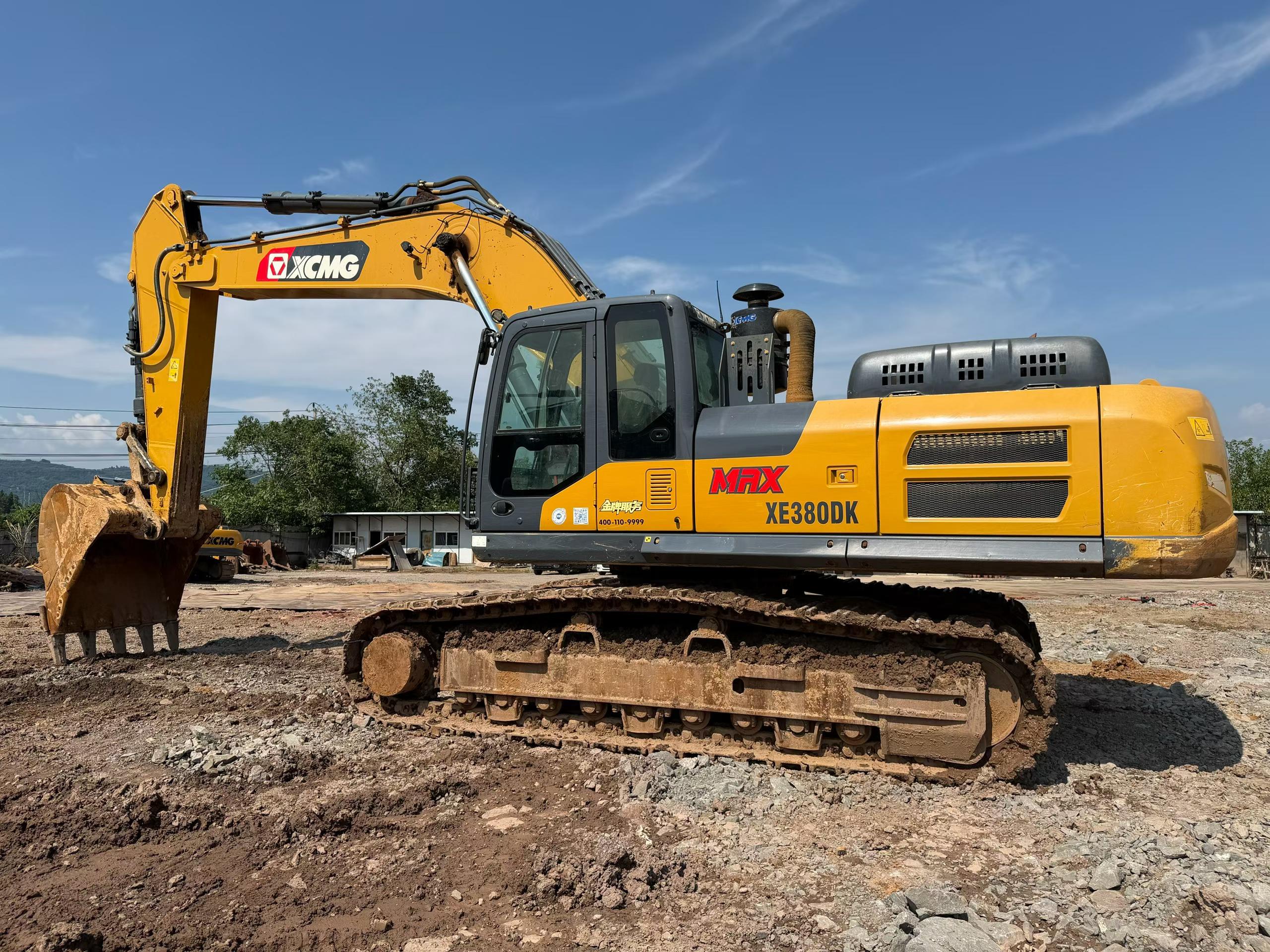

Offered from our Chongqing yard: a 2023 XCMG XE380DK, a 38-tonne-class hydraulic excavator built for production earthmoving. This is a dedicated bulk-excavation unit — no breaker, shear or attachment history — supplied through our receivables-backed stock, so ownership documents and title transfer are handled openly from the first enquiry.
Year: end of 2023, XCMG XE380DK
Class: 38-tonne excavator, standard digging configuration
Duty: mass excavation, trenching and truck loading
Condition: running performance offered without reservation; physical inspection welcome
Location: Chongqing, China — viewing by appointment
Terms: available for rent or outright purchase, with instalment financing supported
Machine hours, undercarriage readings and service history can be released on request. We encourage buyers to inspect in person or appoint an independent surveyor before committing. Loading, export documentation and onward shipping can be arranged for overseas clients. Contact us for current pricing, availability and a full condition report.
| Specifications | Value |
|---|---|
| No. | 1157606 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
