Name: Used Excavators 2016 XCMG XE40
Brand: XCMG
SKU: USED-1039450
Availability: InStock
Rating: 4.5 (04 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

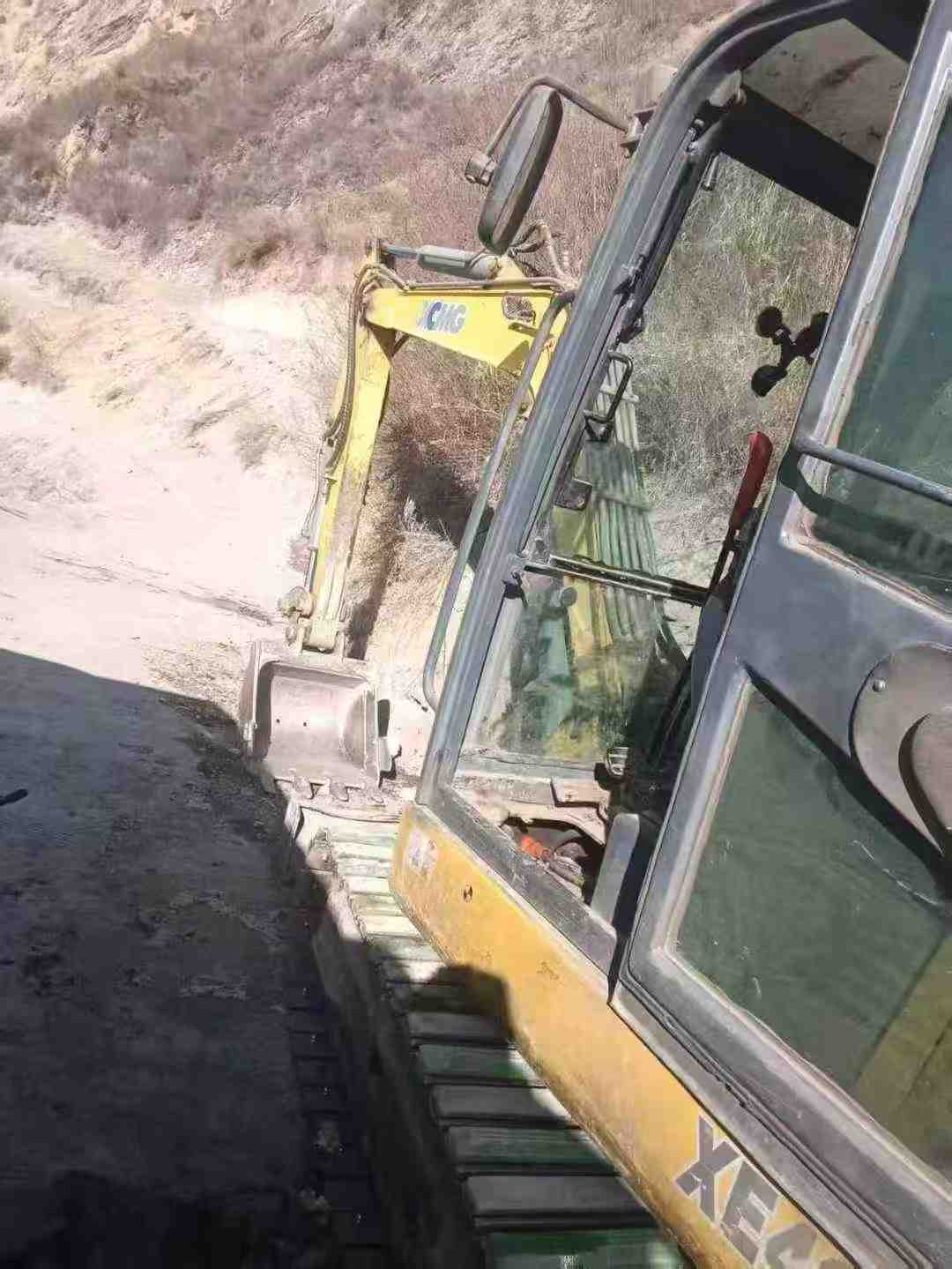

Built for precision work in confined spaces, this 2016 XCMG XE40 mini excavator delivers reliable performance with a 4-ton operating weight and Yanmar 4TNV88 engine producing 27.1 kW at 2200 rpm. Operators benefit from responsive hydraulic controls powered by a Japanese Fujikoshi variable pump system, ensuring smooth simultaneous movements during digging and material handling tasks.

Designed with stability in mind, the machine features a 1335 mm track gauge and 1721 mm ground contact length, distributing weight evenly across 300 mm-wide steel tracks for just 23.6 kPa ground pressure. The compact 1650 mm transport width allows access through standard gates while maintaining a robust 30° climbing capability on sloped terrain.

Key operator-focused specifications include:
<ul>
<li>Maximum digging reach of 5810 mm with 3600 mm depth capability</li>
<li>Bucket digging force of 23.2 kN and stick force of 19.3 kN for tough soil conditions</li>
<li>13.5 rpm swing speed with plunger hydraulic motor for controlled positioning</li>
<li>Dual travel speeds (4.2/2.6 km/h) for efficient site navigation</li>
<li>Minimal 2385 mm front turning radius for tight-quarter maneuverability</li>
</ul>

Currently located in Luzhou, Sich

Sourced from Jiangsu, this 2020 XCMG XE75WD represents a strategic investment in proven construction machinery. Operating at 6 tons with a 0.3m³ backhoe bucket capacity, this wheeled excavator delivers 48kW at 2200rpm through advanced hybrid power technology. Bucket digging force reaches 35.9kN, providing reliable performance for urban construction and utility projects.

XCMG's position as China's leading construction equipment manufacturer translates directly into ownership advantages. Parts availability remains exceptional across domestic and international markets, minimizing downtime and reducing long-term operating costs. The brand's extensive dealer network ensures technical support accessibility, while strong resale values protect your capital investment.

<ul>
<li>6-ton capacity with hybrid power efficiency</li>
<li>0.3m³ bucket capacity, 35.9kN digging force</li>
<li>Rated power: 48kW/2200rpm</li>
<li>Comprehensive parts network across China</li>
<li>Strong secondary market demand</li>
<li>Manufactured 2020, Jiangsu origin</li>
</ul>

Built by a manufacturer with decades of engineering expertise, this XE75WD combines operational capability with the financial security of investing in equipment backed by China's

XCMG XE75WD

Proven on job sites worldwide, this 2014 Kobelco SK210 excavator delivers the reliability contractors demand from a trusted joint venture manufacturer. Operating at 21 tons with traditional power, this backhoe-equipped machine combines Japanese engineering precision with practical field performance. Currently located in Dezhou, Shandong, it represents a strategic investment backed by Kobelco's reputation for longevity and consistent resale value.

Why Kobelco remains a smart choice for used equipment buyers:
<ul>
<li>Extensive parts network across Asia and global markets ensures minimal downtime</li>
<li>Strong secondary market demand protects your investment over time</li>
<li>Joint venture manufacturing quality delivers durability beyond typical machine lifecycles</li>
<li>Simplified maintenance protocols reduce operating costs compared to competitors</li>
<li>Proven hydraulic systems with readily available service documentation</li>
</ul>

Built for contractors who calculate total cost of ownership, not just purchase price, this SK210 offers the performance consistency and parts accessibility that keep projects on schedule and budgets intact.

Kobelco SK210

Strengthen your excavator fleet with this 2013 Volvo EC140, a proven 14-ton workhorse built for contractors who demand operational continuity. Powered by Volvo's traditional diesel platform and backed by joint venture manufacturing standards, this backhoe-configured unit delivers consistent performance across demolition, trenching, and site preparation tasks. Currently stationed in Jiangsu, this machine offers immediate deployment potential for operations requiring reliable backup capacity or fleet expansion without capital equipment premiums.

<ul>
<li>Operational Class: 14-ton mid-size excavator ideal for utility work and general construction</li>
<li>Power System: Traditional diesel engine providing field-proven reliability</li>
<li>Manufacturing Origin: Joint venture/Import build quality with global service network access</li>
<li>Configuration: Backhoe setup for versatile digging and loading applications</li>
<li>Fleet Role: Perfect as standby equipment during maintenance cycles or to handle overflow projects without scheduling conflicts</li>
</ul>

Minimize downtime risks and maintain project timelines with a dedicated reserve unit. Thi

Volvo EC140

Built in 2018, this Doosan DX380LC-5 excavator delivers 38 tons of proven performance backed by one of the industry's most reliable names in heavy equipment. Powered by a robust Scania DC09 5-cylinder engine, this machine generates 259 kN bucket digging force and 189 kN arm digging force—engineered for demanding earthmoving and site development projects. Currently located in Jiangsu, China, this joint venture/import model offers exceptional parts availability and strong resale value, making Doosan a smart investment in the used equipment market.

<ul>
<li>Operating weight: 40,200 kg with maximum digging reach of 11,170 mm</li>
<li>Dual main pumps deliver 2 × 350 l/min for responsive hydraulic power</li>
<li>Maximum digging depth: 7,460 mm; maximum digging height: 10,390 mm</li>
<li>Transport dimensions: 11,280 mm (L) × 3,350/3,000 mm (W) × 3,390 mm (H)</li>
<li>Maximum tractive force: 397 kN for superior grading and dozing capability</li>
<li>Backed by extensive global parts network and proven Doosan durability</li>
</ul>

Doosan DX380LC-5

Expand your operational capacity with this 2012 Hitachi EX70 mini excavator, currently located in Lianyungang, Jiangsu. Designed as a reliable fleet addition, this 7-ton machine delivers consistent performance for contractors managing multiple job sites simultaneously. Powered by traditional fuel systems and backed by joint venture manufacturing standards, this unit integrates seamlessly into existing equipment rosters without specialized training requirements.

<ul>
<li>Operating weight: 7 tons</li>
<li>Bucket capacity: 0.4 m³ backhoe configuration</li>
<li>Traditional power system for straightforward maintenance</li>
<li>Joint venture/Import manufacturing quality</li>
<li>Ideal backup unit for rental fleets and construction companies</li>
</ul>

Contractors facing equipment downtime or seasonal demand spikes will appreciate this machine's plug-and-play versatility. The EX70's compact footprint and proven Hitachi engineering reduce operational disruptions while maintaining productivity across urban construction, landscaping, and utility projects. Ready for immediate deployment in your existing fleet rotation.

Hitachi EX70

With a working weight of 34,900 kg and a tonnage of 35 tons, the 2016 Kobelco SK350-8, located in Jiangsu, stands as a robust choice for demanding projects. Designed with the operator in mind, this excavator ensures smooth handling and exceptional stability, even on uneven terrains. The cabin offers unparalleled visibility, enhancing safety and efficiency during operation. Equipped with a backhoe bucket and powered by traditional power sources, this machine is a reliable asset from a joint venture/import manufacturer. Ideal for operators who prioritize control and comfort, the SK350-8 delivers consistent performance and durability.

Kobelco SK350-8

Backed by one of China's most established heavy machinery manufacturers, this 2021 XCMG XE215DA hydraulic excavator delivers proven performance with the security of global parts support. Operating at 21 tons with a robust QSB7 engine producing 135kW at 2050 rpm, this machine combines reliability with the serviceability that keeps your operations running. XCMG's extensive dealer network ensures replacement components remain accessible worldwide, protecting your investment and minimizing downtime risks common with lesser-known brands.

Key specifications include:
<ul>
<li>Maximum digging reach: 9,940mm with 6,680mm depth capability</li>
<li>Bucket capacity: 1.05m³ with 149kN digging force</li>
<li>Dual main pumps: 2×216 L/min for responsive hydraulics</li>
<li>Water-cooled 6-cylinder engine: 6.7L displacement, turbocharged with air-to-air intercooling</li>
<li>Travel speeds: 5.4/3.1 km/h with 35% grading ability</li>
<li>Fuel capacity: 400L for extended operation</li>
</ul>

Currently located in Wenzhou, Zhejiang, this well-maintained excavator represents smart buying in the used market. XCMG equipment consistently holds resale value due to brand recognition and parts longevity—critical factors when calculating total own

XCMG XE215DA

Designed for precision work in confined spaces, this 2016 Hitachi EX70 mini excavator delivers exceptional operator control across diverse jobsites. Operating at 7 tons with a 0.4 m³ backhoe bucket, this joint venture model combines proven traditional power with intuitive handling characteristics that reduce fatigue during extended shifts. Located in Wenzhou, Zhejiang, this machine offers the responsive hydraulics and compact footprint contractors depend on for urban construction and utility projects.

<ul>
 <li>Enhanced cabin visibility provides clear sightlines to bucket edge and surrounding obstacles</li>
 <li>Stable platform ensures smooth operation on uneven terrain and slopes</li>
 <li>Ergonomic control layout minimizes hand and arm strain during repetitive cycles</li>
 <li>Reduced tail swing radius improves maneuverability in tight working environments</li>
 <li>Traditional power system delivers reliable performance with straightforward maintenance</li>
</ul>

Operators appreciate the balanced weight distribution and predictable swing behavior that enable accurate trenching and loading work. Suitable for landscaping, foundation work, and municipal maintenance applications requiring both finesse and productivity.</

Built for operators who demand precision and endurance, the 2019 Kobelco SK260LC-8 is a 26-ton hydraulic excavator engineered in Japan and now available from Jiangsu, China. Powered by a Hino J05E four-cylinder, water-cooled turbocharged engine producing 131 kW at 2,100 rpm, this machine delivers consistent performance across demanding jobsites. The spacious, low-vibration cab offers wide-angle visibility and intuitive pilot controls, reducing operator fatigue during extended shifts. Standard hydraulic crushing pipelines add versatility straight from the factory.

<ul>
 <li>Engine: Hino J05E | 131 kW / 2,100 rpm | 5.123L displacement | Turbocharged, intercooled, direct injection</li>
 <li>Operating Weight: 25,200 kg | Bucket Capacity: 1.3 m³</li>
 <li>Digging Force: Bucket 170 kN | Arm 119 kN</li>
 <li>Maximum Digging Depth: 7,000 mm | Maximum Digging Radius: 10,310 mm</li>
 <li>Travel Speed: 3.6 / 5.8 km/h | Gradeability: 70% (35°)</li>
 <li>Main Pump: Dual variable displacement axial piston pumps | Max flow: 2 × 246 L/min</li>
 <li>Track Width: 600 mm | Transport Dimensions: 10,120 × 3,190 × 3,200 mm</l

Kobelco SK260LC-8

Engineered with Komatsu's renowned SAA6D102E-2 engine delivering 107kW of rated power, this PC200-7 excavator represents proven hydraulic excellence in the 20-ton class. Dual variable piston pumps provide 428 L/min combined flow, driving a bucket digging force of 149kN and rod force of 145kN—numbers that translate to reliable performance across demanding applications. The 5.883L water-cooled, direct-injection powerplant pairs with advanced hydraulic circuits (37.3MPa travel, 28.9MPa swing) to deliver consistent productivity.

Built in 2016 and currently located in Wenzhou, Zhejiang, this joint-venture manufactured machine features a 0.8m³ backhoe bucket and adjustable rod lengths (1840/2410mm) for operational versatility. Key performance specifications include a maximum digging reach of 9380mm, depth capacity of 5380mm, and travel speed of 12.4 km/h. The PC200-7 series has earned its reputation through robust construction, with a 20,253kg working weight providing stability while maintaining a compact 3000mm transport width.

<ul>
<li>Komatsu SAA6D102E-2 engine: 107kW, 5.883L displacement</li>
<li>Hydraulic system: Dual pumps, 428 L/min total flow</li>
<li>Digging forces: 149kN bucket, 145kN rod</li>
<li>Working envelope:

Komatsu PC200-7

Built in 2016, this PC200-7 represents Komatsu's proven engineering legacy in the 20-ton excavator class. Powered by the reliable SAA6D102E-2 engine delivering 107 kW, this machine combines a 0.8 m³ bucket capacity with 149 kN bucket digging force to handle demanding earthmoving operations. With a maximum digging depth of 5,380 mm and reach extending to 9,380 mm, it offers versatility across construction and infrastructure projects.

Komatsu's global parts network ensures minimal downtime—critical for used equipment buyers. As a joint-venture manufactured unit, this excavator maintains strong resale value thanks to the brand's reputation for durability and widespread dealer support. Currently located in Jiangsu, China, the PC200-7 features robust hydraulics with dual 214 l/min main pumps and a 400-liter fuel capacity for extended work cycles.

Key Specifications:
<ul>
<li>Operating weight: 20,253 kg with water-cooled 5.9L engine</li>
<li>Transport dimensions: 9,480 × 3,000 × 2,985 mm</li>
<li>Maximum digging height: 9,800 mm</li>
<li>Variable piston pump hydraulic system</li>
</ul>

Engineered with precision hydraulics and proven power systems, this 2016 Sumitomo SH350-5 excavator delivers exceptional performance in demanding applications. At its core, the AH-6HK1XYSS engine generates 202 kW at 2000 rpm through a 7.79L displacement, providing robust torque characteristics for heavy-duty excavation work. The advanced hydraulic system operates at main overflow pressures of 34.3/37.3 MPa, enabling a bucket digging force of 229 kN and rod digging force of 164 kN.

This 35-ton machine combines reach and stability through intelligent design. With an operating weight of 35,200 kg and ground pressure of just 71 kPa, it maintains excellent flotation while achieving an impressive maximum digging radius of 11,170 mm and depth of 7,340 mm. The 1.2-1.8 m³ bucket capacity handles substantial material volumes efficiently.

Key Technical Specifications:
<ul>
<li>Maximum digging height: 10,370 mm with 7,230 mm dump clearance</li>
<li>Swing speed: 9.8 rpm for productive cycle times</li>
<li>Travel speeds: 5.5/3.5 km/h with 264 kN tractive force</li>
<li>580L fuel capacity and 350L hydraulic reservoir for extended operation</li>
<li>70% gradeability and 480 mm ground clearance</li>
</ul>

Cur

Sumitomo SH350-5

Built for the long haul, this 2016 Hitachi EX360-5 excavator stands as a proven workhorse in the heavy equipment sector. Operating at 36 tons with traditional power systems, this joint venture/import model delivers the reliability and performance that Hitachi's engineering legacy promises. Currently located in Wenzhou, Zhejiang, this backhoe-configured machine has demonstrated its durability through years of demanding jobsite conditions.

<ul>
<li>Year: 2016</li>
<li>Model: Hitachi EX360-5</li>
<li>Operating Weight: 36 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe</li>
<li>Manufacturer Origin: Joint venture/Import</li>
<li>Current Location: Wenzhou, Zhejiang, China</li>
</ul>

Designed to withstand rigorous excavation tasks, this EX360-5 represents a smart investment for contractors seeking dependable performance without compromise. Its track record speaks to Hitachi's commitment to building machines that endure.

Hitachi EX360-5

Proven performance meets legendary durability in this 2016 Komatsu PC210LC-7 excavator, sourced from Zhejiang, Wenzhou. Equipped with the reliable Komatsu SAA6D102E-2 engine delivering 107kW at 1950 rpm, this 21-ton workhorse combines a 0.96 m³ backhoe bucket with exceptional digging capabilities—reaching 9500mm in maximum excavation height and 8660mm in excavation radius. With 178.5kN bucket digging force and 5380mm maximum digging depth, it tackles demanding earthmoving projects with confidence.

Komatsu ownership delivers tangible advantages in the used equipment market:
<ul>
<li>Global parts network ensures minimal downtime and fast component sourcing</li>
<li>Superior resale value retention compared to competing brands</li>
<li>Joint venture manufacturing quality guarantees long-term reliability</li>
<li>Proven SAA6D102E-2 engine platform with extensive service history</li>
<li>Comprehensive specifications including 400L fuel capacity for extended operation</li>
</ul>

Operating weight of 21,305kg provides optimal stability while maintaining a 2800mm rear turning radius for confined job sites. Backed by Komatsu's reputation for engineering excellence, this PC210LC-7 represents a strategic investment in productivit

Komatsu PC210LC-7

Ready to deploy from 江苏 (Jiangsu), this 2018 Doosan DX75-9C mini excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a reliable Yanmar 4TNV98-EXS engine producing 39kW at 2200rpm, this 7.4-tonne machine combines compact dimensions with serious digging capability—53.4kN bucket force and 4,080mm maximum dig depth handle demanding trenching, utility work, and site prep with precision.

Compact transport dimensions (6,030mm length × 2,180mm width) ensure easy mobilization, while the 0.3m³ bucket capacity and 6,115mm maximum reach deliver versatile performance across confined urban sites and open terrain. Available now for fast shipment, this joint-venture excavator offers proven engineering without the delays of new equipment procurement.

<ul>
<li>7-ton class with 7,420kg working weight</li>
<li>Yanmar diesel: 39kW, naturally aspirated, 4-cylinder reliability</li>
<li>Maximum dig depth: 4,080mm | Reach: 6,115mm</li>
<li>Variable piston hydraulics with 3.9MPa control circuit</li>
<li>Dual travel speeds: 4.5km/h high / 2.8km/h low</li>
<li>Compact footprint: 2,180mm transport width</li>
<li>Located in 江苏—immediate availability, no lead time</li>
</ul>

Doosan DX75-9C

Proven performance meets intelligent value with this 2012 Sany SY195C excavator, currently located in Qingdao, Shandong. Engineered for mid-sized operations, this 19-ton machine delivers professional-grade capabilities at a fraction of new equipment costs. Powered by a robust 4M50 engine generating 118kW at 2000rpm, it combines 138kN bucket digging force with a maximum reach of 10,280mm and digging depth of 6,600mm. Operators benefit from a spacious cab, 340L fuel capacity for extended shifts, and reliable hydraulics backed by Sany's manufacturing standards.

<ul>
<li>Operating Weight: 20,900 kg with 0.8-1.1m³ bucket capacity</li>
<li>Performance: 580 N.m max torque, 70% climbing ability, 11rpm rotation speed</li>
<li>Reach & Depth: 10.28m digging radius, 6.6m digging depth, 9.6m dumping height</li>
<li>Efficiency: Dual travel speeds (5.4/3.3 km/h), 47.3 kPa ground pressure</li>
<li>Value Proposition: Factory-direct Chinese engineering, established track record, significantly lower acquisition cost than new alternatives</li>
</ul>

Smart buyers recognize quality used equipment as the strategic path to operational capability without premium pr

Specifications	Value
No.	1039450
Tonnage (tons)	4
Working weight (kg)	4050
Bucket capacity (m³)	0.14
Boom length (mm)	2795
Rod length (mm)	1600
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

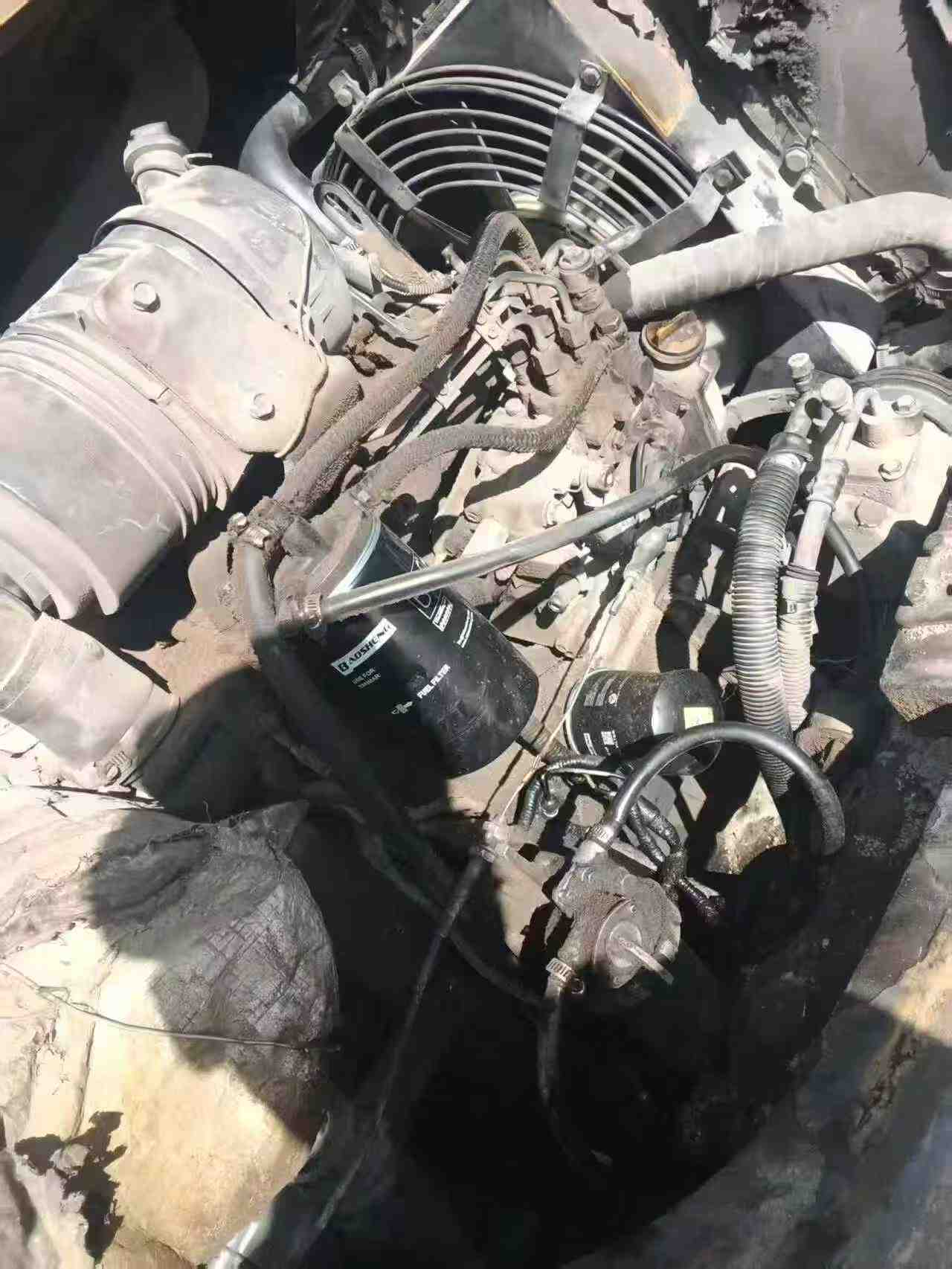

Engine type	Yanmar Yanmar 4TNV88
Rated power (kw/rpm)	27.1/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	2.19
Ground specific pressure (Kpa)	23.6
Rotation speed (rpm)	13.5
Climbing ability (%)	30 °
Bucket digging force (kN)	23.2
Rod digging force (kN)	19.3
Travel speed (km/h)	4.2/2.6
Main overflow set pressure (Mpa)	21
Rotary hydraulic motor type	Plunger hydraulic motor
Type of walking hydraulic motor	Plunger hydraulic motor
Maximum flow of main pump (l/min)	1*110+11
Traveling Hydraulic Circuit (Mpa)	21
Rotary Hydraulic Circuit (Mpa)	21
Hydraulic crushing pipeline is standard	no
Main pump type	Japan Fujikoshi variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	65
Engine Oil changes (L)	7.4
Hydraulic System (L)	70
Total transport length (mm)	5455
Total transport width (mm)	1650
Total transport height (mm)	2440
Counterweight ground clearance (mm)	578
Minimum ground clearance (mm)	350
Minimum turning radius of front working device (mm)	2385
Back end turning radius (mm)	1490
Track gauge (mm)	1335
Track plate width (mm)	300
Track ground length (mm)	1721
Maximum digging radius (mm)	5810
Maximum digging depth (mm)	3600
Maximum excavation height (mm)	5320
Maximum unloading height (mm)	3700
Maximum vertical digging depth (mm)	2250
Bulldozer lift or depth (mm)	267/365
Dodging plate width × height (mm)	1650 x 300

2016 XCMG XE40
