Product Description

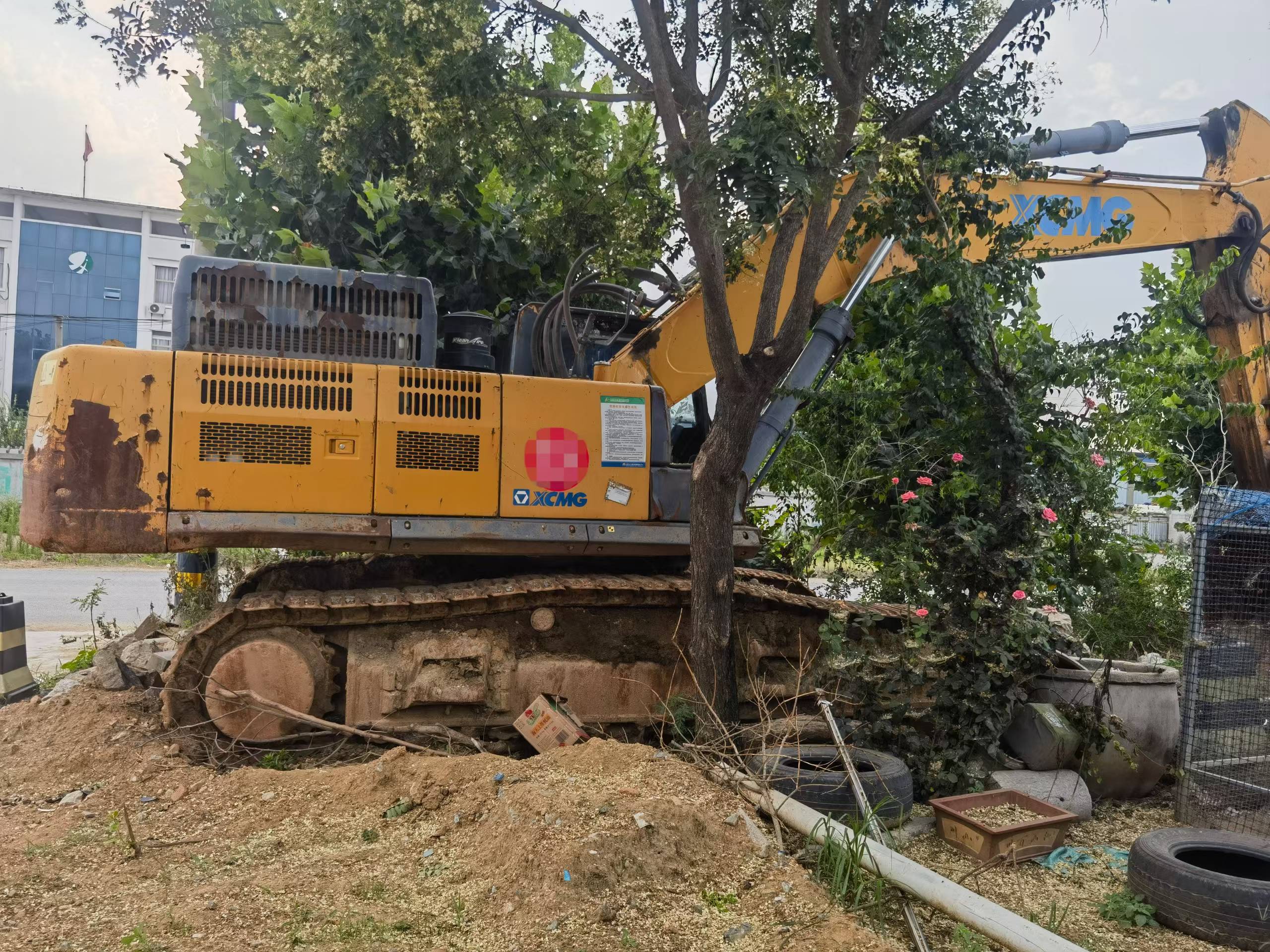

Ready to ship from Shandong, China — this 2017 XCMG XE470D 47-ton excavator puts serious digging power in your hands without the factory wait. Skip the lead times and get a proven, large-class machine deployed to your site fast.
Powered by a Cummins QSM11 6-cylinder engine producing 250 kW at 2,000 RPM, this backhoe excavator delivers a bucket digging force of 287 kN and a maximum tractive force of 338 kN. With a 2.2–2.6 m³ bucket capacity and a maximum digging depth of 7,845 mm, it is built for high-volume earthmoving, deep foundation work, and demanding civil construction projects.
- Working Weight: 46,900 kg | Bucket Capacity: 2.2–2.6 m³

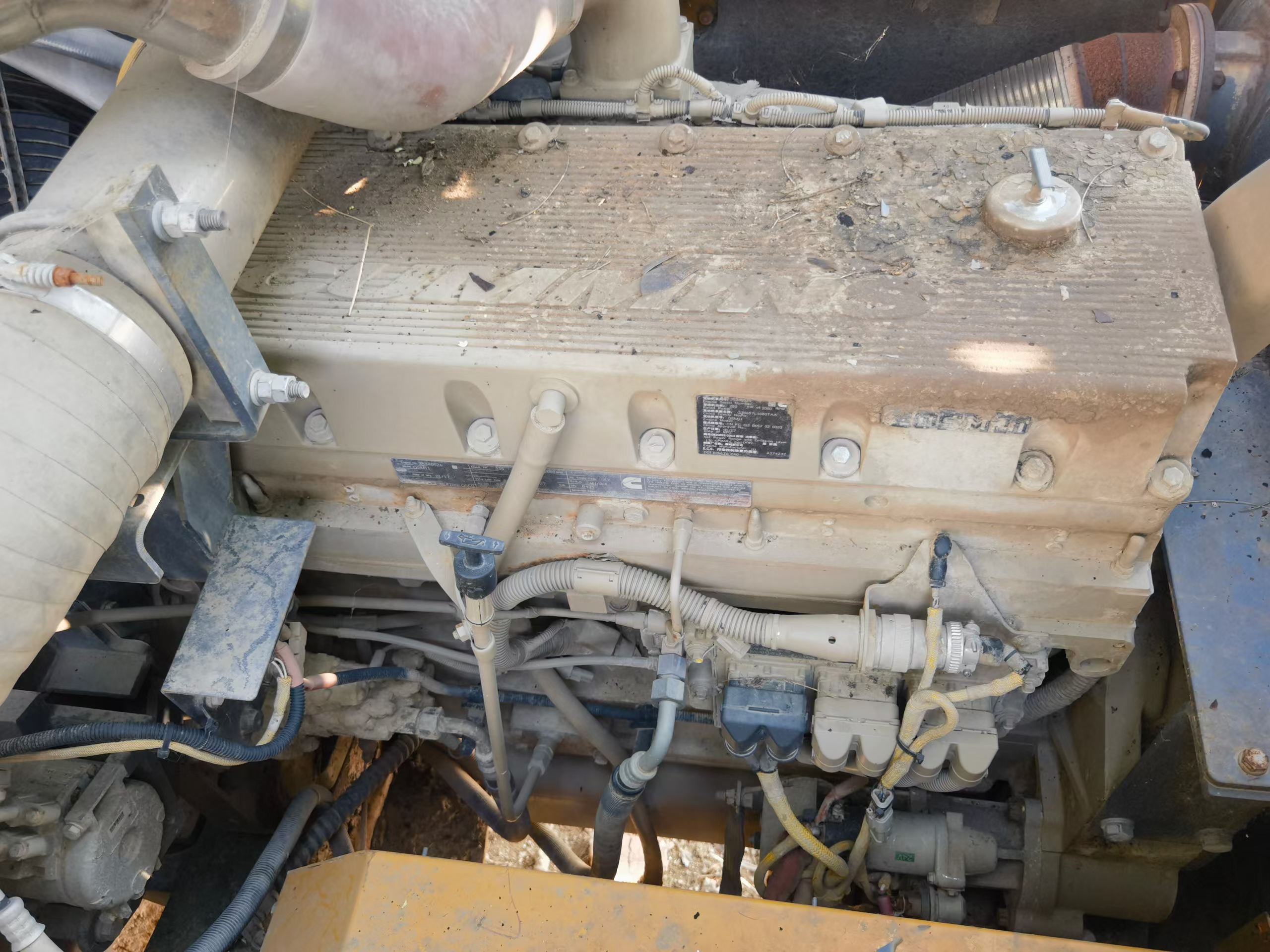

- Engine: Cummins QSM11 | 250 kW / 2,000 RPM | 11L Displacement
- Max Digging Depth: 7,845 mm | Max Digging Radius: 12,066 mm
- Bucket Digging Force: 287 kN | Rod Digging Force: 221 kN
- Max Tractive Force: 338 kN | Climbing Ability: 70%
- Main Pump Flow: 2 × 360 L/min | Fuel Tank: 725 L
- Travel Speed: 5.4 / 3.2 km/h | Ground Pressure: 83 kPa
- Transport Dimensions: 12,090 × 3,582 × 3,860 mm
- Location: Shandong, China — Available Now
Sourced directly from Shandong, this XE470D is inspected, available immediately, and positioned for efficient export logistics worldwide. Contact Fair Trade Machinery today to confirm availability and shipping timelines.
| Specifications | Value |
|---|---|
| No. | 1126026 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 46900 |
| Bucket capacity (m³) | 2.2-2.6 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM11 |
| Rated power (kw/rpm) | 250/2000 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 221 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12090 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3860 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4818 |
| Back end turning radius (mm) | 3665 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 12066 |
| Maximum digging depth (mm) | 7845 |
| Maximum excavation height (mm) | 10848 |
| Maximum unloading height (mm) | 7569 |
| Maximum vertical digging depth (mm) | 6870 |
