Product Description

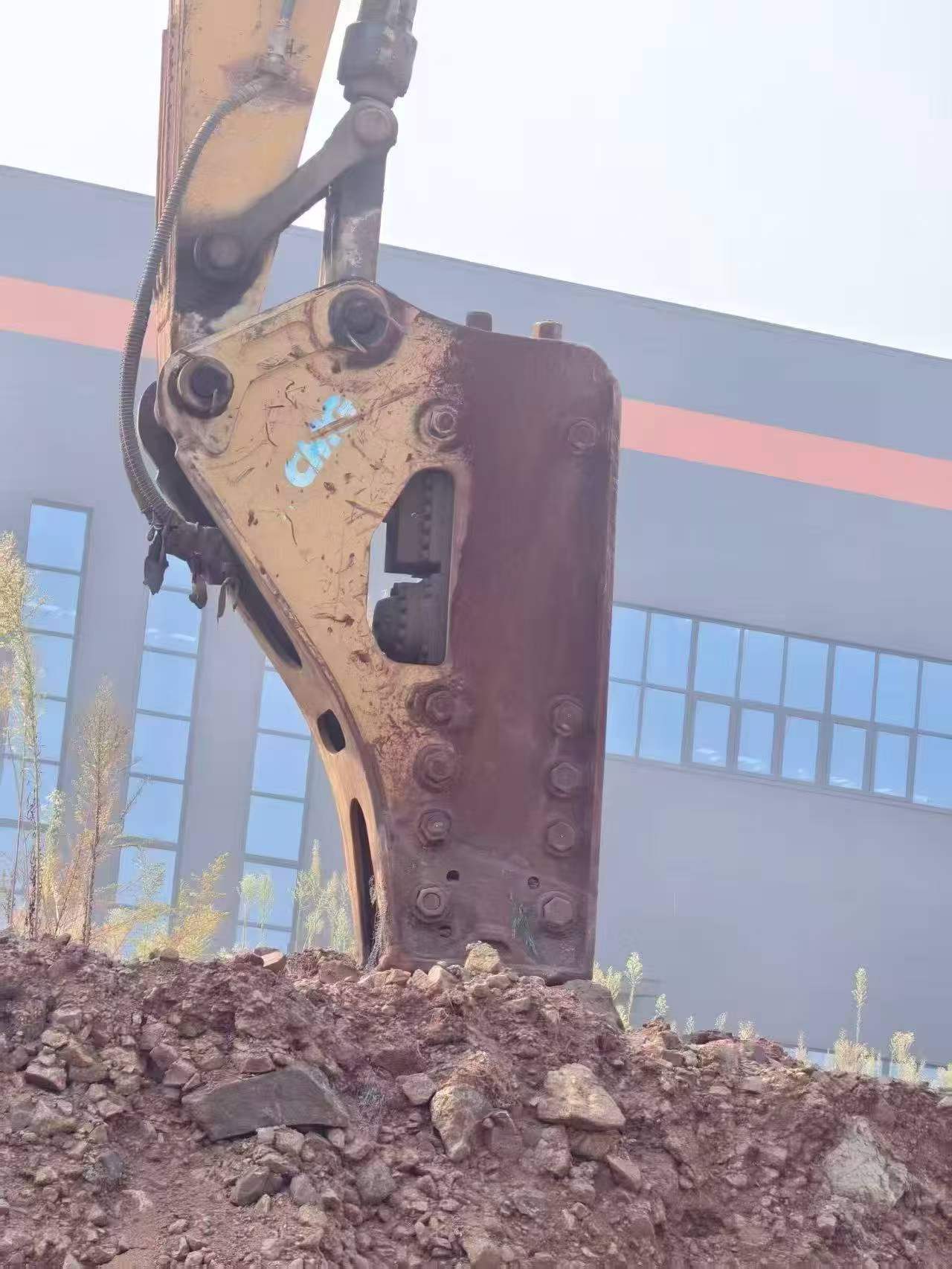

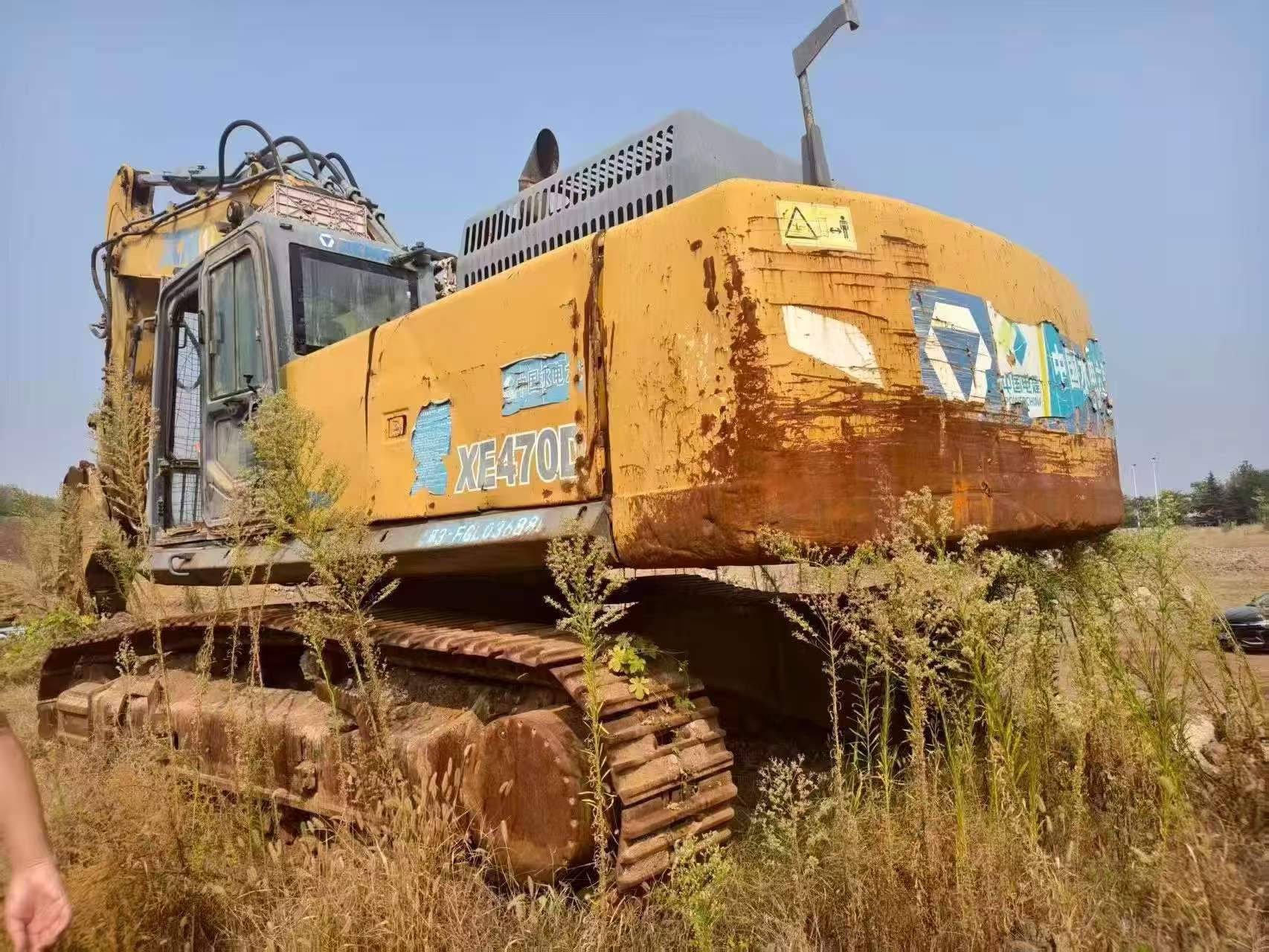

2017 XCMG XE470D hydraulic excavator available for immediate inspection in Shandong, China. This original-specification machine comes equipped with a bucket and includes an Eddie 195 hydraulic breaker attachment, expanding operational versatility for demolition and breaking applications.
The XE470D represents XCMG's heavy-duty excavator lineup, engineered for demanding earthmoving and construction projects. This unit maintains its factory configuration without modifications, ensuring compatibility with OEM parts and service protocols.
- Manufacturing Year: 2017
- Model: XCMG XE470D
- Current Location: Shandong Province, China

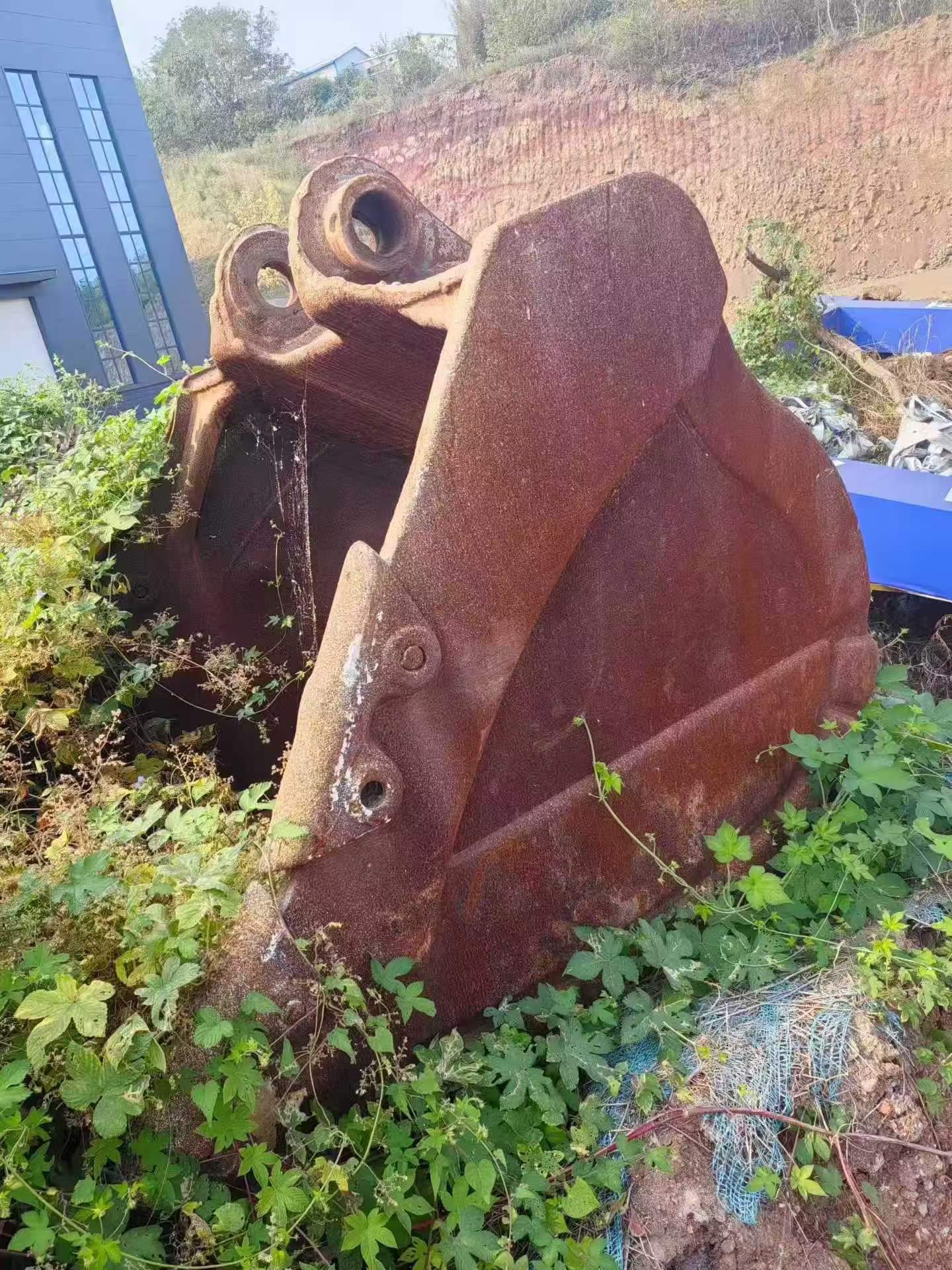

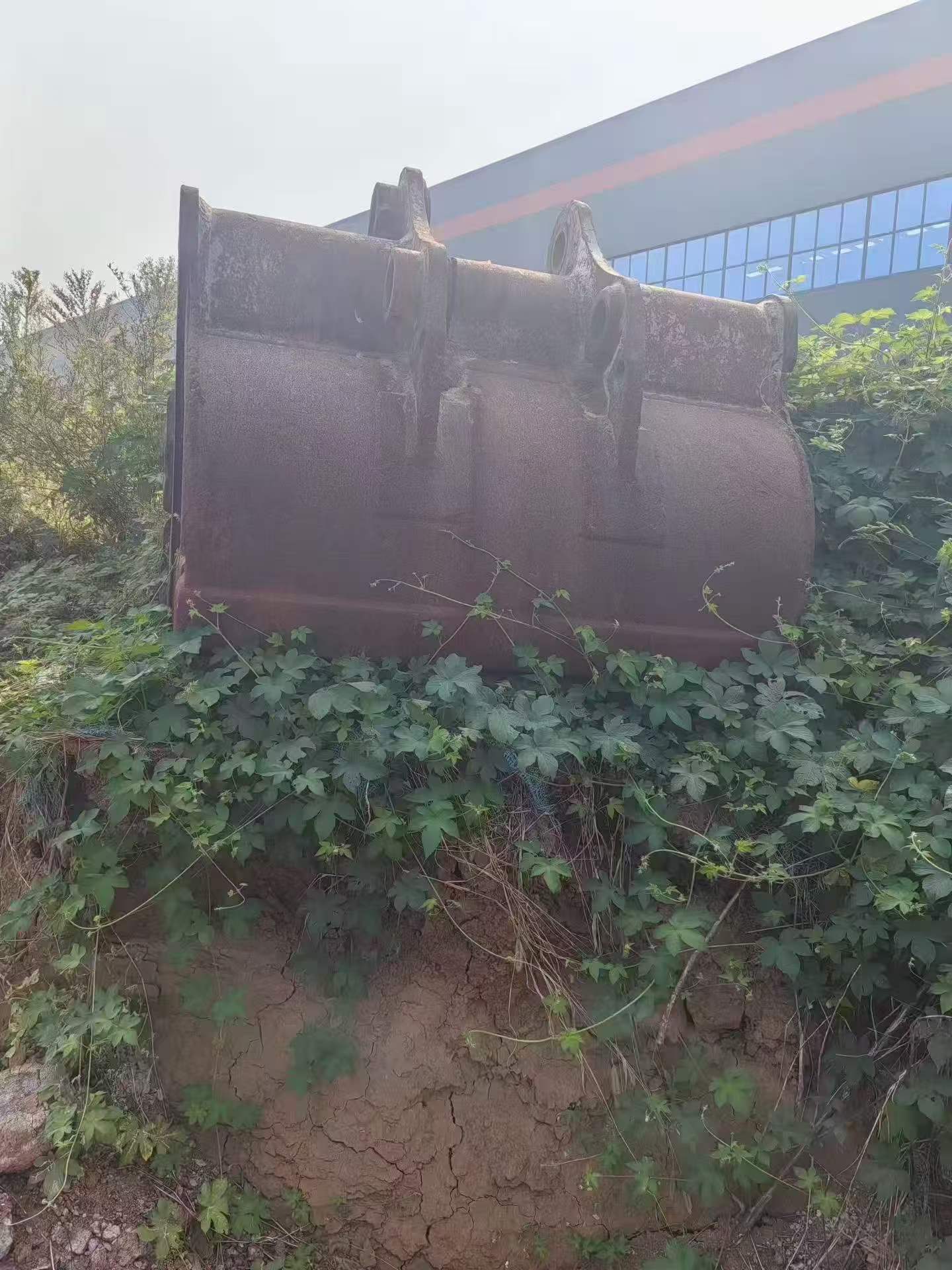

- Included Equipment: Standard excavator bucket, Eddie 195 hydraulic hammer
- Condition: Original factory specifications maintained
- Availability: Ready for on-site viewing
Suitable for contractors and operators requiring proven hydraulic excavation capacity with immediate attachment utility. Contact for inspection scheduling and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1156957 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 46900 |
| Bucket capacity (m³) | 2.2-2.6 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

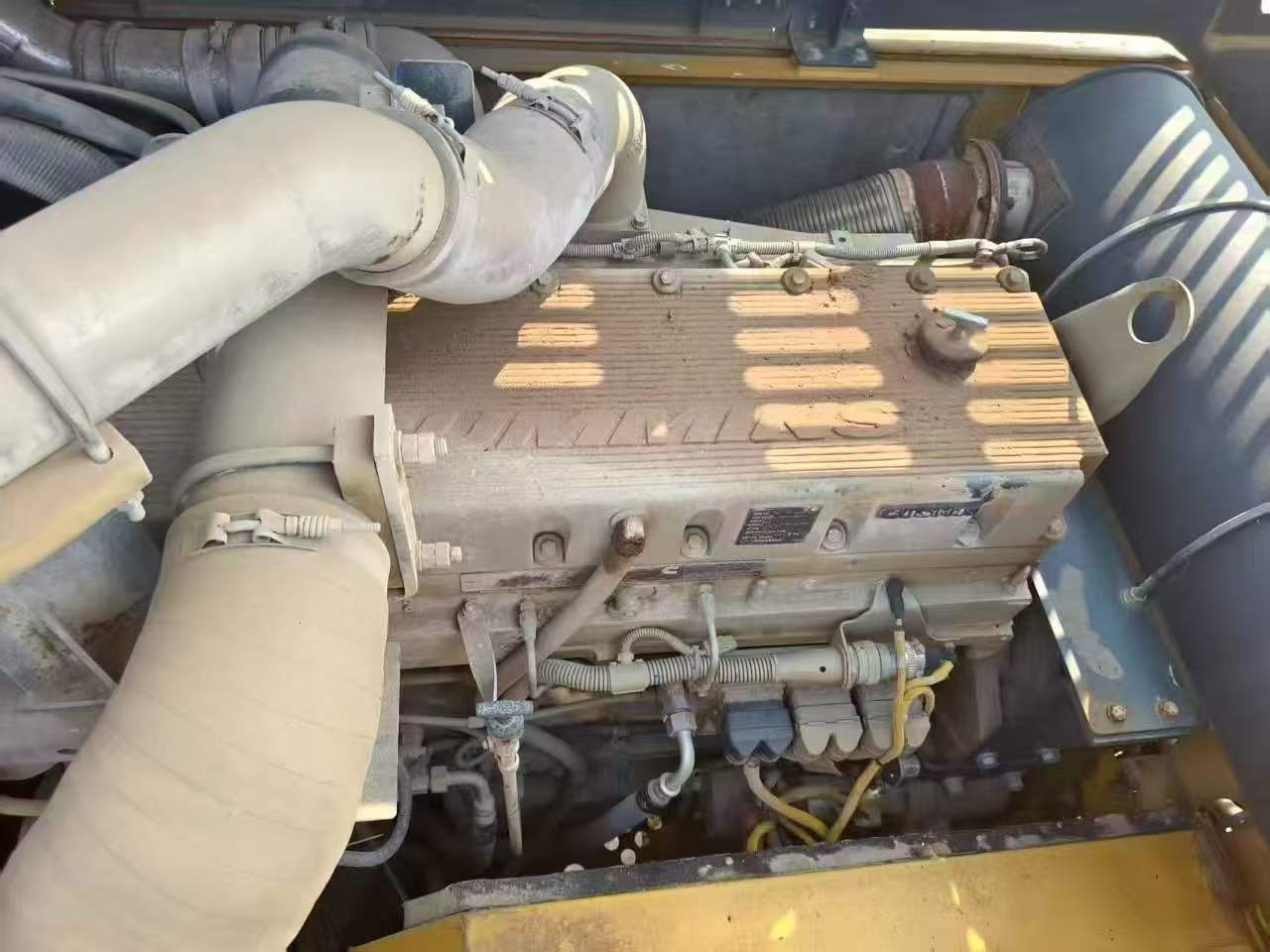

| Engine type | QSM11 |
| Rated power (kw/rpm) | 250/2000 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 221 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |

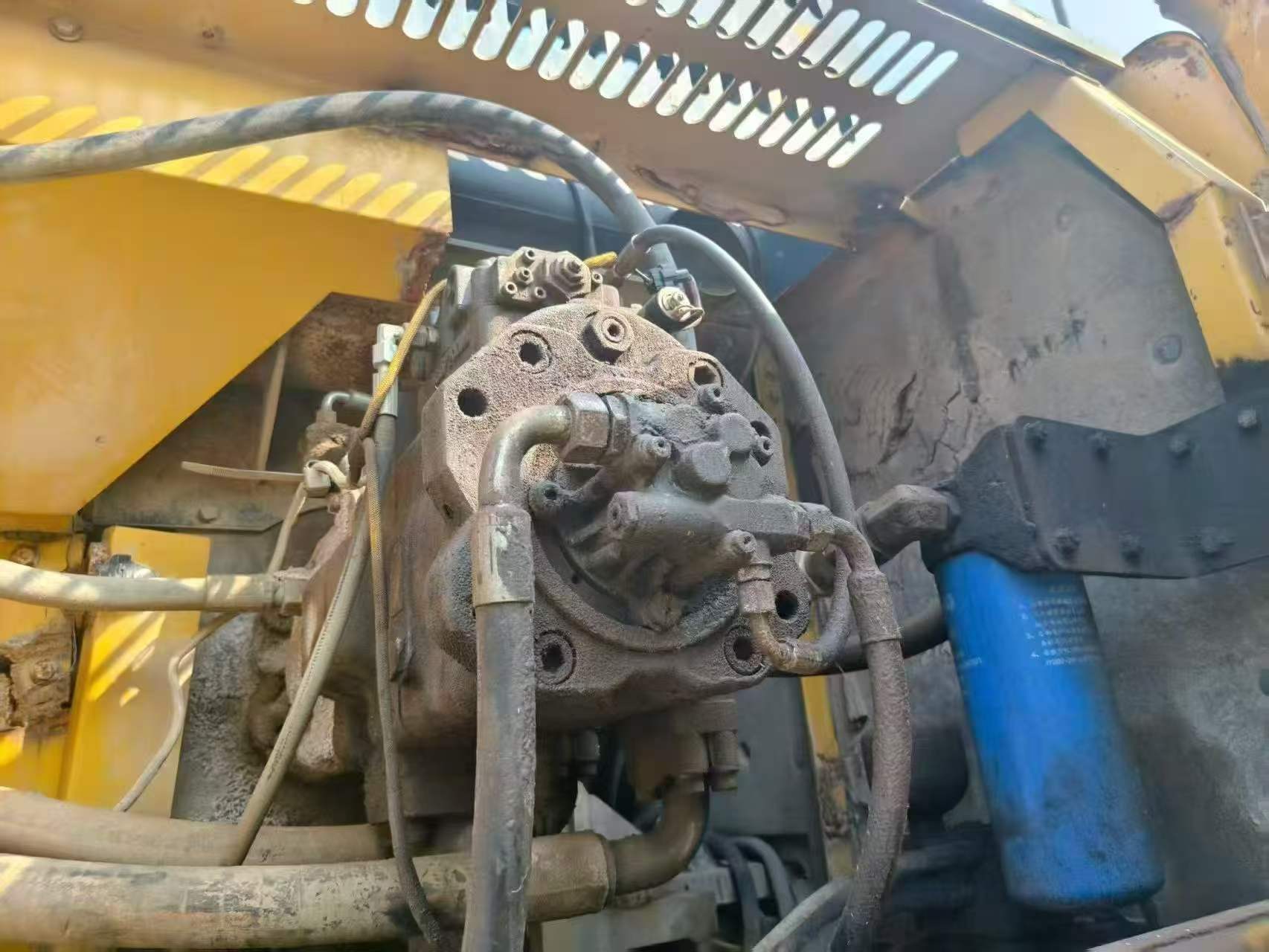

| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12090 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3860 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4818 |
| Back end turning radius (mm) | 3665 |

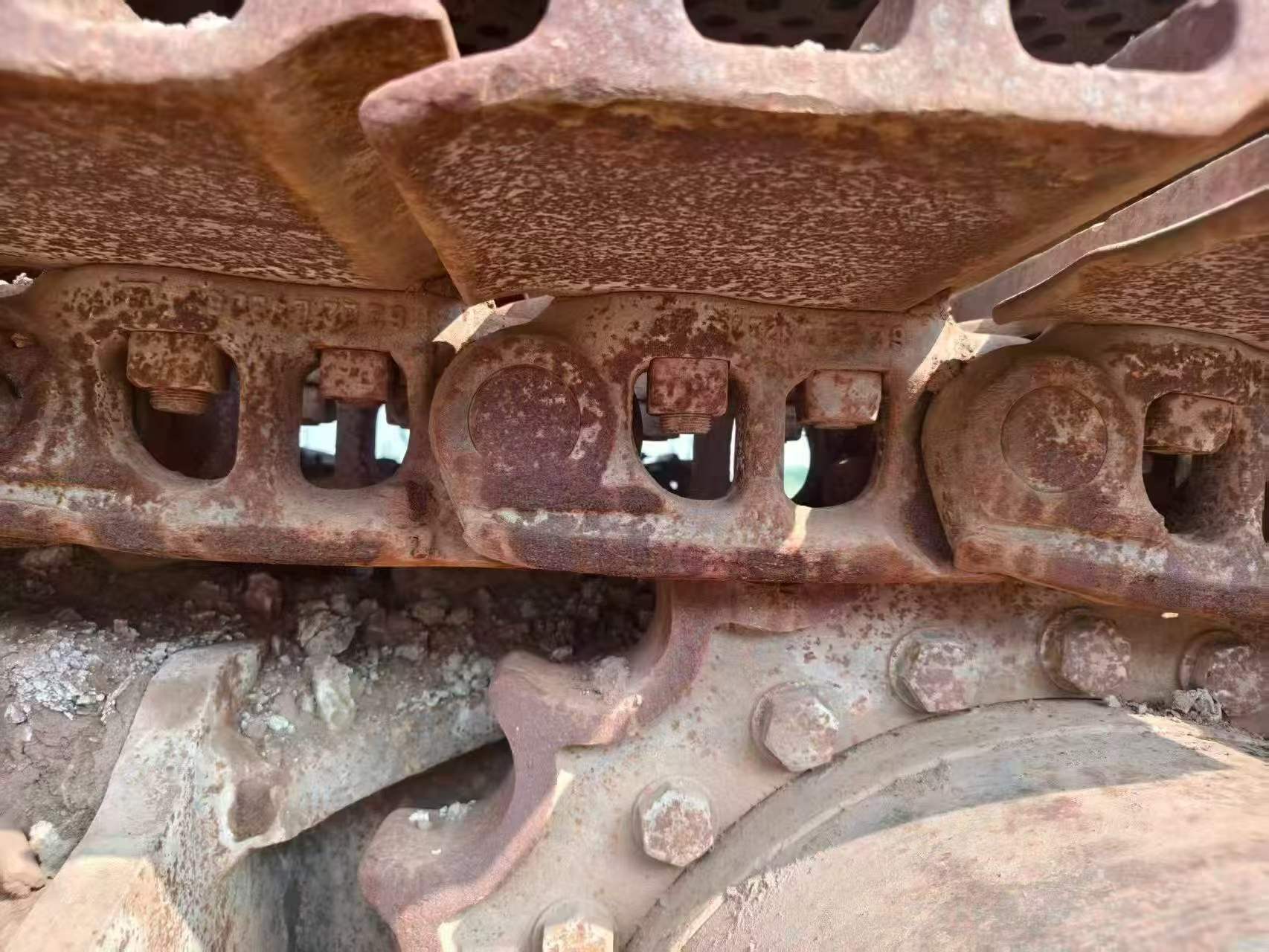

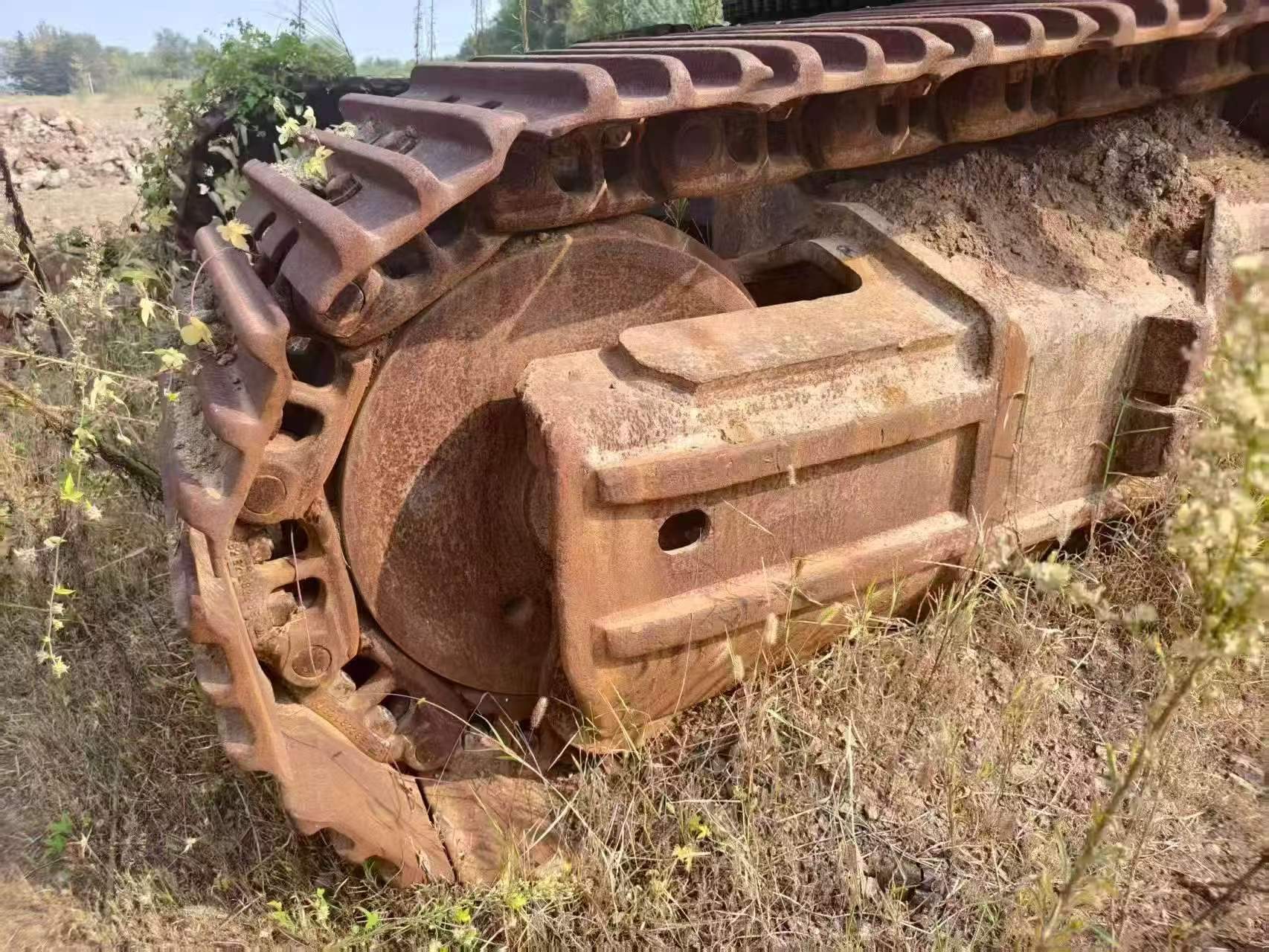

| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 12066 |
| Maximum digging depth (mm) | 7845 |
| Maximum excavation height (mm) | 10848 |
| Maximum unloading height (mm) | 7569 |
| Maximum vertical digging depth (mm) | 6870 |
