Product Description

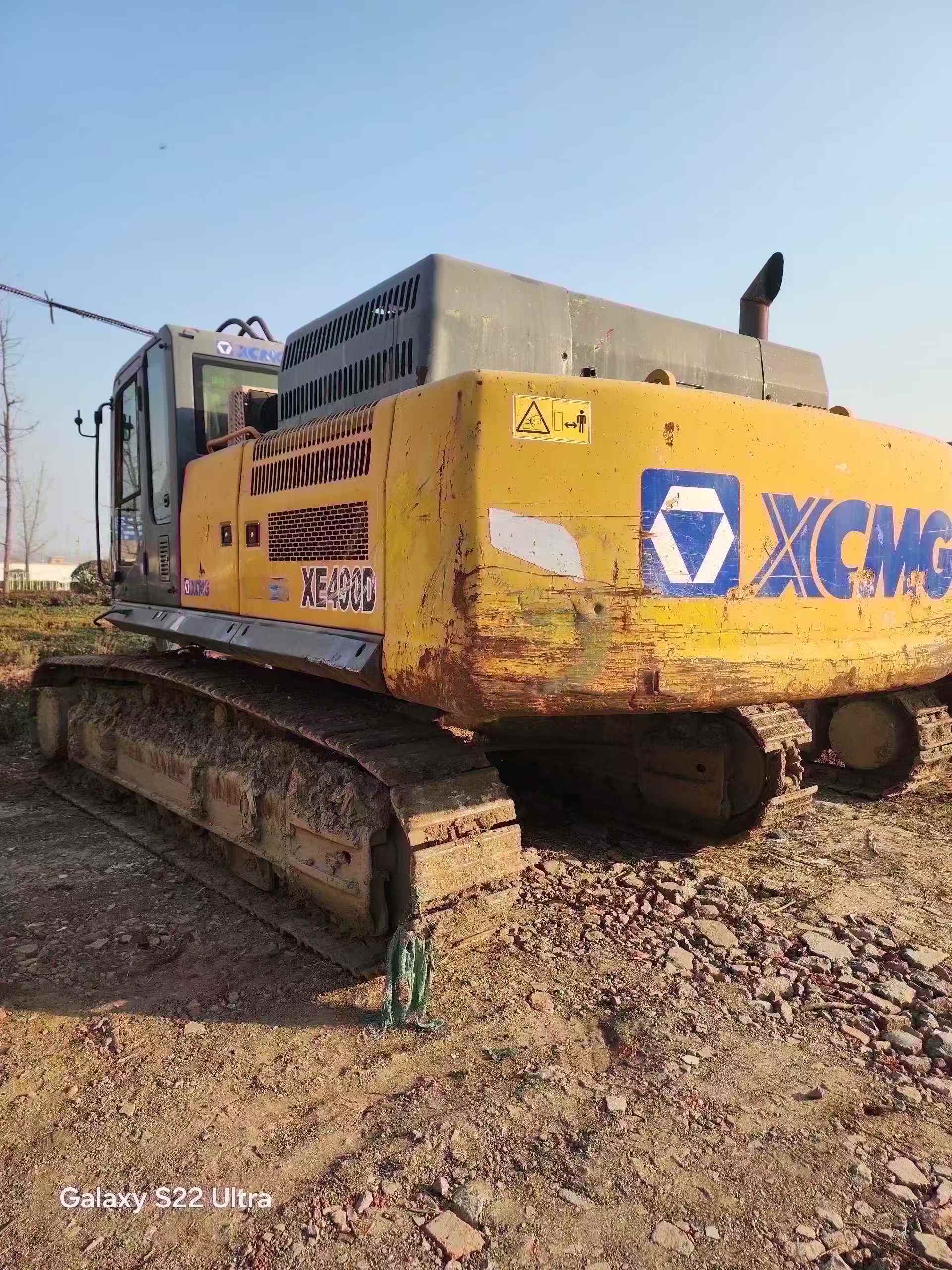

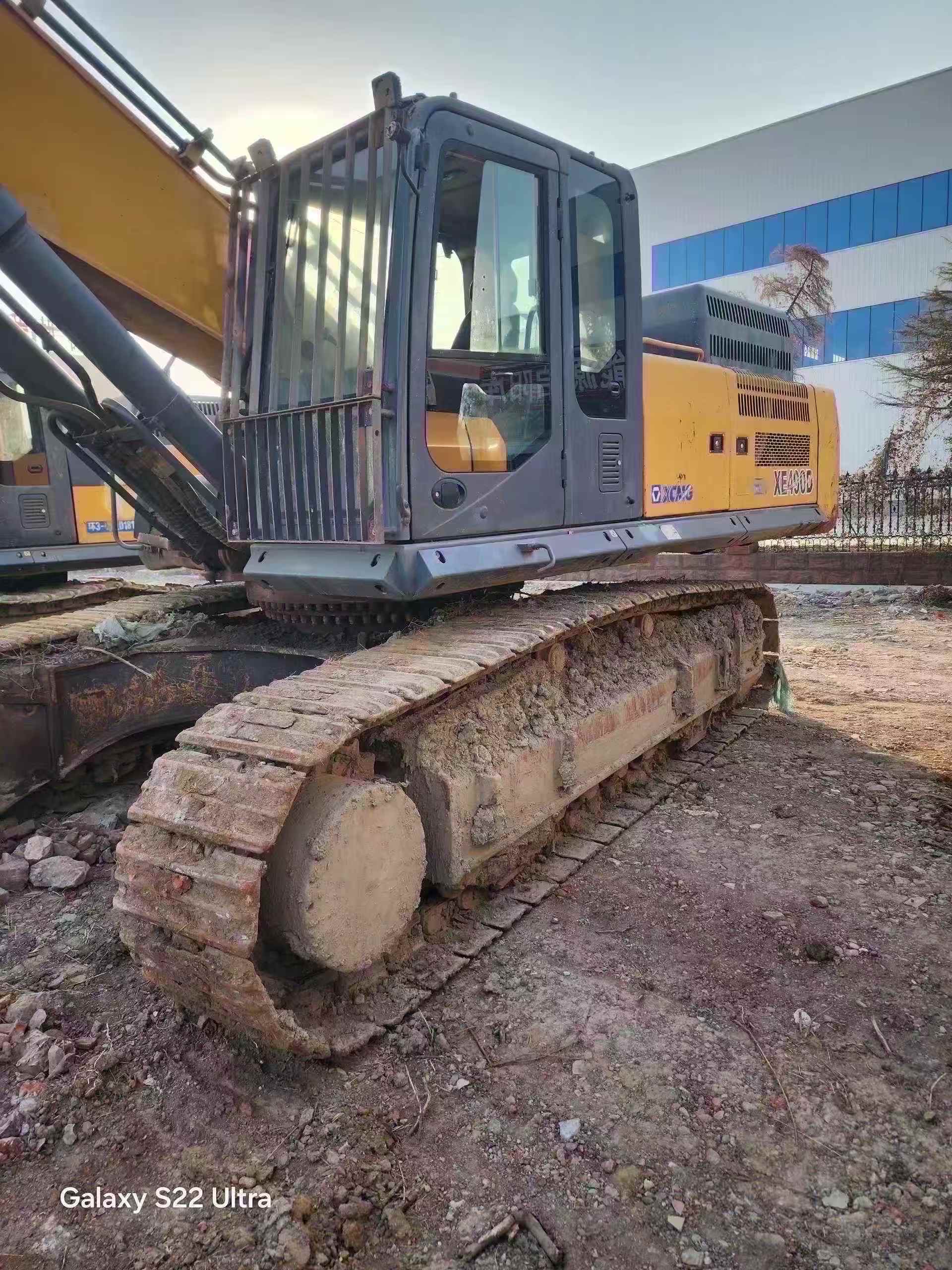

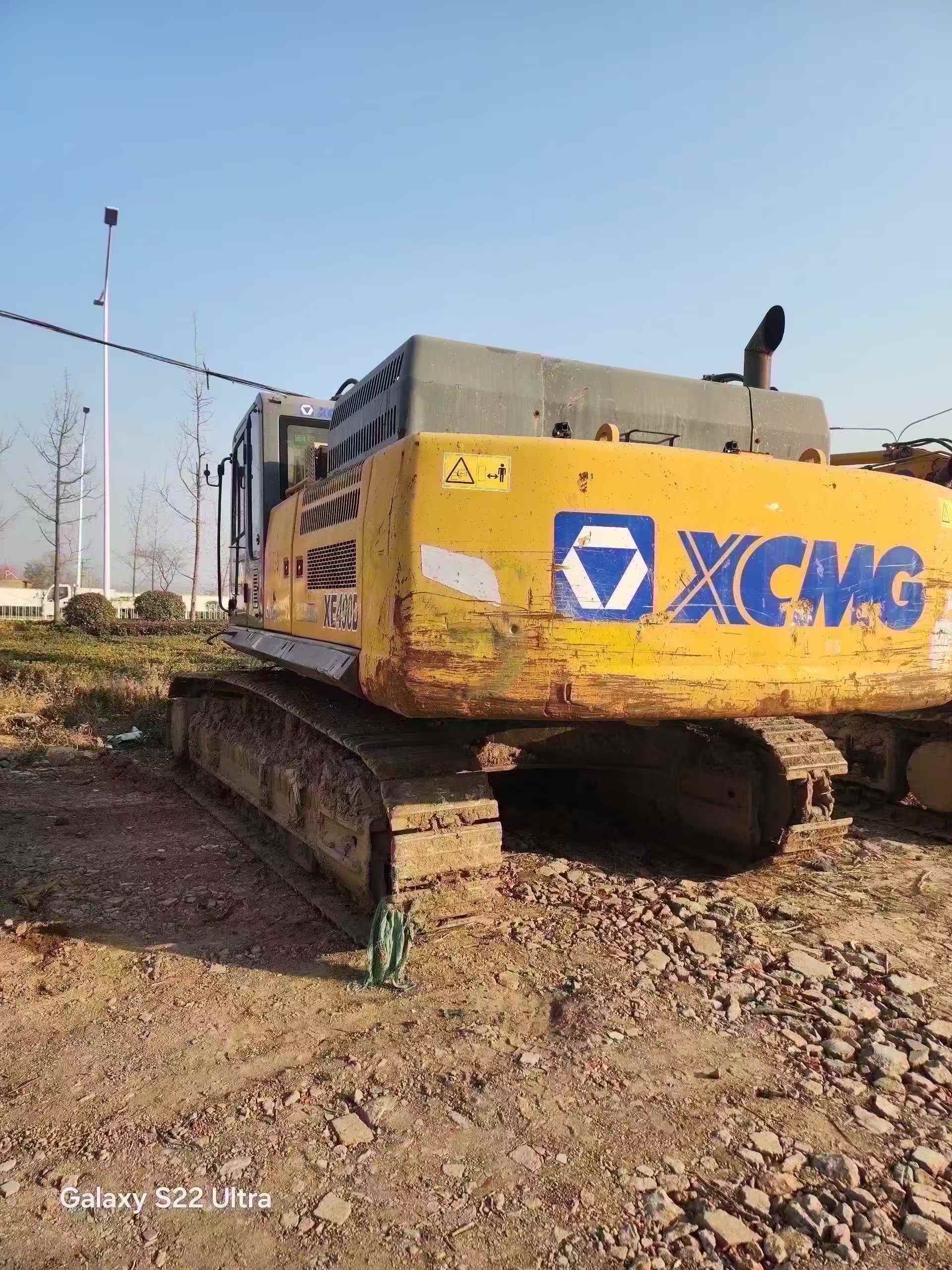

Acquire proven excavation power without the premium price tag. This 2018 XCMG XE490D delivers 49-ton class performance with a robust QSM111 engine producing 280kW at 2050 rpm. Currently located in Shandong, China, this machine offers exceptional value for contractors seeking reliable heavy-duty capability at a fraction of new equipment cost.
Engineered for demanding applications, the XE490D features a 2.5m³ bucket capacity (adjustable 2.3-3.1m³), 11,085mm maximum digging radius, and 6,985mm maximum digging depth. Dual plunger pumps delivering 2×360 L/min ensure responsive hydraulic performance, while the 305kN bucket digging force handles tough material with authority. The 6,670mm boom and 2,900mm arm configuration provide optimal reach and breakout force for high-production excavation.
Key specifications include:
- Operating weight: 48,100kg with excellent 85kPa ground pressure
- Water-cooled 6-cylinder engine: 1,898 N·m maximum torque
- 9.2 rpm swing speed and 35% gradeability
- 725L fuel capacity for extended operation
- 3,800mm rear swing radius for confined site maneuverability
Invest strategically in proven XCMG engineering and reduce capital expenditure whi
| Specifications | Value |
|---|---|
| No. | 1019853 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

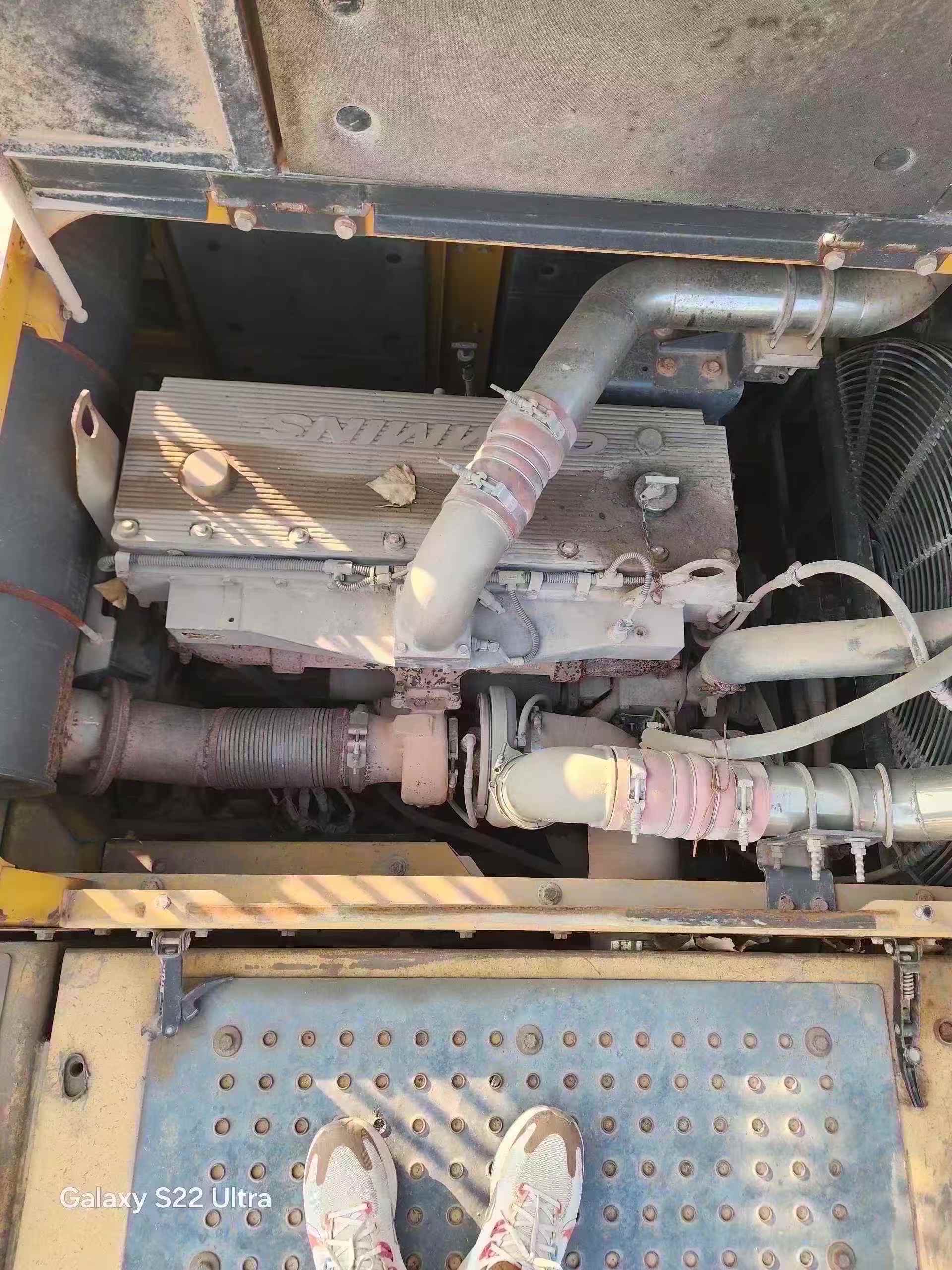

| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |

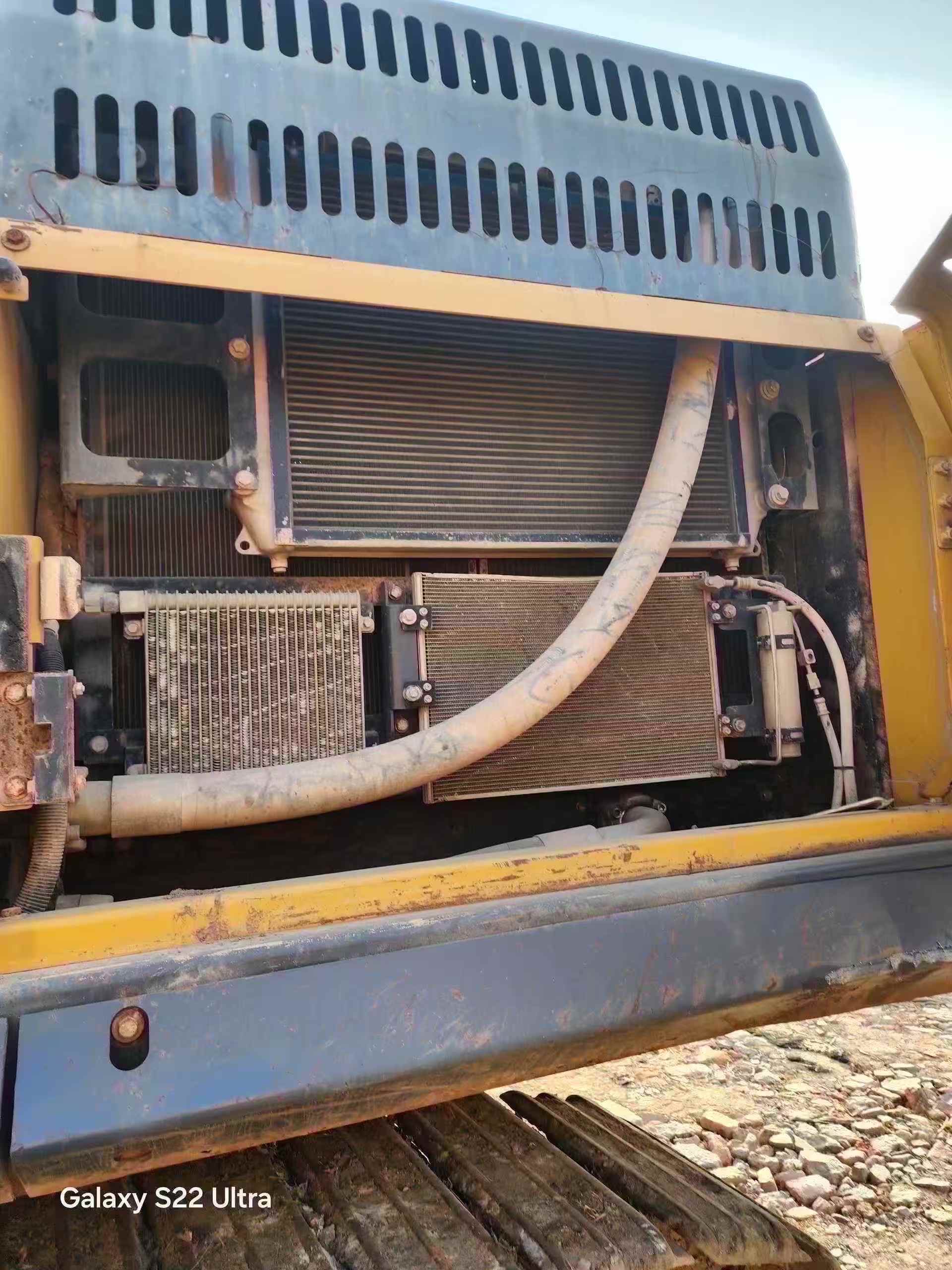

| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |

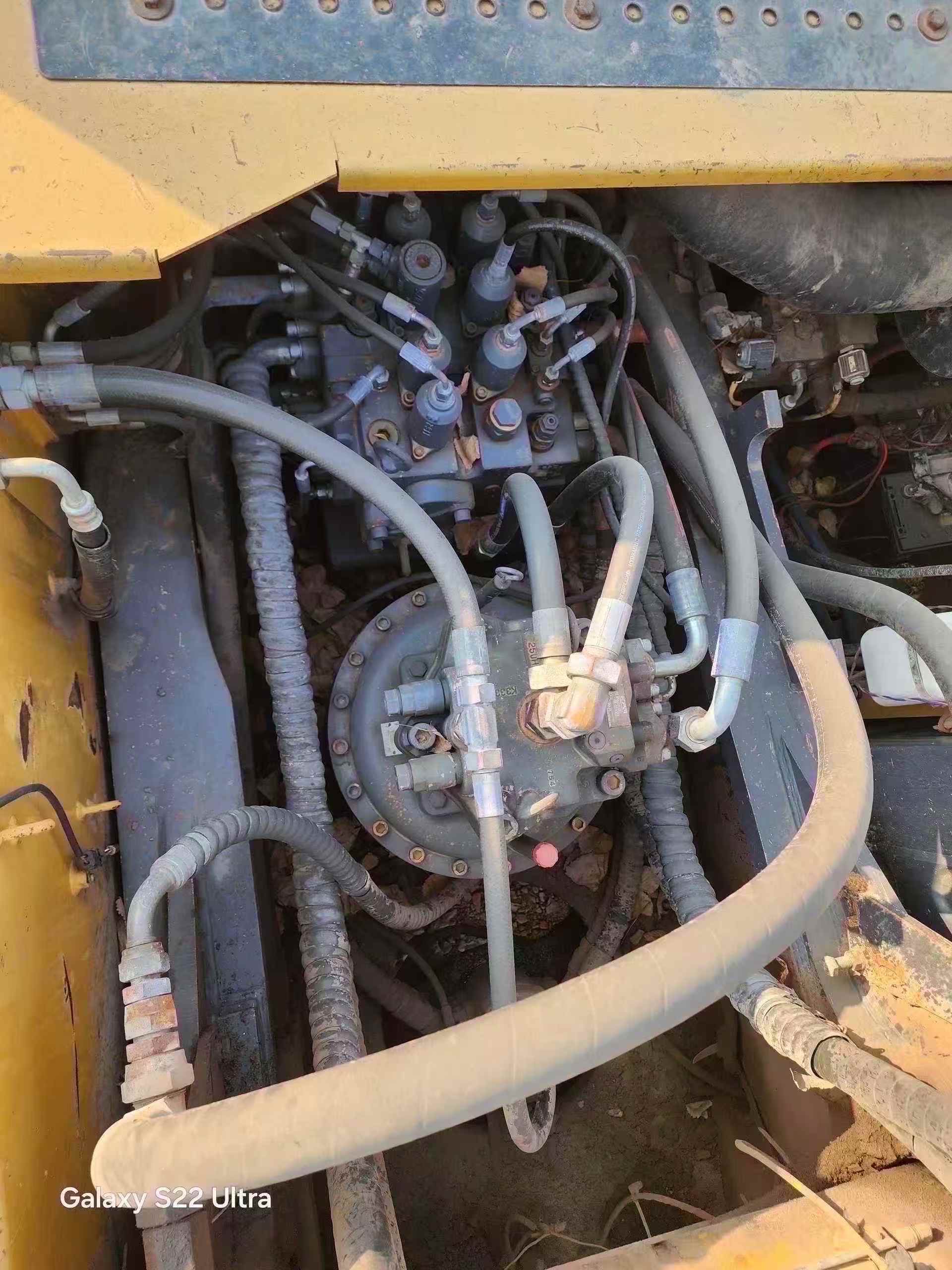

| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
