Product Description

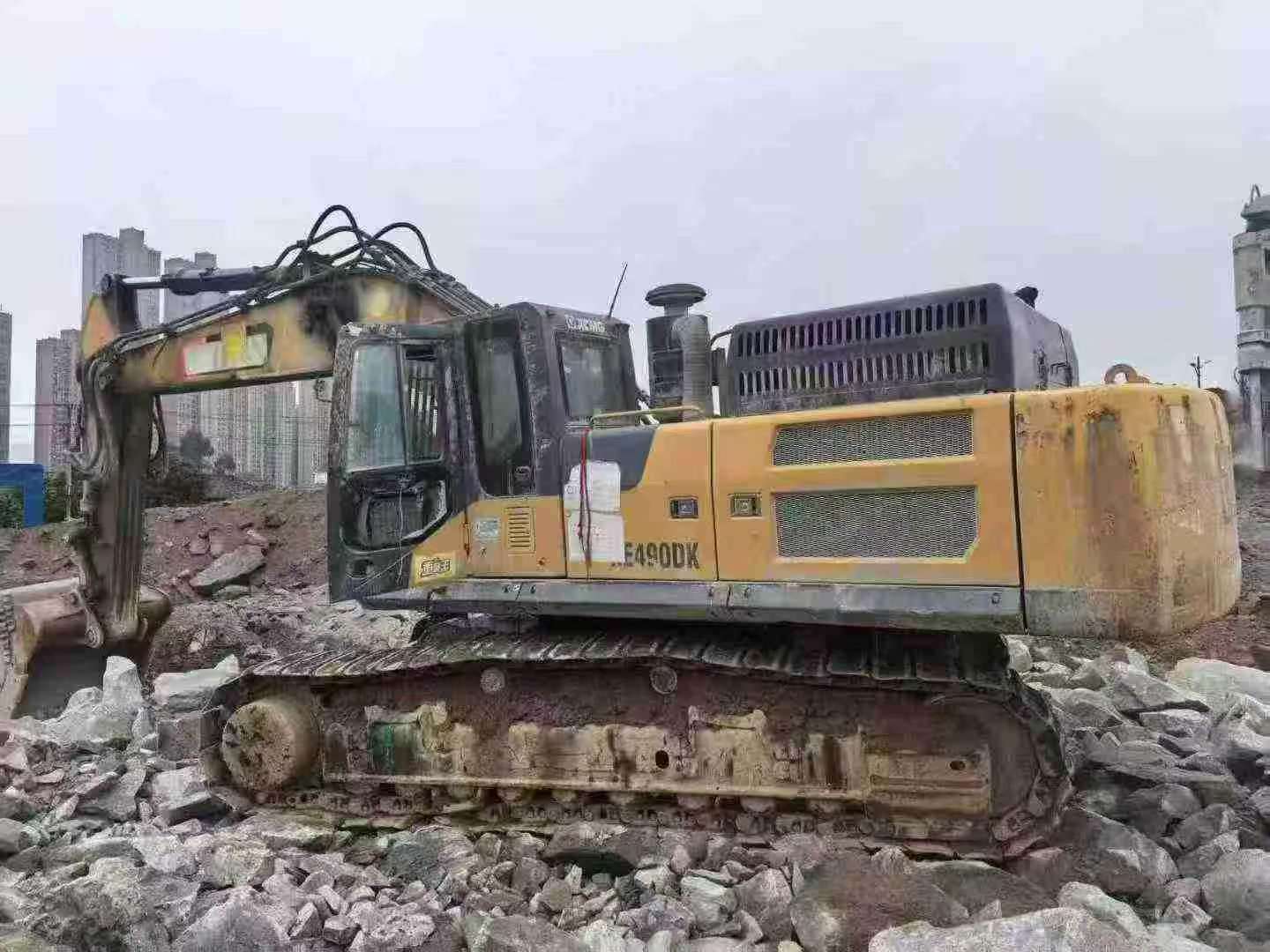

Designed for demanding excavation tasks, this 2019 XCMG XE490D delivers 49-ton performance with operator-centered engineering. Powered by a QSM111 engine producing 280 kW at 2050 rpm, it combines 305 kN bucket digging force with precise hydraulic control through dual 360 l/min plunger pumps. The spacious cabin offers commanding visibility across an 11,085 mm working radius, while ergonomic controls reduce fatigue during extended shifts.
- Stable Platform: 48,100 kg working weight with 85 kPa ground pressure ensures minimal ground disturbance and solid footing on varied terrain
- Responsive Handling: 9.2 rpm rotation speed and 34.3 MPa travel circuit deliver smooth, predictable movement
- Operator Comfort: Well-positioned joysticks and pedals work seamlessly with the machine's 6,985 mm digging depth capability
- Visibility Advantage: Low-profile counterweight design and wide glass panels provide clear sightlines to bucket, tracks, and surrounding workspace
Currently located in Lishui, Zhejiang, this excavator represents proven Chinese manufacturing with practical features for professional contractors requiring reliable
| Specifications | Value |
|---|---|
| No. | 1022538 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
