Product Description

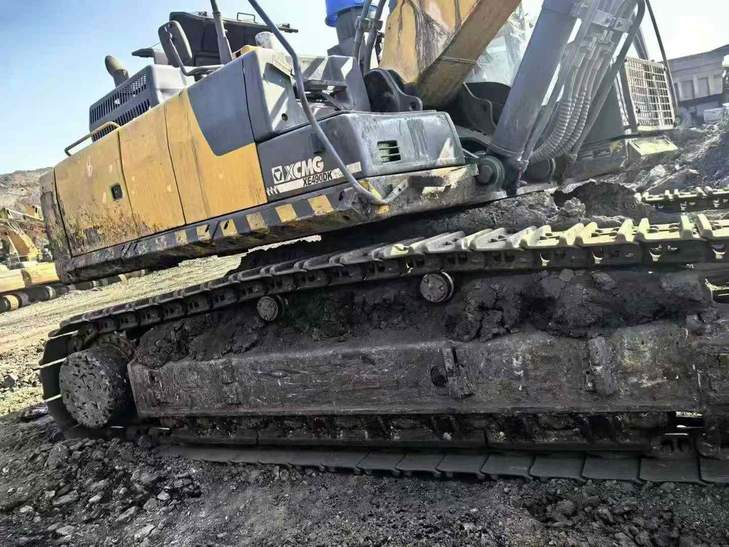

Built in 2019, this XCMG XE490D excavator delivers proven performance with 49-ton capacity and 280kW of power from its reliable QSM11 engine. Operating weight of 48,100kg combines with a 2.5m³ bucket capacity to handle demanding excavation tasks across construction and mining sites. Maximum digging depth reaches 6,985mm while the 11,085mm working radius covers substantial ground per cycle.
XCMG machinery maintains strong resale value in global markets due to widespread parts availability and established dealer networks. This model features dual plunger pumps delivering 2×360 L/min flow, 305kN bucket digging force, and water-cooled systems engineered for extended duty cycles. The 600mm track plates and 85kPa ground pressure provide stability on variable terrain.
Currently located in Jinhua, Zhejiang, this XE490D represents a strategic investment for operators seeking:
- Proven Chinese manufacturing with international service support
- Lower acquisition cost compared to premium brands without sacrificing productivity
- Readily sourced replacement parts minimizing downtime
- Strong secondary market demand protecting equipment value
| Specifications | Value |
|---|---|
| No. | 1022601 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
