2020 XCMG XE490D

1/9

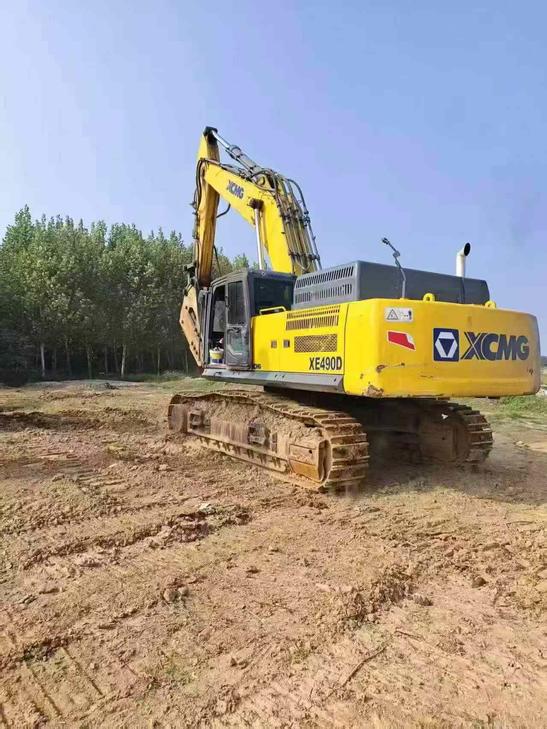

Buy XCMG XE490D Used Excavator / 1
Buy XCMG XE490D Used Excavator / 2
Buy XCMG XE490D Used Excavator / 3
Buy XCMG XE490D Used Excavator / 4
Buy XCMG XE490D Used Excavator / 5
Buy XCMG XE490D Used Excavator / 6
Buy XCMG XE490D Used Excavator / 7
Buy XCMG XE490D Used Excavator / 8
Buy XCMG XE490D Used Excavator / 9

Product Description

This 2020 XCMG XE490D excavator comes equipped with hydraulic hammer and bucket attachments, ready for demanding demolition and earthmoving applications. Located in Jiangsu, China, this heavy-duty crawler excavator delivers reliable performance for large-scale construction and quarrying operations.

The XE490D represents XCMG's proven engineering in the 49-ton class, featuring robust hydraulic systems and durable undercarriage components designed for extended operational life. The included hammer attachment expands versatility for rock breaking and concrete demolition work.

  • Year of Manufacture: 2020
  • Operating Weight Class: 49 tons
  • Included: Hydraulic hammer and excavation bucket
  • Current Location: Jiangsu Province, China
  • Application: Excavation, demolition, quarrying

Ideal for contractors seeking a capable mid-size excavator with auxiliary attachment capability. Available for inspection by appointment.

SpecificationsValue
No.1167358
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
see more

Overview

No.1167358

Brand Name:

XCMG

Model Number:

XE490D

Year:

2020

Location:

Jiangsu China
