2020 XCMG XE490D

1/8
Buy XCMG XE490D Used Excavator / 1
Buy XCMG XE490D Used Excavator / 2
Buy XCMG XE490D Used Excavator / 3
Buy XCMG XE490D Used Excavator / 4
Buy XCMG XE490D Used Excavator / 5
Buy XCMG XE490D Used Excavator / 6
Buy XCMG XE490D Used Excavator / 7
Buy XCMG XE490D Used Excavator / 8

Product Description

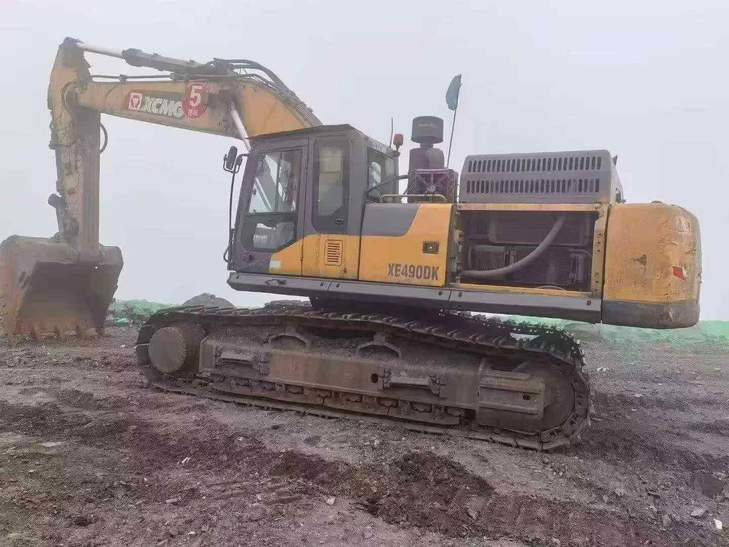

This 2020 XCMG XE490D hydraulic excavator delivers reliable performance for demanding earthmoving and construction applications. Manufactured by XCMG, China's leading heavy equipment producer, this 49-ton class machine features a robust design built for productivity in mining, quarrying, and large-scale excavation projects. Currently located in Sichuan, China, this unit represents solid value in the used equipment market.

  • Year of Manufacture: 2020
  • Operating Weight Class: 49 tons
  • Hydraulic excavator configuration
  • Suitable for mining, quarrying, and heavy construction
  • Located in Sichuan Province, China
  • XCMG factory-built quality and durability

The XE490D offers a practical solution for contractors seeking proven excavation capacity. Available for inspection in Sichuan. Contact us for detailed specification sheets, service records, and competitive export pricing.

SpecificationsValue
No.1173945
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
see more

Overview

No.1173945

Brand Name:

XCMG

Model Number:

XE490D

Year:

2020

Location:

Sichuan China

Pub Date:
