Product Description

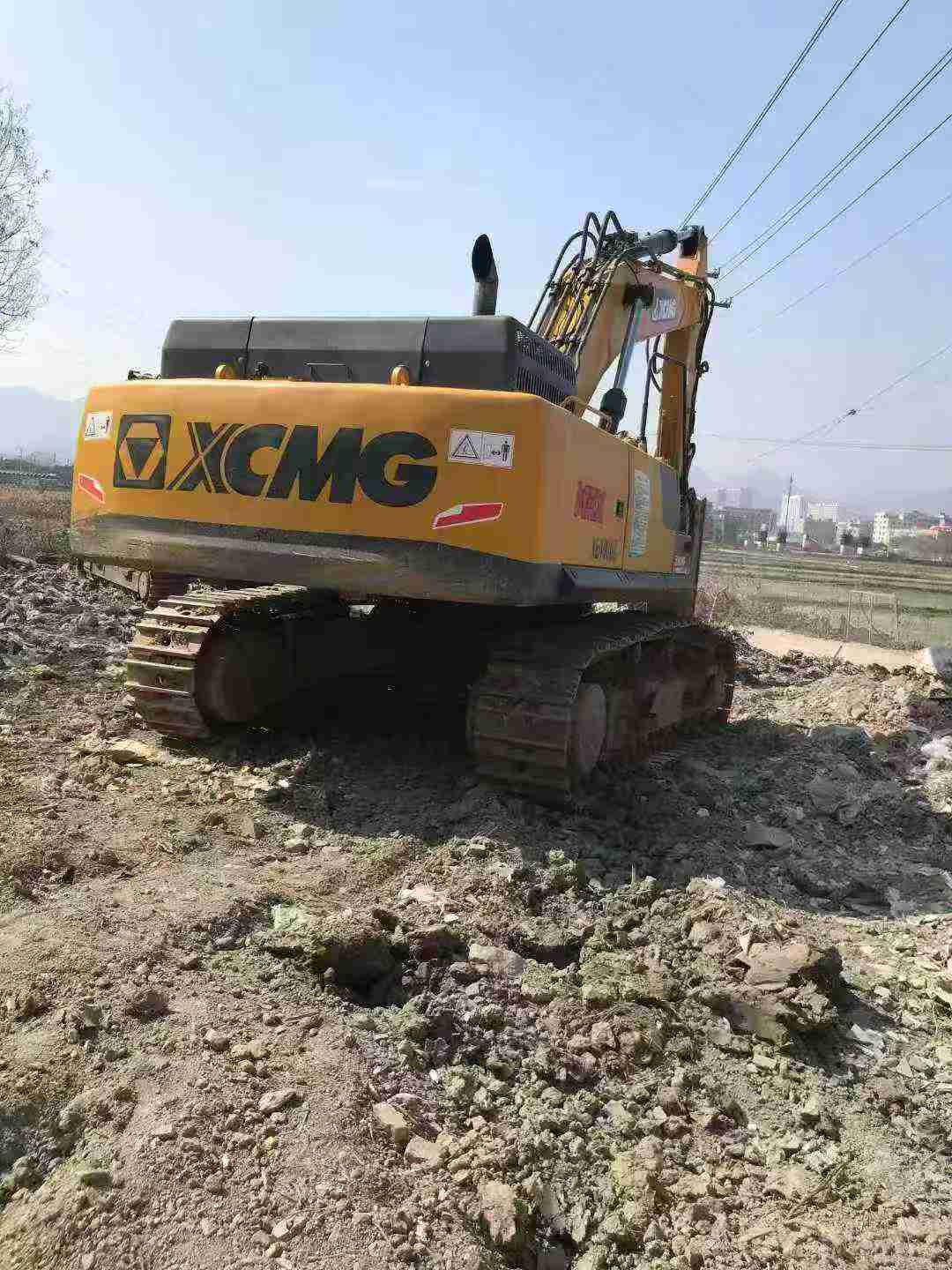

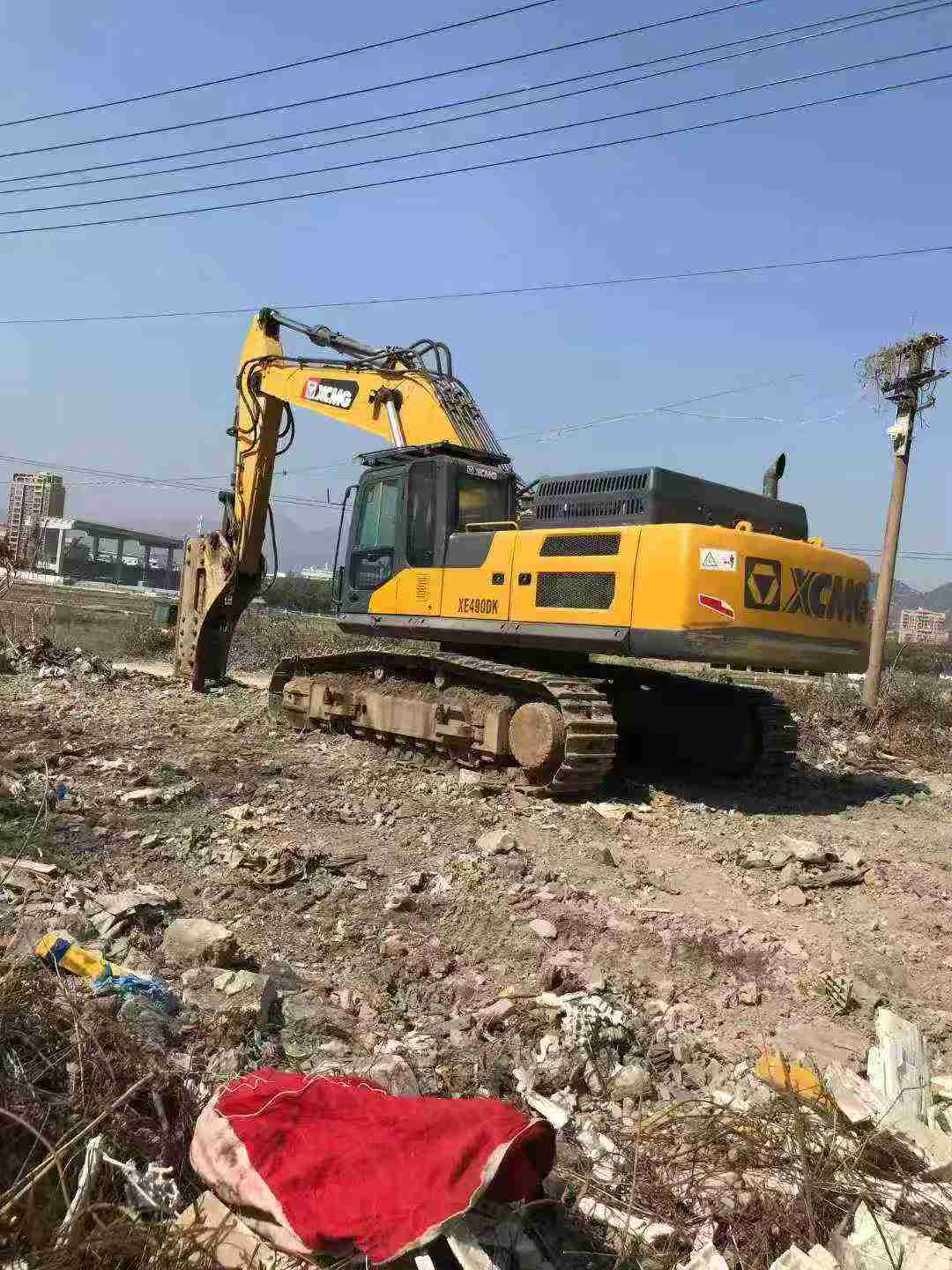

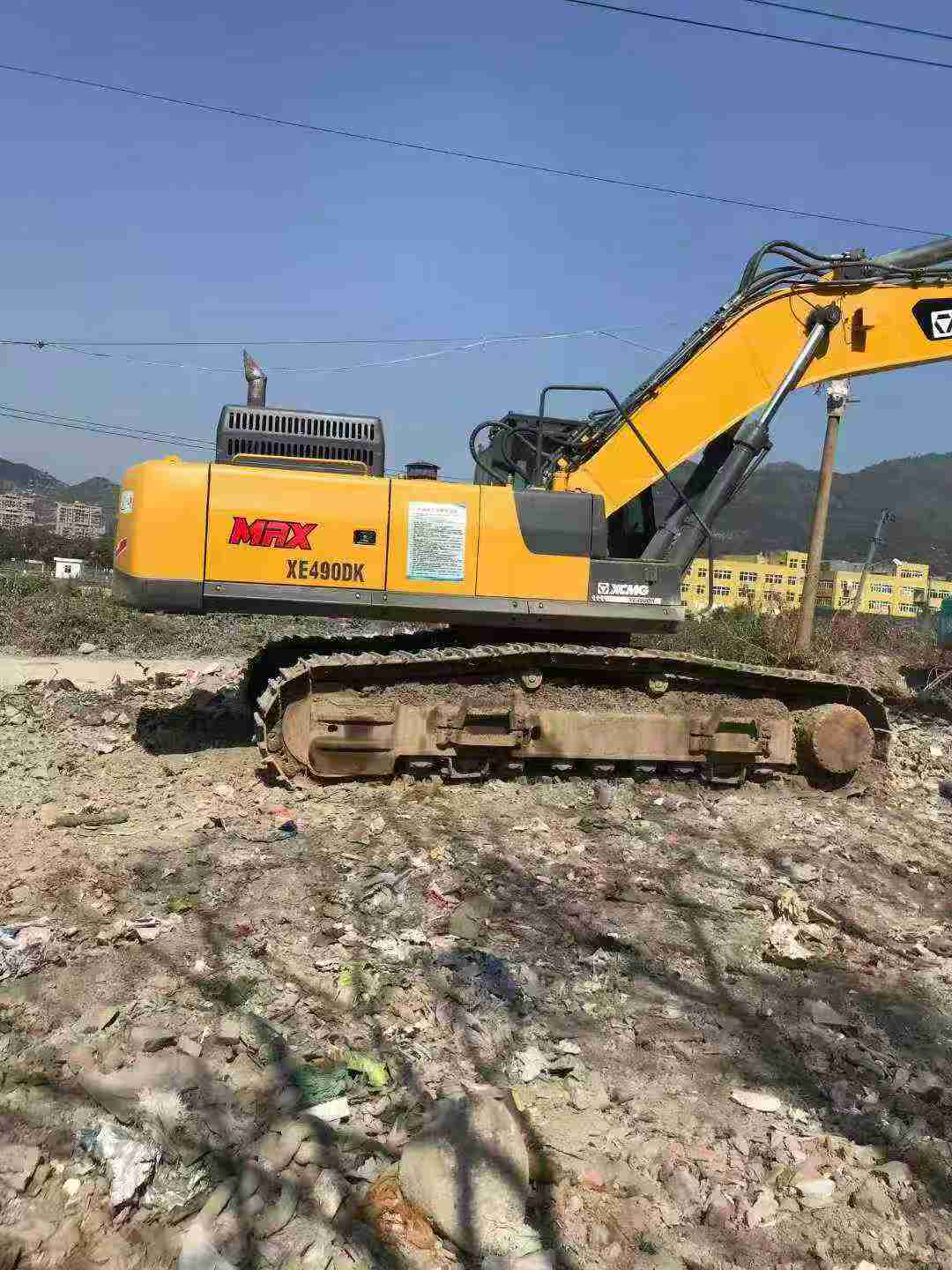

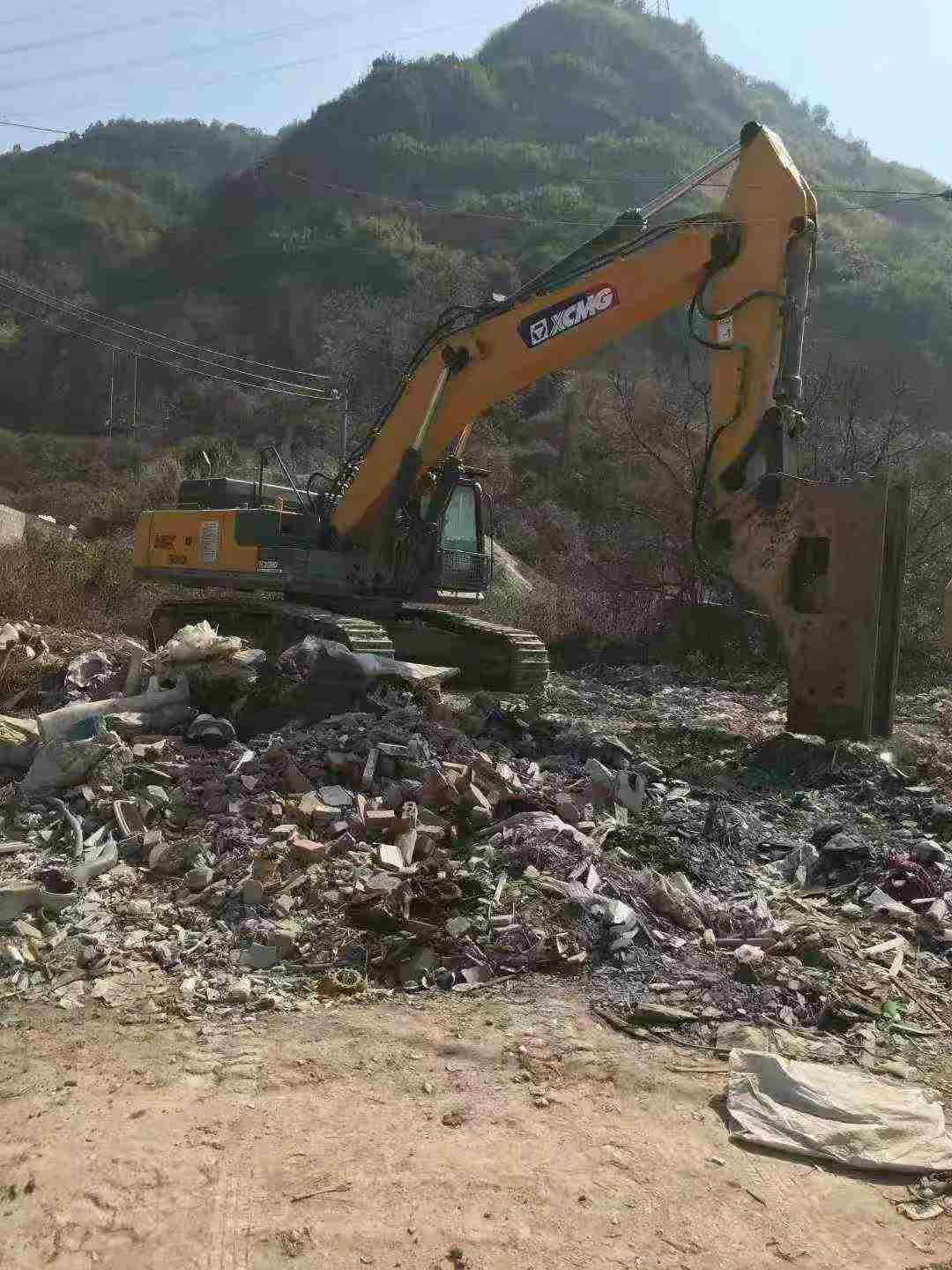

Available now from Zhejiang, China — this 2021 XCMG XE490D 49-ton excavator ships fast, cutting straight through factory lead times so you can put iron to ground without delay. Built for heavy-cycle earthmoving, bulk excavation, and large-scale civil works, it arrives ready to perform from day one.
Powered by a Cummins QSM11 6-cylinder, 11L turbocharged diesel producing 280 kW at 2,050 rpm and 1,898 N·m of peak torque, this machine delivers the muscle for demanding dig cycles. Dual 360 L/min plunger pumps feed a high-flow hydraulic system, backing a bucket digging force of 305 kN and a maximum tractive force of 338 kN.
- Working weight: 48,100 kg | Bucket capacity: 2.5 m³ (2.3–3.1 m³ range)
- Max digging depth: 6,985 mm | Max digging radius: 11,085 mm
- Max excavation height: 10,050 mm | Max unloading height: 6,940 mm
- Travel speed: 5.4 / 3.2 km/h | Climbing ability: 35%
- Fuel tank: 725 L | Hydraulic tank: 430 L
- Transport dimensions: 11,630 × 3,582 × 3,705 mm
Sourced directly from Zhejiang and available for immediate dispatch, fast deployment to your site is straightforward — whether you're moving it across Asia or shipping internationally. Skip the wait and get a proven 49-ton machine working for you now.
| Specifications | Value |
|---|---|
| No. | 1041066 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |

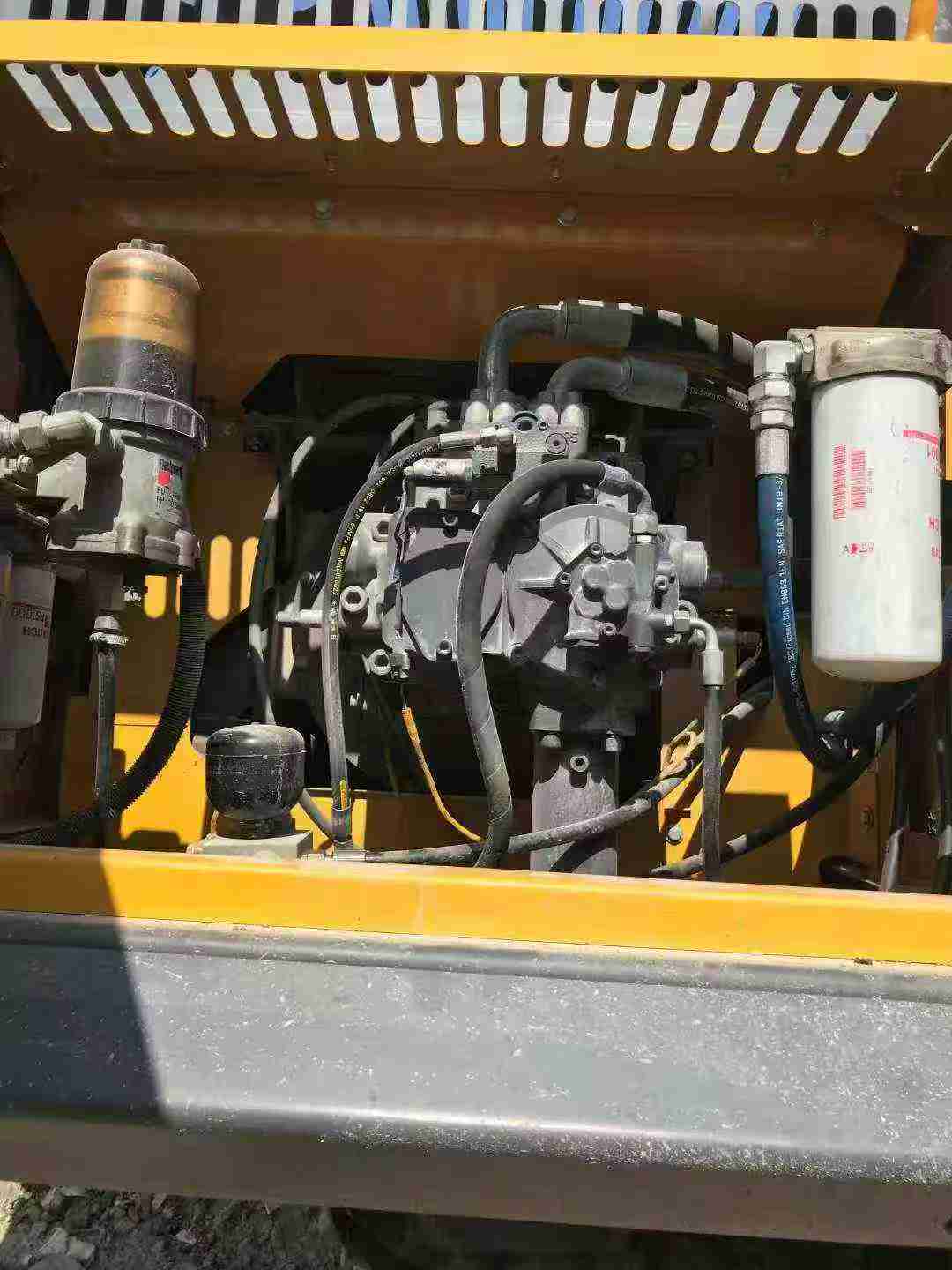

| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
