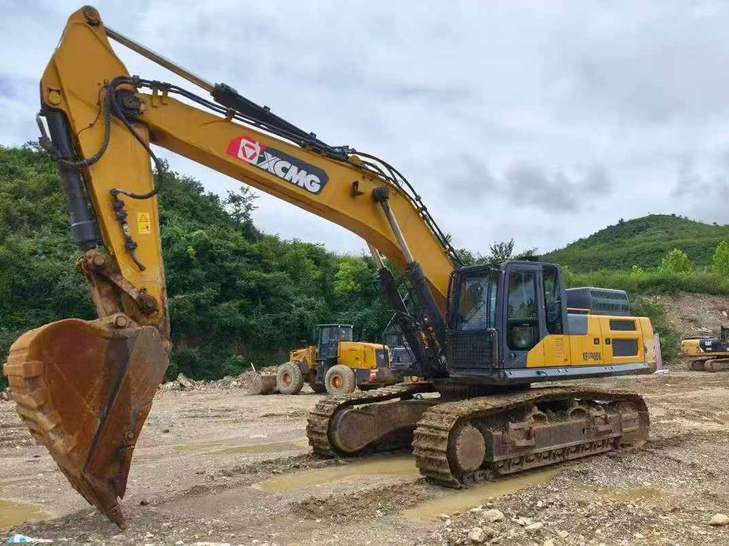

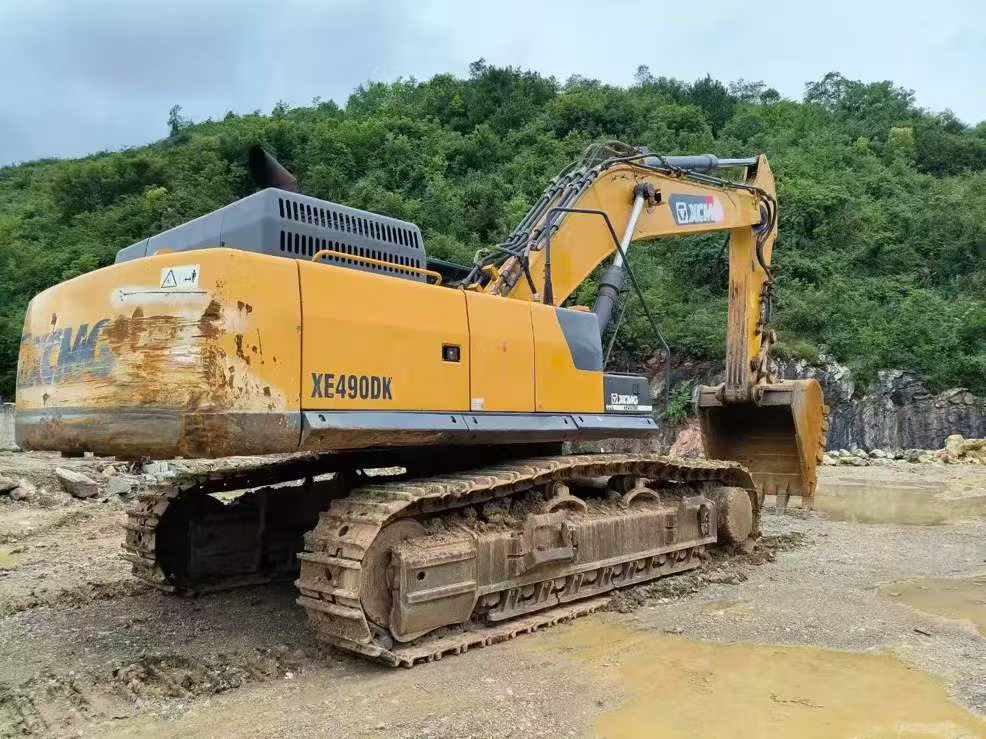

2020 XCMG XE490DK

1/9
Buy XCMG XE490DK Used Excavator / 1
Buy XCMG XE490DK Used Excavator / 2
Buy XCMG XE490DK Used Excavator / 3
Buy XCMG XE490DK Used Excavator / 4
Buy XCMG XE490DK Used Excavator / 5
Buy XCMG XE490DK Used Excavator / 6
Buy XCMG XE490DK Used Excavator / 7
Buy XCMG XE490DK Used Excavator / 8
Buy XCMG XE490DK Used Excavator / 9

Product Description

This 2020 XCMG XE490DK excavator represents a solid midlife investment for contractors seeking proven performance in demanding applications. With minimal operating hours relative to its model year, this machine offers substantial capacity and reach for earthmoving, demolition, and large-scale construction projects.

The XE490DK combines XCMG's robust hydraulic architecture with a reliable powertrain designed for extended duty cycles. Currently located in Guangxi, China, this unit is available for immediate inspection and purchase.

  • Manufactured: 2020
  • Make: XCMG
  • Model: XE490DK
  • Class: Large excavator
  • Location: Guangxi, China
  • Condition: Used, operational

Interested buyers are encouraged to arrange site visits and operational demonstrations. Contact the seller directly to discuss terms, delivery logistics, and technical documentation.

SpecificationsValue
No.1110986
Tonnage (tons)49
Working weight (kg)48100-49500
Bucket capacity (m³)2.3-3.1
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM11
Rated power (kw/rpm)280/2000
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)70
Bucket digging force (kN)301
Rod digging force (kN)248
Maximum tractive force (kN)338
Travel speed (km/h)5.4/3.2
Maximum flow of main pump (l/min)2*360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump typeTwo plunger pumps
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11808
Total transport width (mm)3582
Total transport height (mm)3890
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Minimum turning radius of front working device (mm)4580
Back end turning radius (mm)3800
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Maximum digging radius (mm)10855
Maximum digging depth (mm)7000
Maximum excavation height (mm)9855
Maximum unloading height (mm)6890
Maximum vertical digging depth (mm)4500
Maximum effective digging depth (mm)6900
