Product Description

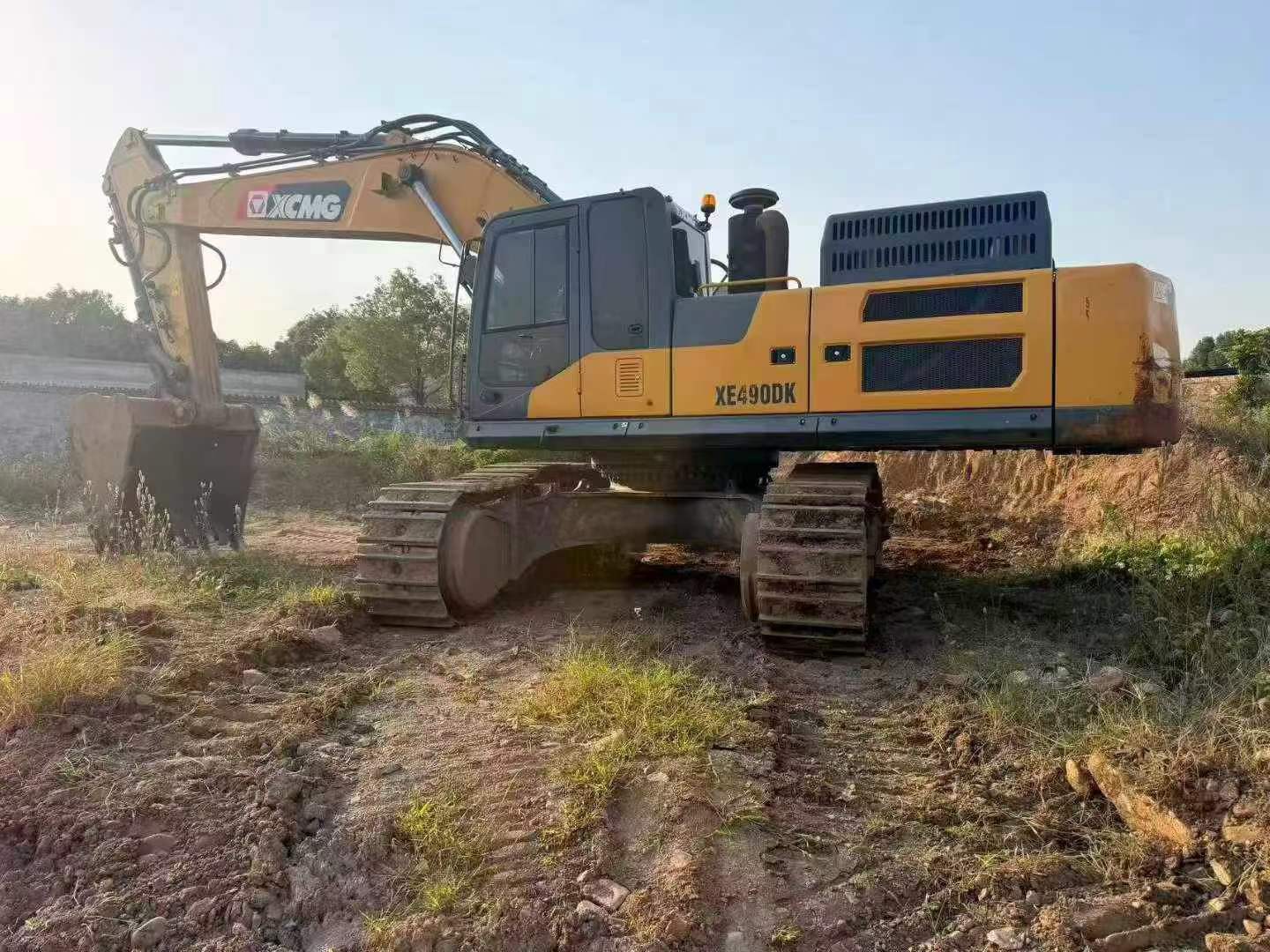

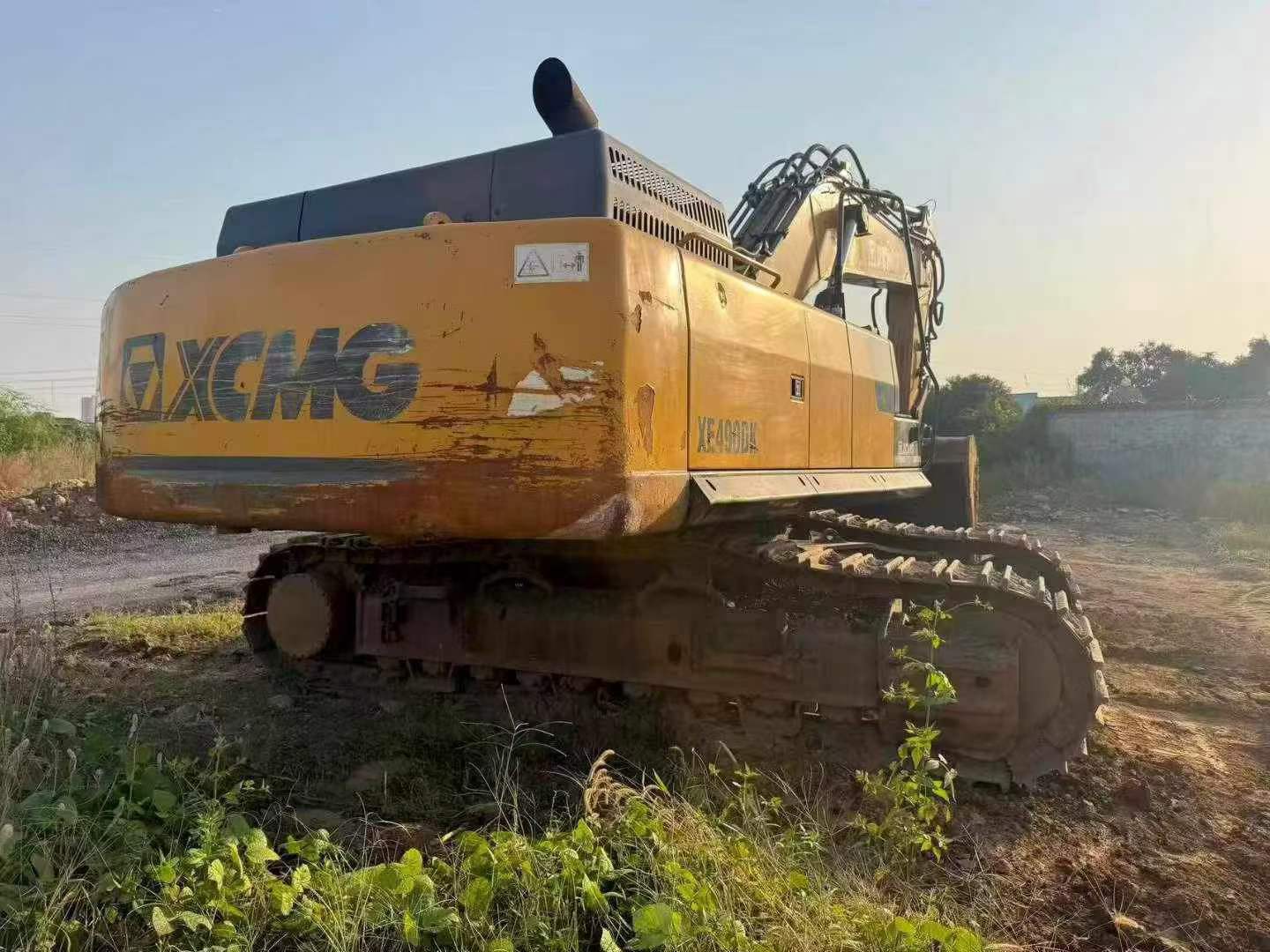

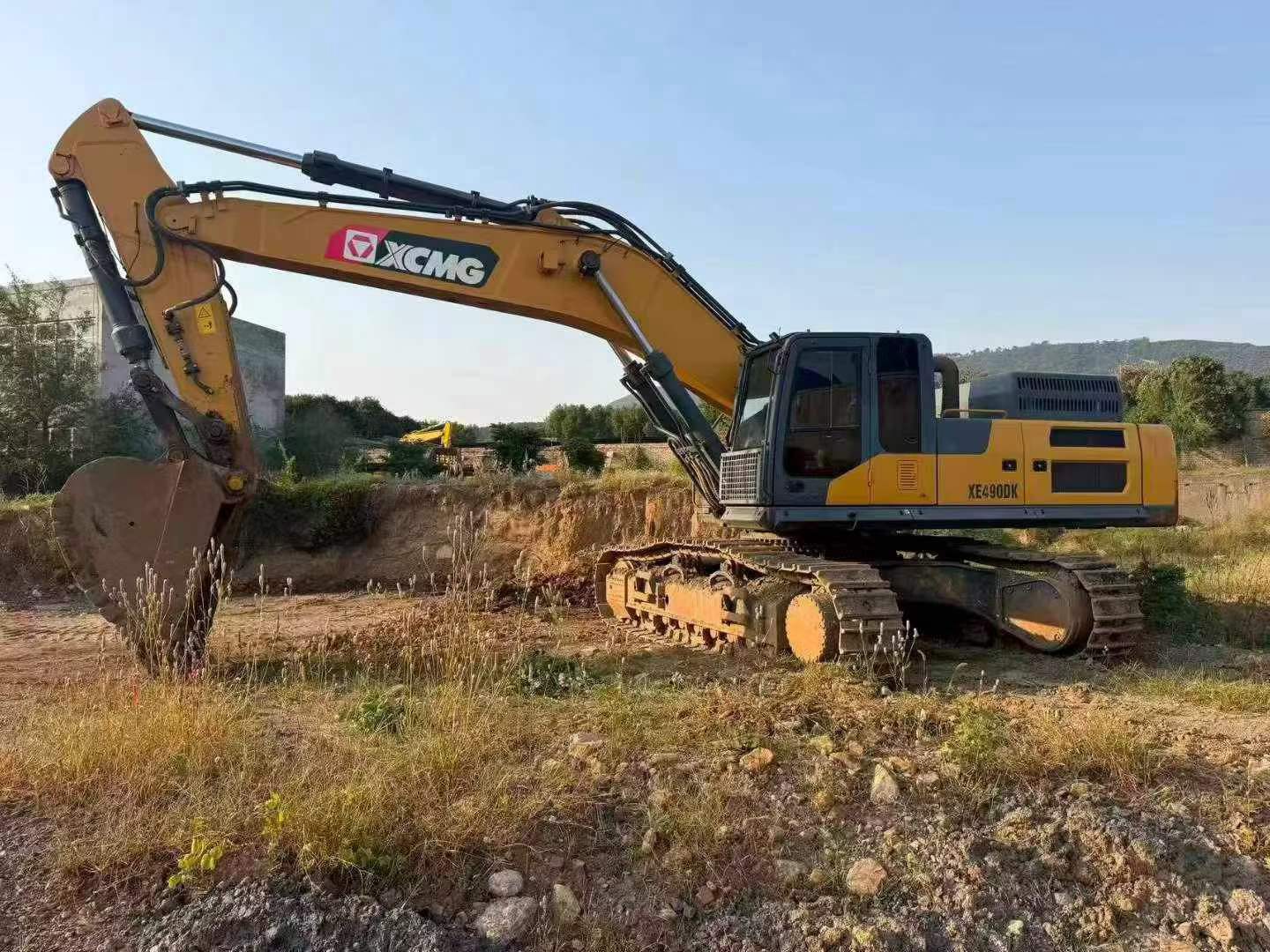

This 2020 XCMG XE490DK excavator represents a solid opportunity for contractors seeking reliable performance in earthmoving operations. With 4,100 genuine operating hours documented on the original meter, this machine has been primarily utilized for soil excavation work and shows consistent maintenance throughout its service life.
Key specifications include:
- Operating weight class: approximately 49 tons

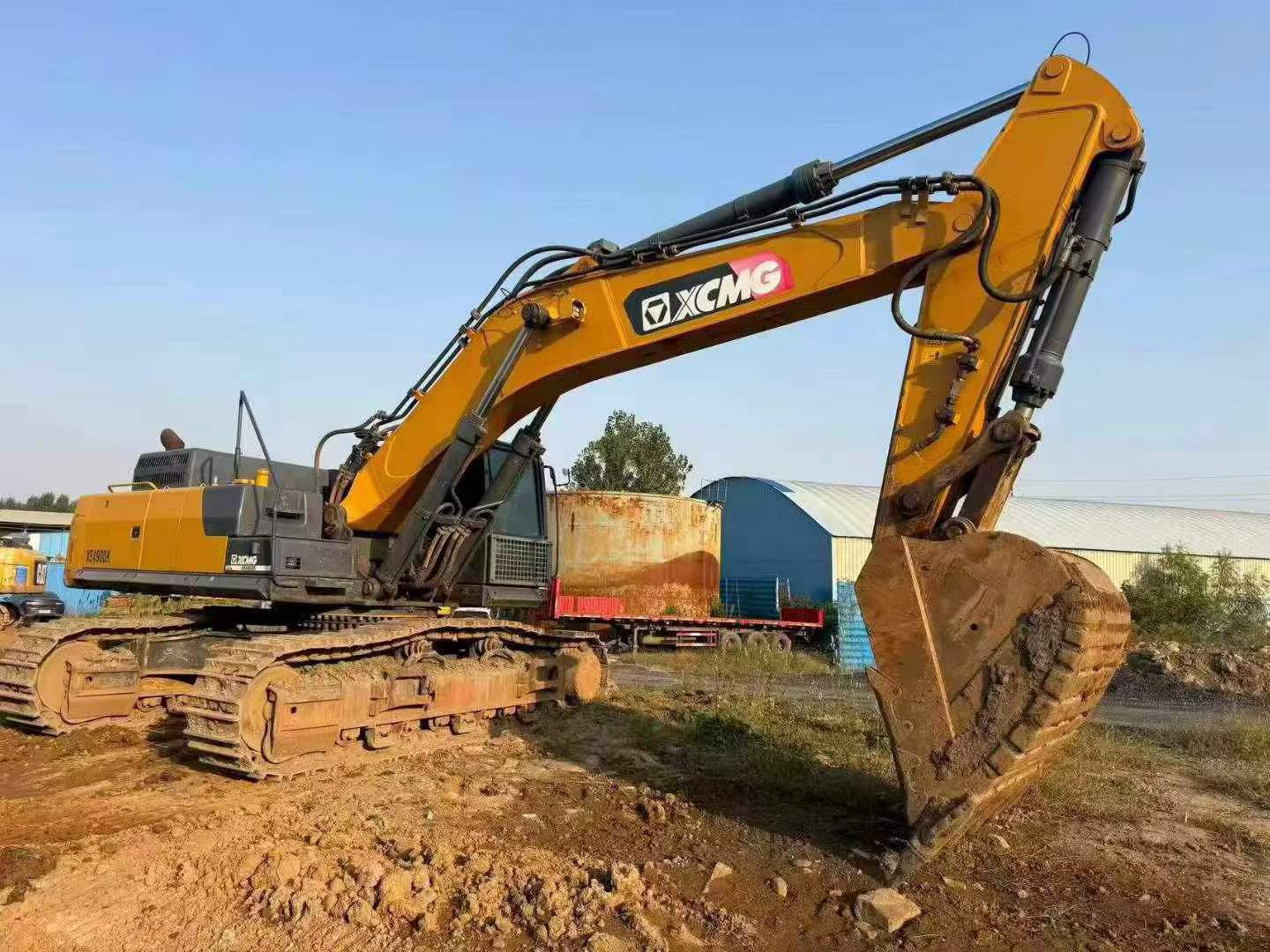

- Equipped with 3.2 cubic meter heavy-duty bucket for high-volume earthwork

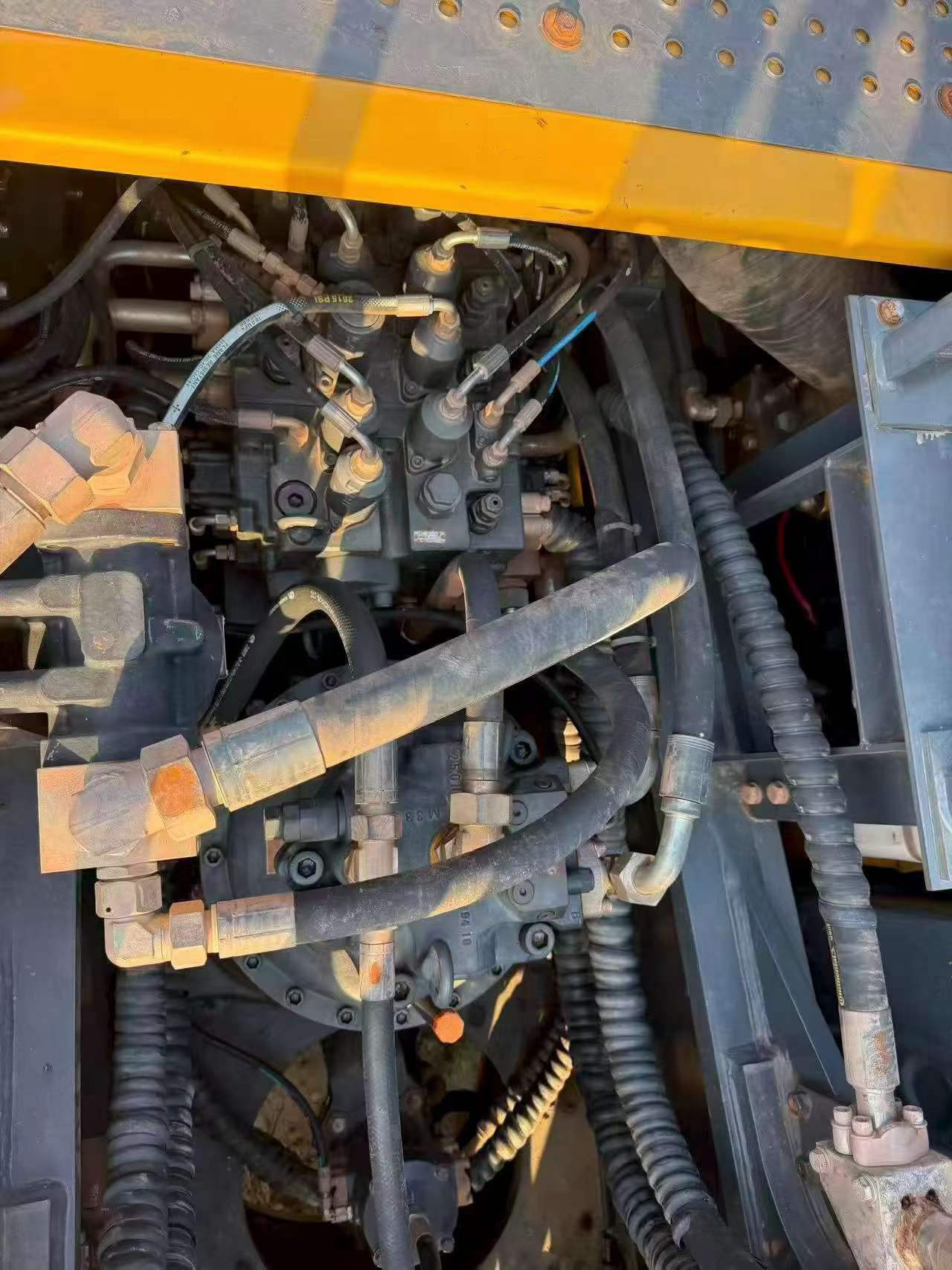

- XCMG's proven hydraulic system for demanding excavation tasks
- Currently located in Zhejiang Province, China
The XE490DK is designed for large-scale construction, mining, and infrastructure projects where productivity and durability are essential. This unit's moderate hour reading and focused application history make it suitable for operations requiring a dependable large excavator with substantial bucket capacity.
| Specifications | Value |
|---|---|
| No. | 1164044 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100-49500 |
| Bucket capacity (m³) | 2.3-3.1 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

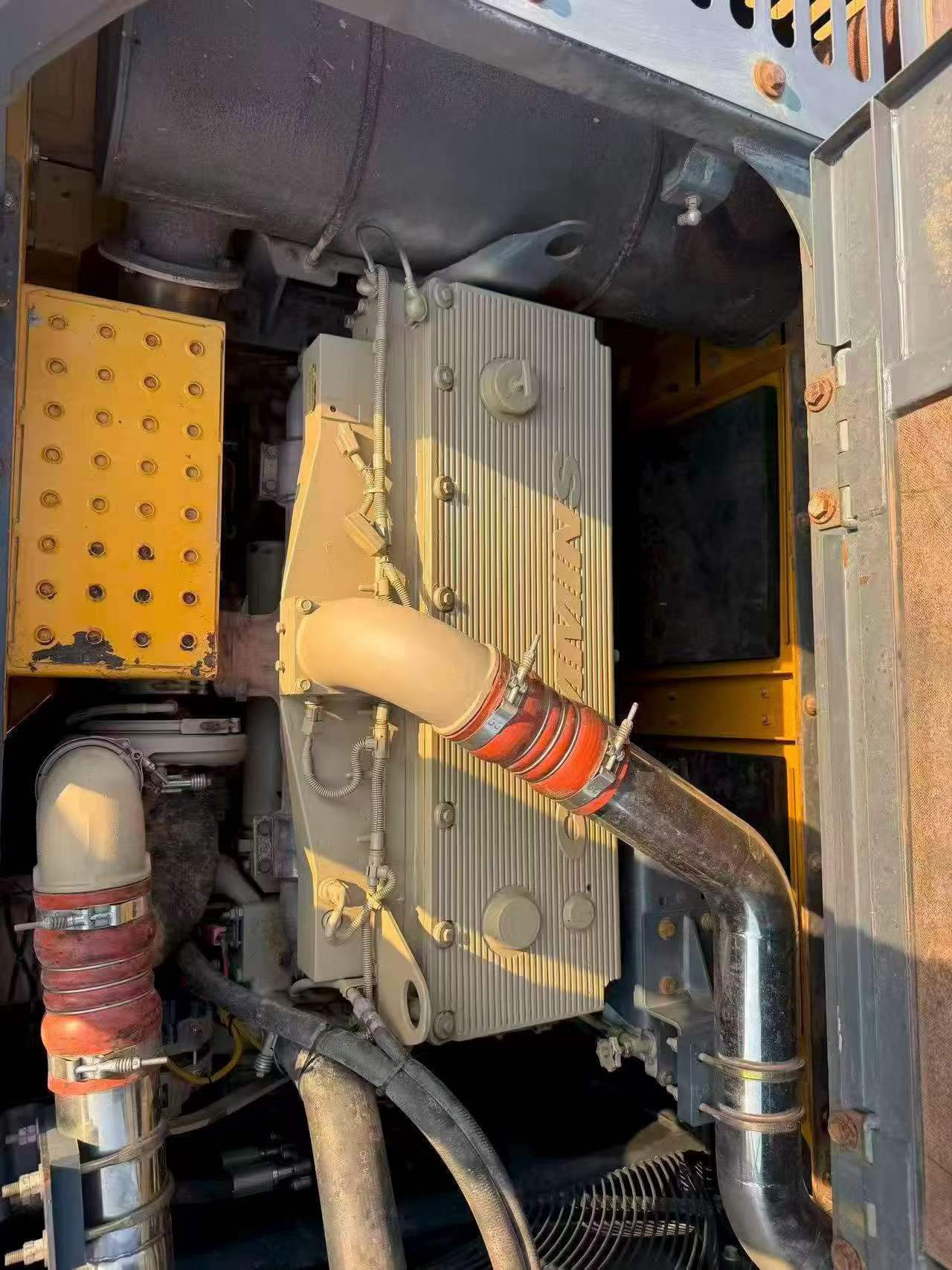

| Engine type | QSM11 |
| Rated power (kw/rpm) | 280/2000 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 301 |
| Rod digging force (kN) | 248 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |

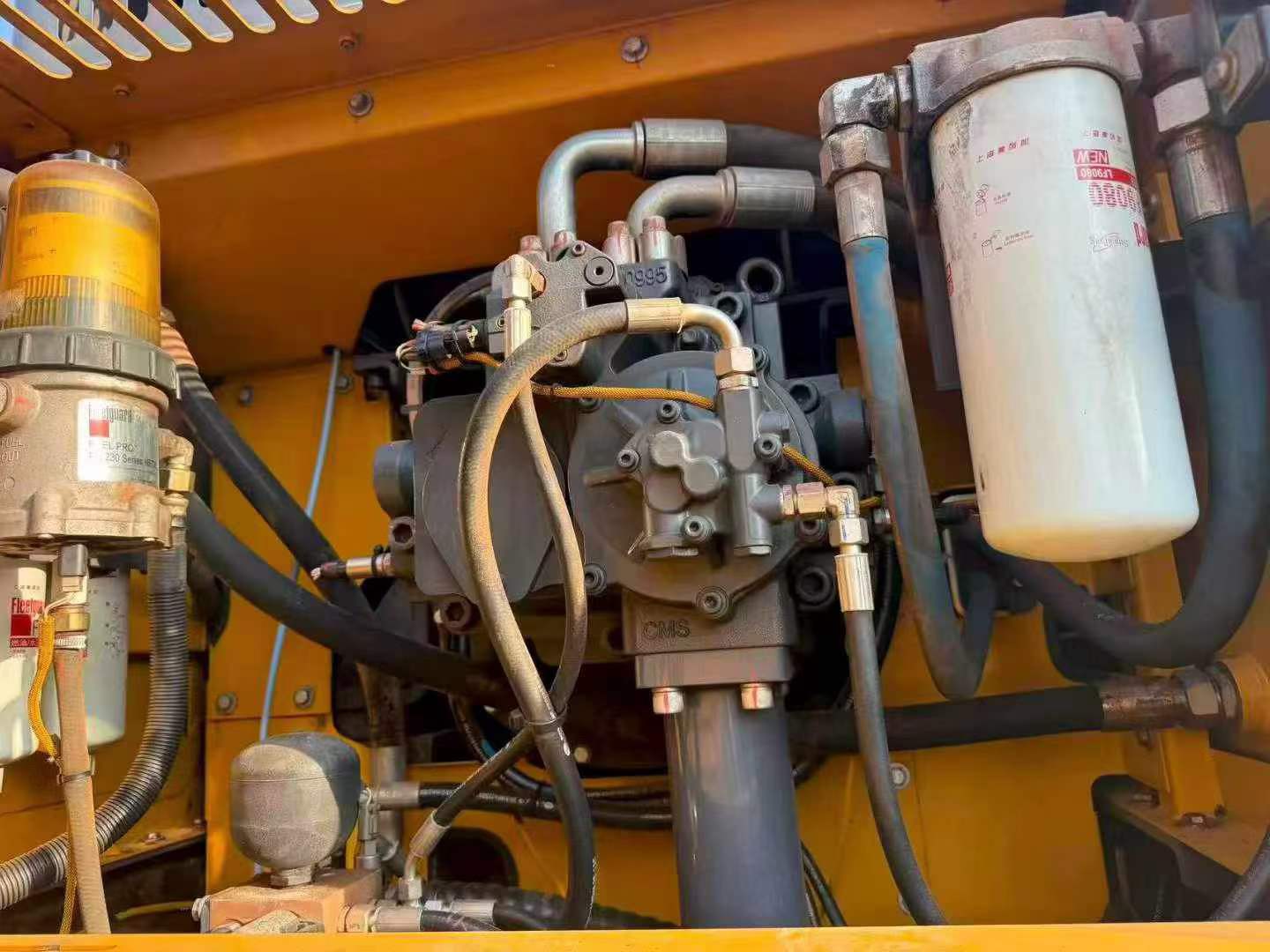

| Main pump type | Two plunger pumps |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11808 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3890 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4580 |
| Back end turning radius (mm) | 3800 |

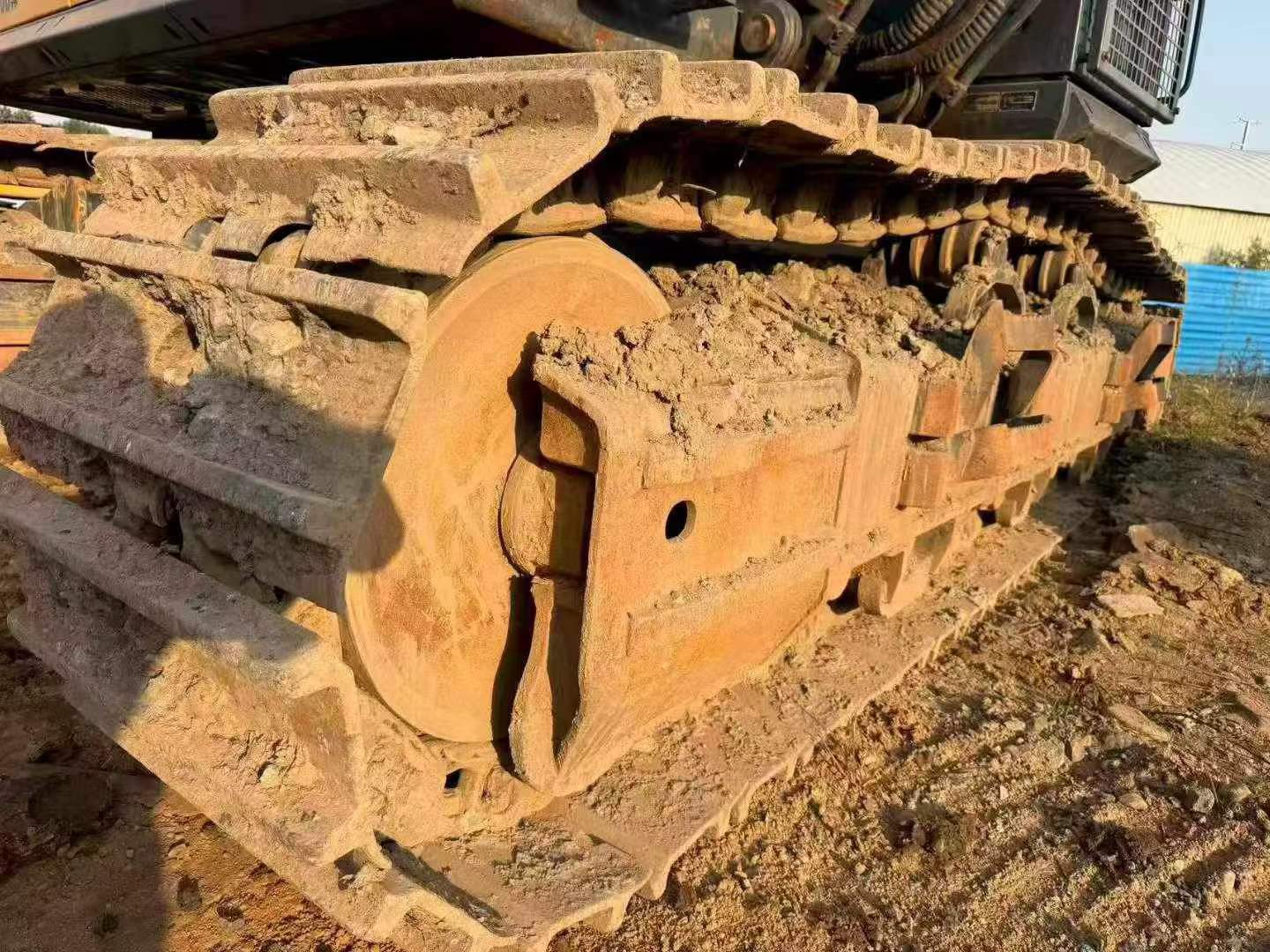

| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10855 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9855 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4500 |
| Maximum effective digging depth (mm) | 6900 |
