Product Description

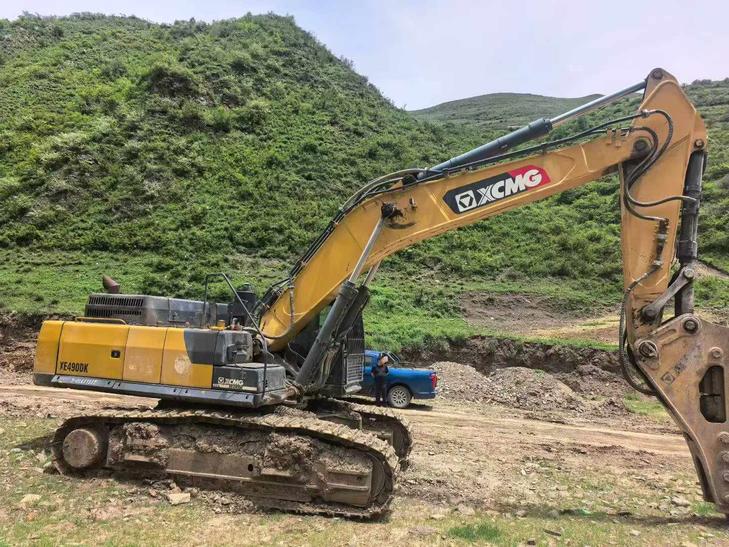

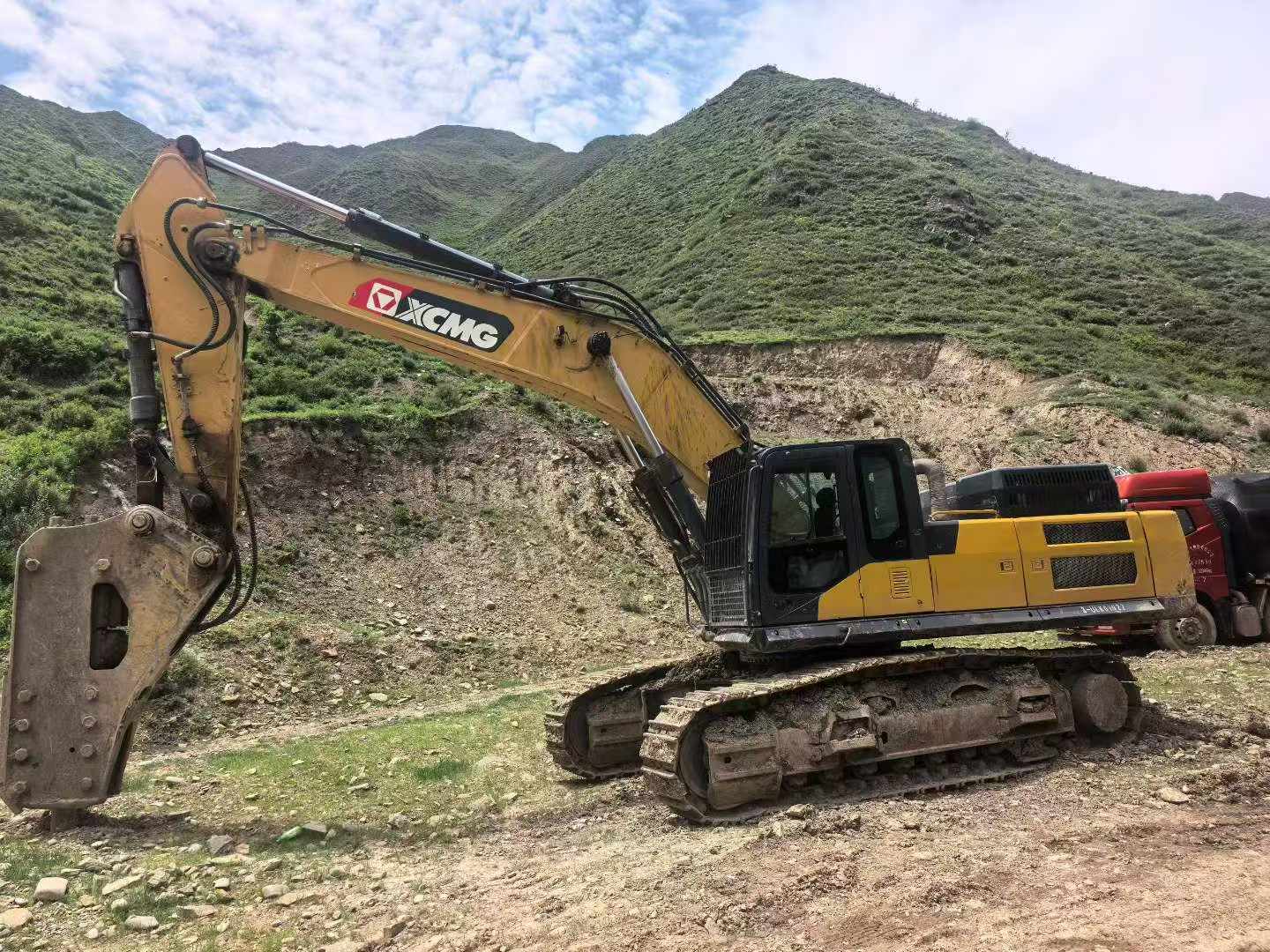

2021 XCMG XE490DK excavator available from Jiangxi, China. This 49-ton class machine has accumulated 5,500 operating hours under single-owner operation. Currently deployed on active jobsites in Gansu Province, this unit comes equipped with the original XCMG factory-fitted 195-series hydraulic breaker attachment, providing immediate utility for demolition and rock-breaking applications.

  • Year: 2021
  • Operating Hours: 5,500
  • Ownership: Single owner, active jobsite operation
  • Current Location: Gansu Province (registered in Jiangxi)
  • Included Equipment: XCMG factory original 195 hydraulic hammer
  • Inspection: On-site operational testing available at current work location

This machine represents a low-hour example from XCMG's heavy excavator lineup with documented work history. Buyers can arrange field inspection and operational demonstration at the active jobsite prior to purchase.

SpecificationsValue
No.1076856
Tonnage (tons)49
Working weight (kg)48100-49500
Bucket capacity (m³)2.3-3.1
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM11
Rated power (kw/rpm)280/2000
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)70
Bucket digging force (kN)301
Rod digging force (kN)248
Maximum tractive force (kN)338
Travel speed (km/h)5.4/3.2
Maximum flow of main pump (l/min)2*360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump typeTwo plunger pumps
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11808
Total transport width (mm)3582
Total transport height (mm)3890
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Minimum turning radius of front working device (mm)4580
Back end turning radius (mm)3800
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Maximum digging radius (mm)10855
Maximum digging depth (mm)7000
Maximum excavation height (mm)9855
Maximum unloading height (mm)6890
Maximum vertical digging depth (mm)4500
Maximum effective digging depth (mm)6900
