2018 XCMG XE500C

1/9

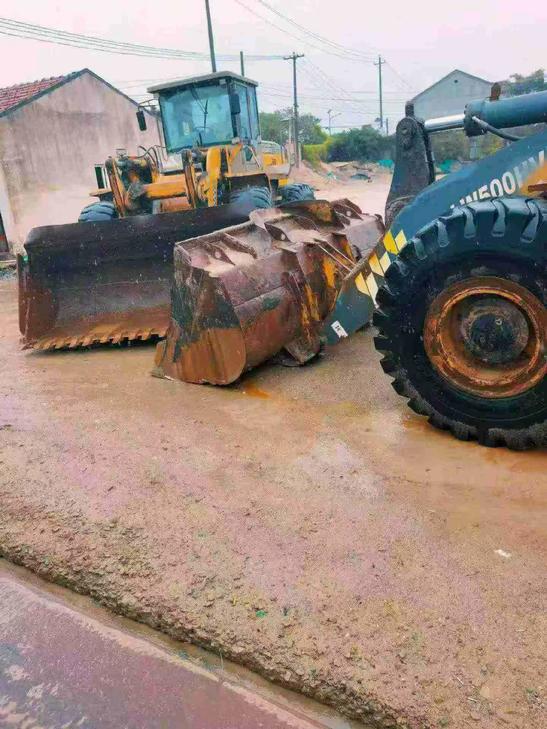

Buy XCMG XE500C Used Loader / 1
Buy XCMG XE500C Used Loader / 2
Buy XCMG XE500C Used Loader / 3
Buy XCMG XE500C Used Loader / 4
Buy XCMG XE500C Used Loader / 5
Buy XCMG XE500C Used Loader / 6
Buy XCMG XE500C Used Loader / 7
Buy XCMG XE500C Used Loader / 8
Buy XCMG XE500C Used Loader / 9

Product Description

This 2018 XCMG XE500C hydraulic excavator offers reliable performance for demanding earthmoving and excavation projects. Equipped with an extended long-reach boom configuration, this machine provides exceptional digging depth and reach capabilities ideal for deep foundation work, dredging operations, and slope management applications.

Key features include:

  • XCMG XE500C platform with proven hydraulic system
  • Extended long-reach boom for enhanced operational range
  • 50-ton operating class suitable for heavy-duty applications
  • Low operating hours for a 2018 model year unit
  • Currently located in Hebei Province, China

This excavator represents a cost-effective solution for contractors requiring extended reach capabilities without compromising on machine stability and hydraulic performance. Suitable for mining support, river maintenance, and large-scale civil engineering projects.

SpecificationsValue
No.1171747
Tonnage (tons)50
Working weight (kg)47300
Bucket capacity (m³)2.1 ~ 2.5
Boom length (mm)7060
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins QSM11
Rated power (kw/rpm)250/2100
Maximum torque (N.m/rpm)1674/1400
Number of cylinders (PCS)6
Displacement (L)11
Ground specific pressure (Kpa)85.9
Rotation speed (rpm)9
Climbing ability (%)35
Bucket digging force (kN)284
Rod digging force (kN)236
Maximum tractive force (kN)236
Travel speed (km/h)5.4/3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)28.4
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)12032
Total transport width (mm)3724
Total transport height (mm)4165
Counterweight ground clearance (mm)1360
Minimum ground clearance (mm)703(without tooth height)
Back end turning radius (mm)3665
Total track length (mm)5220
Track gauge (mm)2392/2890
Total track width (mm)600
Maximum digging radius (mm)11631
Maximum digging depth (mm)7337
Maximum excavation height (mm)10675
Maximum unloading height (mm)7409
Maximum vertical digging depth (mm)5225
see more

Overview

No.1171747

Brand Name:

XCMG

Model Number:

XE500C

Year:

2018

Location:

Hebei China

Pub Date:
