Product Description
Discover the reliability and robust performance of the 2020 XCMG XE500C, a premier choice for heavy-duty construction and excavation projects. This used machine, located in Guangdong, China, has been meticulously maintained and is ready to tackle your most demanding tasks. With an operational hour count of 3,600, this excavator is in excellent condition, offering a balance of experience and longevity. The XE500C is designed to deliver high efficiency and productivity, making it a valuable addition to any fleet. Choose the XCMG XE500C for its proven durability and strong performance capabilities, ensuring that your investment supports the toughest job requirements.
- Year: 2020
- Brand: XCMG
- Model: XE500C
- Location: Guangdong, China

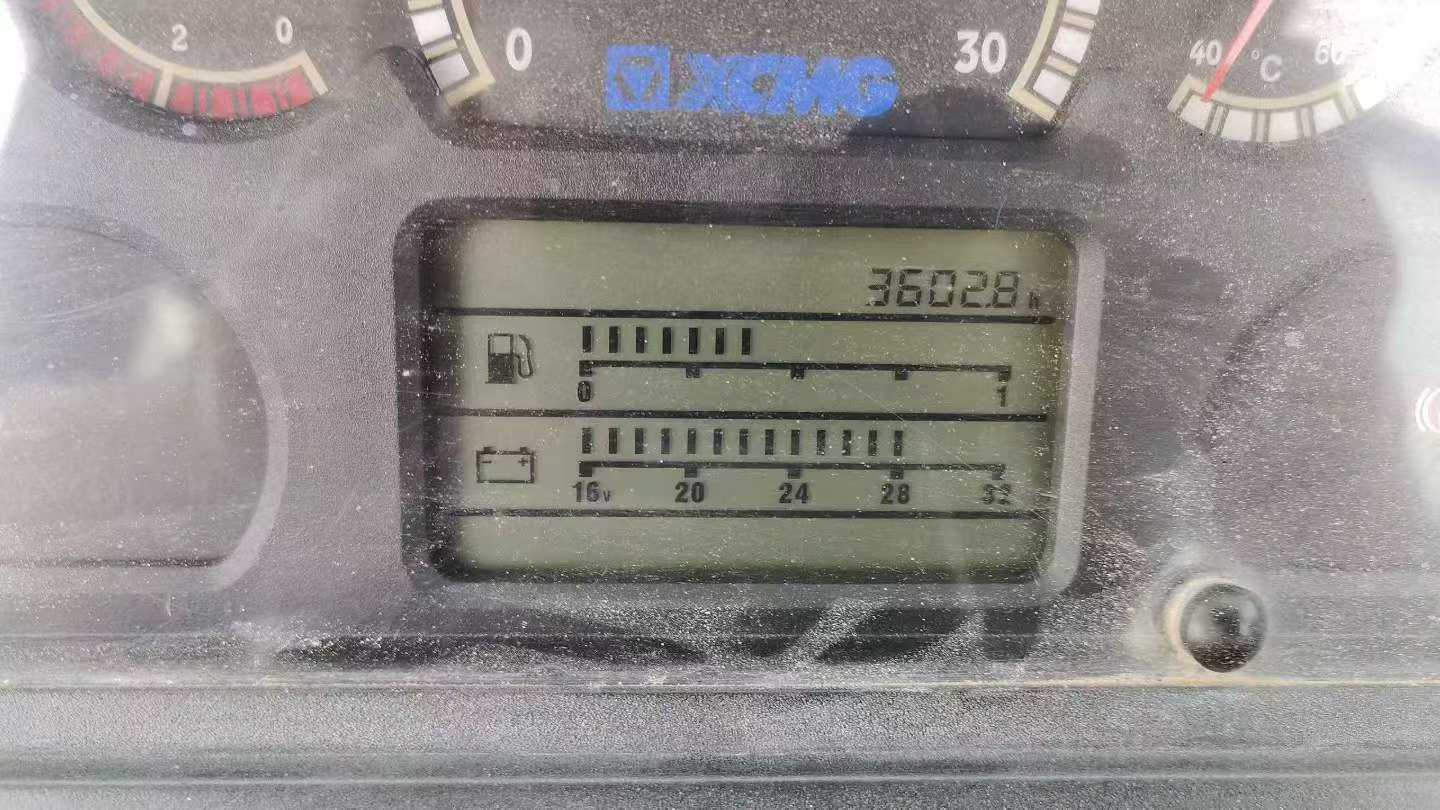

- Operational Hours: 3,600
| Specifications | Value |
|---|---|
| No. | 1129951 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 47300 |
| Bucket capacity (m³) | 2.1 ~ 2.5 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 250/2100 |
| Maximum torque (N.m/rpm) | 1674/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 85.9 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 236 |
| Maximum tractive force (kN) | 236 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12032 |
| Total transport width (mm) | 3724 |
| Total transport height (mm) | 4165 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 703(without tooth height) |
| Back end turning radius (mm) | 3665 |
| Total track length (mm) | 5220 |
| Track gauge (mm) | 2392/2890 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 11631 |
| Maximum digging depth (mm) | 7337 |
| Maximum excavation height (mm) | 10675 |
| Maximum unloading height (mm) | 7409 |
| Maximum vertical digging depth (mm) | 5225 |
