Product Description

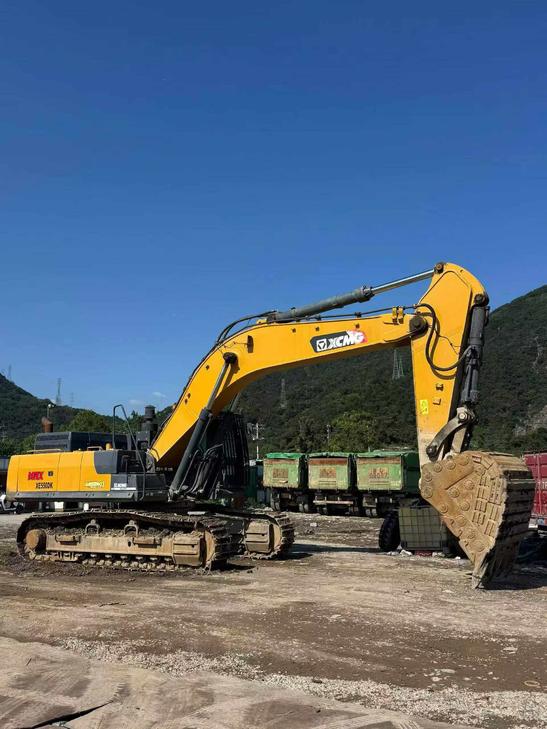

This 2021 XCMG XE550DK MAX excavator is a robust earthmoving machine designed for high-volume excavation projects. With 5,300 verified operating hours, this unit demonstrates reliable performance in demanding soil applications. The machine is equipped with XCMG's intelligent management system, providing real-time diagnostics and operational data tracking for enhanced fleet management.
Key features include:
- Genuine 5,300-hour meter reading with documented service history
- Optimized for pure earthmoving operations
- XCMG Smart Manager system with transferable connectivity
- Mechanically sound condition, inspection-ready
- Currently located in Zhejiang, China
This excavator offers dependable performance for contractors seeking a well-maintained heavy-duty machine. The XCMG XE550DK MAX is suitable for large-scale excavation, site development, and material handling applications. Complete operational documentation available upon request.
| Specifications | Value |
|---|---|
| No. | 1173501 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
