Product Description

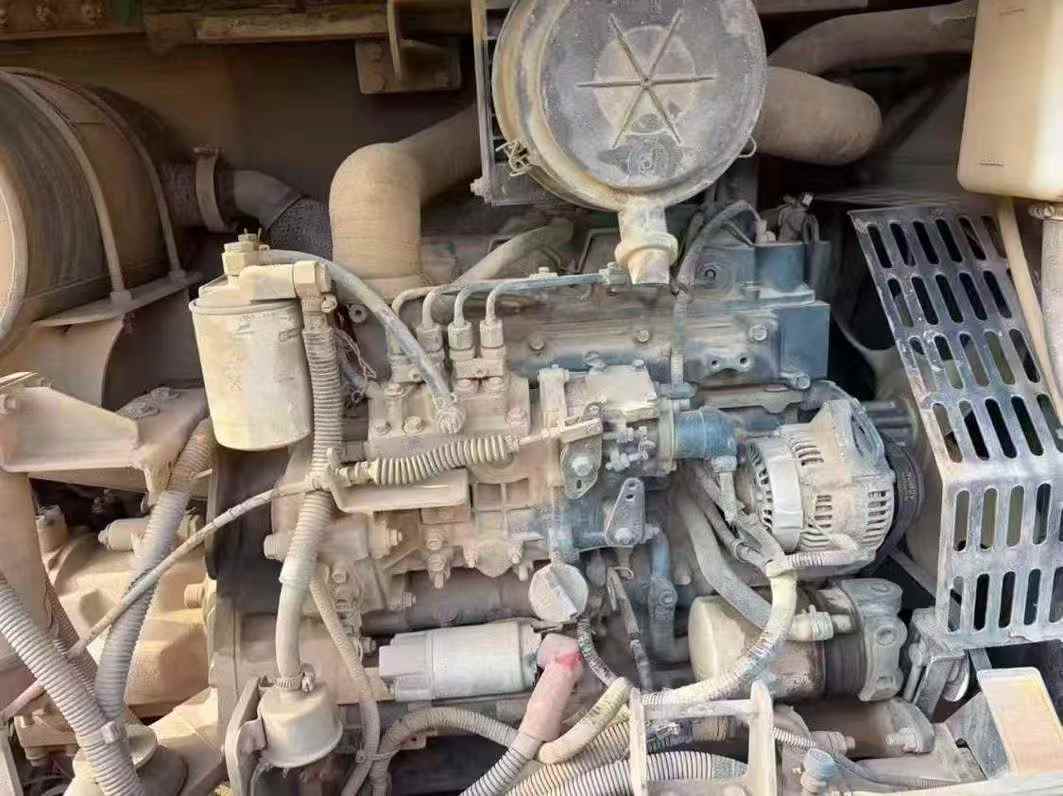

Built for precision and daily productivity, this 2019 XCMG XE55DA mini excavator delivers reliable performance in a compact 5-ton platform. Operating weight of 5,750 kg provides excellent stability during digging operations, while the 0.21 m³ backhoe bucket tackles trenching and utility work with 48.3 kN of digging force. Powered by a water-cooled V2607 engine generating 35 kW at 2,200 rpm, this machine combines fuel efficiency with consistent hydraulic response.
Operators benefit from superior maneuverability in confined spaces, with a minimum turning radius of just 2,460 mm and a compact transport width of 1,920 mm. The 400 mm track plates distribute ground pressure to only 31 kPa, minimizing surface damage on sensitive job sites. Cabin visibility is enhanced by the low-profile design and 700 mm counterweight clearance, allowing clear sightlines to the work zone.
- Maximum digging reach: 6,130 mm
- Maximum digging depth: 3,830 mm
- Travel speed: 4.2/2.2 km/h
- 150 L/min main pump flow for responsive hydraulics
- 35% grading capability on slopes
- Currently located in Guizhou, China
| Specifications | Value |
|---|---|
| No. | 1026067 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5750 |
| Bucket capacity (m³) | 0.21 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607 |
| Rated power (kw/rpm) | 35/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.615 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 77 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1670 |
| Track gauge (mm) | 1500 |

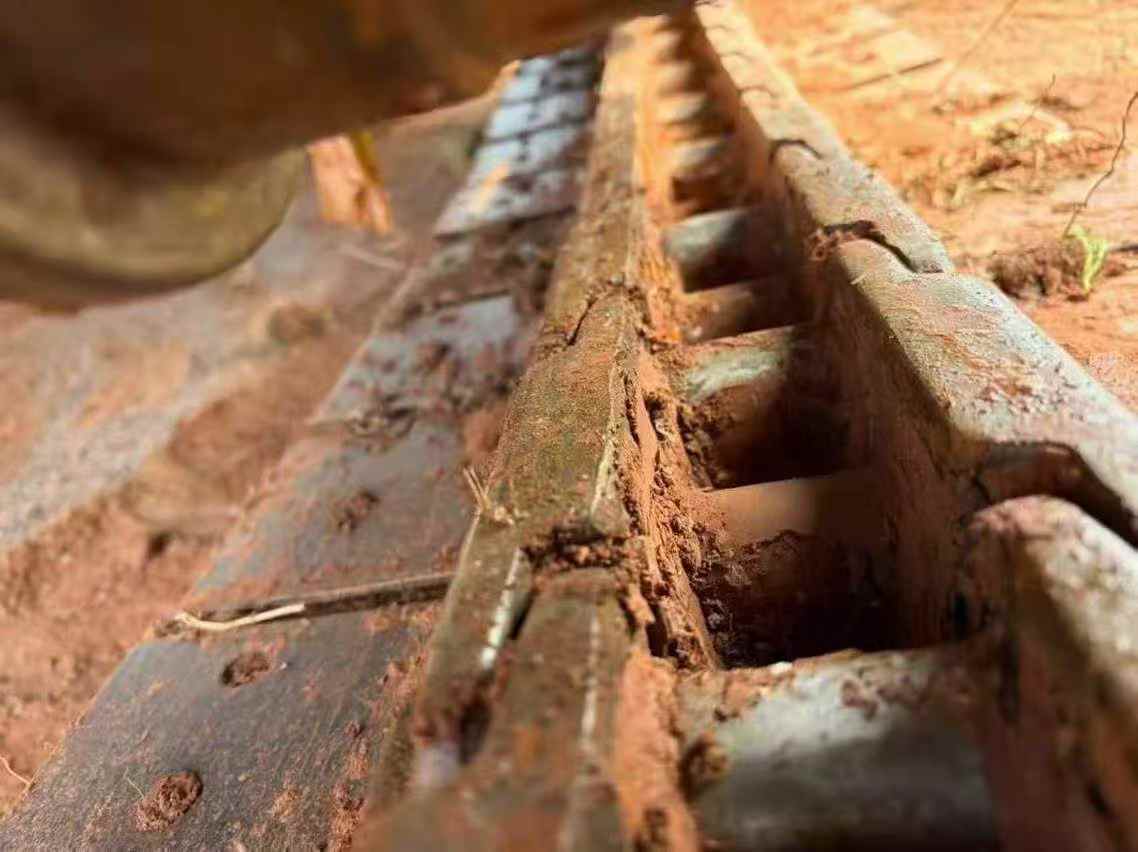

| Track plate width (mm) | 400 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
