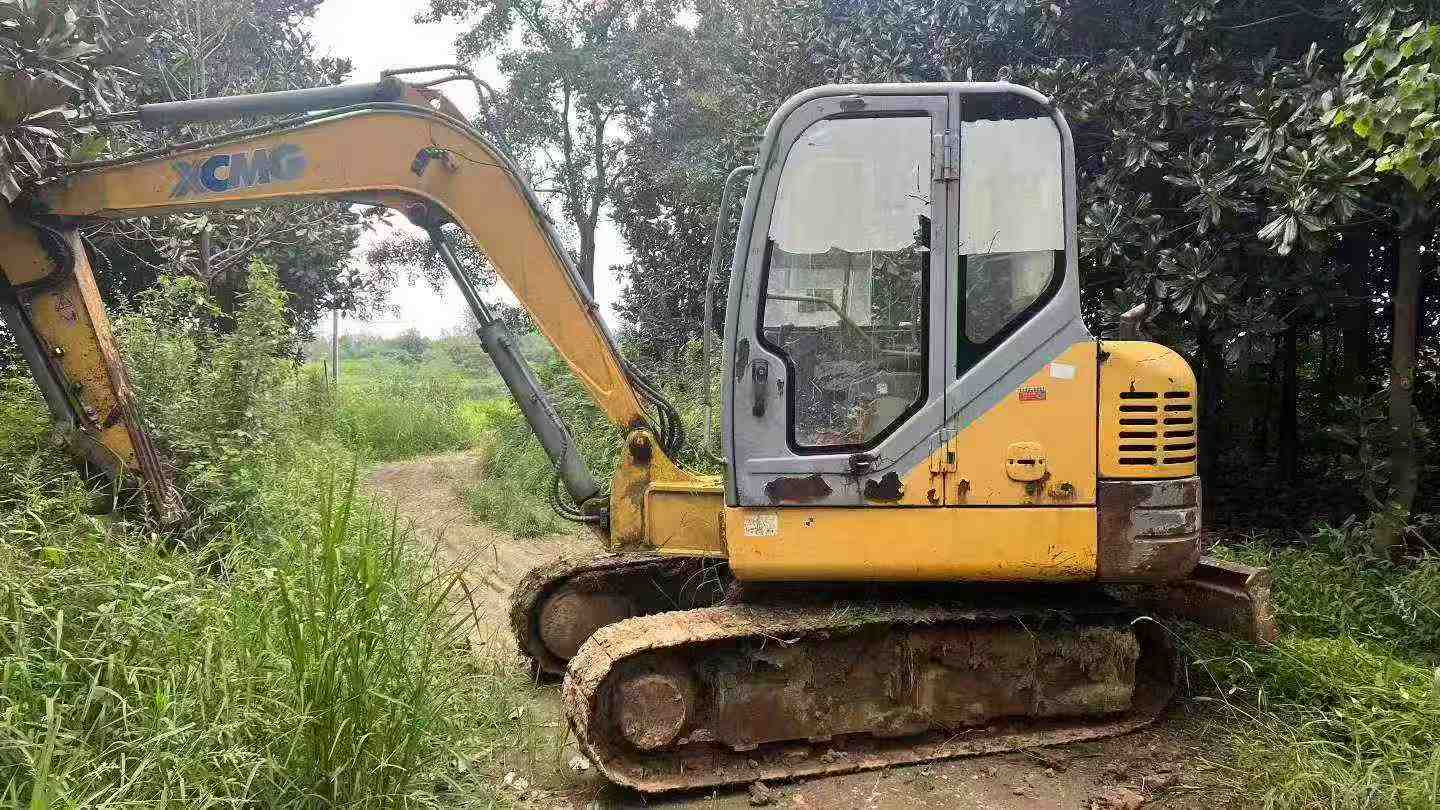

2013 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1

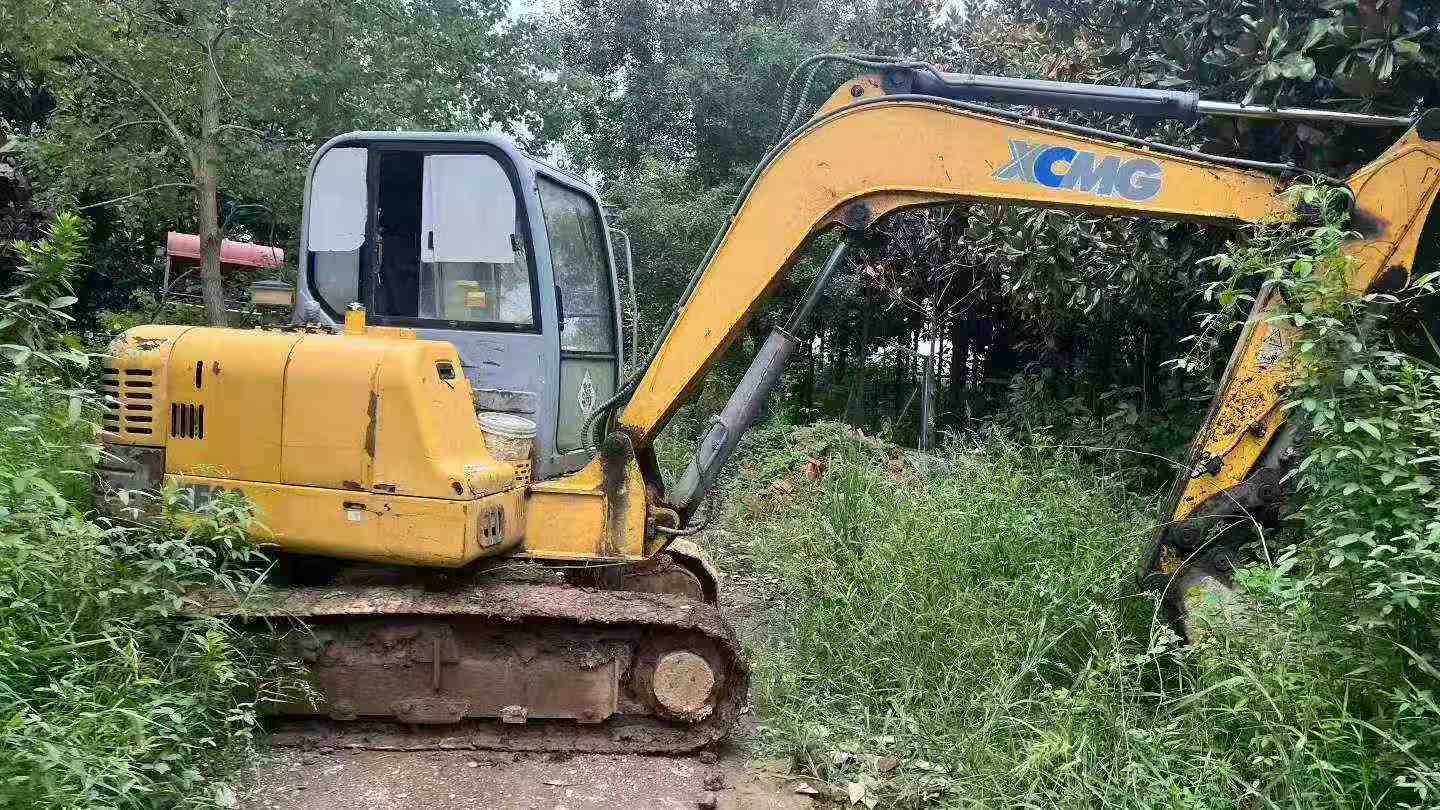

Buy XCMG XE60 Used Excavator / 2

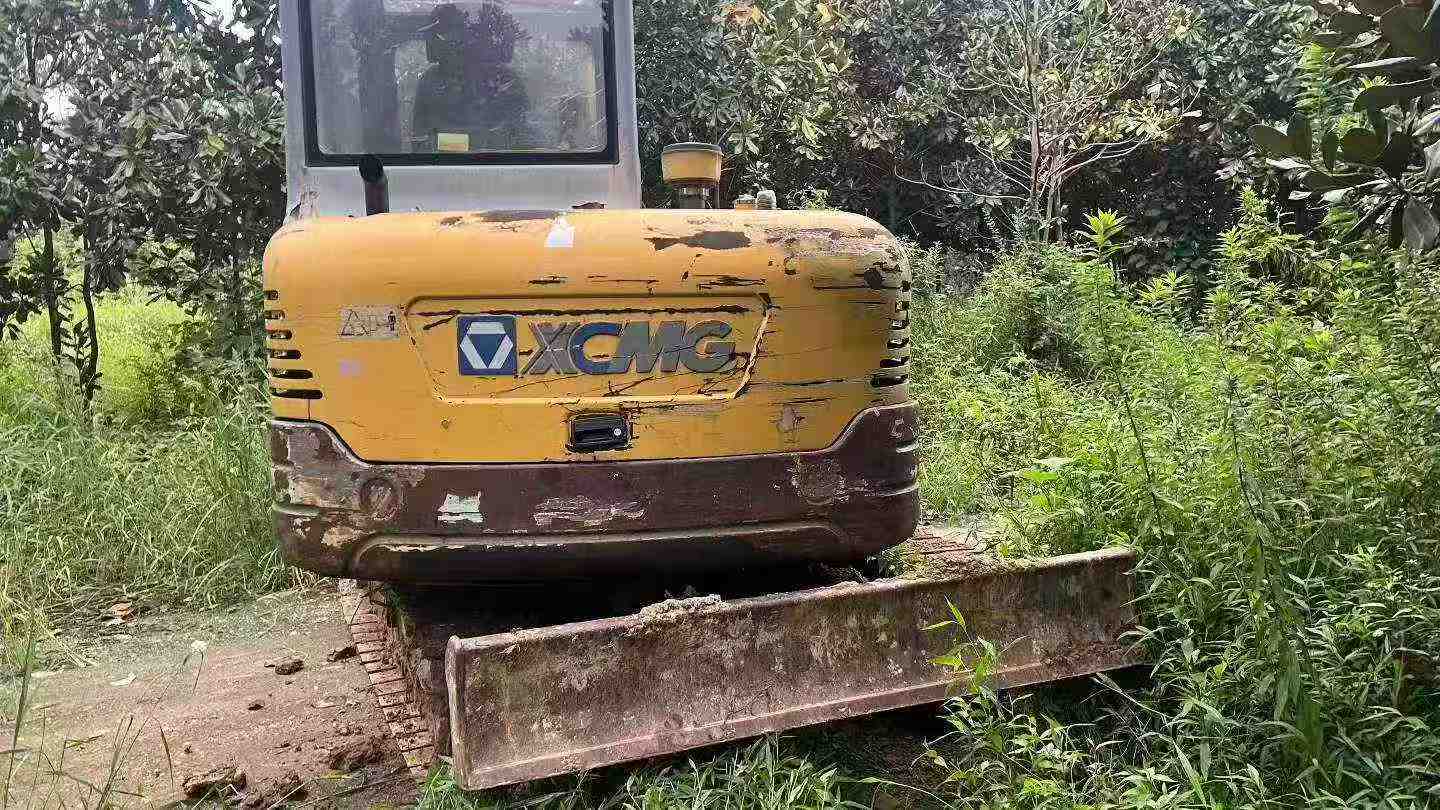

Buy XCMG XE60 Used Excavator / 3

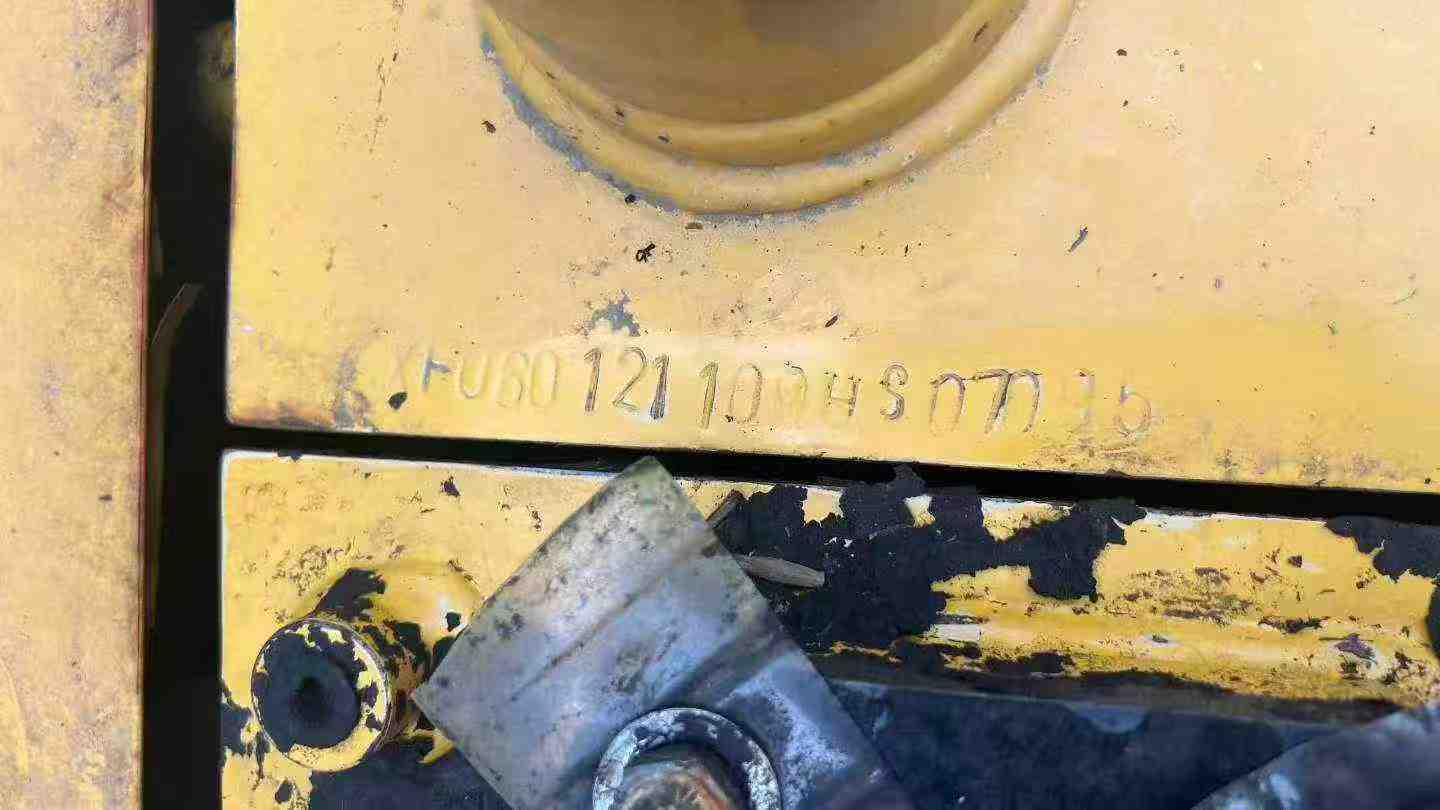

Buy XCMG XE60 Used Excavator / 4

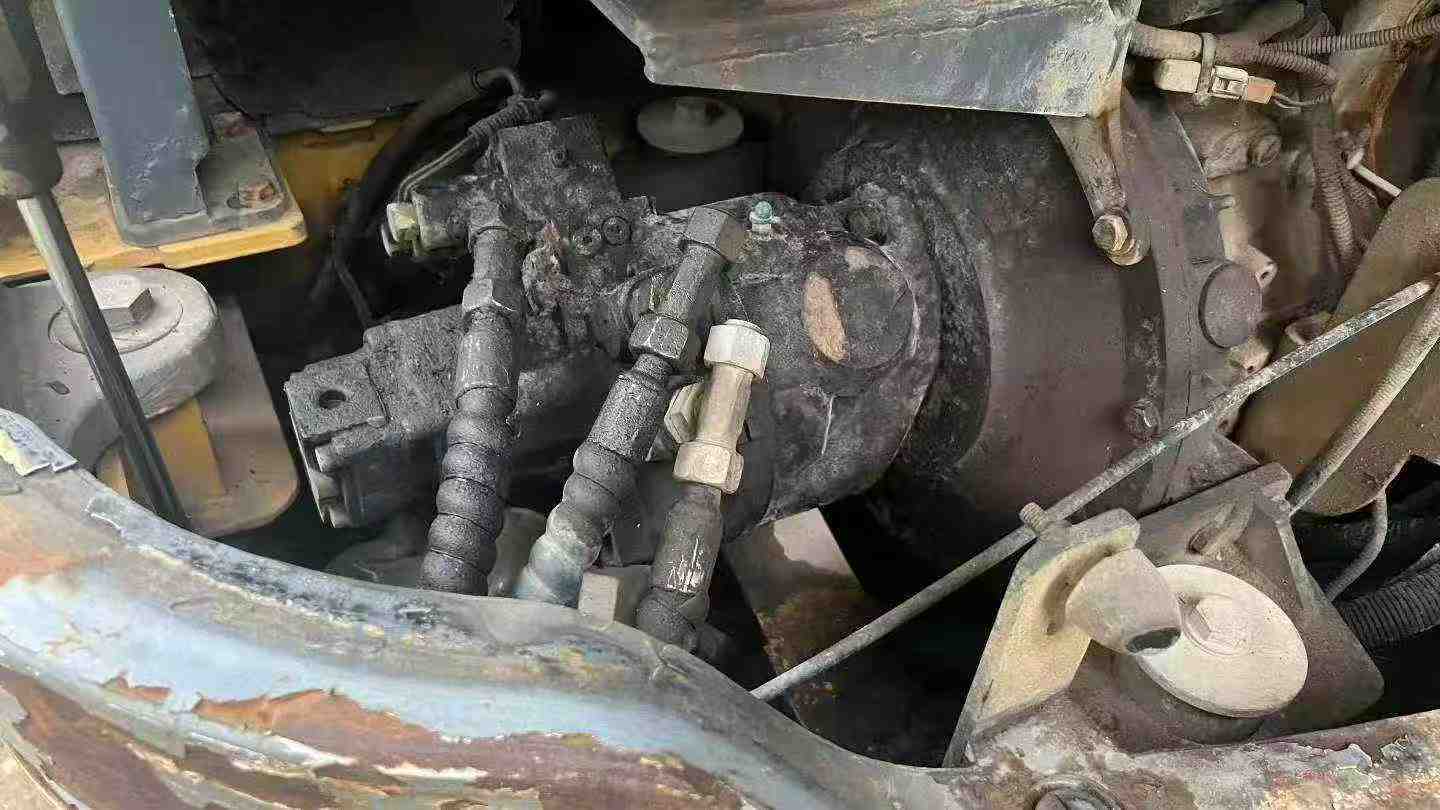

Buy XCMG XE60 Used Excavator / 5

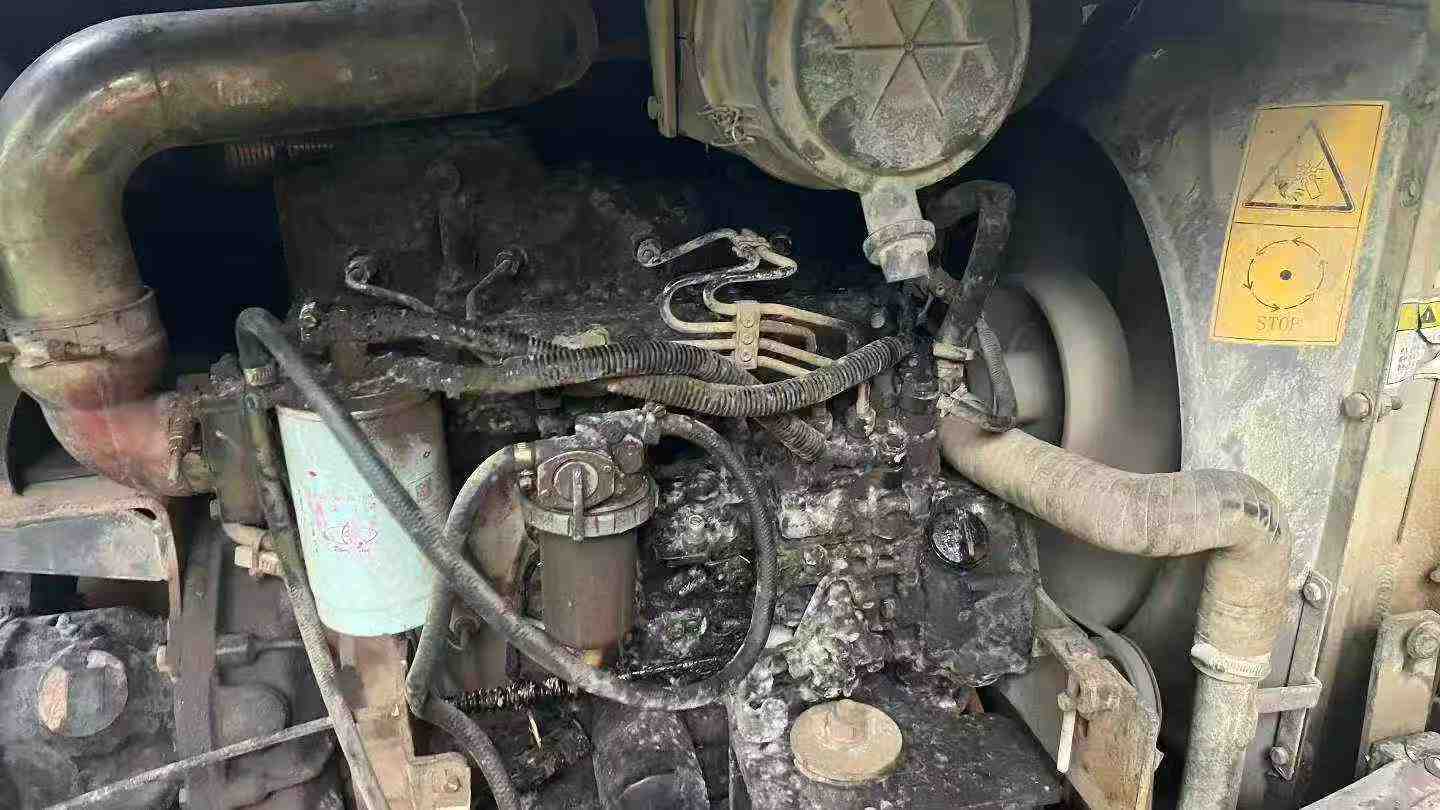

Buy XCMG XE60 Used Excavator / 6

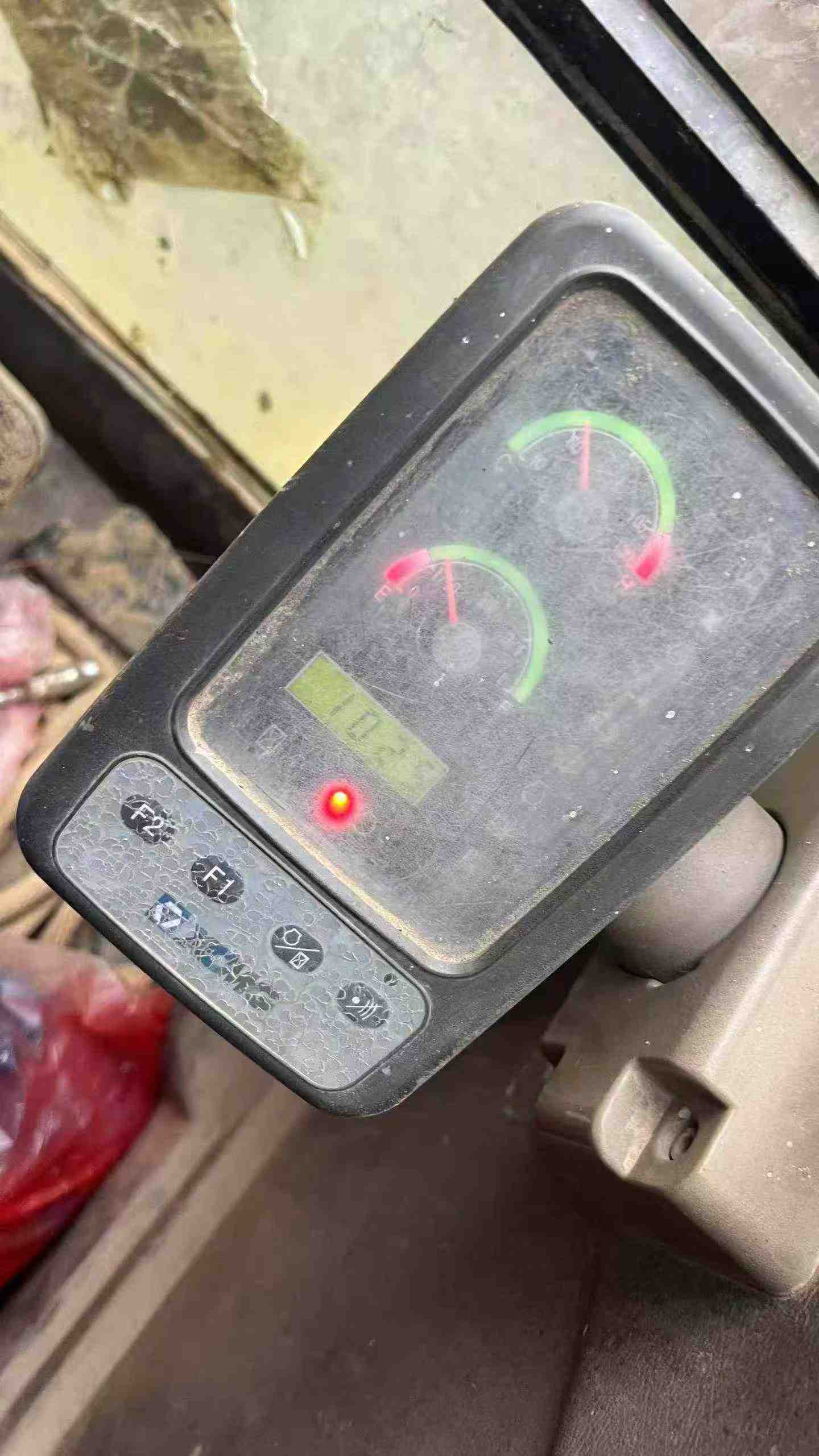

Buy XCMG XE60 Used Excavator / 7

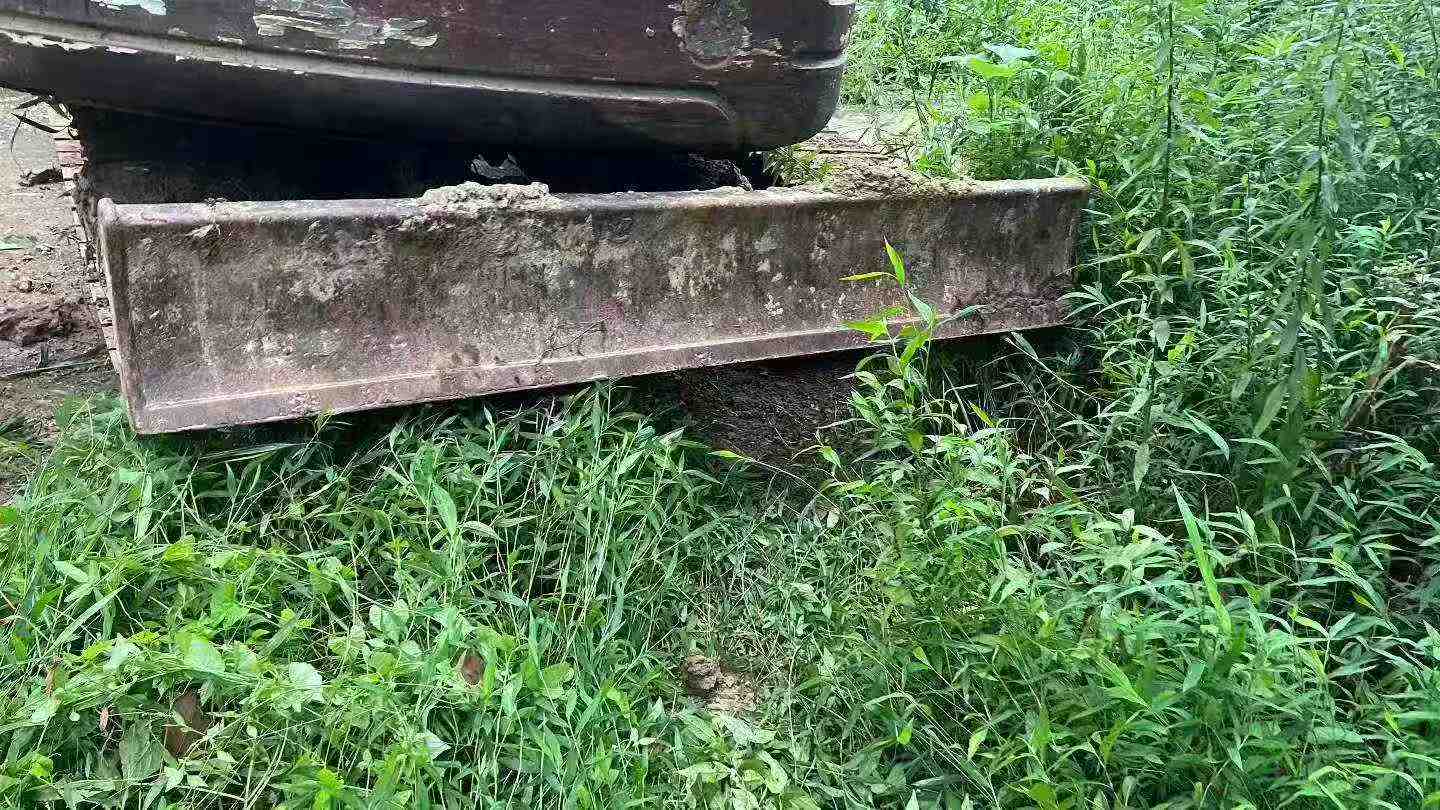

Buy XCMG XE60 Used Excavator / 8

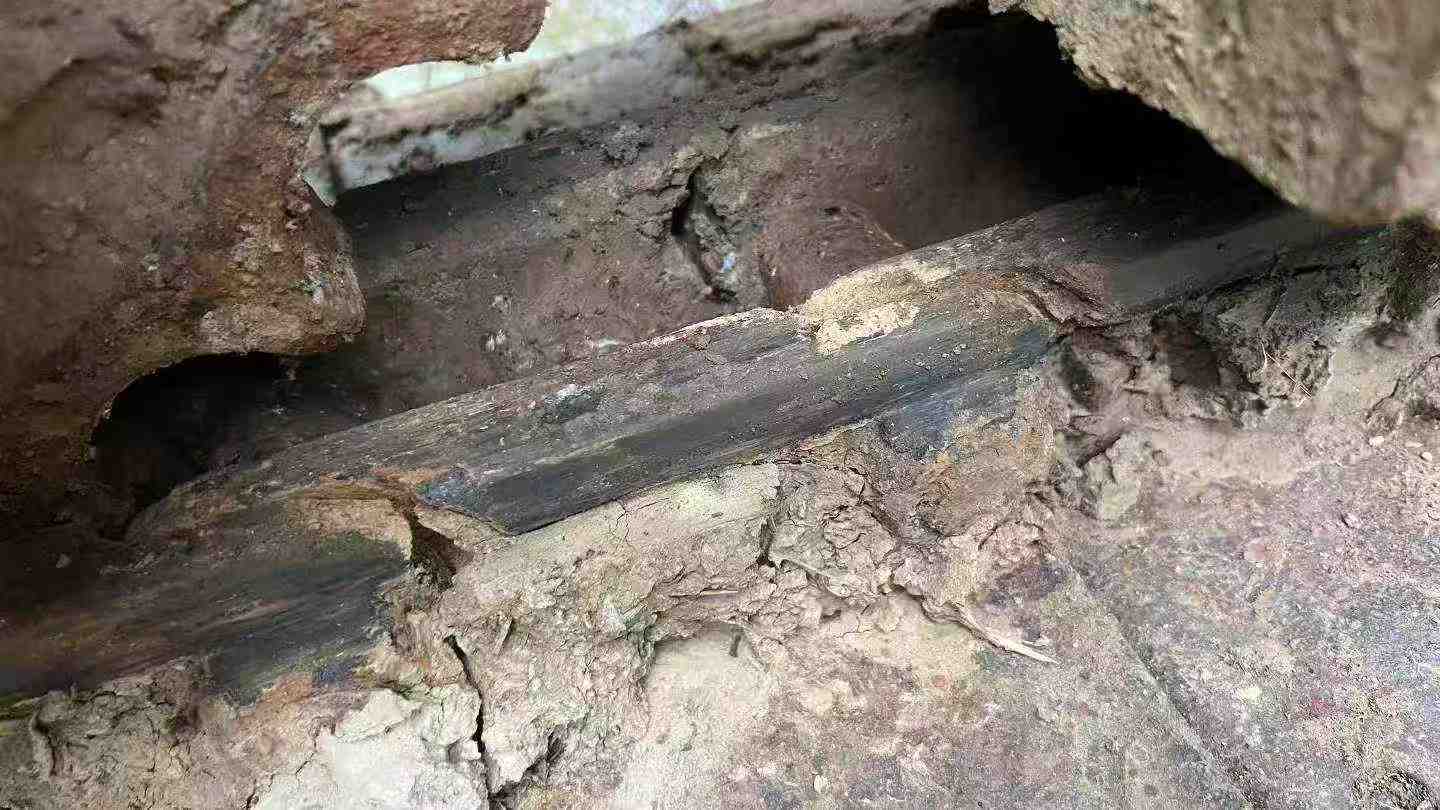

Buy XCMG XE60 Used Excavator / 9

Product Description

Discover the 2013 XCMG XE60, a robust and reliable excavator, now available for immediate purchase. Located in Anhui, China, this used machine is ready to meet your construction needs with its proven performance and durability. The XE60 is an excellent choice for various excavation tasks, offering a balance of power and efficiency. With detailed images and video available upon request, you can inspect the condition of the machine before making your decision. This unit is priced at just over 20,000, making it a cost-effective solution for your project requirements.

  • Year: 2013
  • Brand: XCMG
  • Model: XE60
  • Location: Anhui, China
  • Detailed images and video available
SpecificationsValue
No.1139958
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1139958

Brand Name:

XCMG

Model Number:

XE60

Year:

2013

Location:

Anhui China

Pub Date
