2015 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1

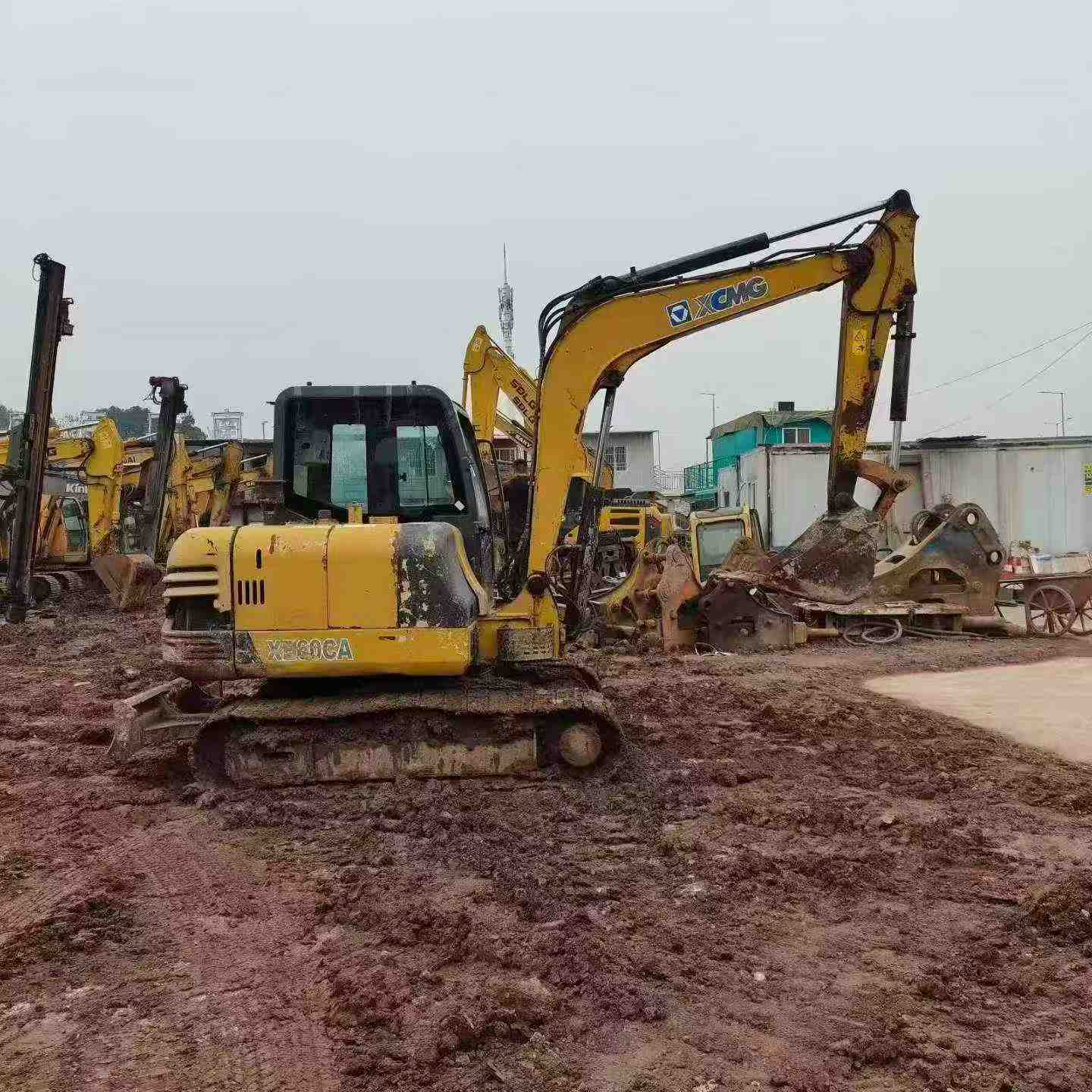

Buy XCMG XE60 Used Excavator / 2

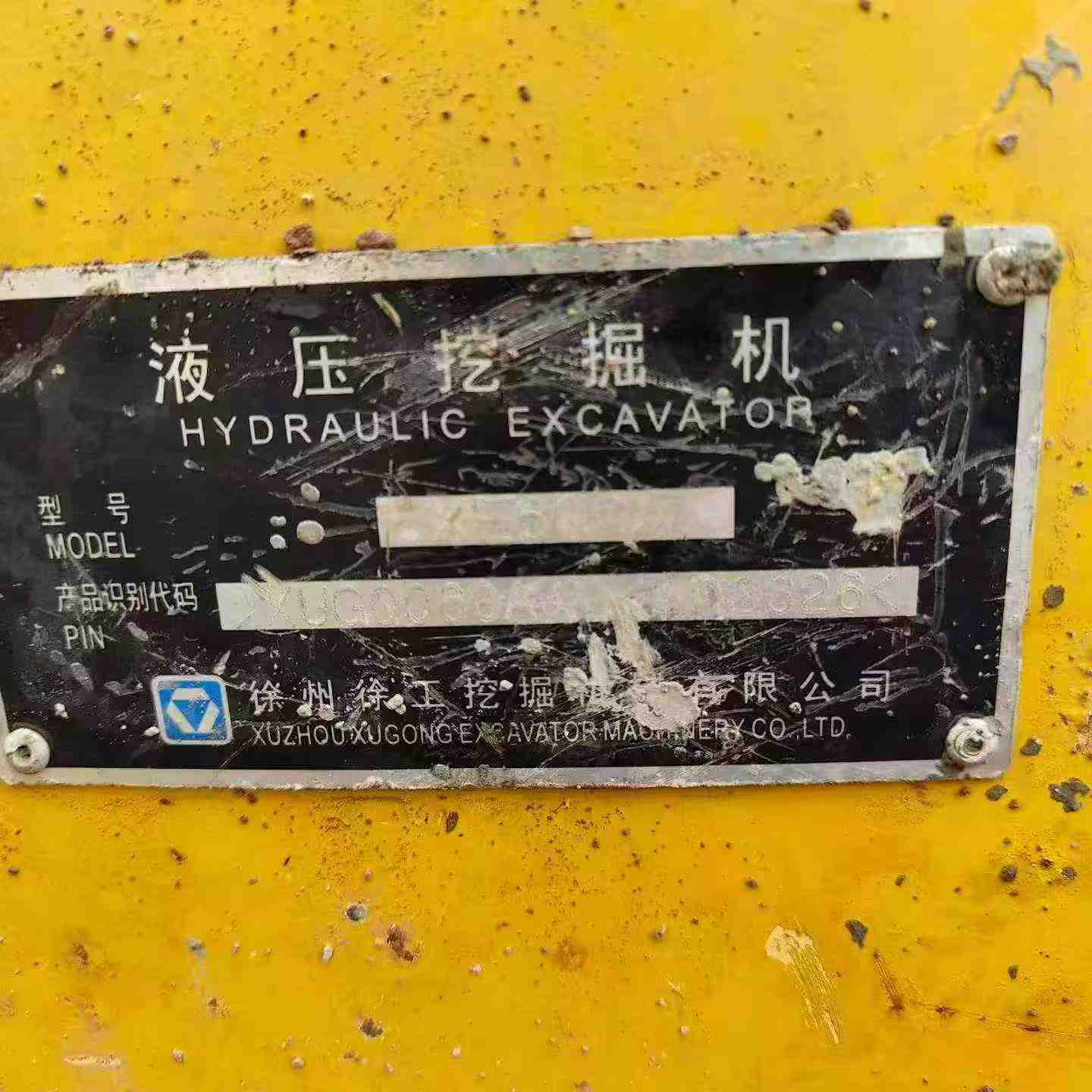

Buy XCMG XE60 Used Excavator / 3

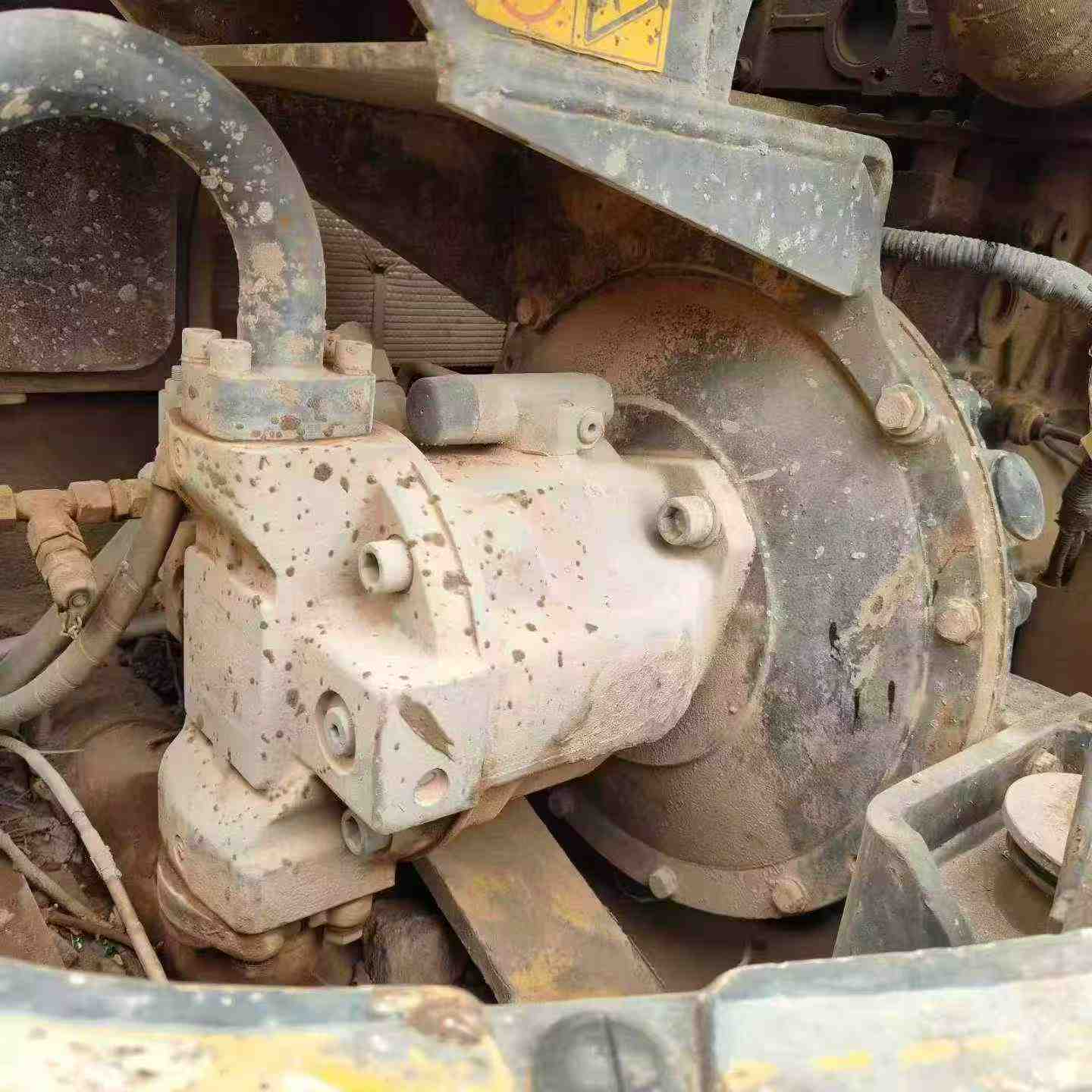

Buy XCMG XE60 Used Excavator / 4

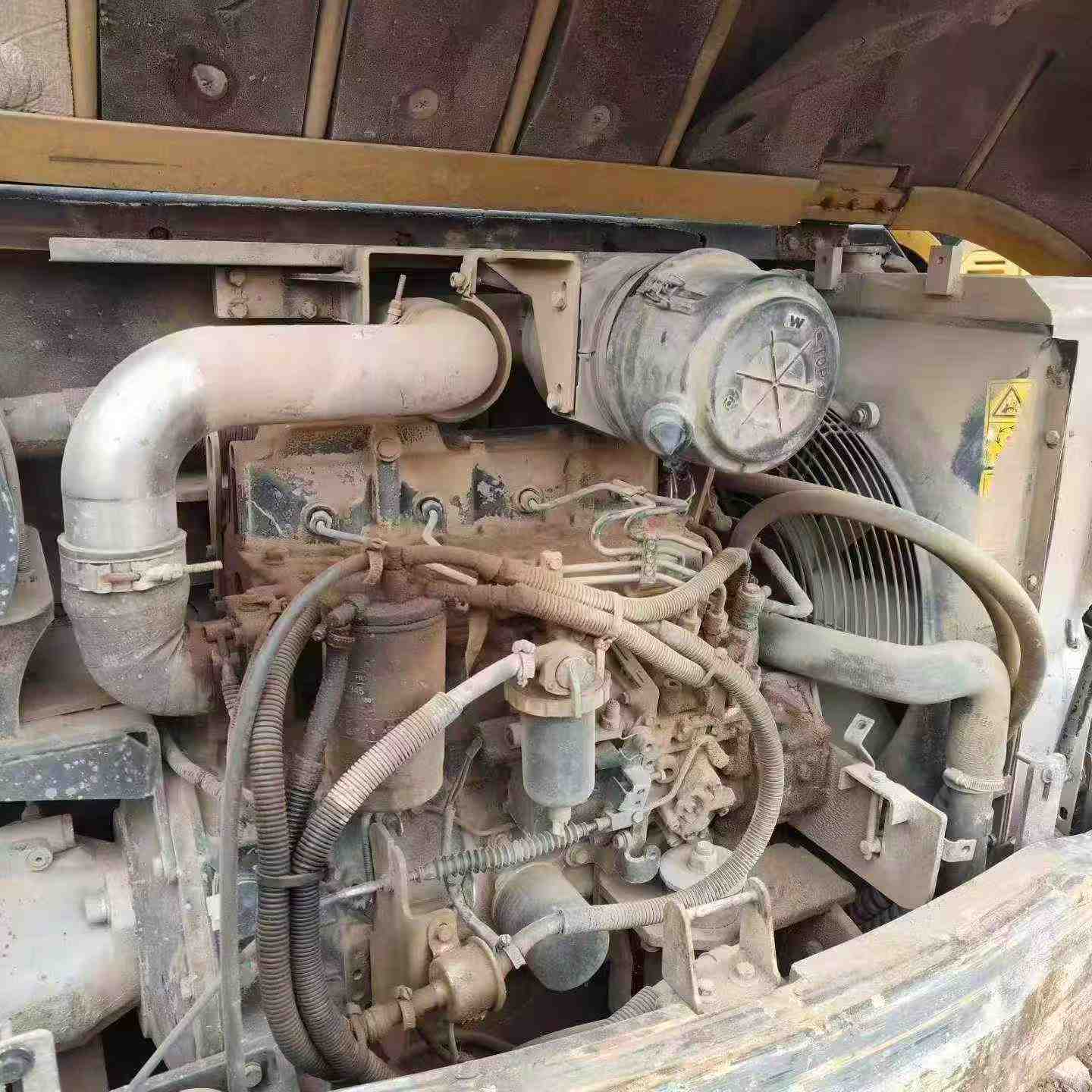

Buy XCMG XE60 Used Excavator / 5

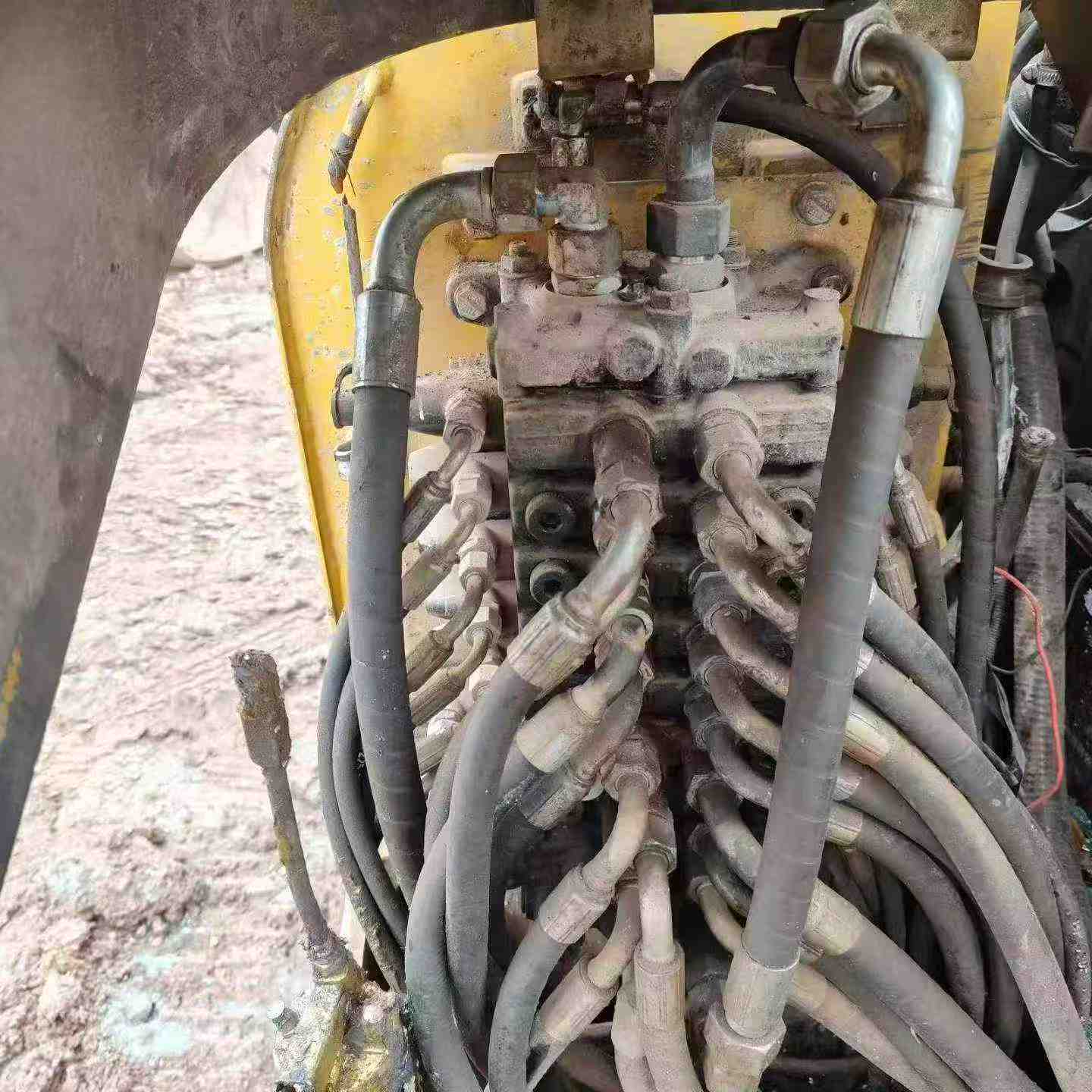

Buy XCMG XE60 Used Excavator / 6

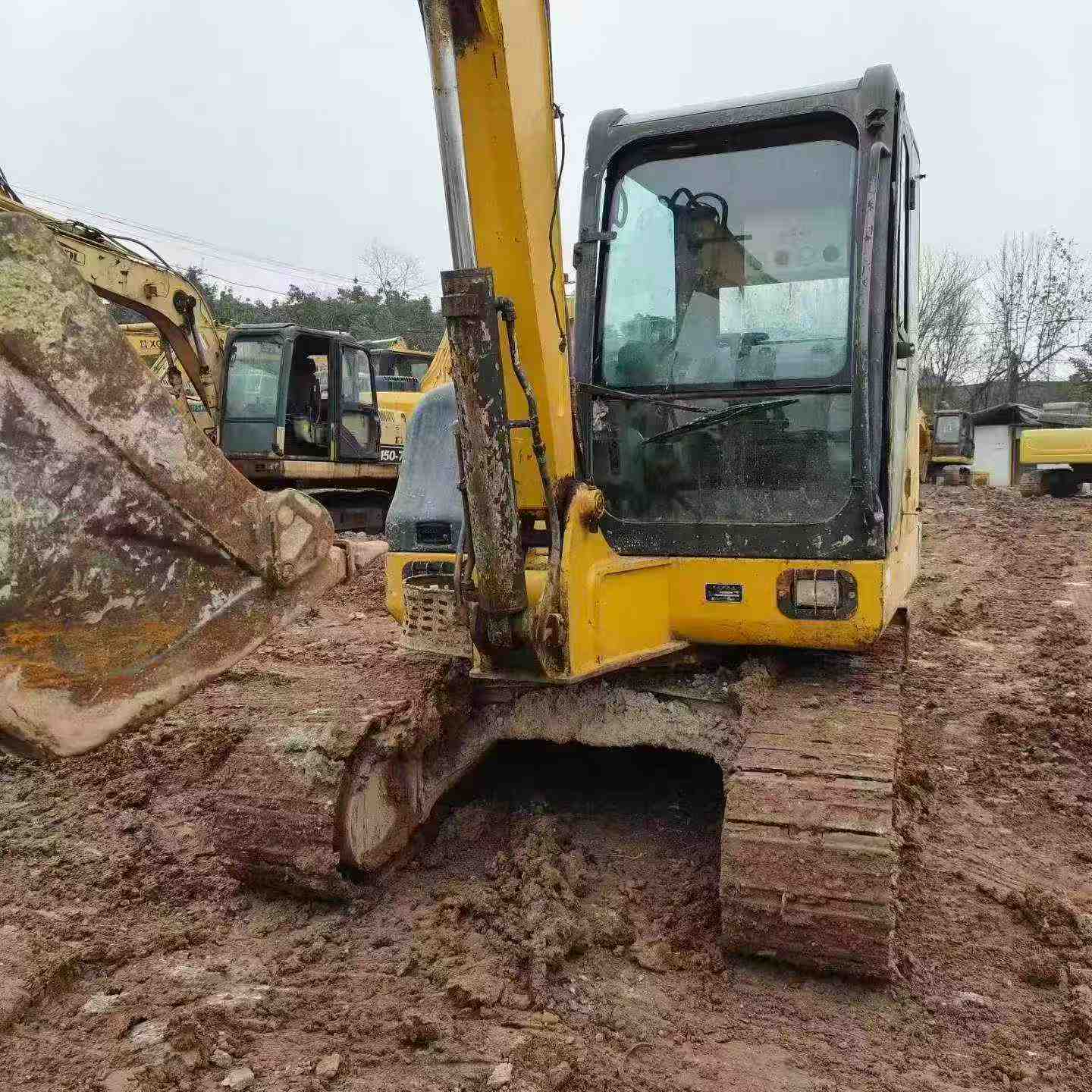

Buy XCMG XE60 Used Excavator / 7

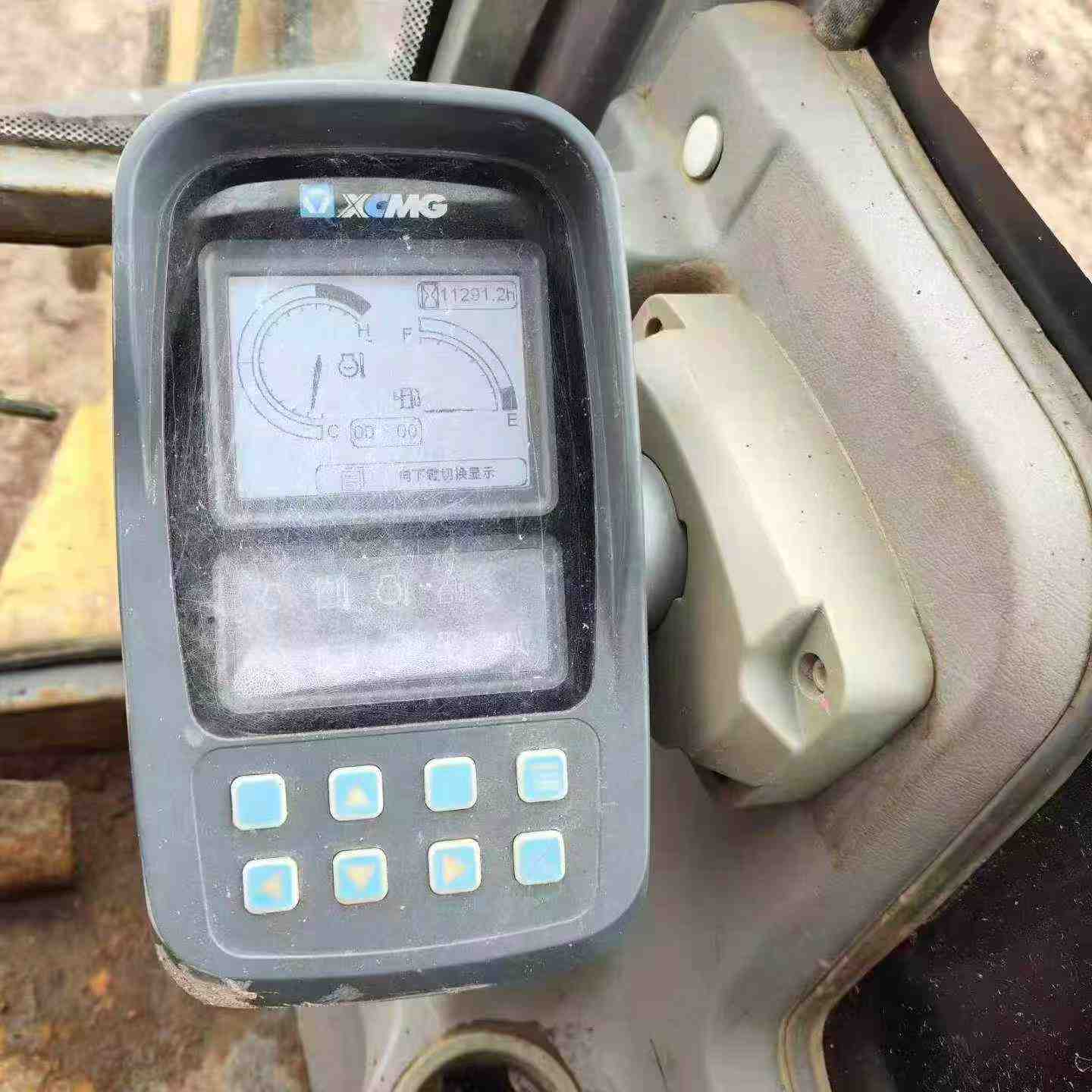

Buy XCMG XE60 Used Excavator / 8

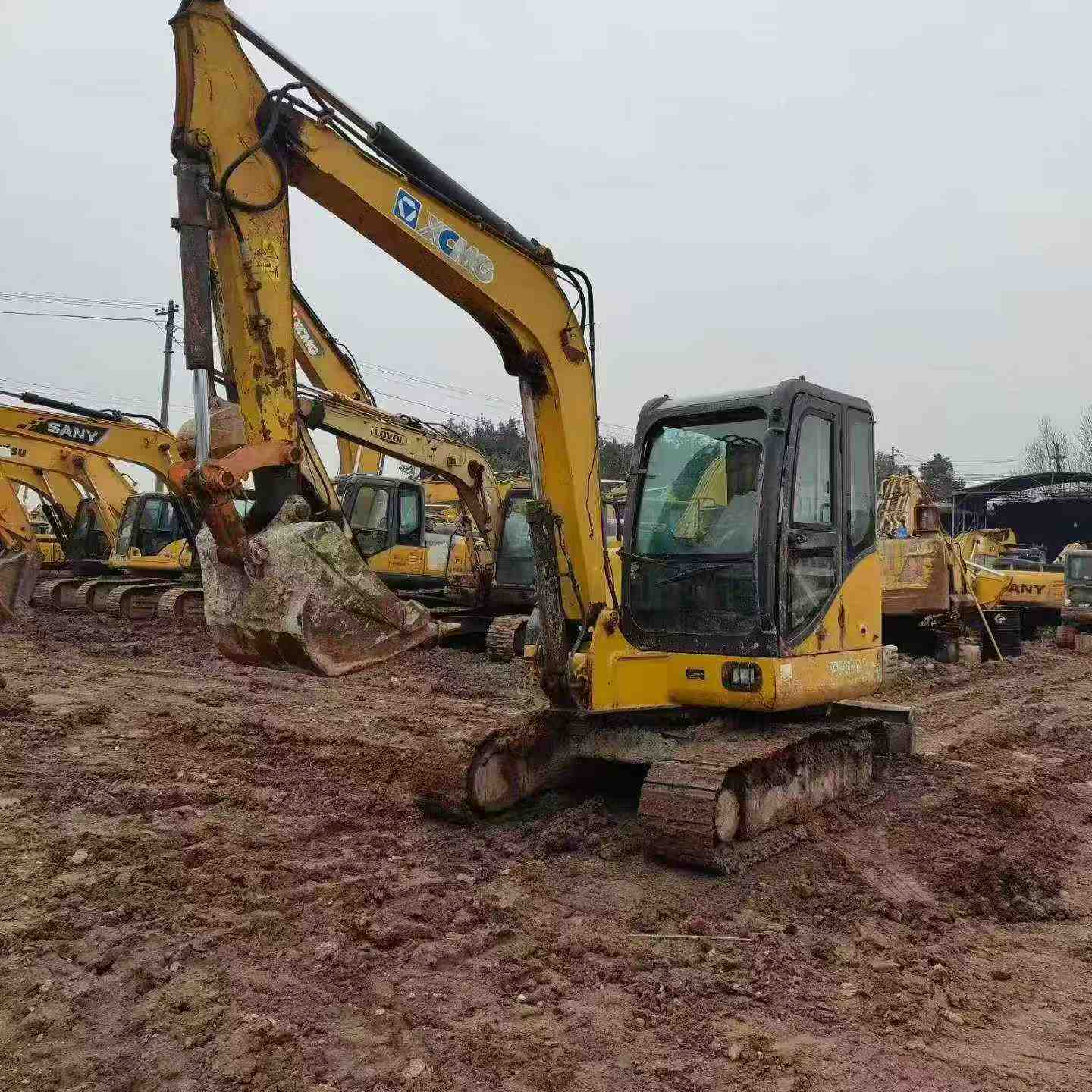

Buy XCMG XE60 Used Excavator / 9

Product Description

XCMG XE60 excavator from 2015, currently located in Sichuan, China. This 6-ton class machine represents solid mid-2010s engineering from one of China's leading heavy equipment manufacturers. The XE60 is designed for versatility across construction, landscaping, and light demolition applications.

Key features of this unit:

  • Compact footprint suitable for urban jobsites and confined spaces
  • Reliable hydraulic system with efficient fuel consumption
  • Standard swing boom configuration for working along walls and obstacles
  • Operator cabin with basic climate control and ergonomic controls
  • Compatible with standard bucket and attachment options

This machine comes from a direct source and is available for immediate inspection and purchase. Priced competitively for the regional market, it offers dependable performance for contractors seeking proven equipment at accessible investment levels.

SpecificationsValue
No.1137501
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
