Product Description

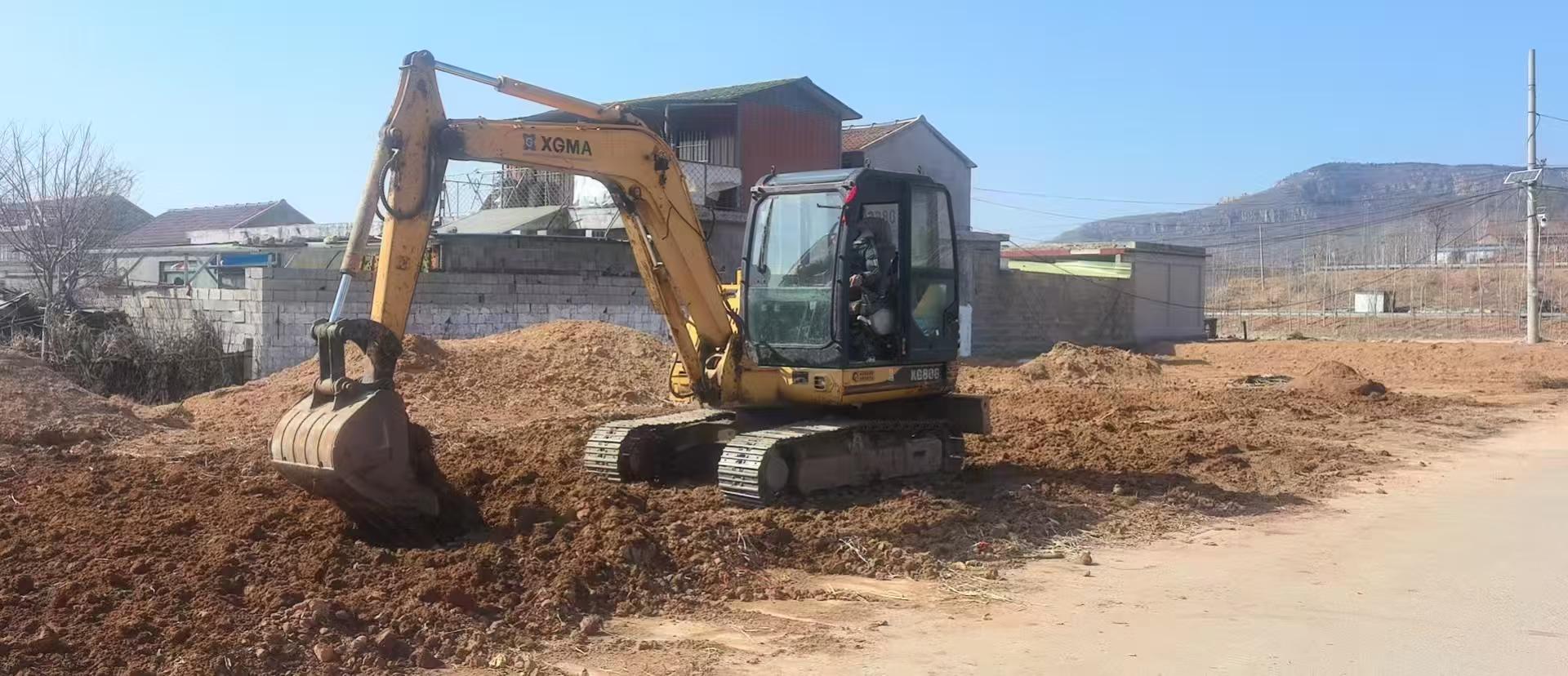

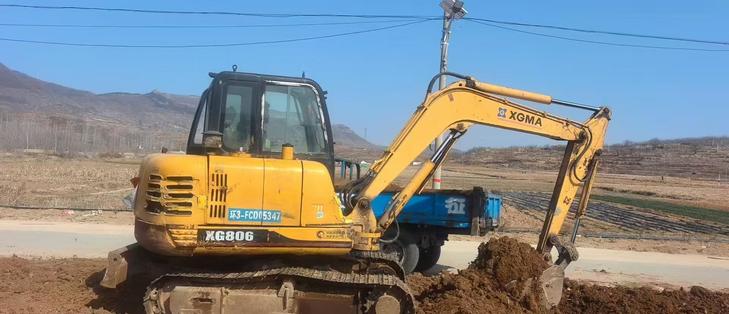

Expand your operational capacity with this 2016 XCMG XE60 mini excavator, currently located in Linyi, Shandong. Built for contractors requiring reliable backup equipment or fleet expansion, this 6-ton class machine delivers consistent performance across residential, utility, and light commercial applications. Powered by a proven Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, it combines fuel efficiency with dependable hydraulics featuring Rexroth main pumps and dual 60.5 l/min flow rates.
- Working weight: 5,960 kg with compact 1,880 mm transport width
- Maximum digging reach: 6,130 mm / Maximum depth: 3,830 mm
- Bucket capacity range: 0.09–0.23 m³ for versatile material handling
- Digging forces: 42.5 kN bucket / 28.5 kN arm for demanding ground conditions
- Standard hydraulic crusher circuit included for attachment flexibility
- 35° climbing ability and 32.1 kPa ground pressure for challenging terrain
With 3,000 mm boom and 1,600 mm arm configuration, this Xuzhou-manufactured excavator integrates seamlessly into existing fleets requiring proven Chinese engineering. Ready for immediate deployment in secondary-market applications where downtime costs money.
| Specifications | Value |
|---|---|
| No. | 1037436 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

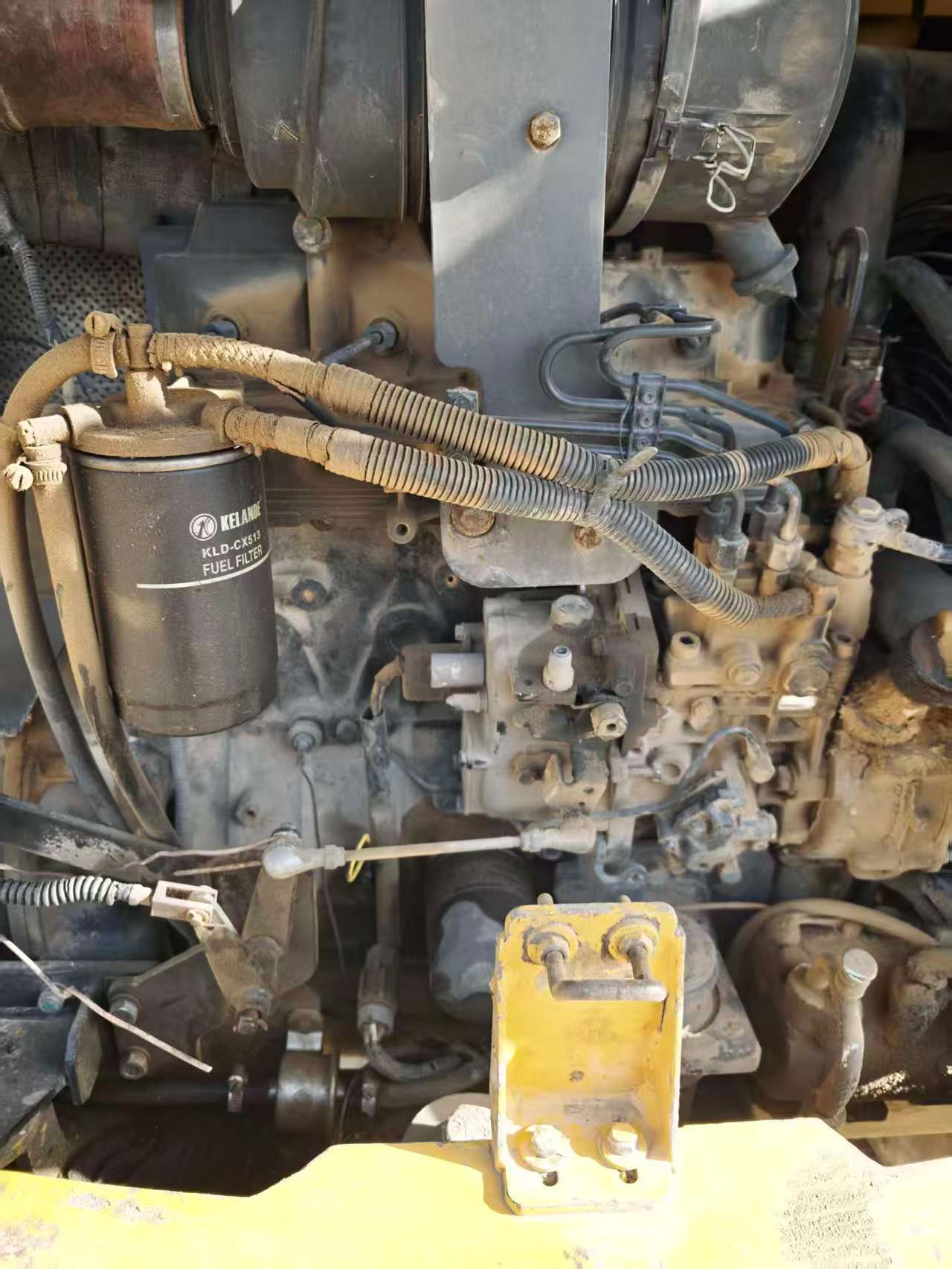

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
