Product Description

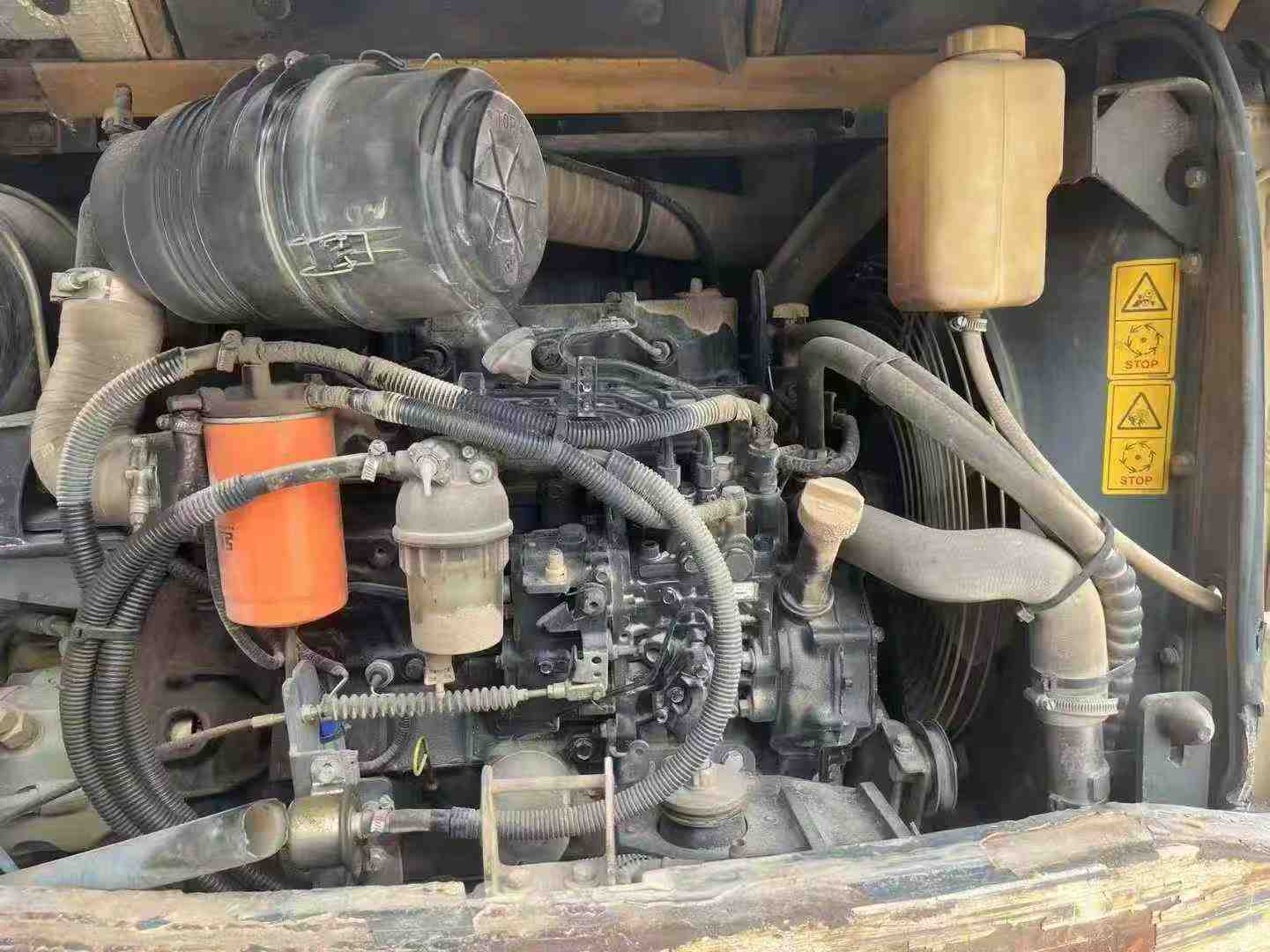

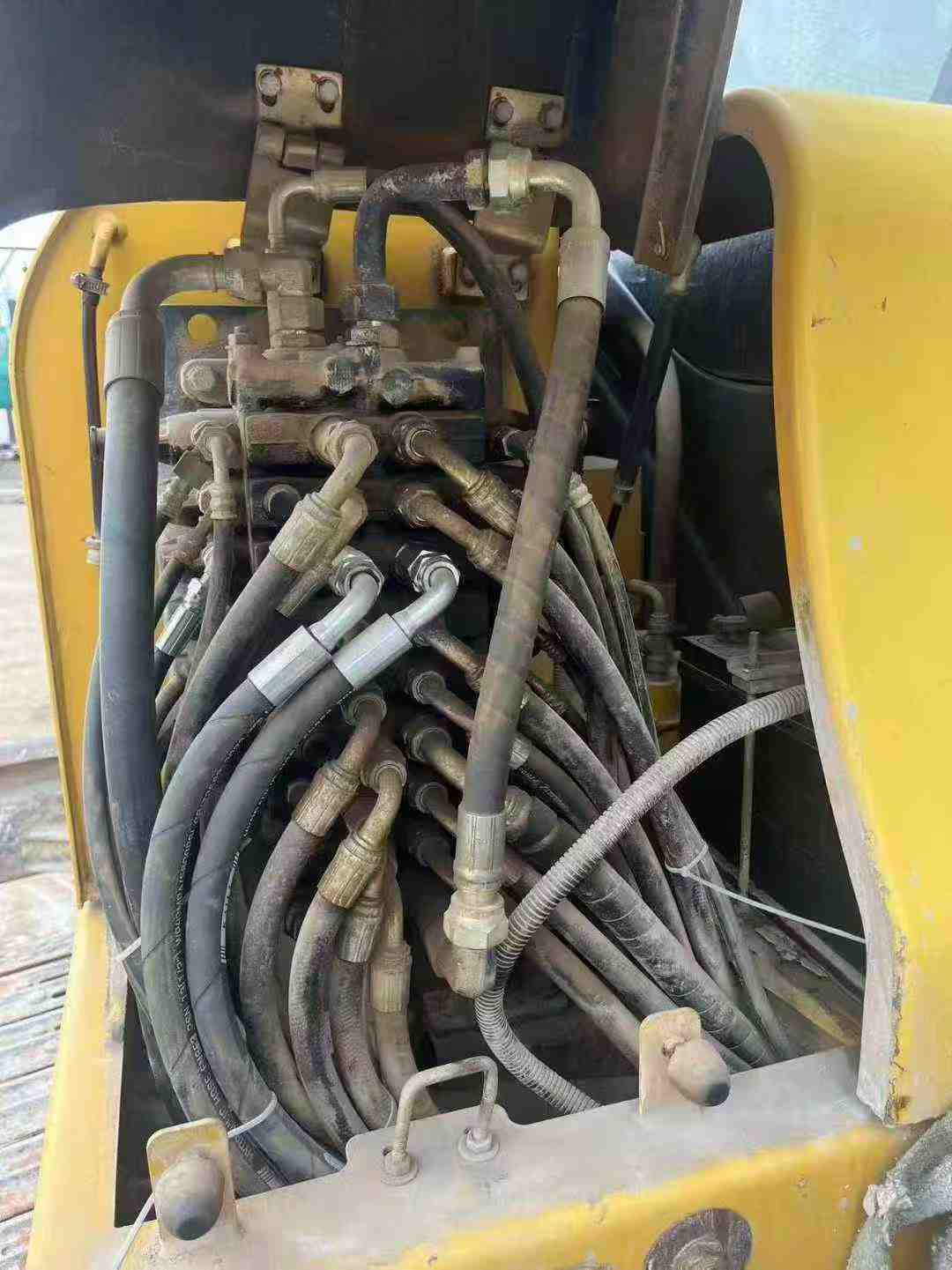

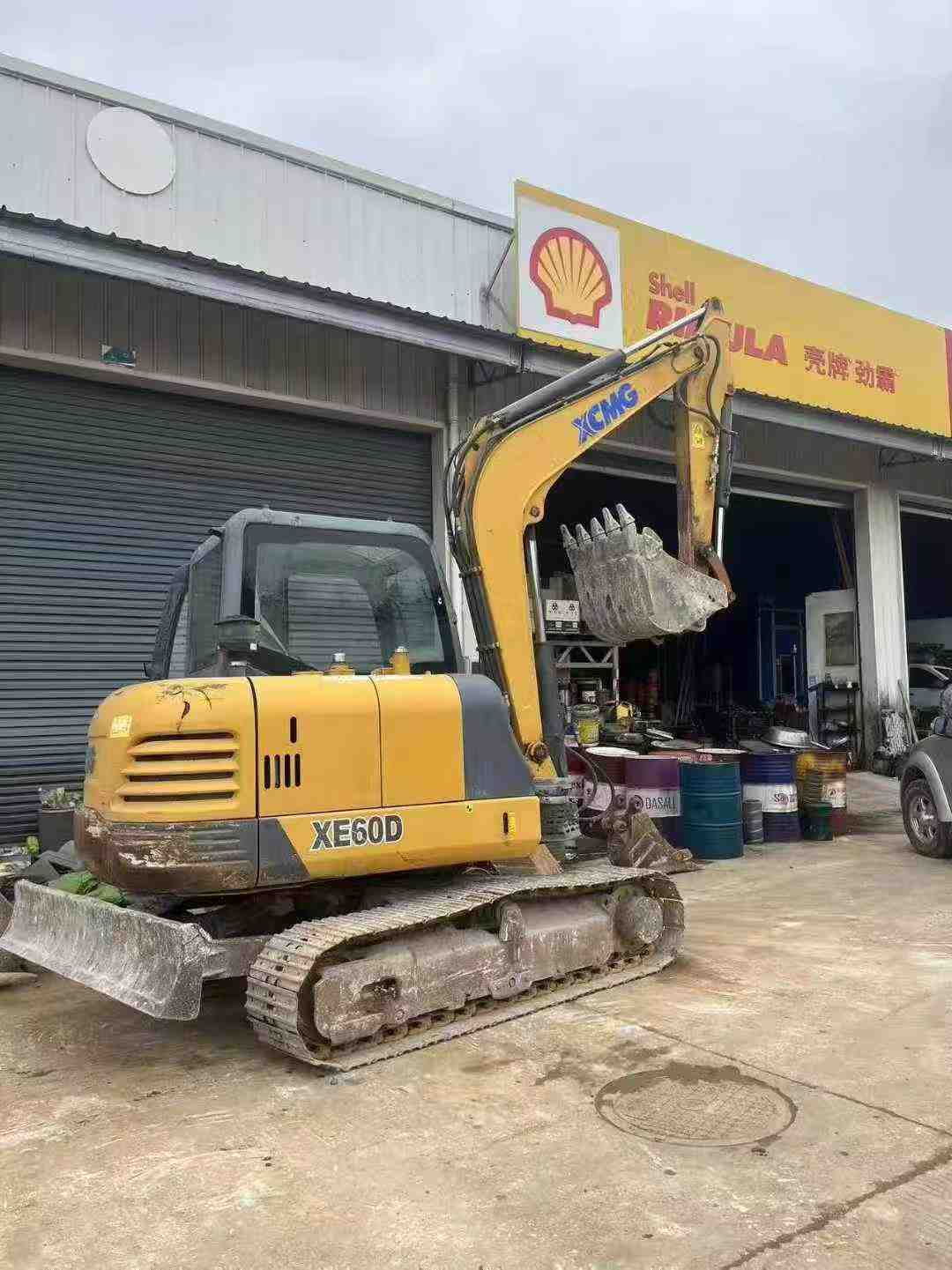

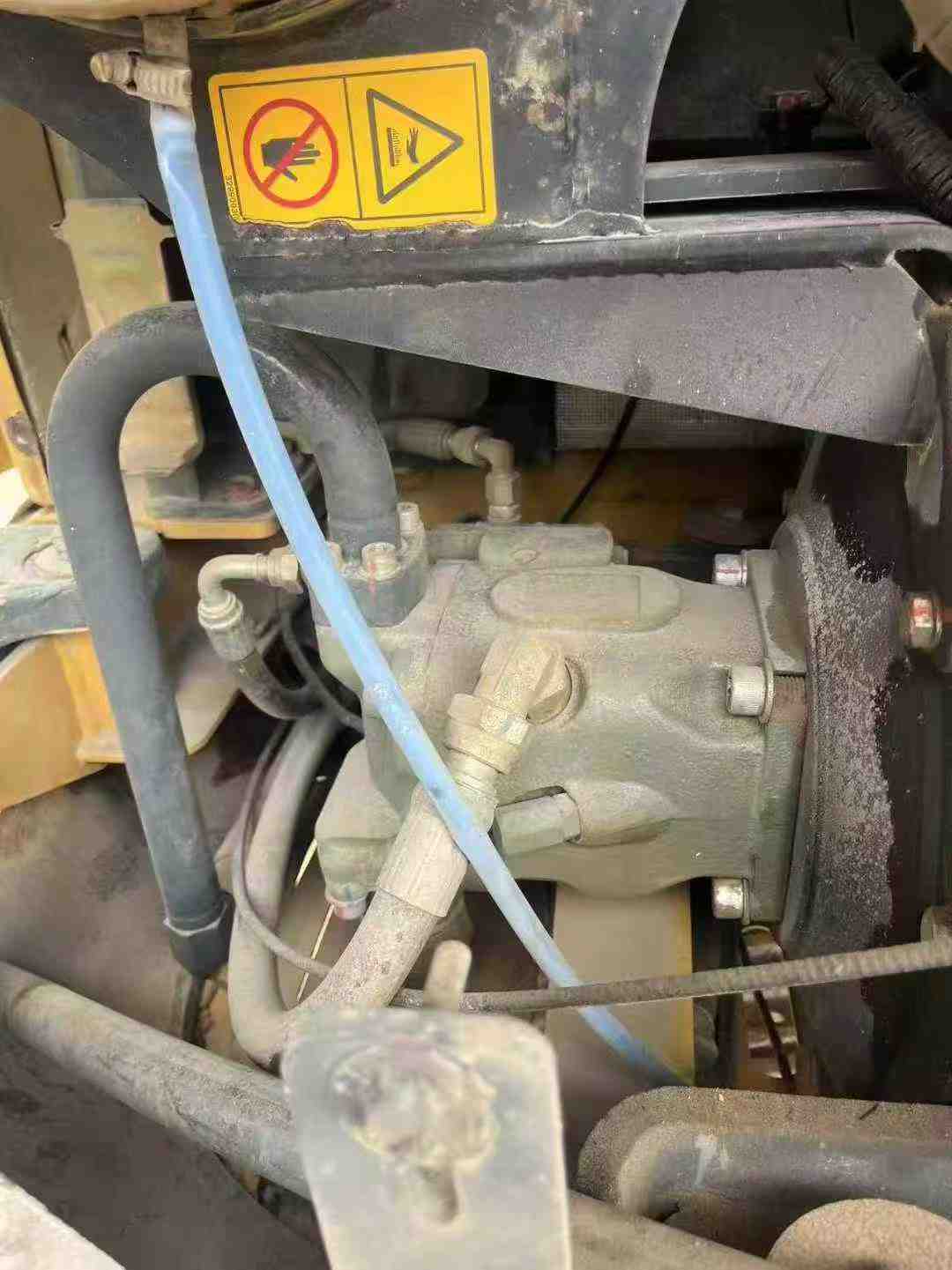

Engineered for precision in confined spaces, this 2017 XCMG XE60 mini excavator delivers reliable performance with operator-centered design. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this 6-ton machine combines responsive hydraulics with stable ground handling. The Rexroth main pump system supplies dual 60.5 l/min circuits plus auxiliary flows, ensuring smooth simultaneous operations across boom, arm, and bucket functions.

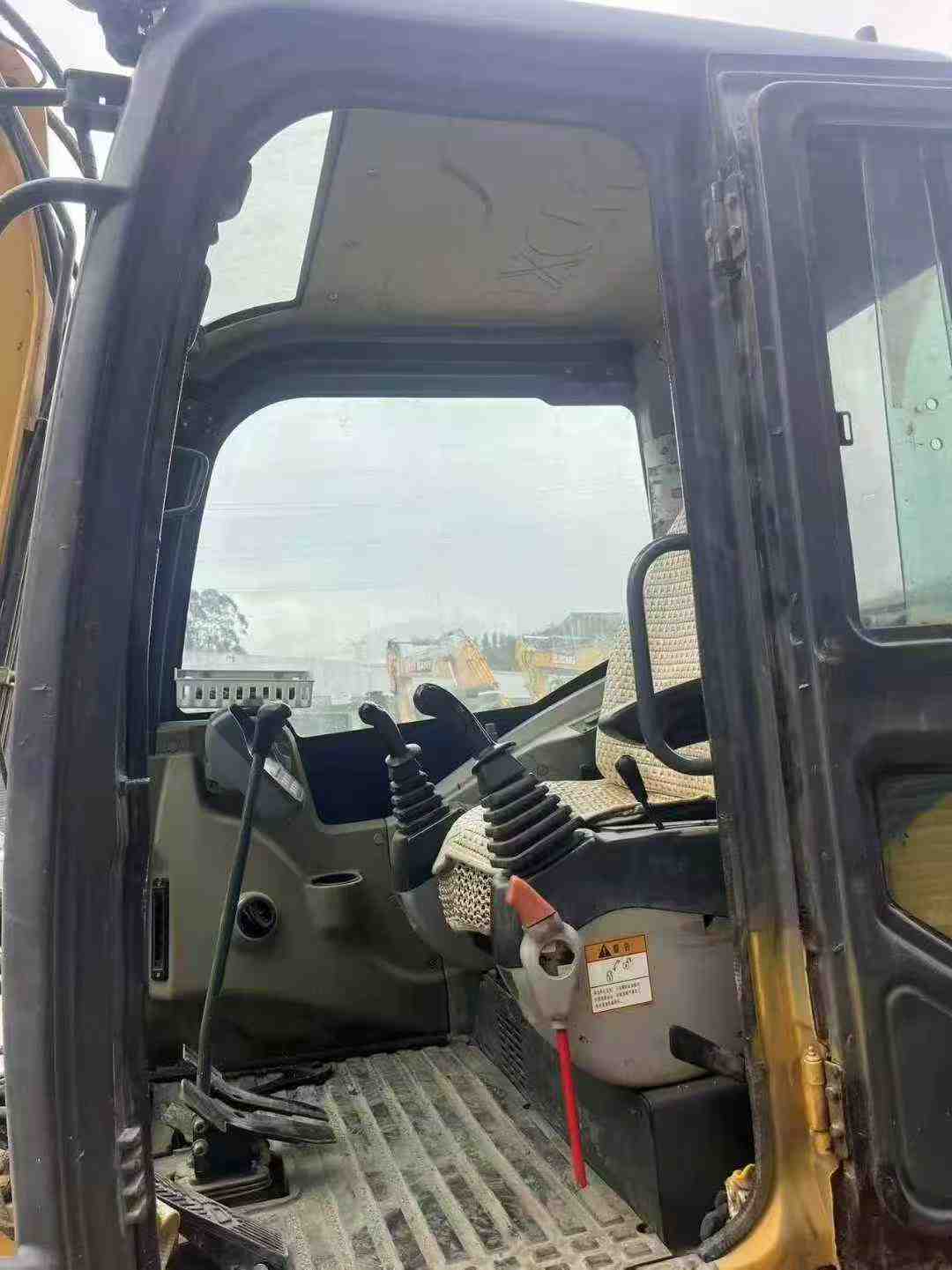

Operators benefit from excellent sightlines and predictable machine behavior. With a compact 1880mm transport width and 2450mm front turning radius, maneuverability remains exceptional on crowded job sites. The 400mm track plates distribute 5960 kg working weight efficiently, maintaining just 32.1 kPa ground pressure while tackling slopes up to 35 degrees. Digging force reaches 42.5 kN at the bucket and 28.5 kN at the rod, providing authority through challenging materials.
- Maximum digging depth: 3830mm; reach: 6130mm
- Water-cooled 4-cylinder engine with 110L fuel capacity
- Standard hydraulic breaker circuit included
- Currently located in Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1025193 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
