Product Description

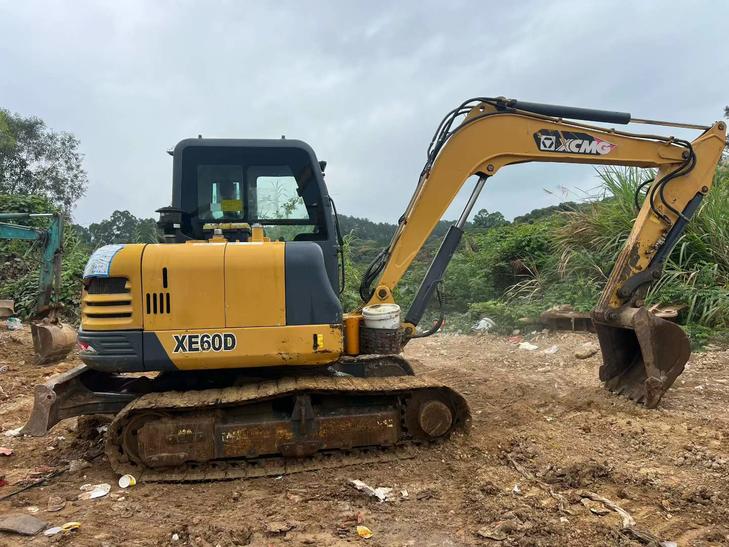

Maximize your excavation budget with this 2018 XCMG XE60 mini excavator, currently available in Shenzhen, Guangdong. Powered by a proven Yanmar 4TNV94L engine delivering 39.8kW at 2200 rpm, this 6-ton machine offers professional-grade performance at a fraction of new equipment costs. With a maximum digging depth of 3,830mm and impressive reach of 6,130mm, it handles demanding tasks across construction, landscaping, and utility projects with ease.
- Operating weight: 5,960kg with reliable Rexroth hydraulic system
- Bucket digging force: 42.5kN for tough soil conditions
- Compact dimensions: 5,850mm length enables work in confined spaces
- Dual-speed travel: 4.2/2.2 km/h for efficient site mobility
- Standard hydraulic crusher pipeline increases versatility
- 35° climbing ability tackles challenging terrain
Invest strategically in proven Chinese manufacturing quality. This XE60 delivers the capability your projects demand without the depreciation hit of new machinery. Immediate availability for international shipping from southern China.
| Specifications | Value |
|---|---|
| No. | 1020958 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
