2018 XCMG XE60

1/6
Buy XCMG XE60 Used Excavator / 1

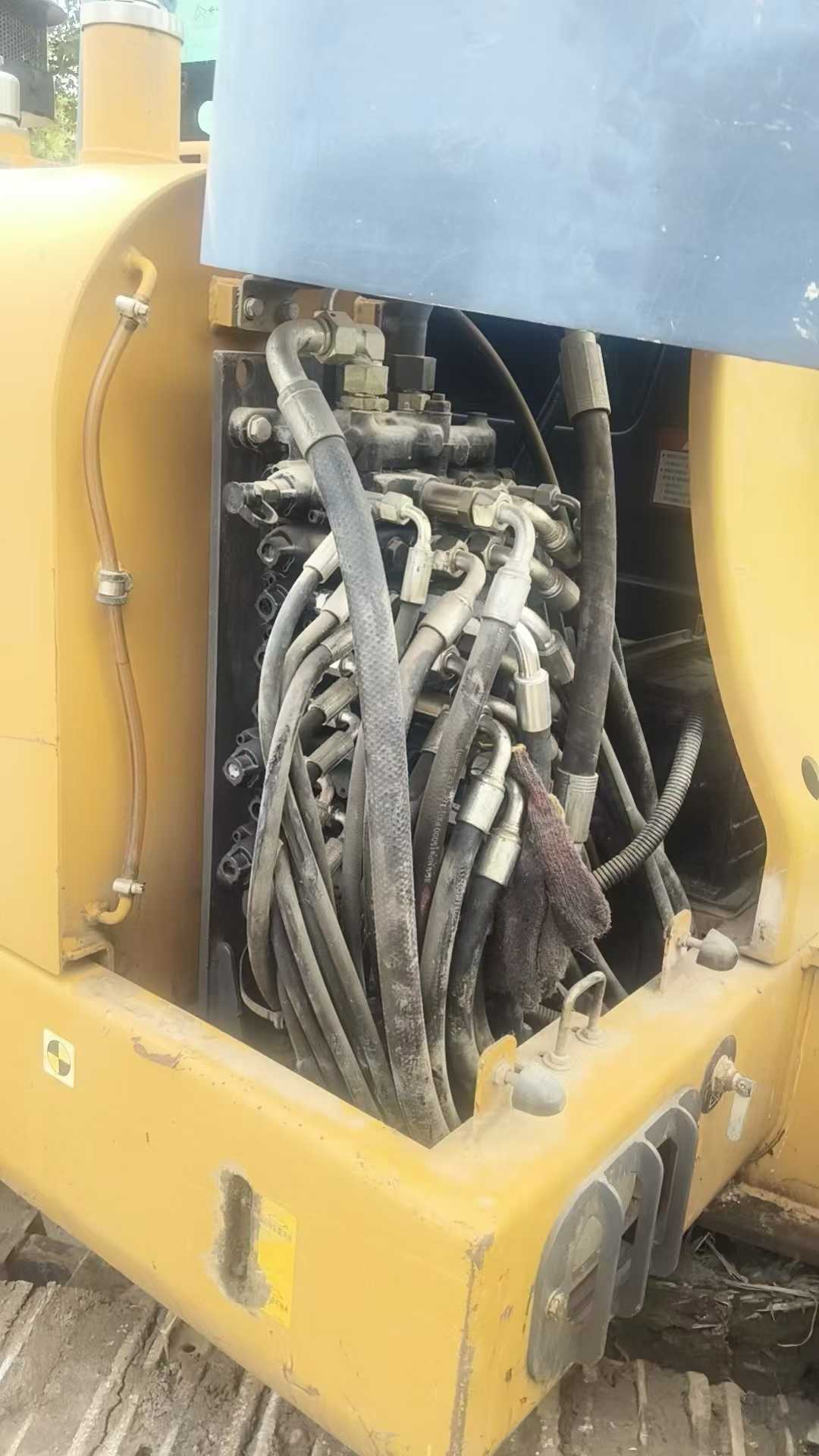

Buy XCMG XE60 Used Excavator / 2

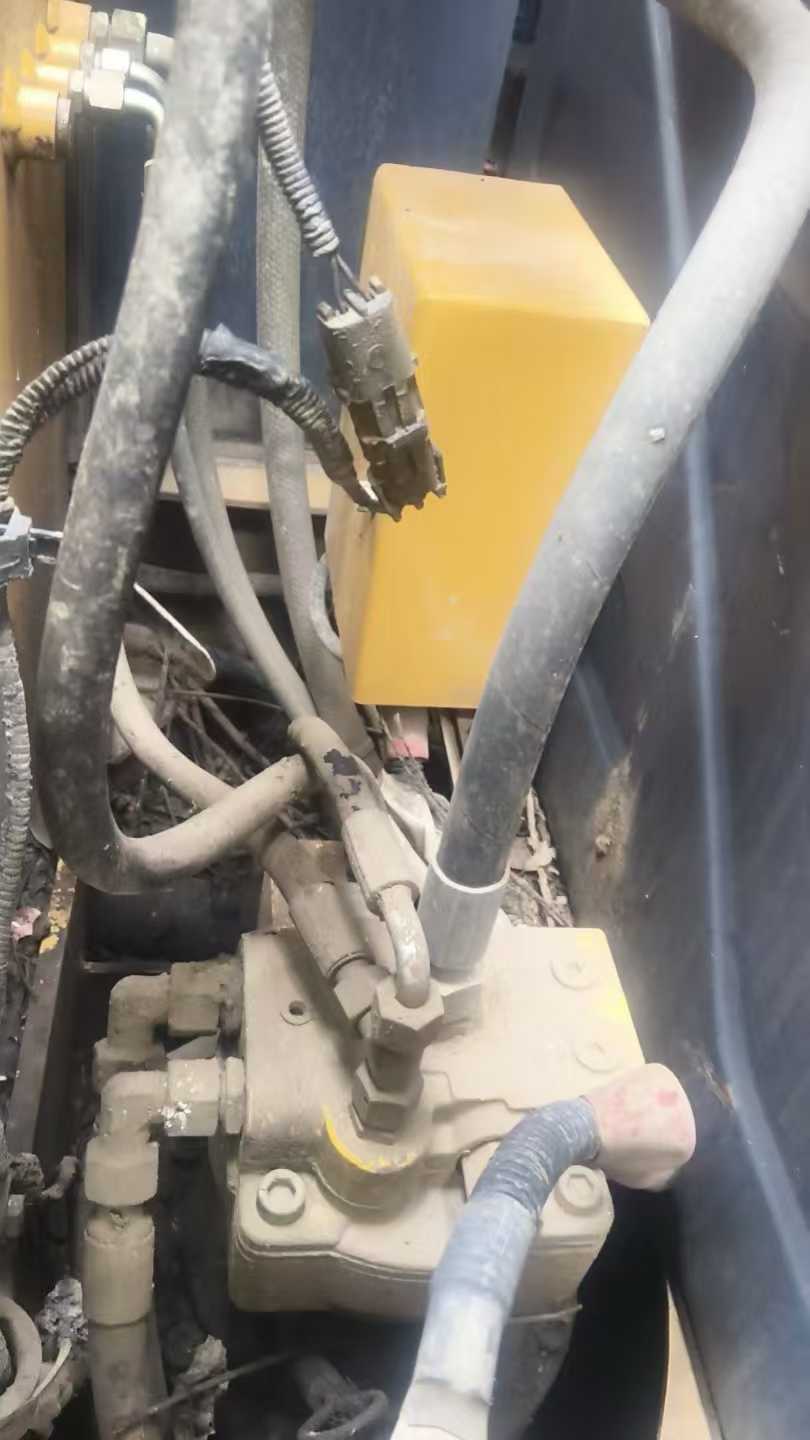

Buy XCMG XE60 Used Excavator / 3

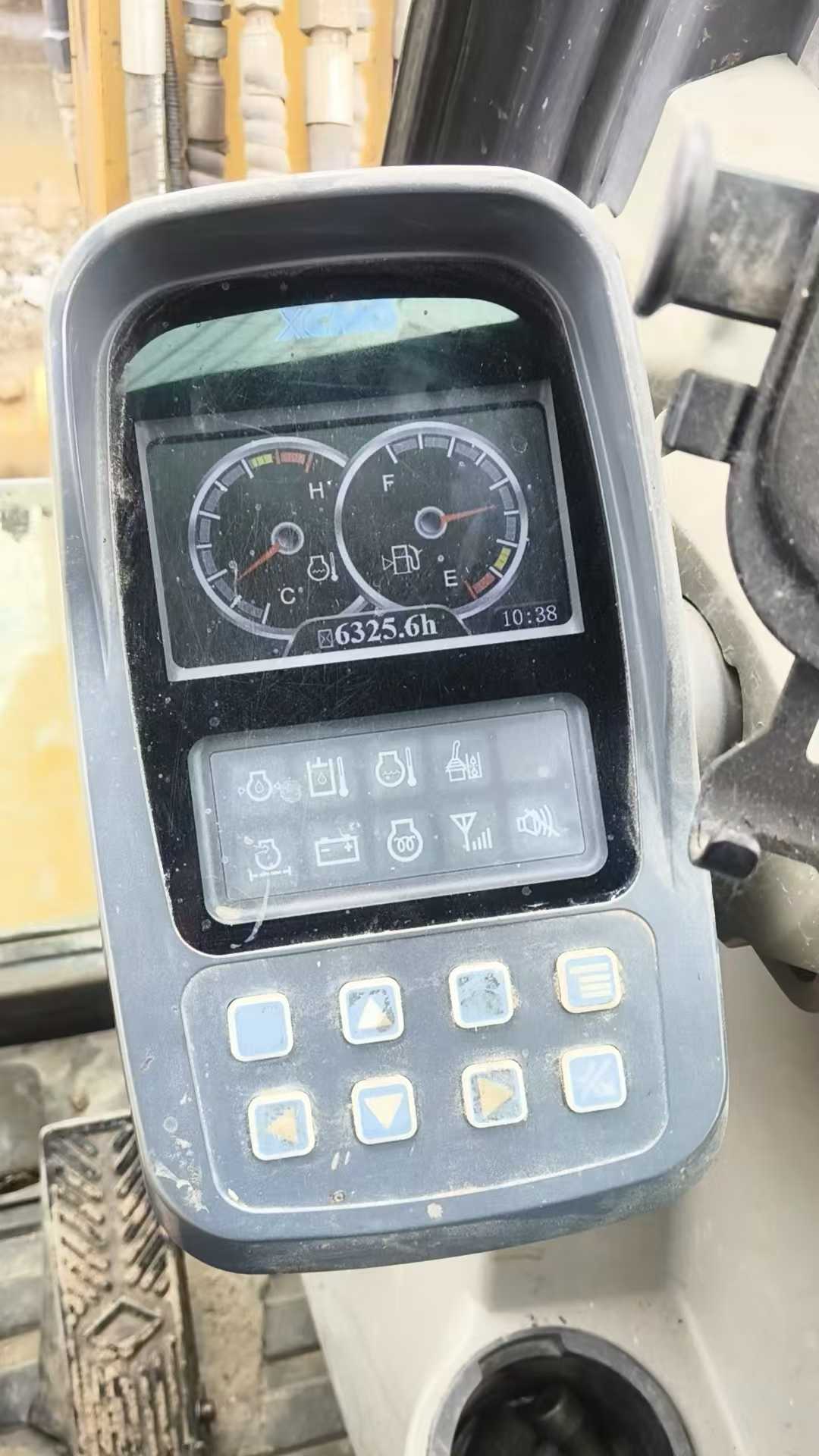

Buy XCMG XE60 Used Excavator / 4

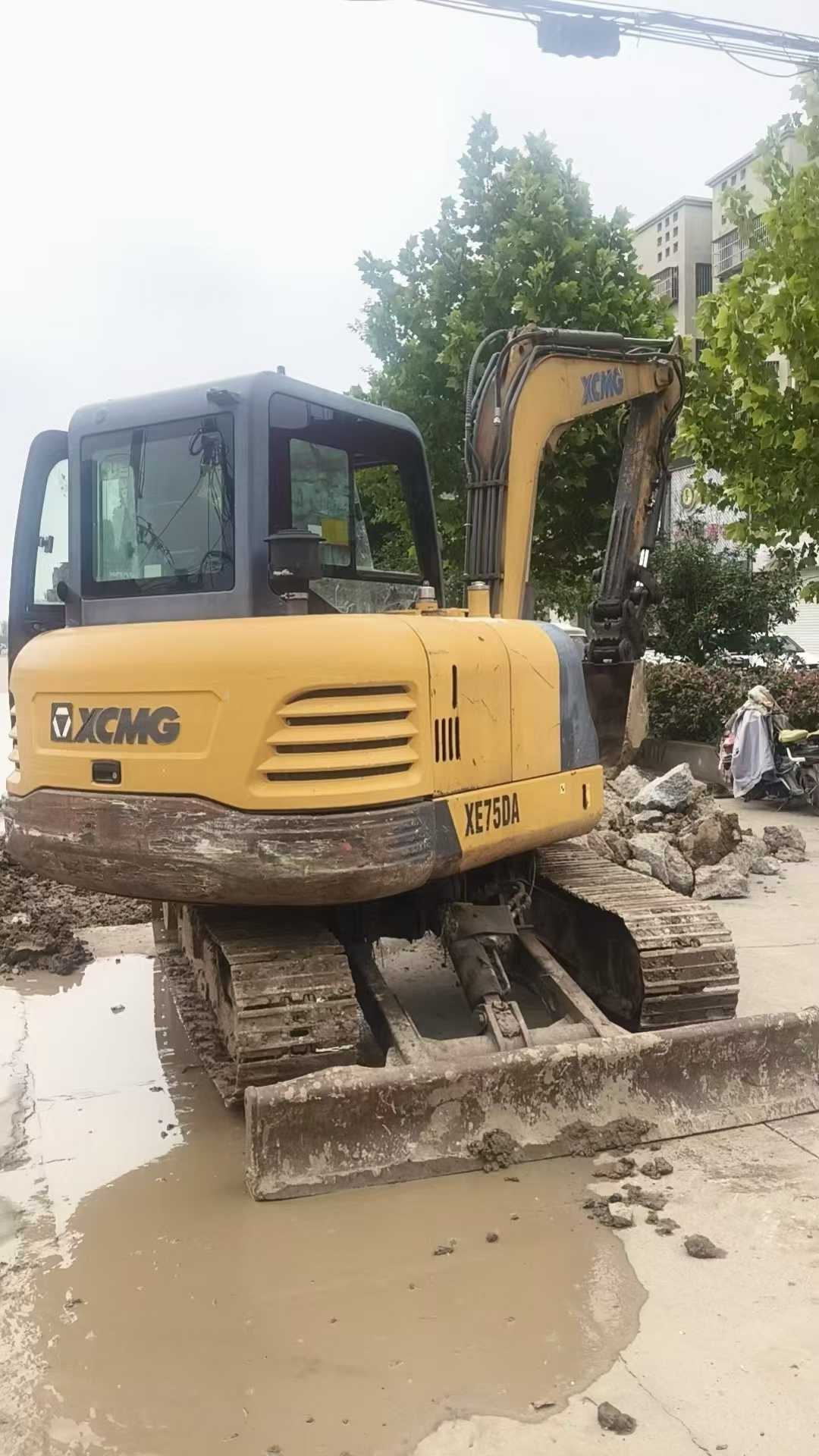

Buy XCMG XE60 Used Excavator / 5

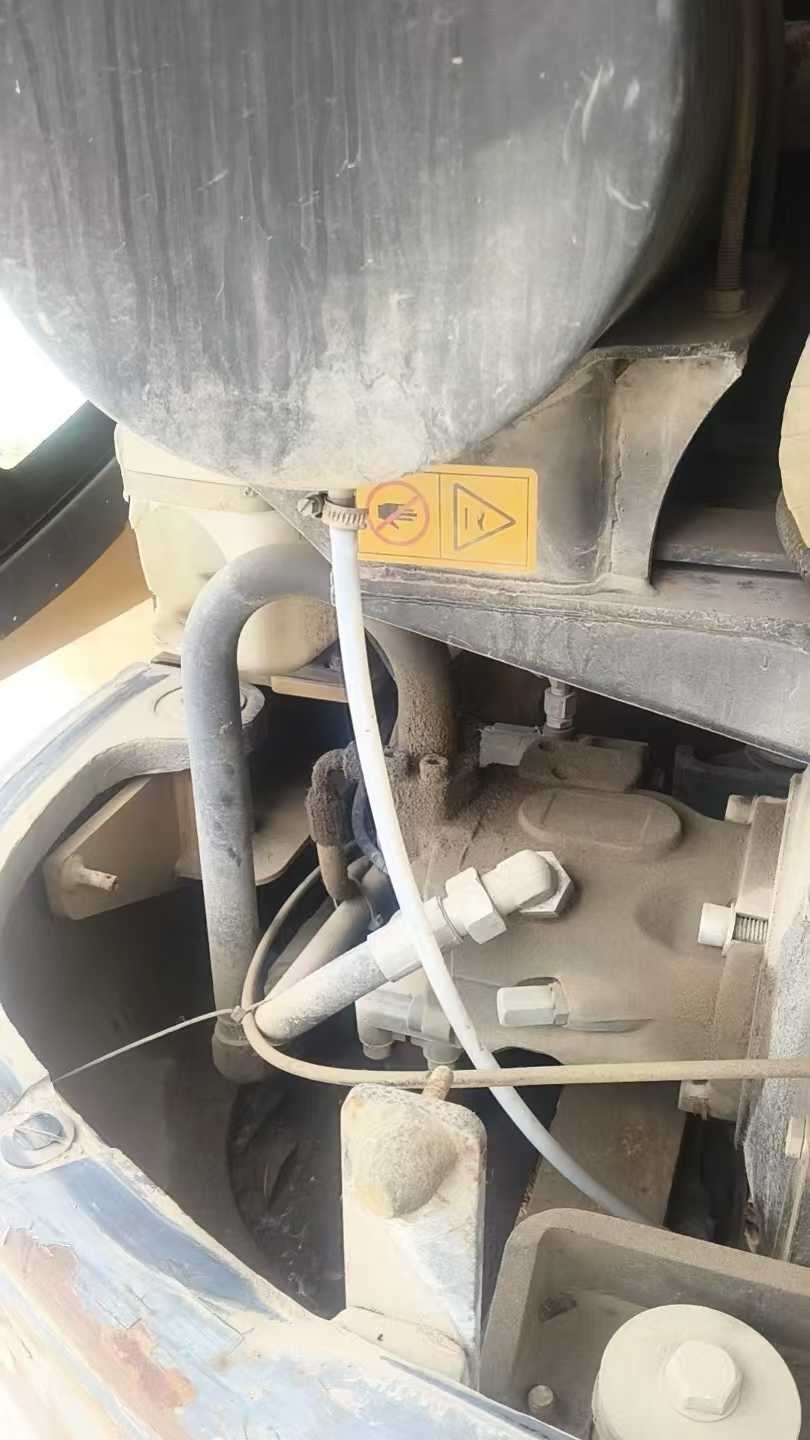

Buy XCMG XE60 Used Excavator / 6

Product Description

This 2018 XCMG XE60 hydraulic excavator is available for purchase from Jiangsu, China. With approximately 40,000 hours of operation, this 6-ton class machine has been actively used in the field and offers practical value for contractors seeking reliable equipment at competitive pricing.

The XE60 is a compact excavator suitable for urban construction, landscaping, and light infrastructure projects. XCMG's engineering provides dependable hydraulic systems and operator comfort for extended work cycles.

  • Year of Manufacture: 2018
  • Operating Hours: Approximately 40,000+
  • Location: Jiangsu Province, China
  • Machine Class: 6-ton compact excavator
  • Condition: Used, operational

This machine represents a cost-effective option for businesses looking to expand their fleet or replace aging equipment. Inspection and shipping arrangements can be coordinated upon request.

SpecificationsValue
No.1167514
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1167514

Brand Name:

XCMG

Model Number:

XE60

Year:

2018

Location:

Jiangsu China

Pub Date:
