2018 XCMG XE60

1/4
Buy XCMG XE60 Used Excavator / 1

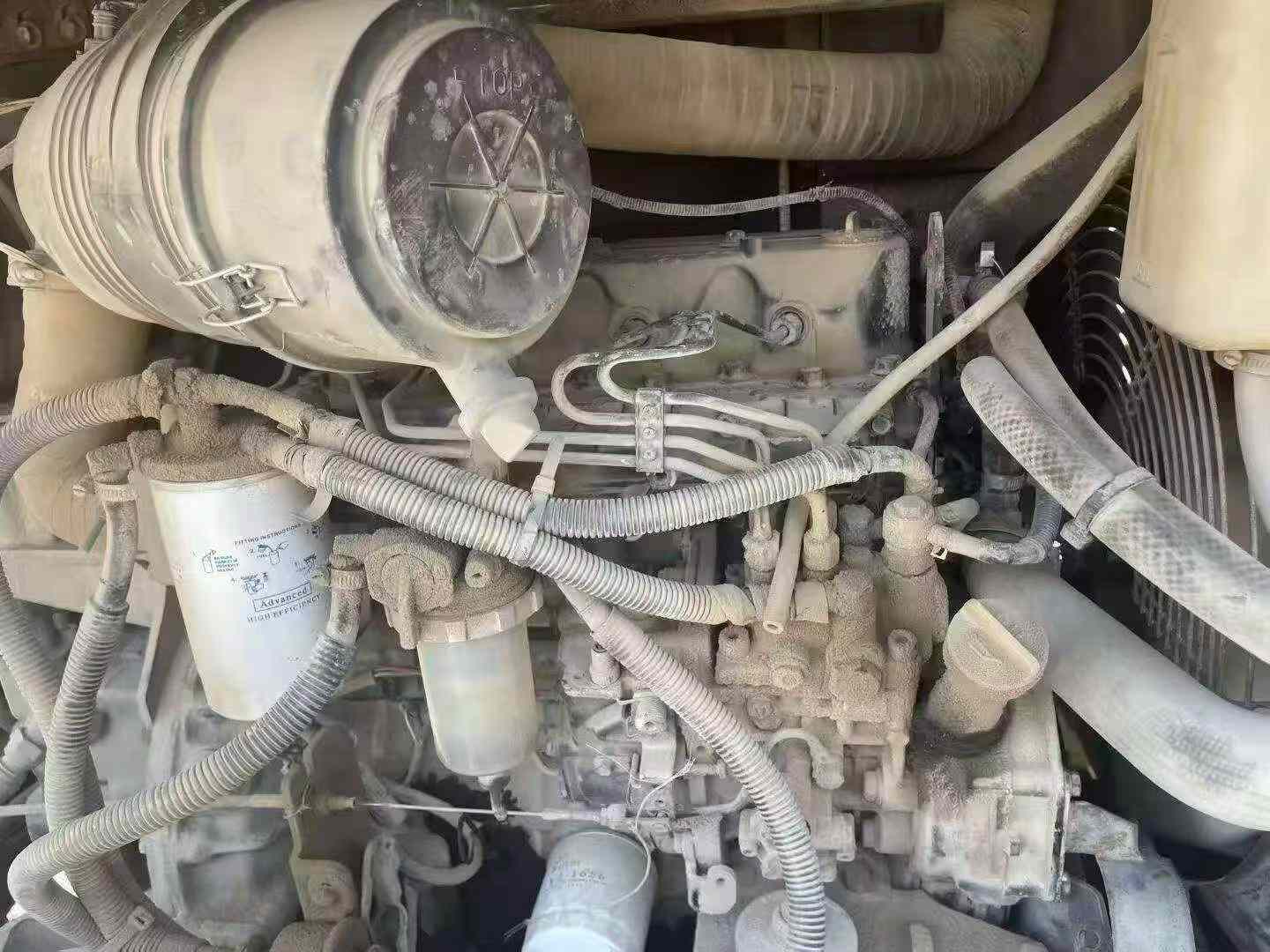

Buy XCMG XE60 Used Excavator / 2

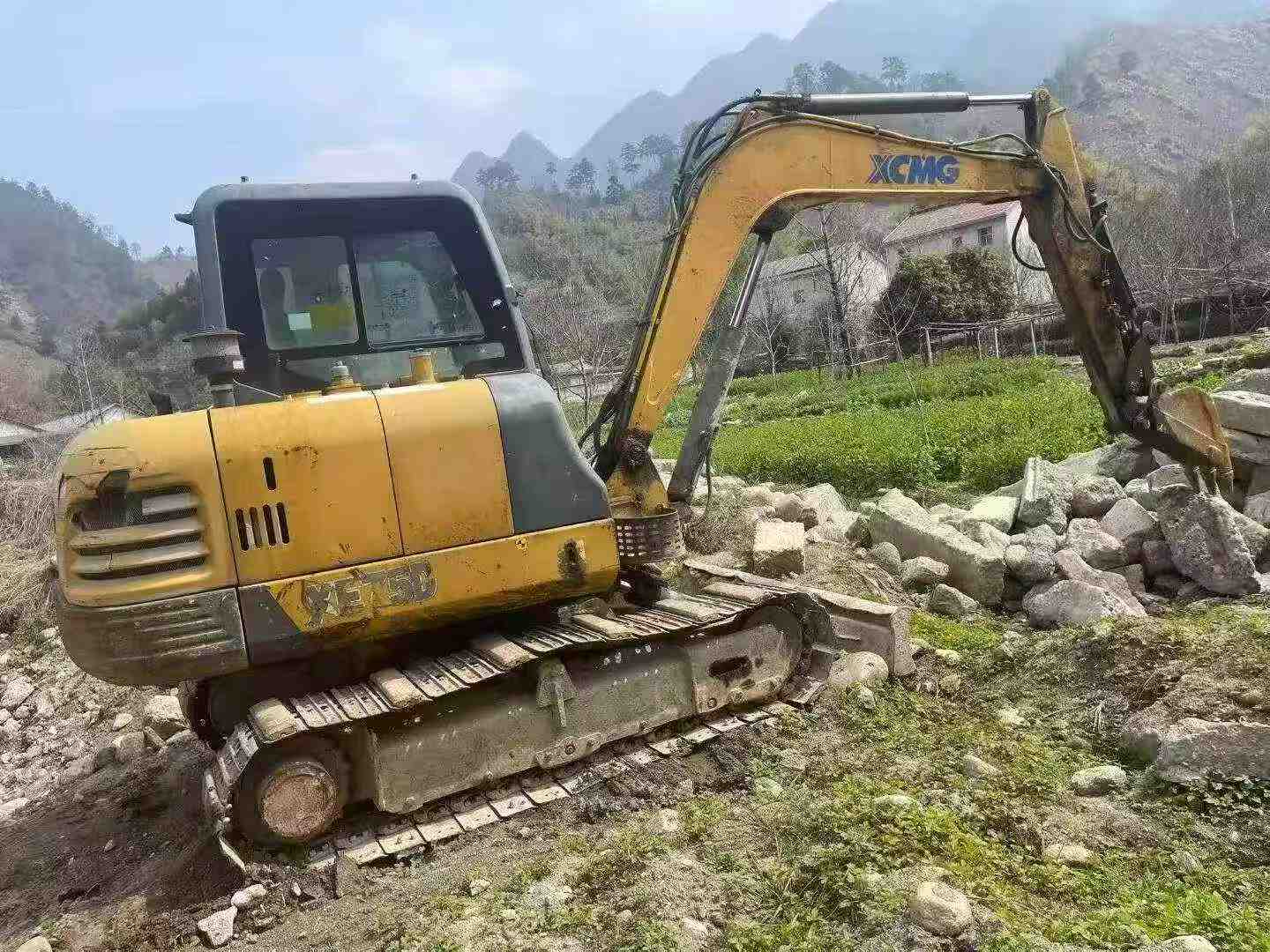

Buy XCMG XE60 Used Excavator / 3

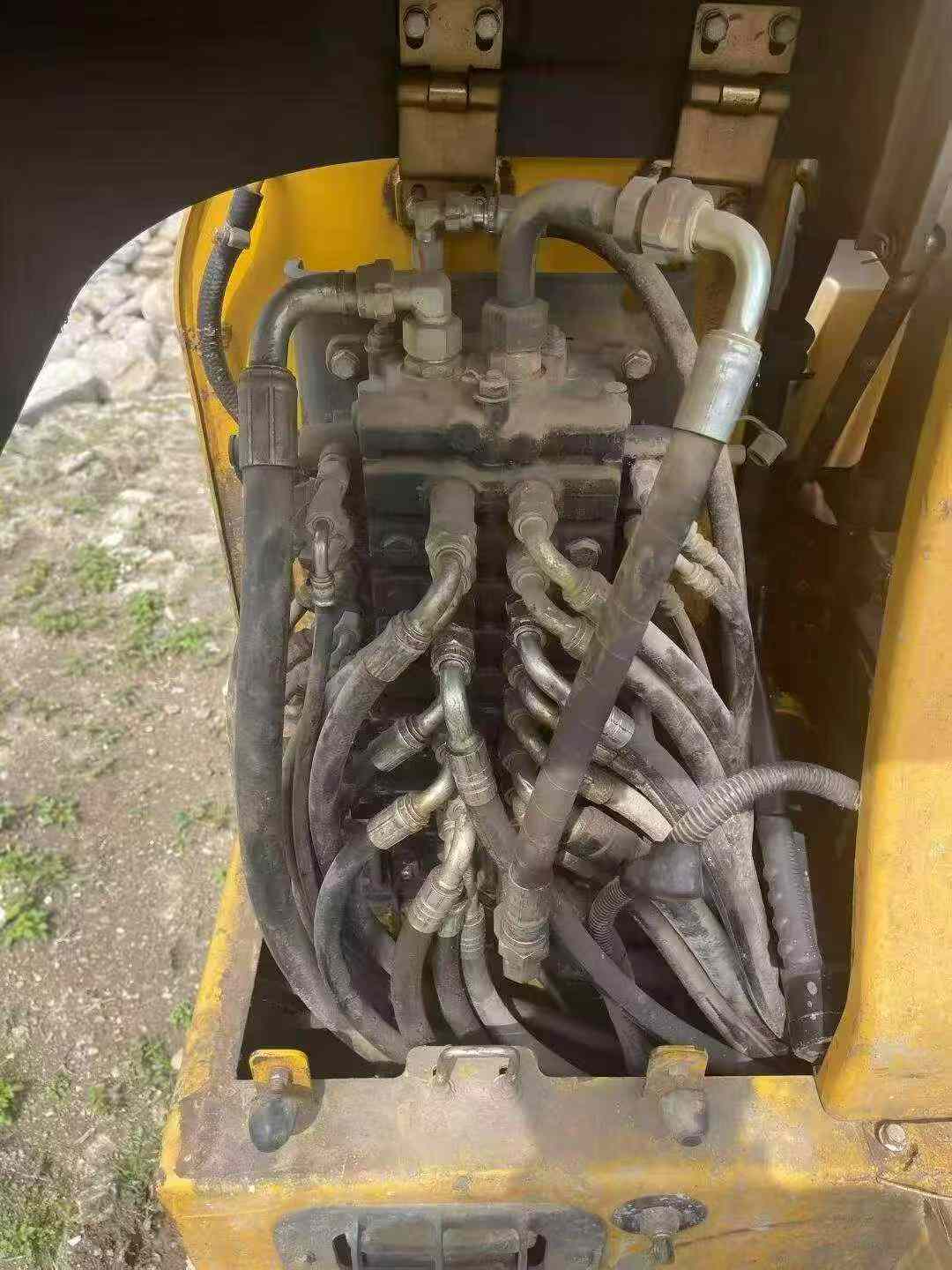

Buy XCMG XE60 Used Excavator / 4

Product Description

This 2018 XCMG XE60 compact excavator offers reliable performance for construction and earthmoving applications. Manufactured by one of China's leading heavy equipment producers, this 6-ton class machine combines proven hydraulic technology with operator-friendly controls. Currently located in Sichuan, China, the unit has been maintained for continued productivity in demanding work environments.

The XE60 is designed for versatility in confined spaces while delivering efficient digging force and fuel economy. Its compact footprint makes it suitable for urban construction, utility installation, and landscaping projects where maneuverability is essential.

  • Operating weight: Approximately 6,000 kg
  • Hydraulic system optimized for smooth operation
  • Compact design for tight jobsite access
  • Standard bucket and auxiliary hydraulics
  • Available for immediate inspection in Sichuan

Contact us for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1173645
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1173645

Brand Name:

XCMG

Model Number:

XE60

Year:

2018

Location:

Sichuan China

Pub Date:
