2020 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5
Buy XCMG XE60 Used Excavator / 6
Buy XCMG XE60 Used Excavator / 7
Buy XCMG XE60 Used Excavator / 8

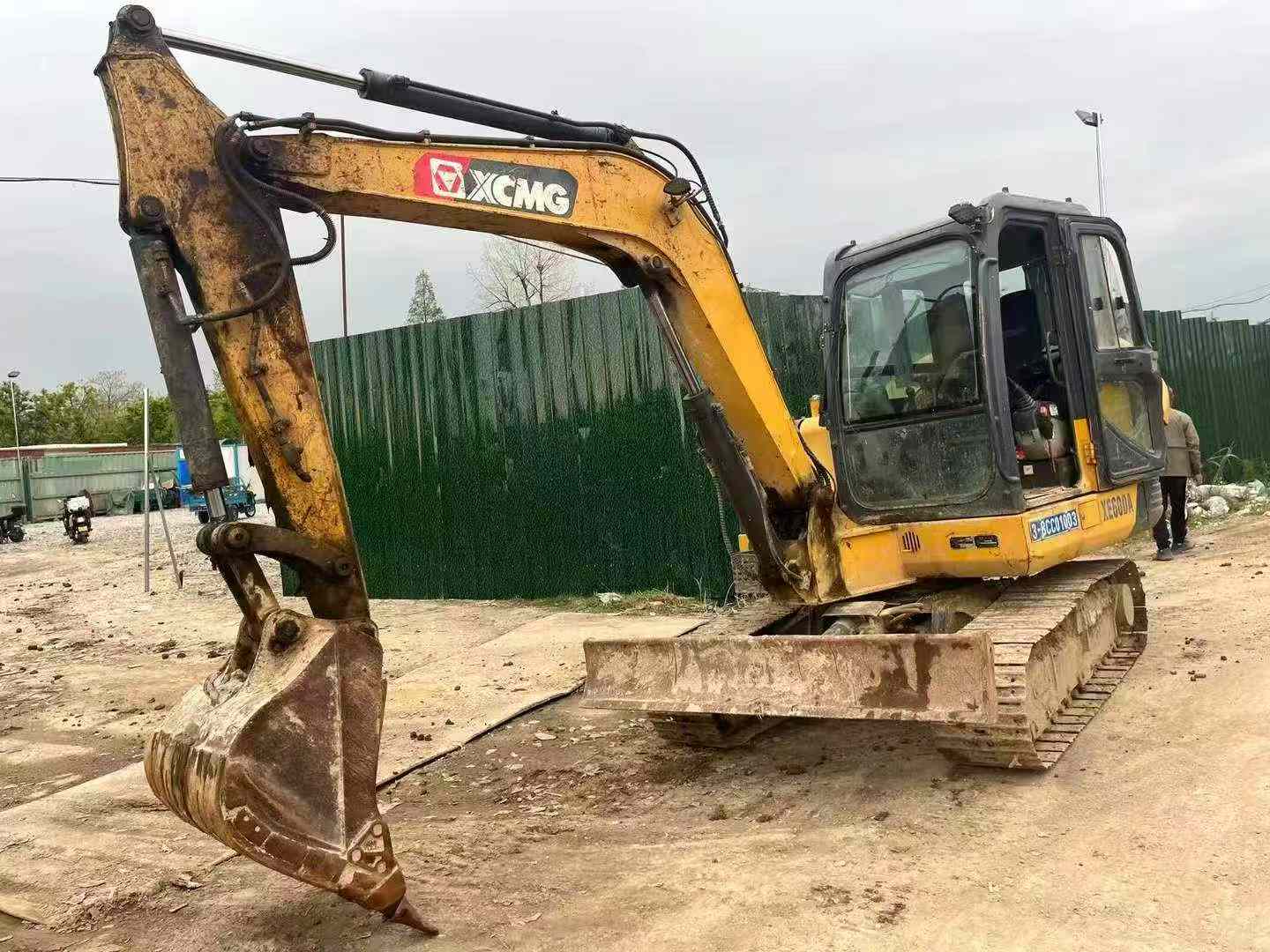

Buy XCMG XE60 Used Excavator / 9

Product Description

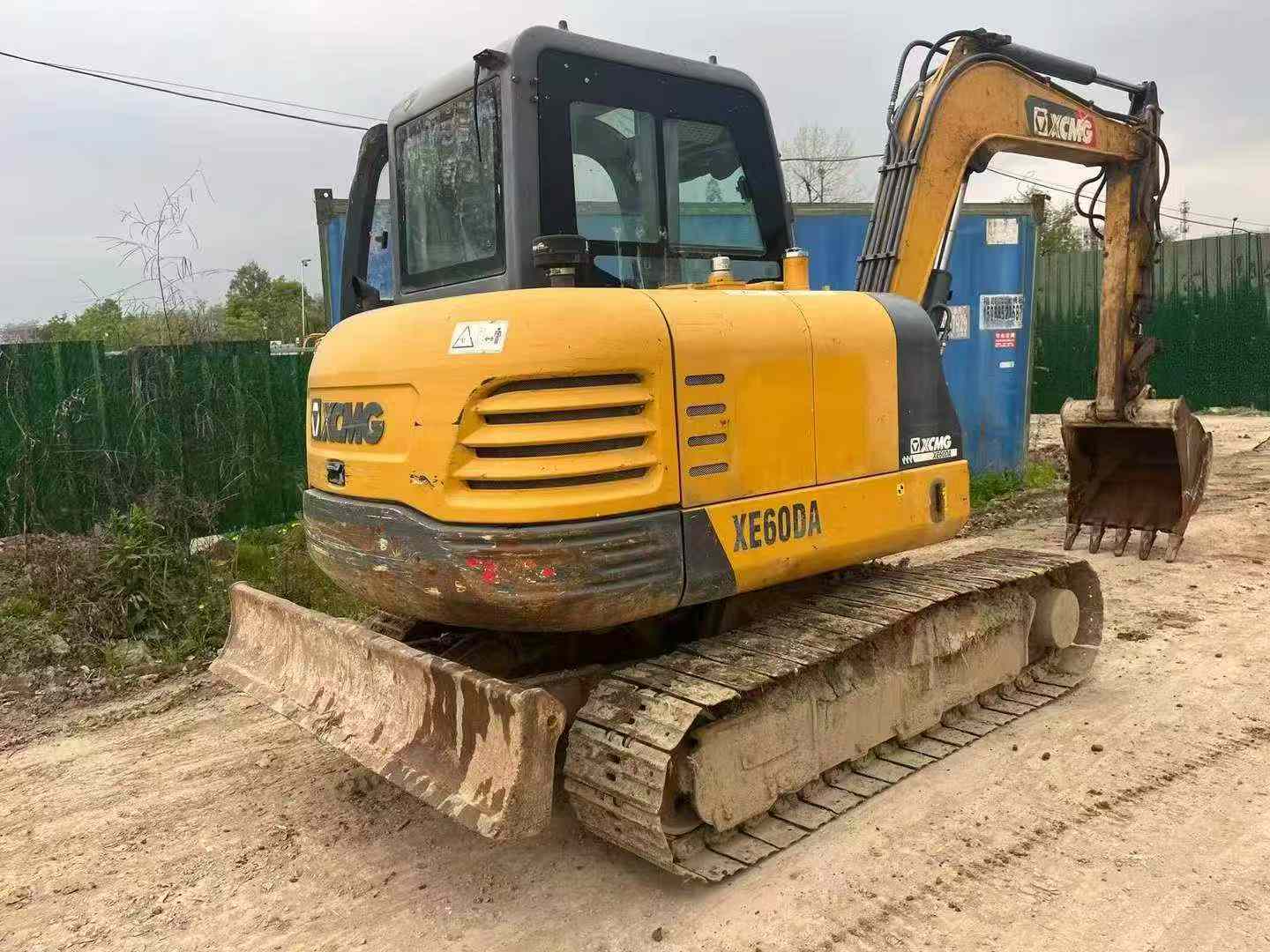

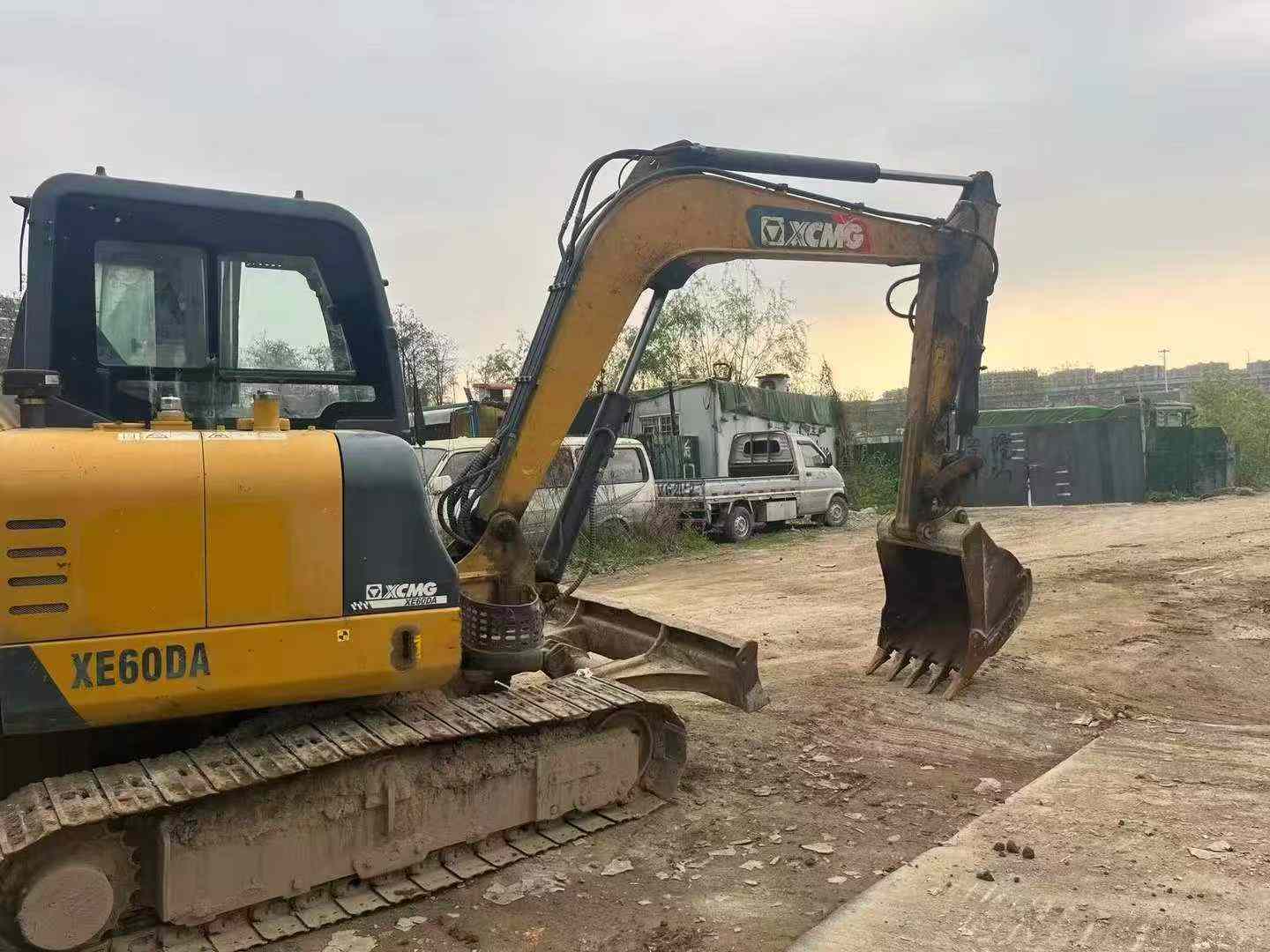

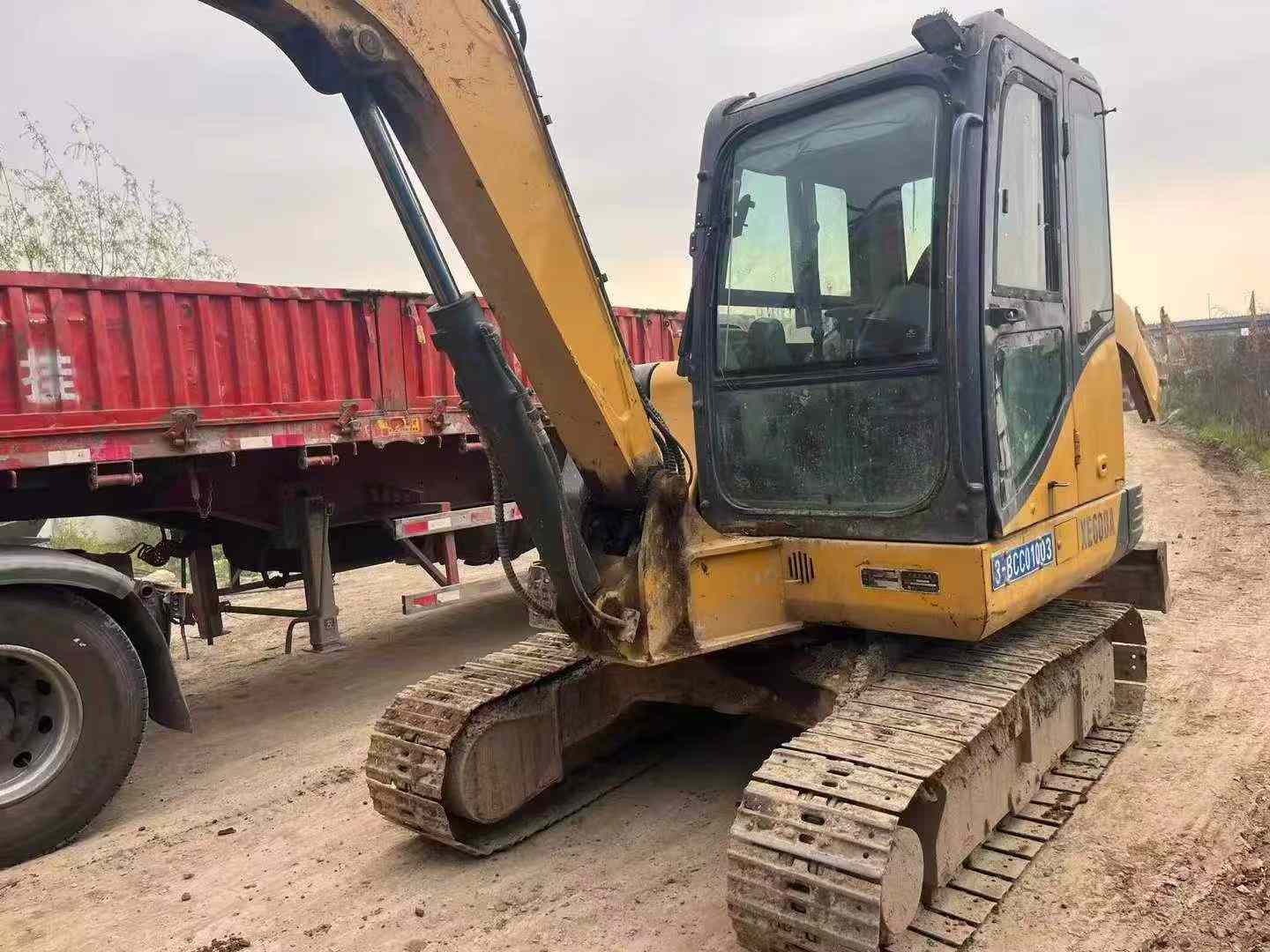

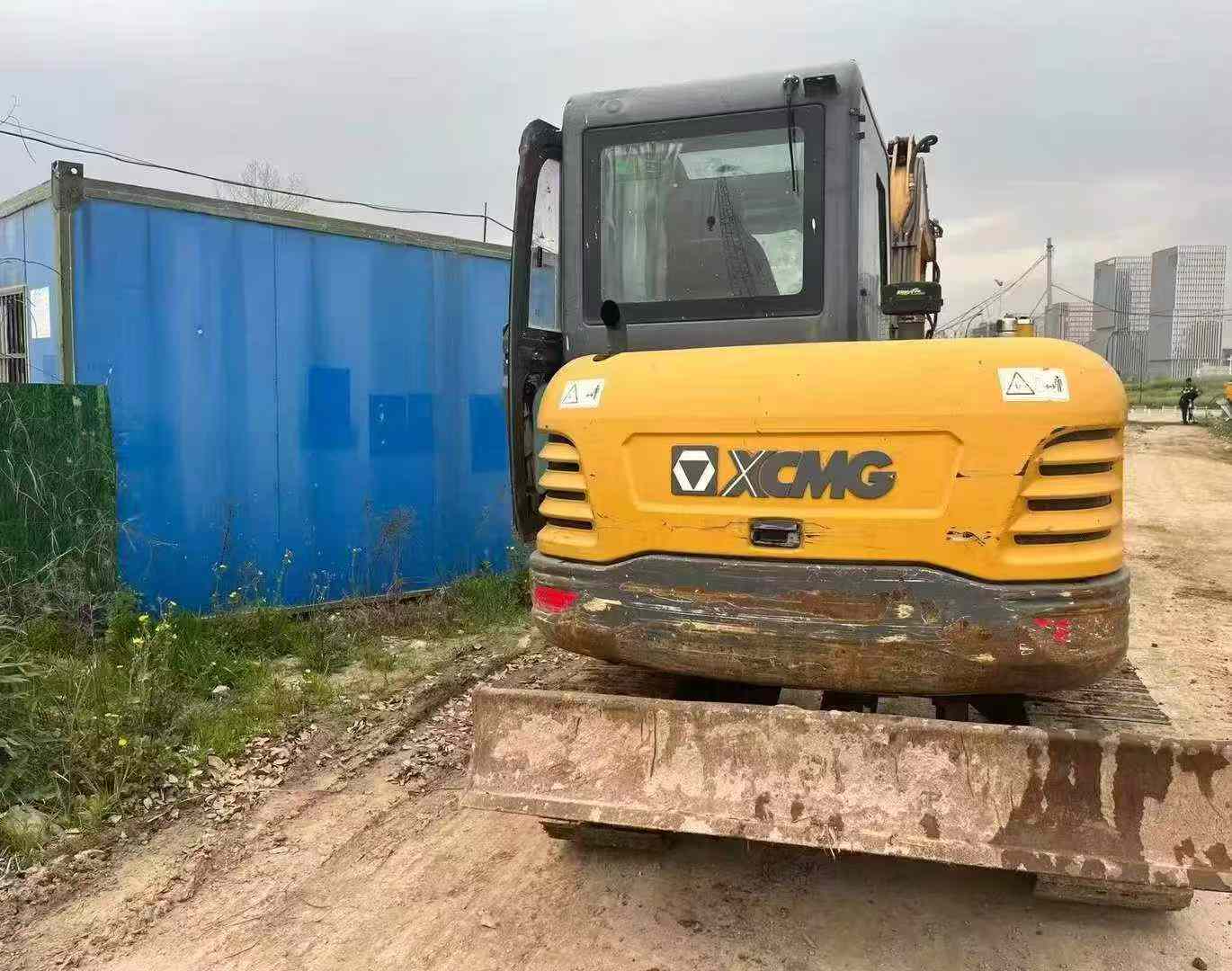

2020 XCMG XE60 excavator available in Zhejiang, China. This 6-ton class machine comes equipped with a hydraulic breaker attachment and compact bucket configuration, suited for urban construction, demolition work, and confined job sites. The unit shows good operational condition with no major mechanical issues reported.

  • Year: 2020
  • Make: XCMG
  • Model: XE60
  • Operating Weight: ~6 tons
  • Included: Hydraulic breaker, small bucket
  • Condition: Ready for inspection-free operation
  • Location: Zhejiang Province, China

The XE60 offers reliable performance for contractors requiring a versatile mini excavator with auxiliary hydraulic capabilities. Suitable for trenching, light demolition, and material handling applications. Machine is available for immediate purchase and can be inspected on-site by arrangement.

SpecificationsValue
No.1076773
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

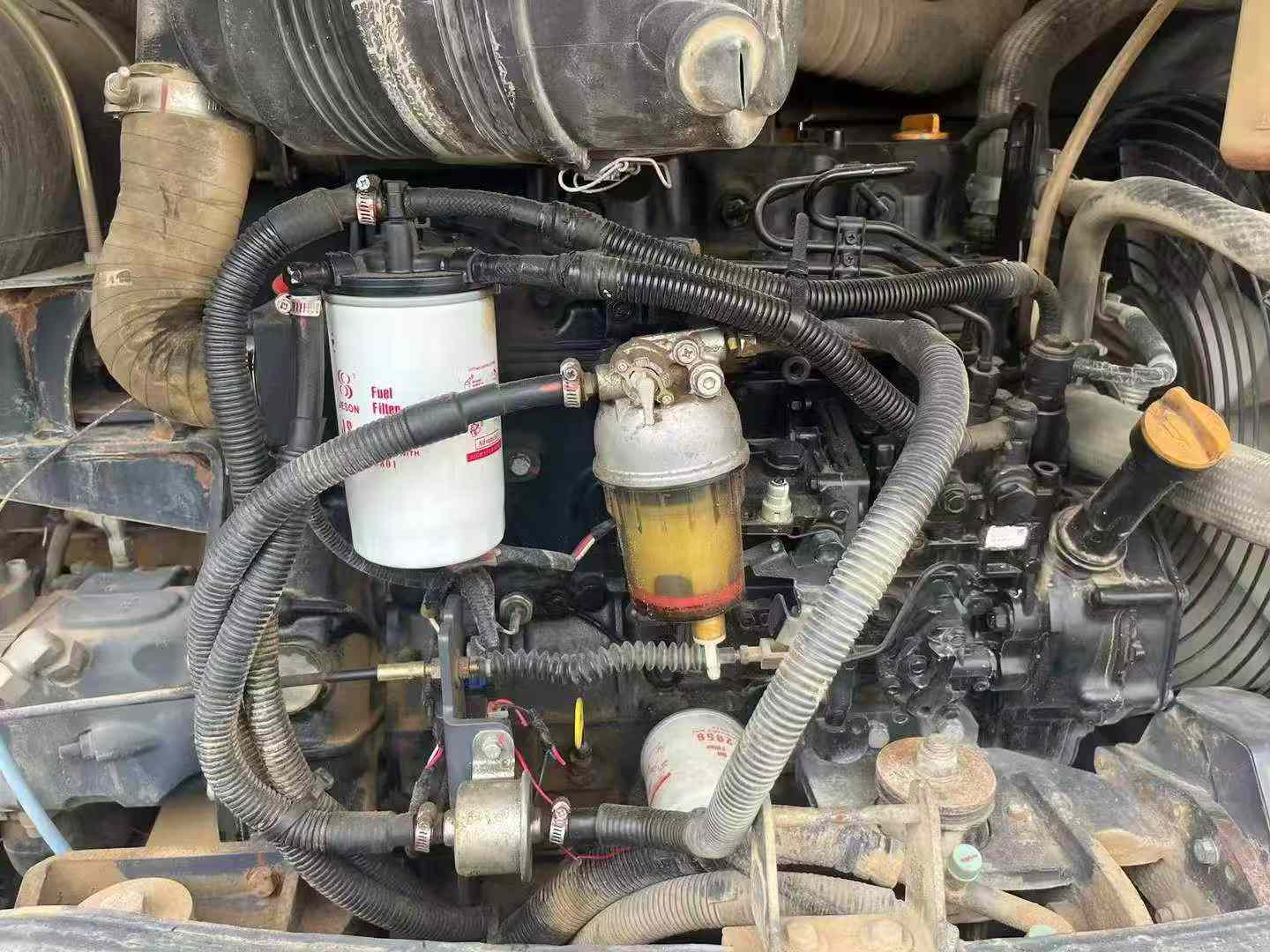

Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis

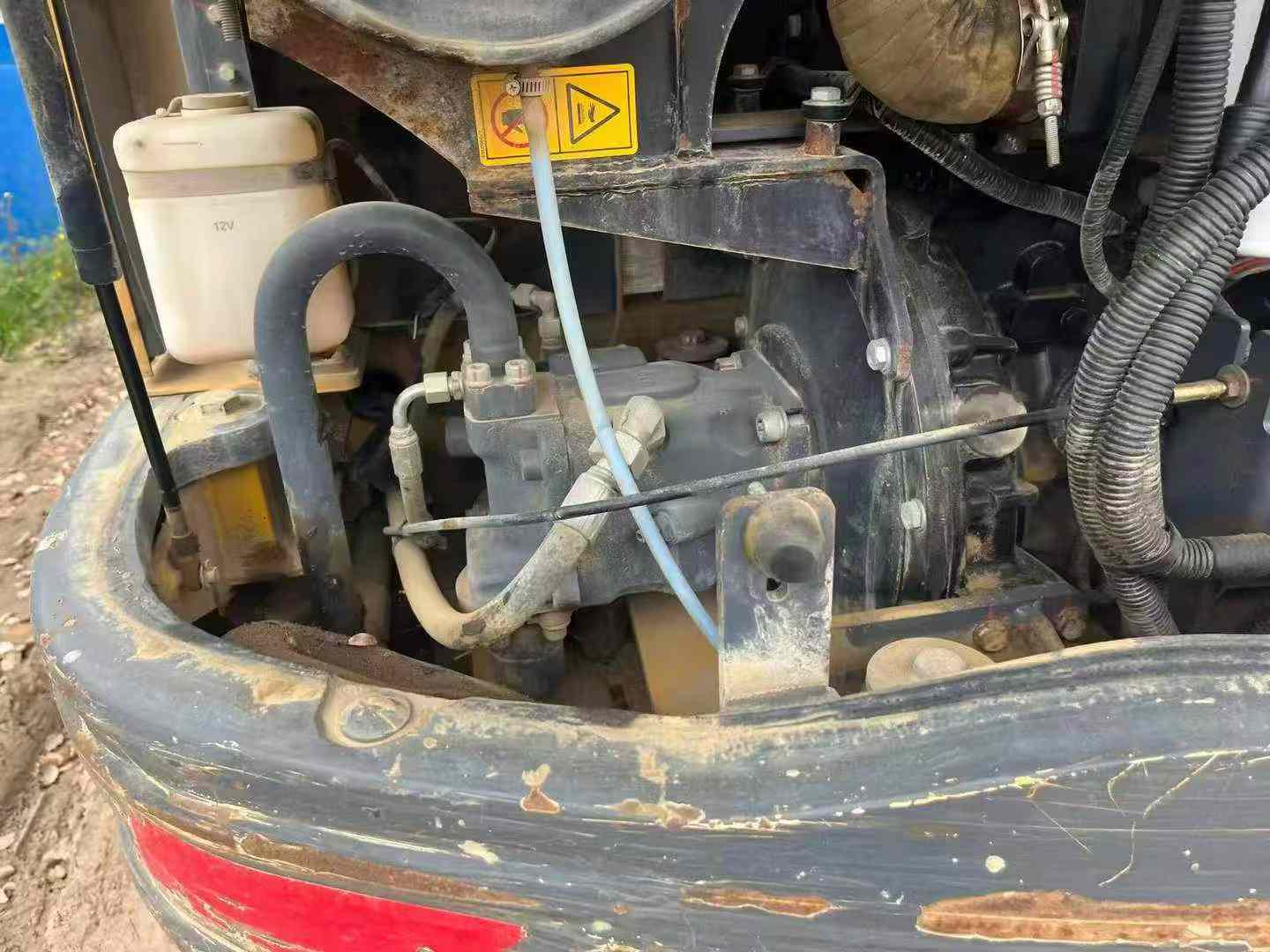

Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500

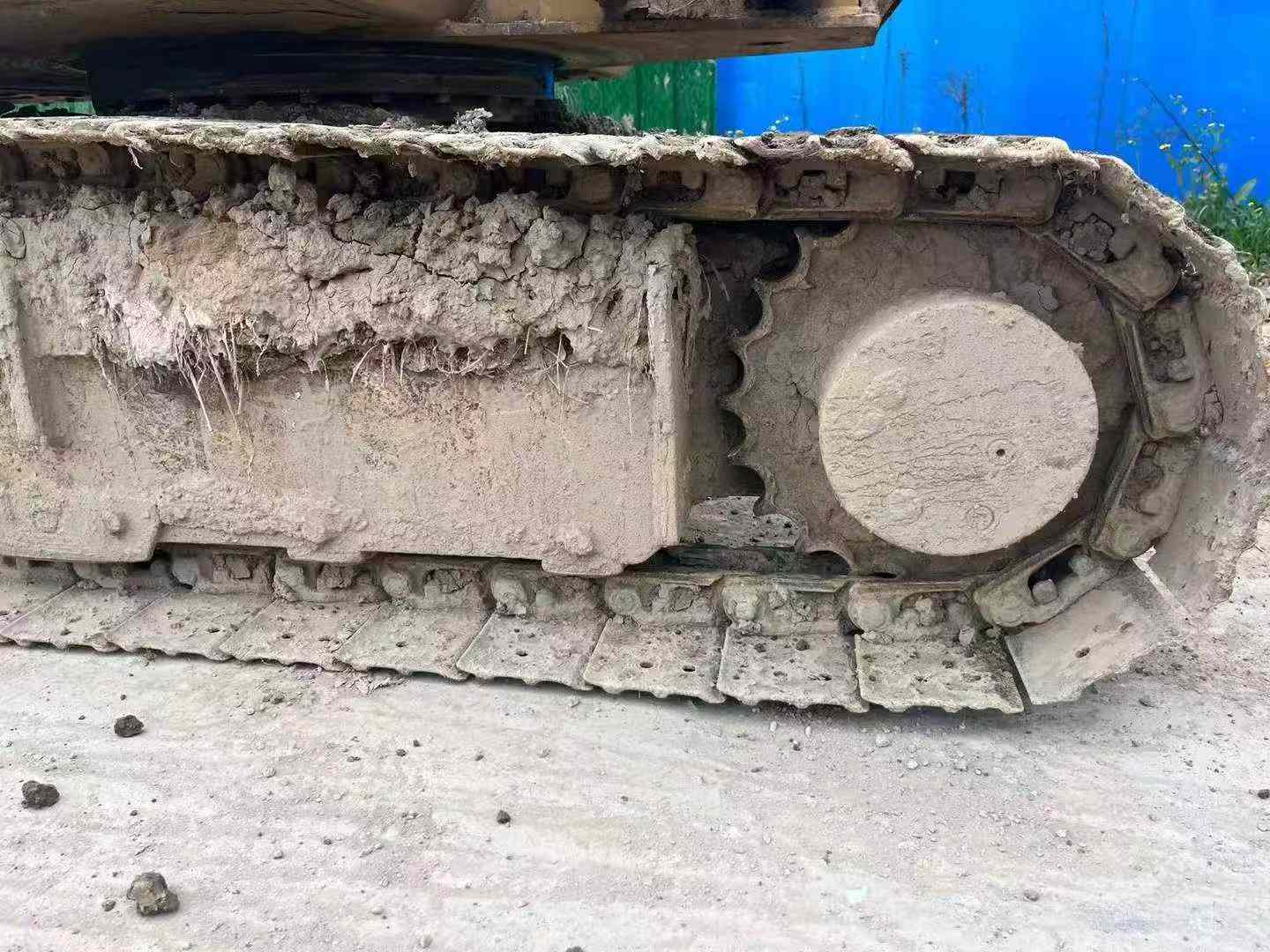

Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1076773

Brand Name:

XCMG

Model Number:

XE60

Year:

2020

Location:

Zhejiang China

Pub Date
