Product Description

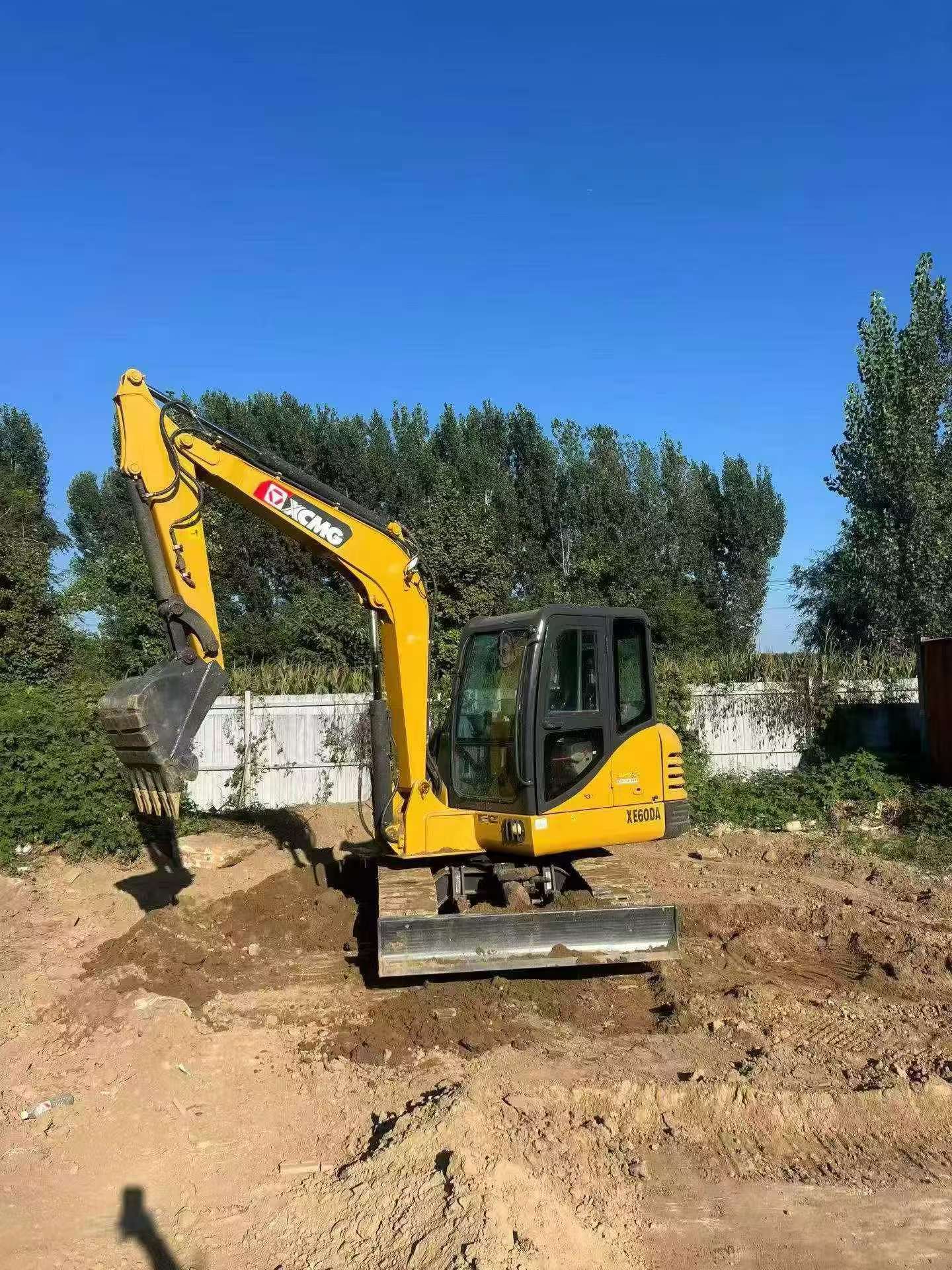

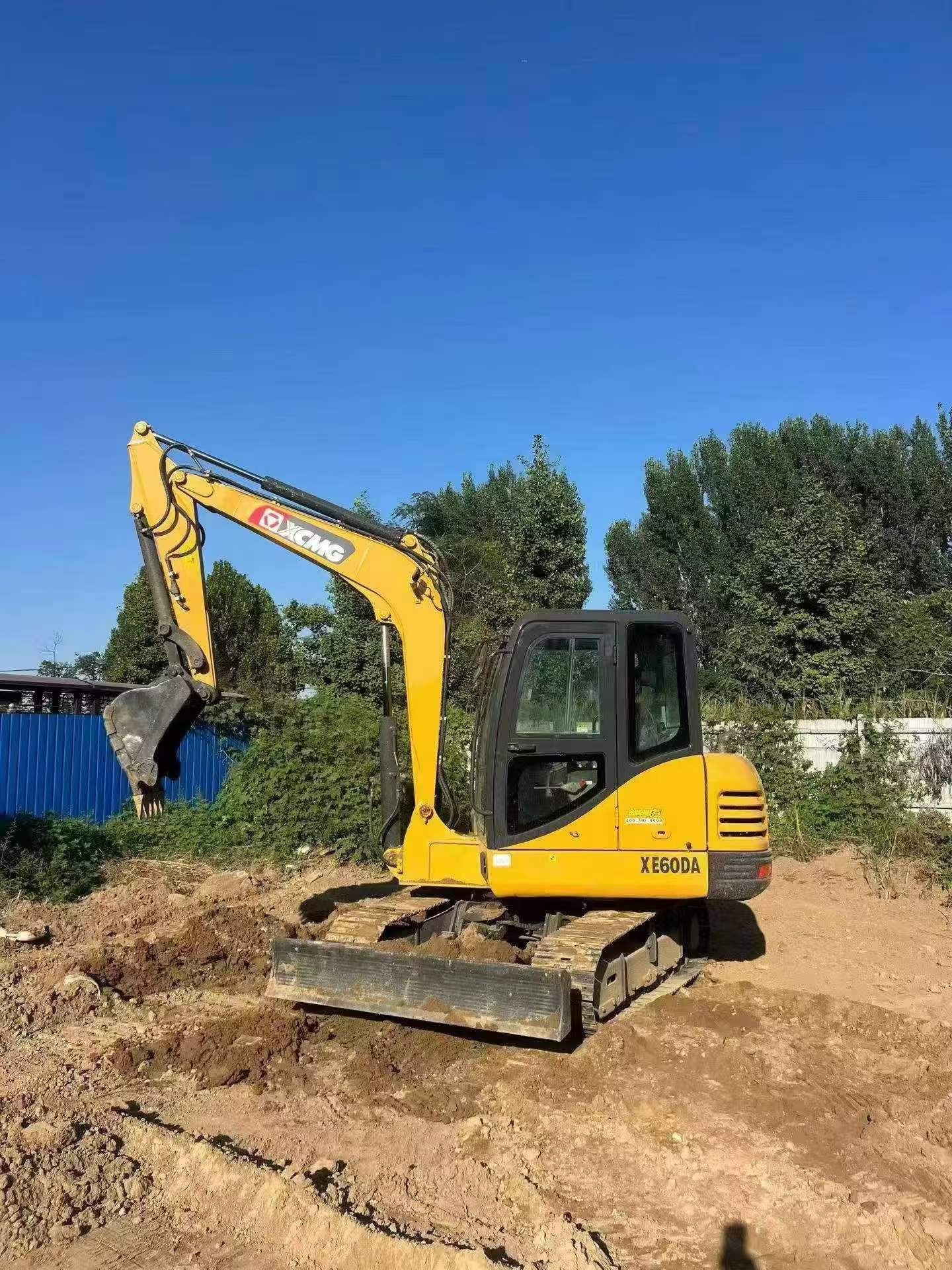

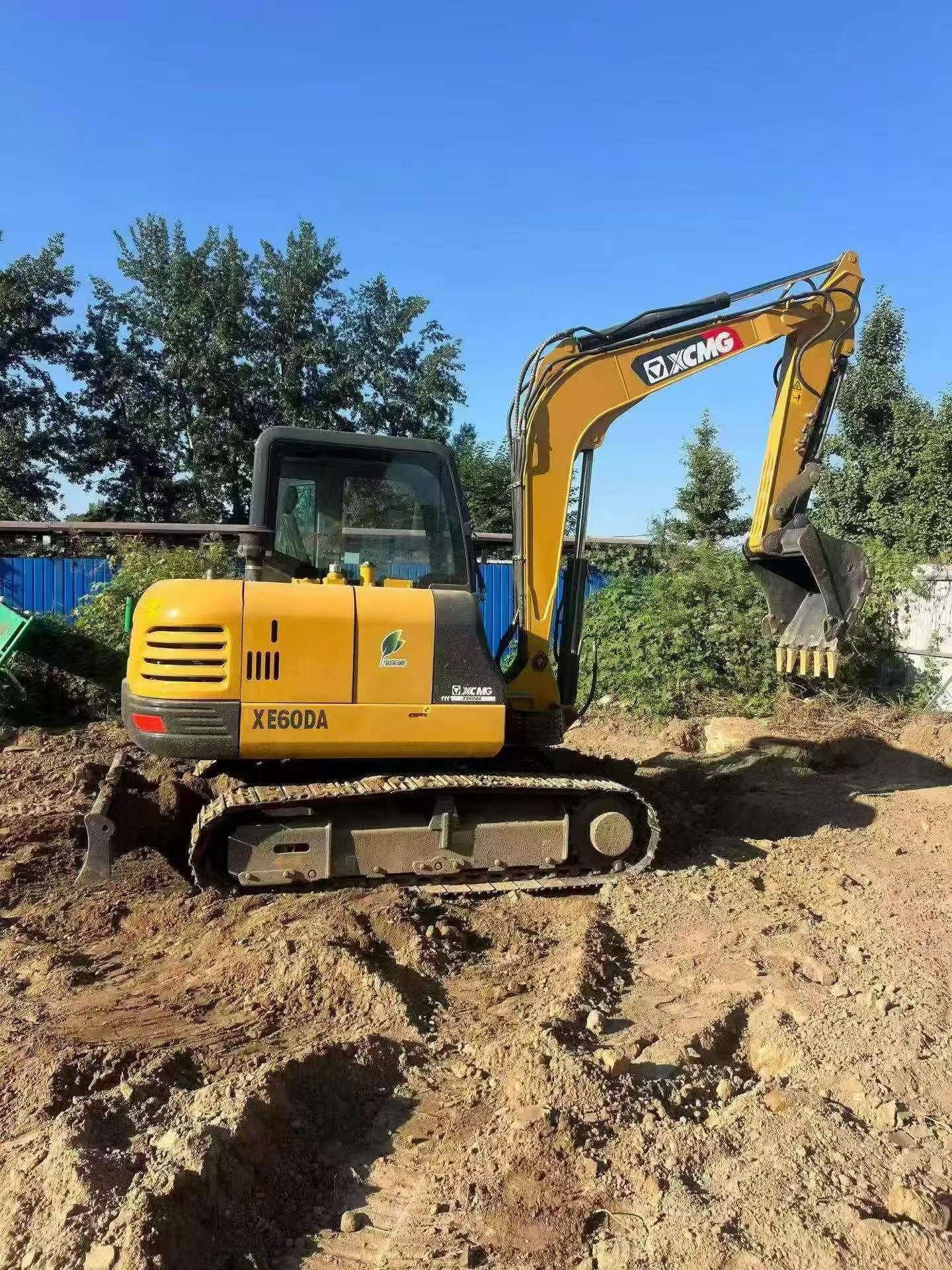

This 2020 XCMG XE60 excavator from Hebei, China represents excellent value in the compact excavator segment. The machine demonstrates strong operational performance with robust digging power suitable for demanding construction and earthmoving applications.
Key highlights include:
- Well-maintained mechanical condition with consistent performance

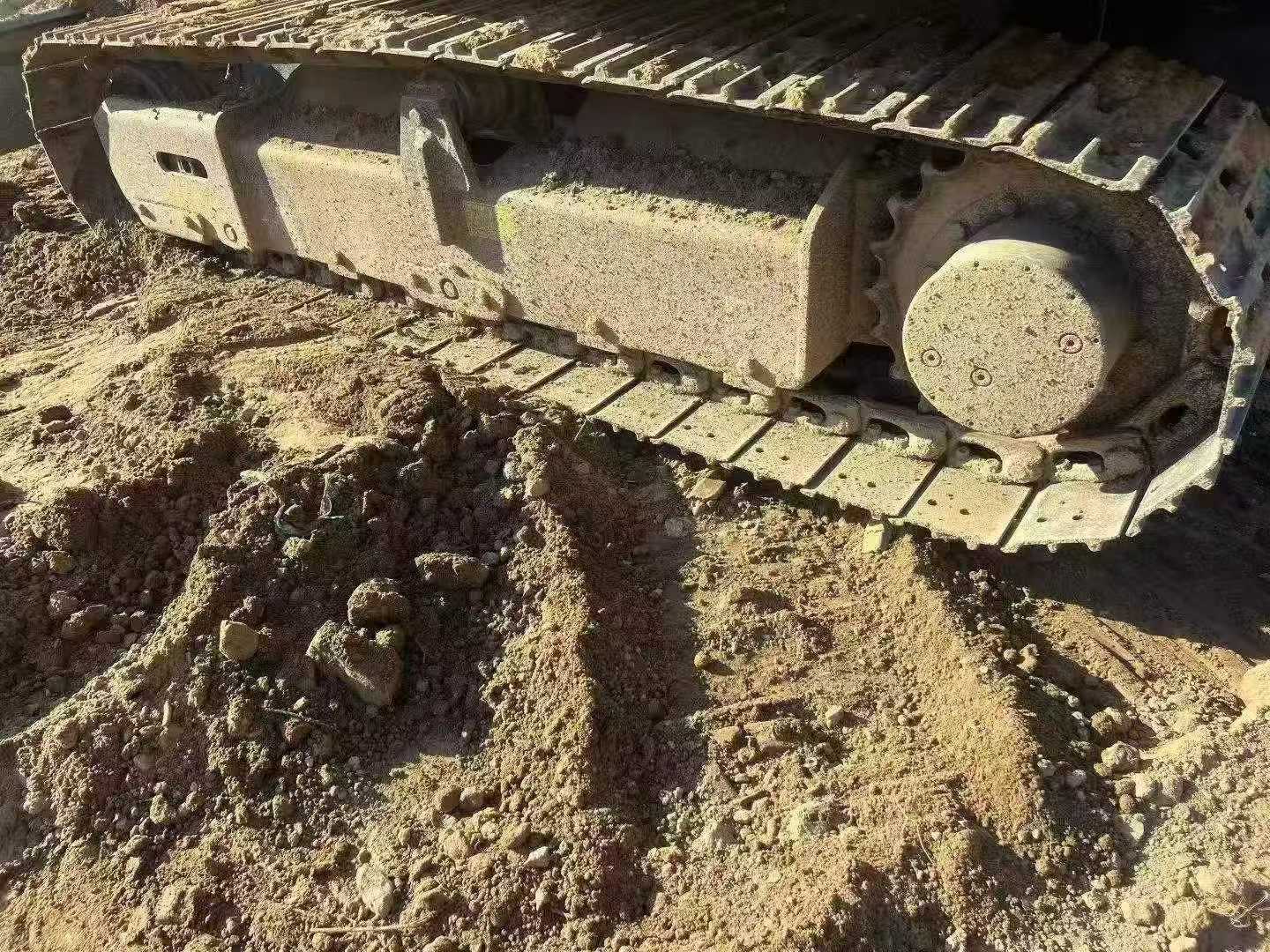

- Undercarriage components showing minimal wear

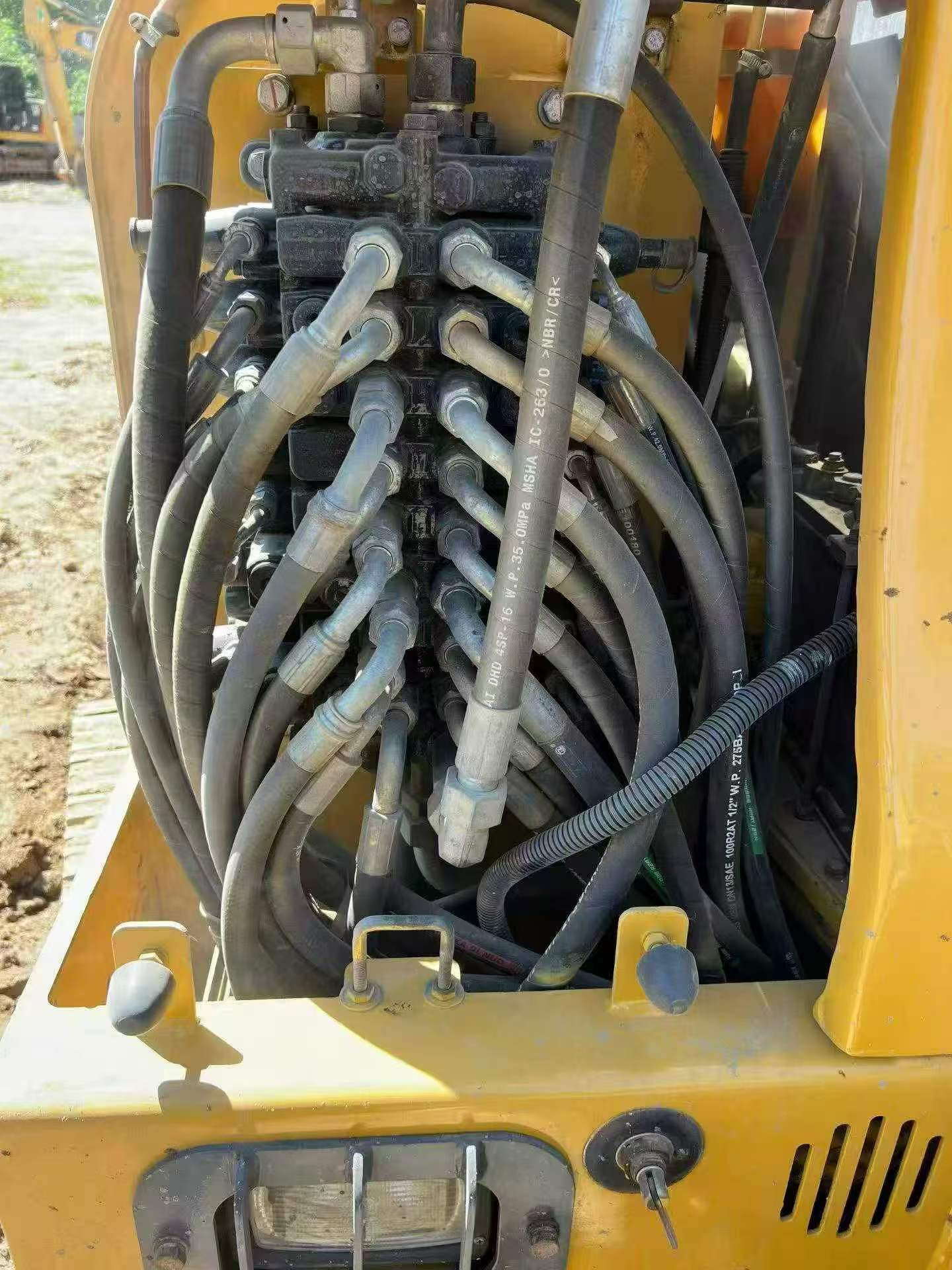

- Reliable hydraulic system delivering strong breakout force
- Ideal for contractors seeking dependable 6-ton class equipment
The XE60 offers proven reliability in XCMG's compact excavator range, combining maneuverability with productive digging capabilities. Current condition reflects careful operation and regular maintenance. This unit is ready for immediate deployment across general construction, utility work, and landscaping projects.
Available for inspection in Hebei province. Suitable for domestic and international buyers seeking quality pre-owned construction equipment.
| Specifications | Value |
|---|---|
| No. | 1138707 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |

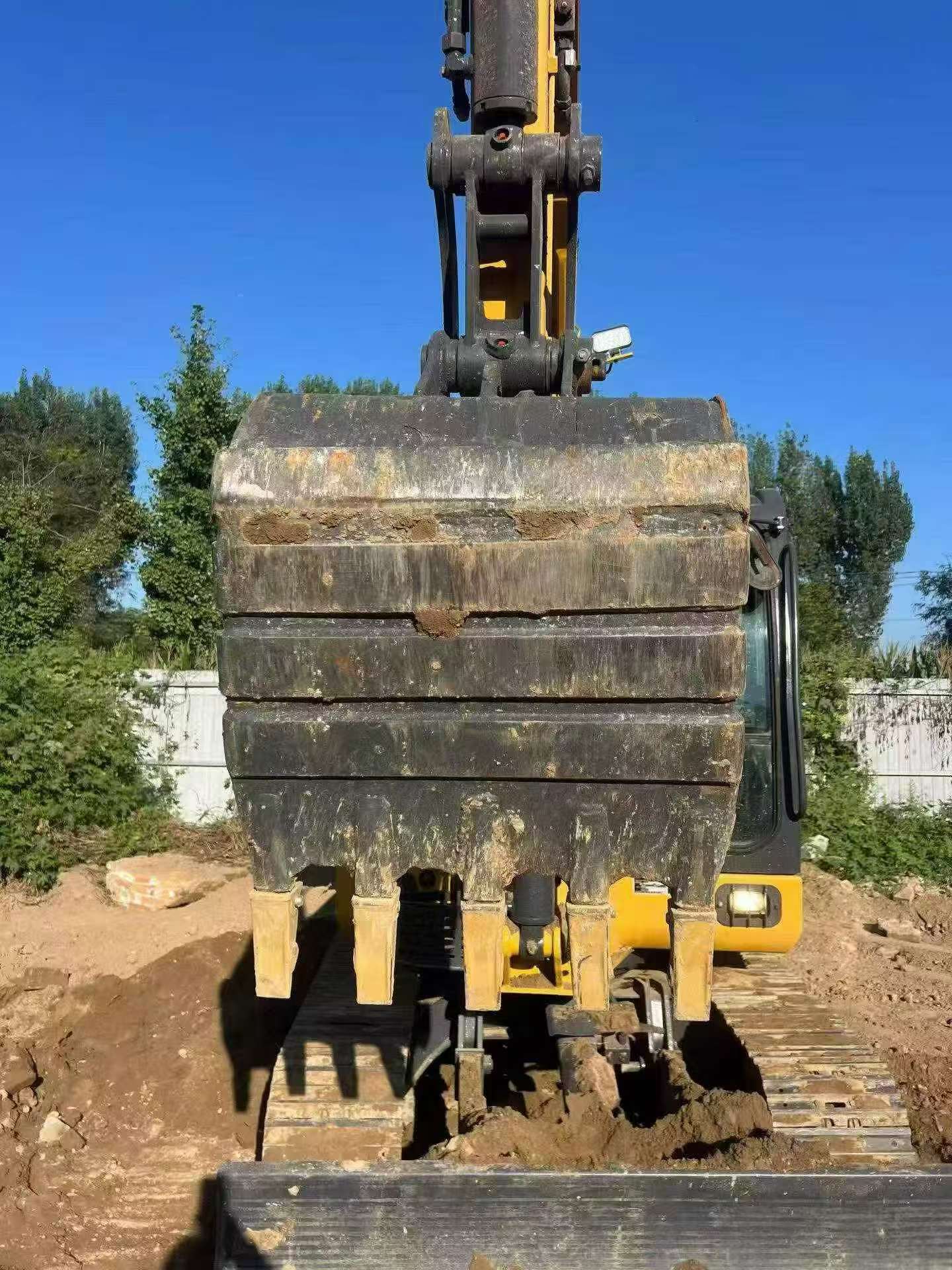

| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

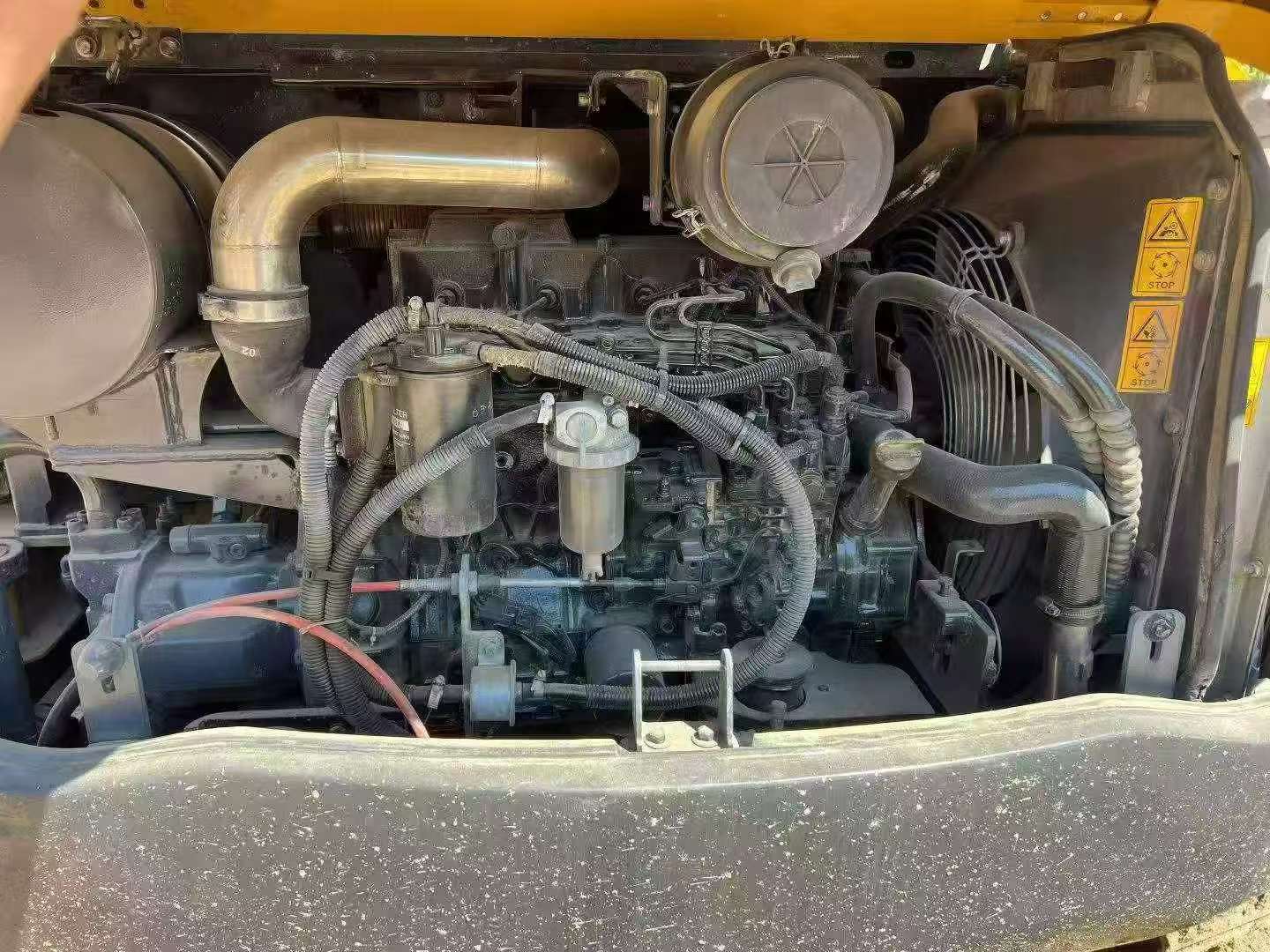

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |

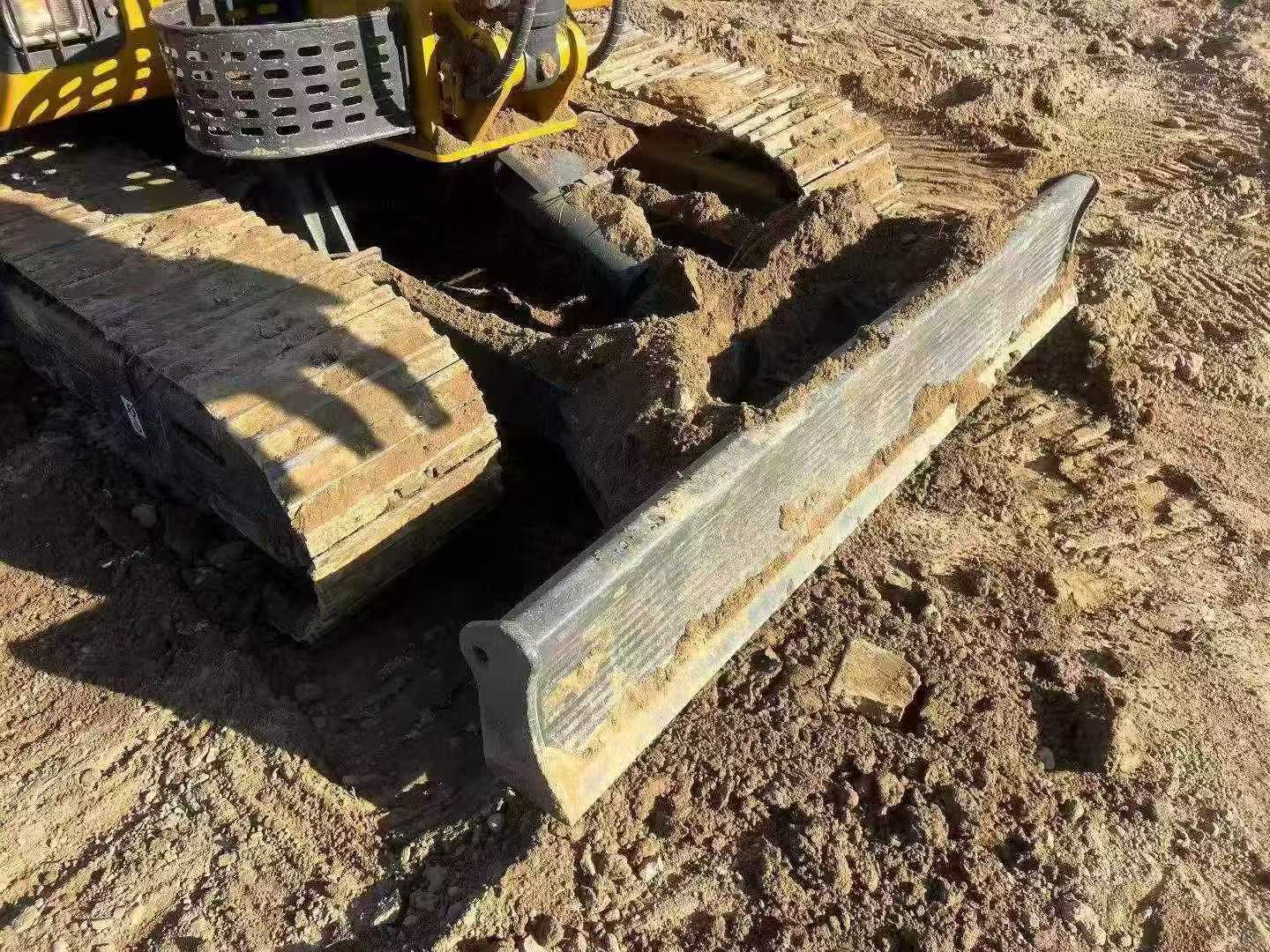

| Dodging plate width × height (mm) | 1880*365/1920*340 |
