2020 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1

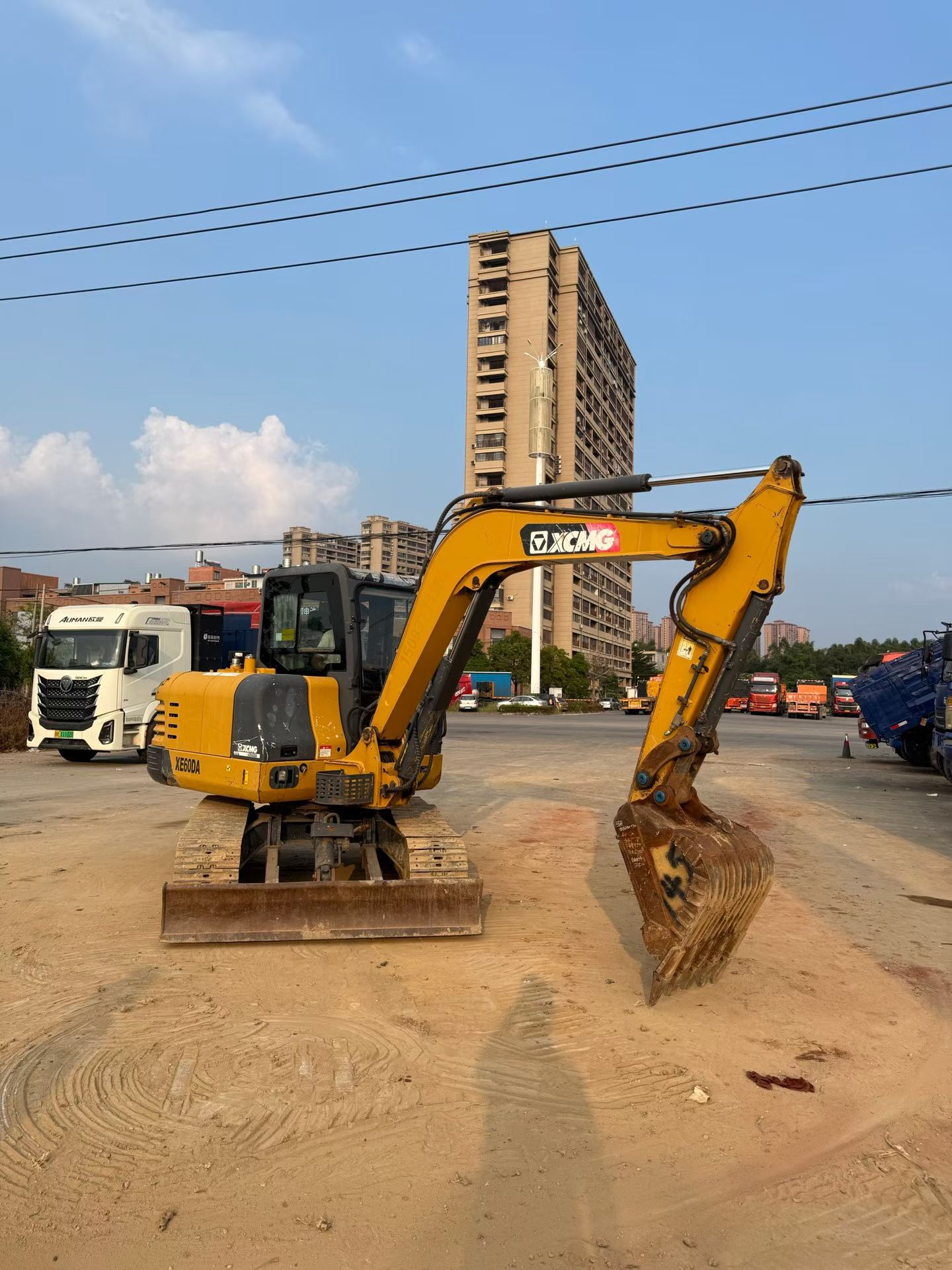

Buy XCMG XE60 Used Excavator / 2

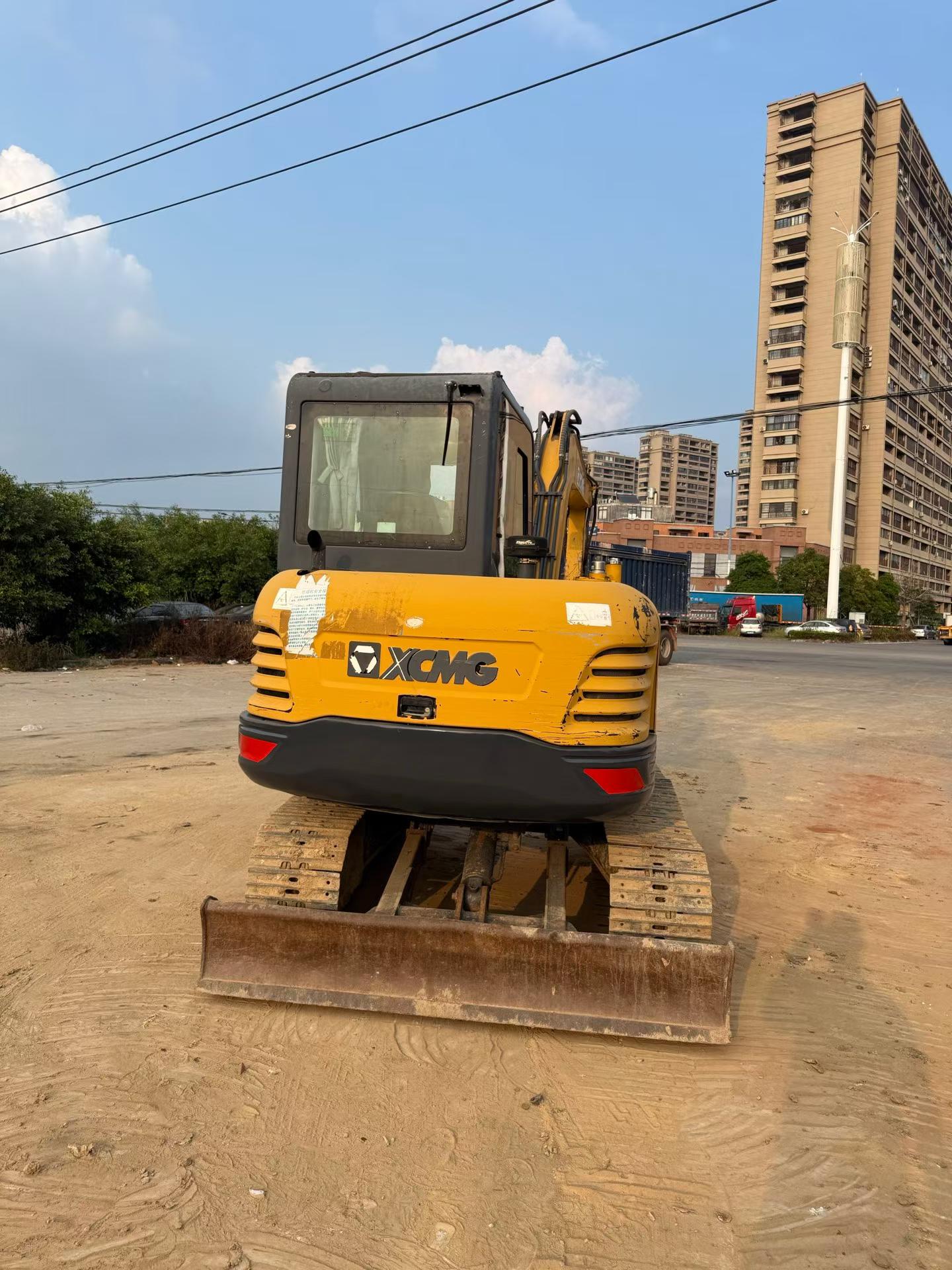

Buy XCMG XE60 Used Excavator / 3

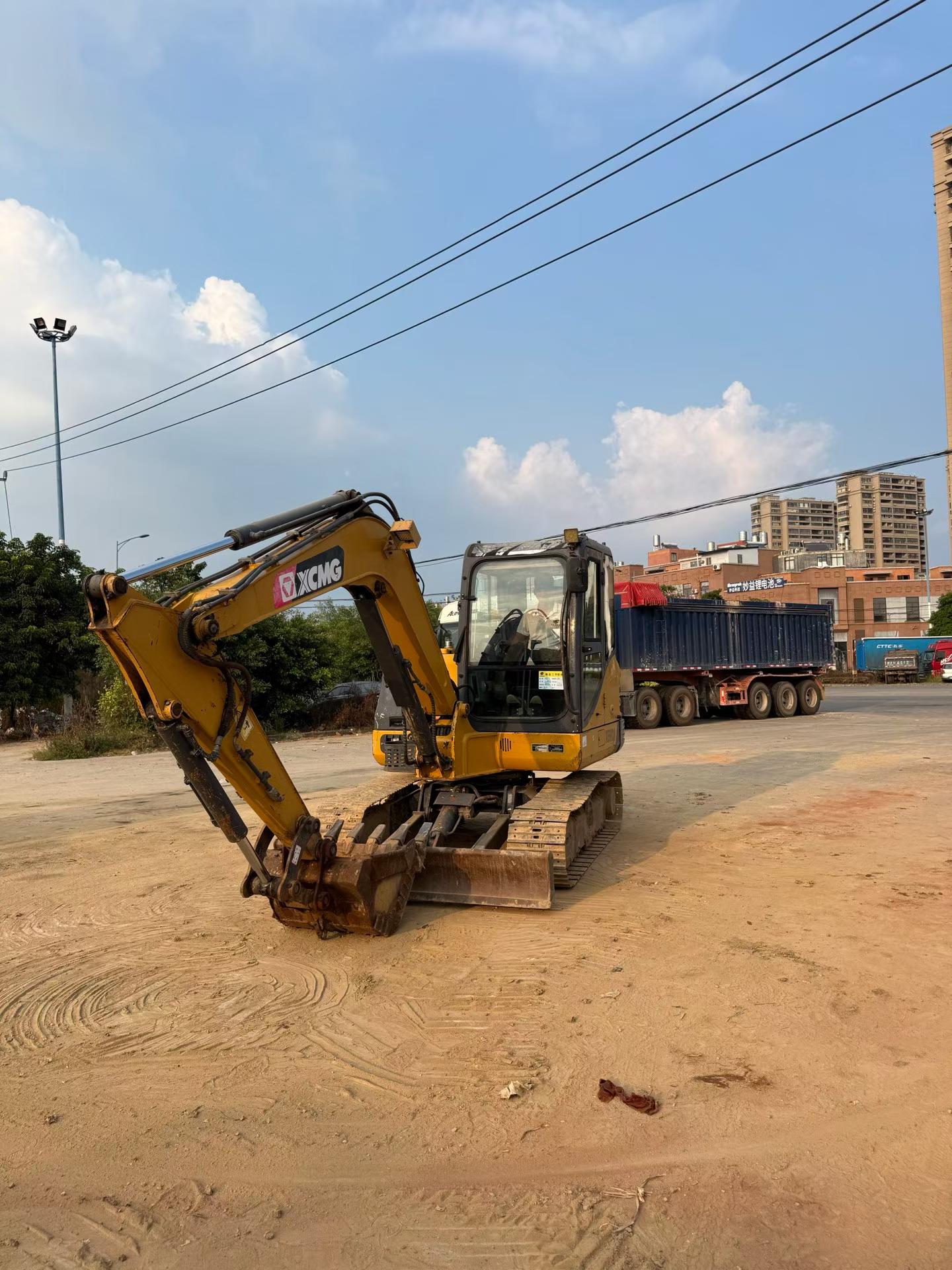

Buy XCMG XE60 Used Excavator / 4

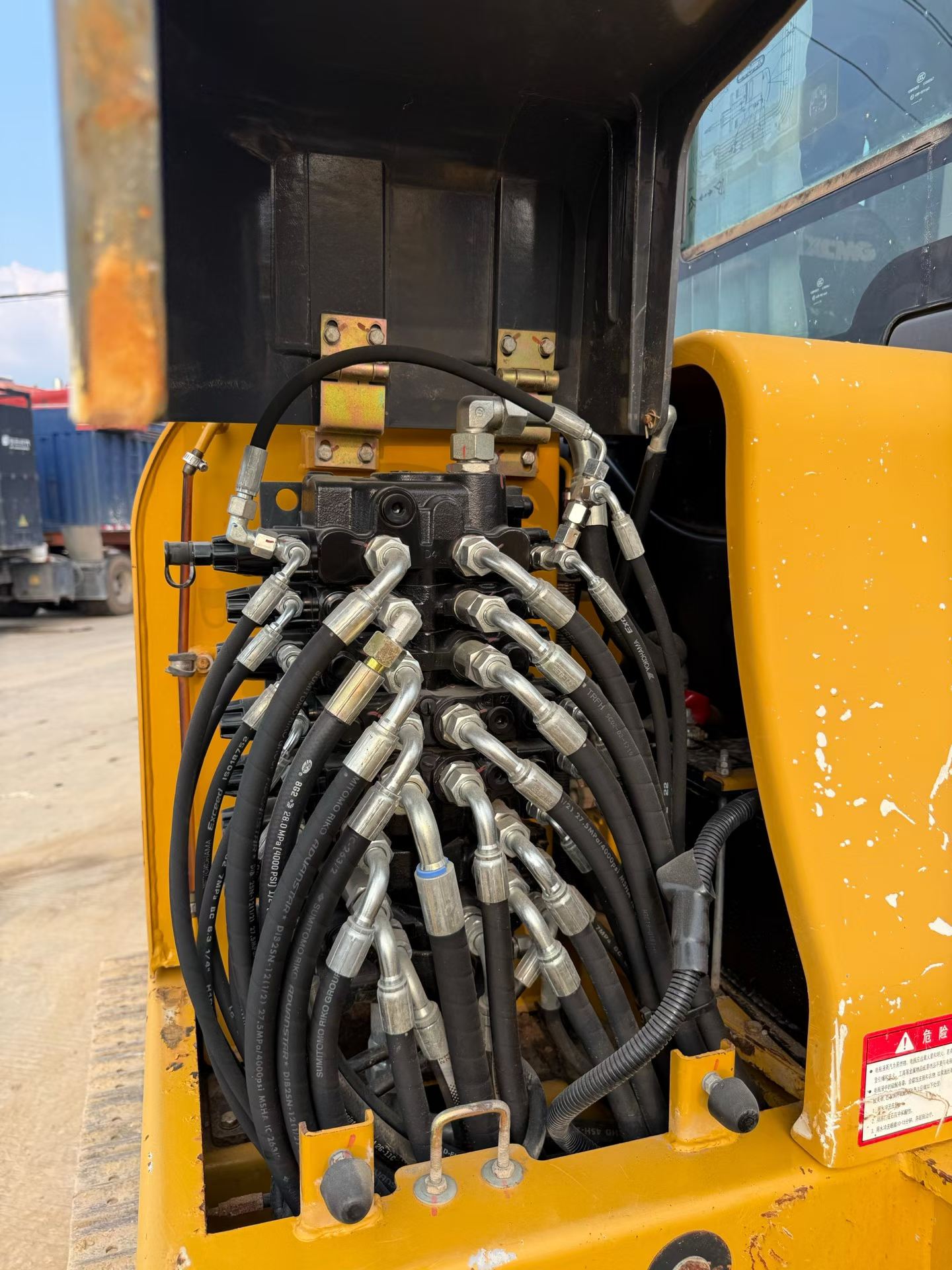

Buy XCMG XE60 Used Excavator / 5

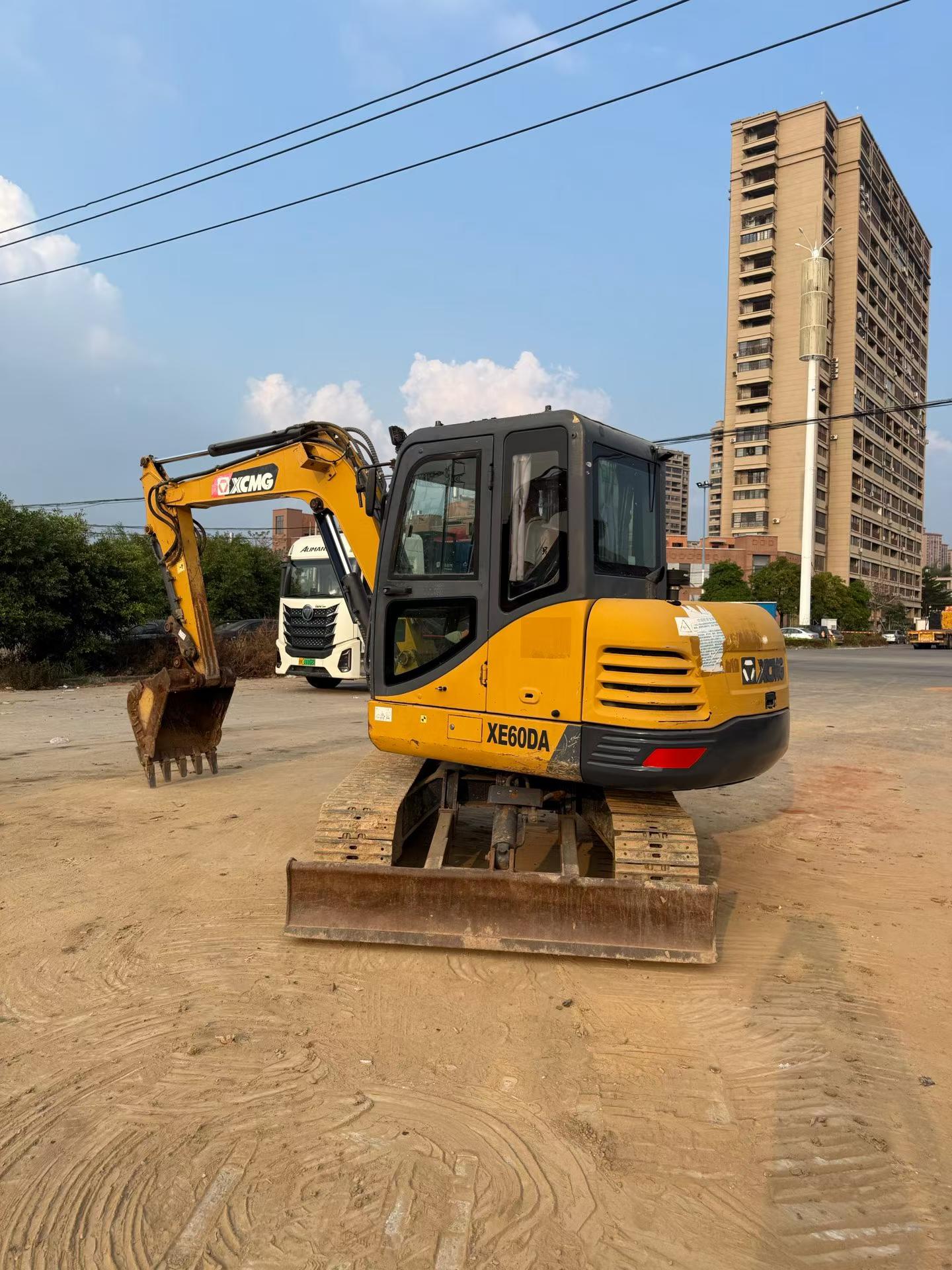

Buy XCMG XE60 Used Excavator / 6

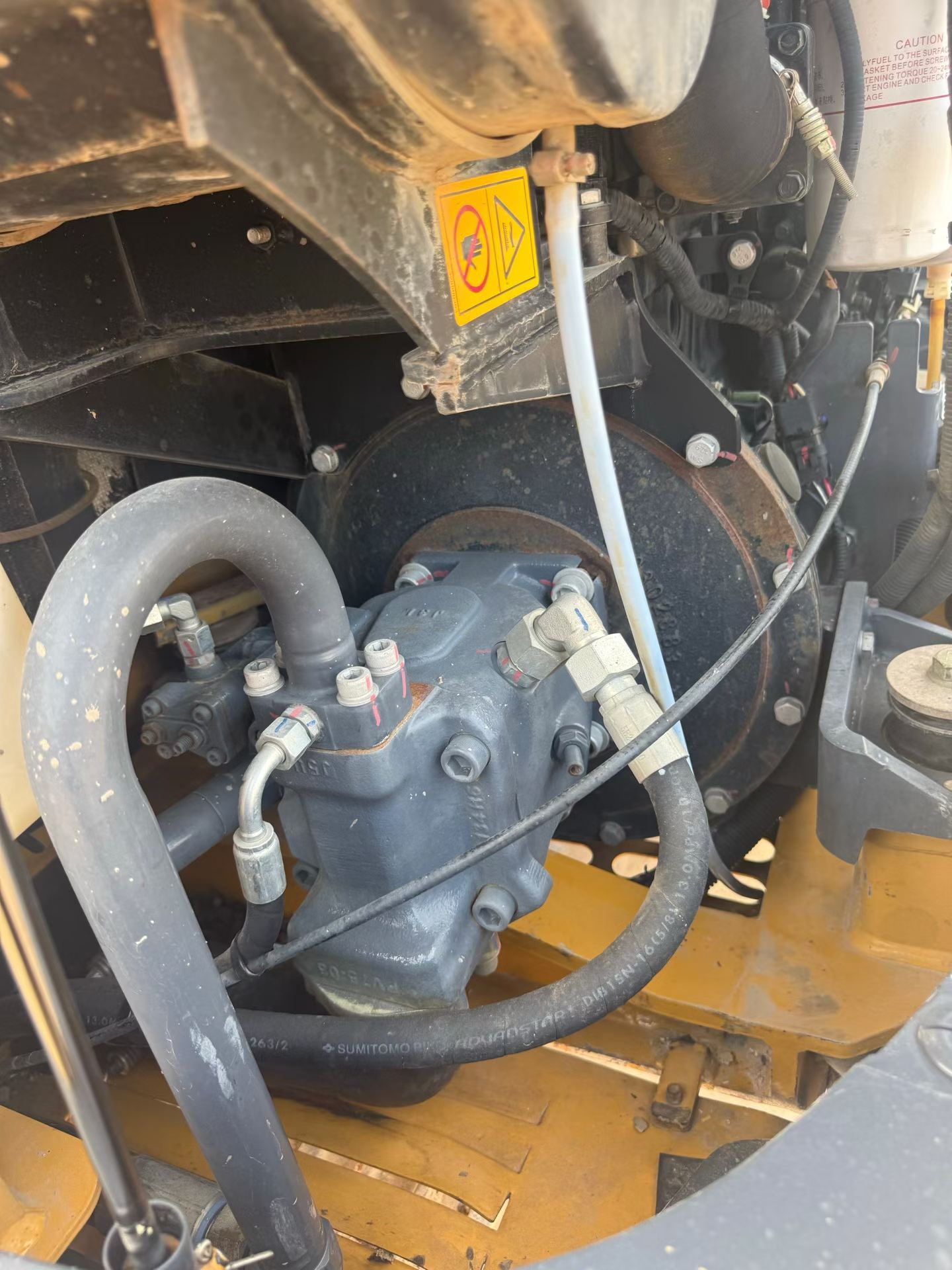

Buy XCMG XE60 Used Excavator / 7

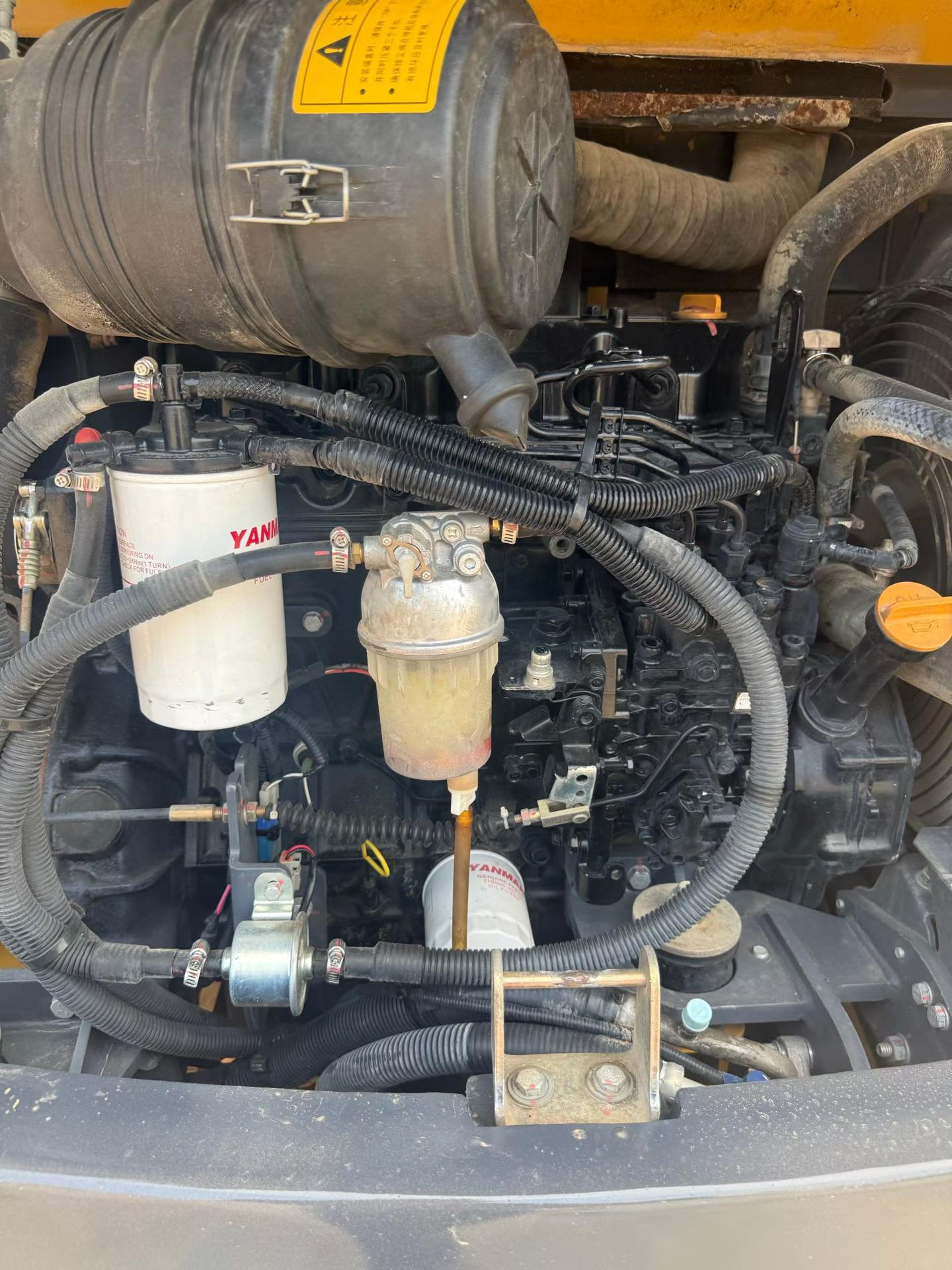

Buy XCMG XE60 Used Excavator / 8

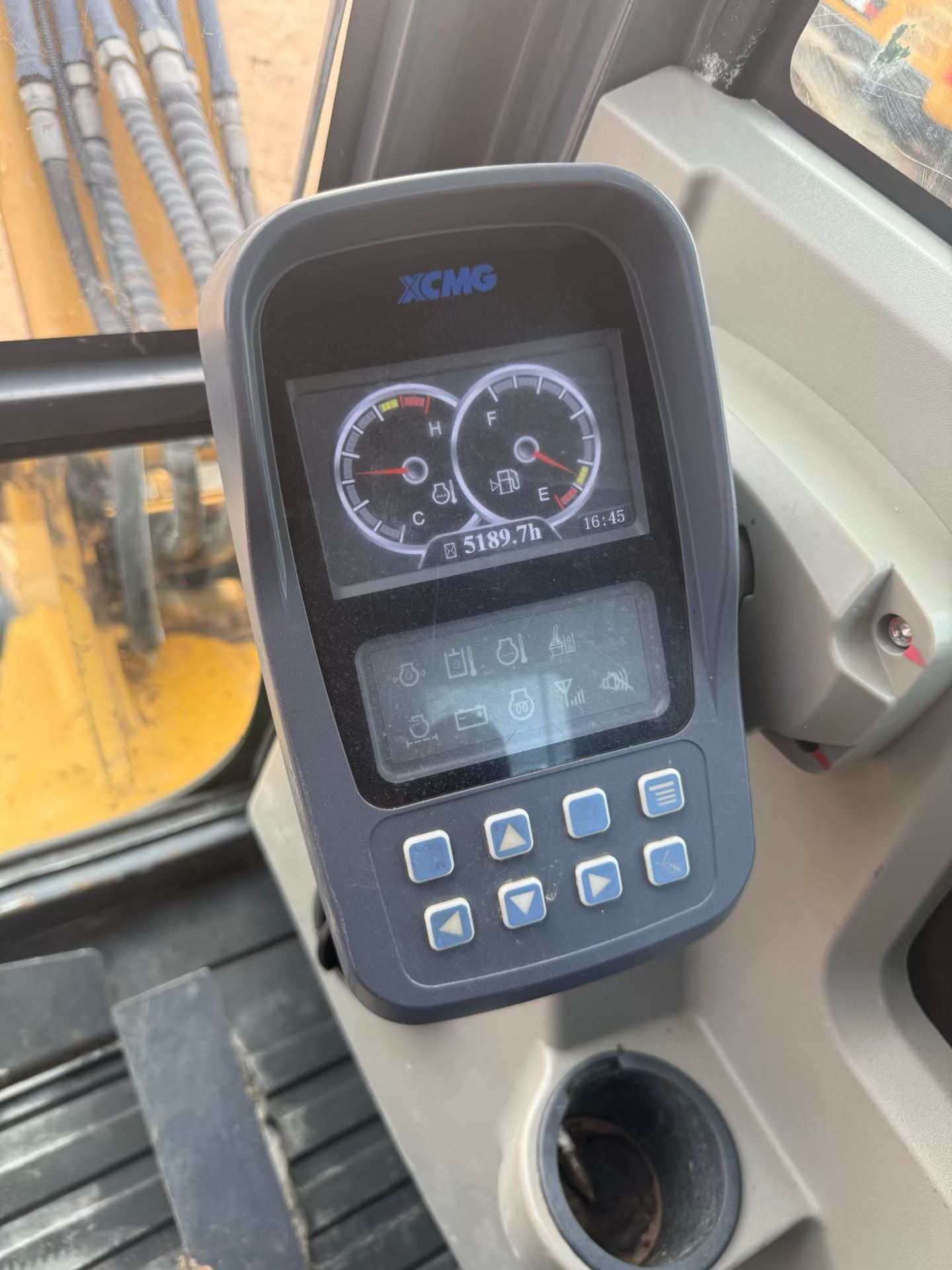

Buy XCMG XE60 Used Excavator / 9

Product Description

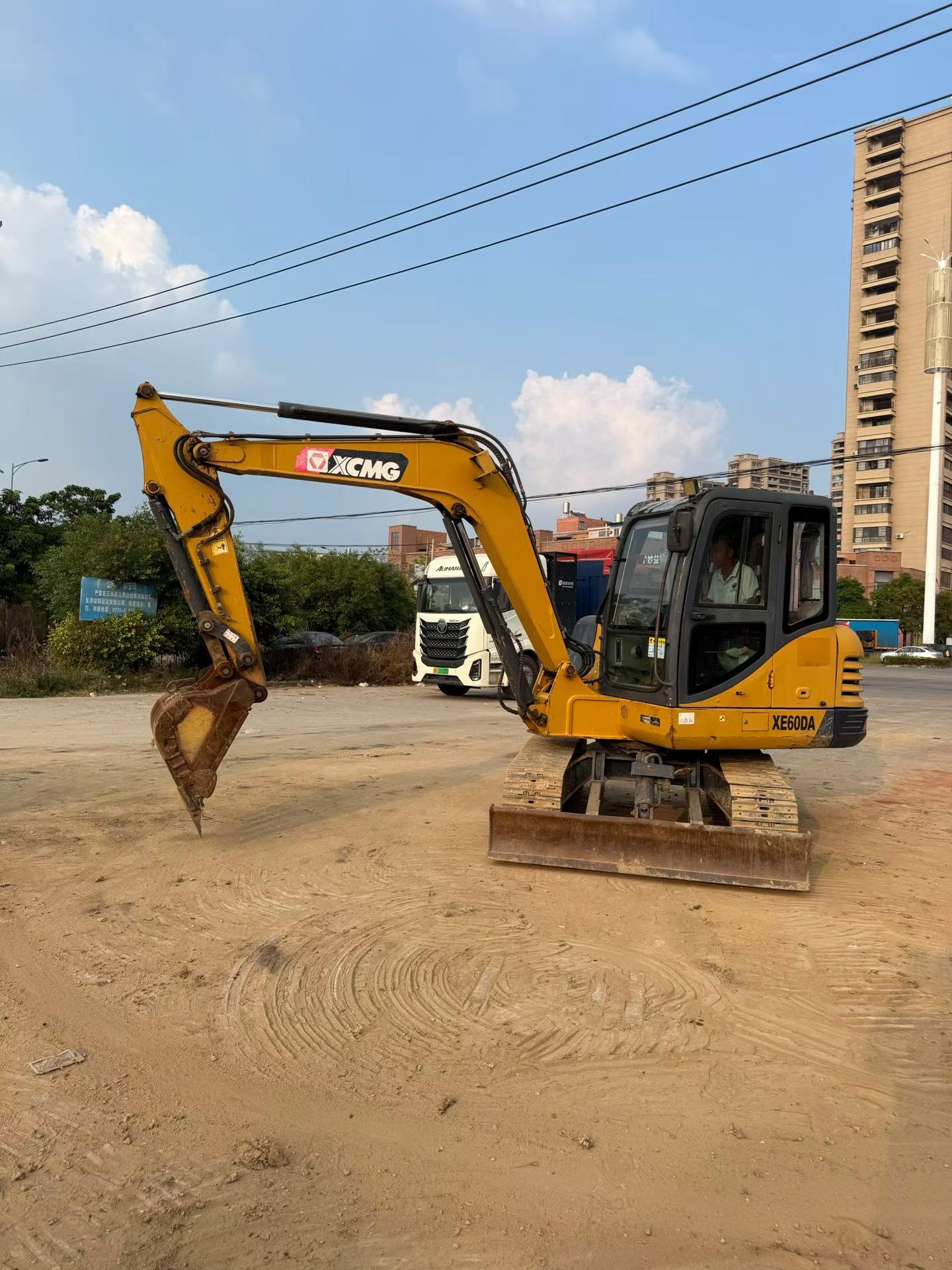

This 2020 XCMG XE60 excavator is available from Guangxi, China. Purchased new in 2020, this 6-ton class machine has been maintained in excellent working condition with strong operational performance throughout its service life.

The unit retains its original factory panels and paintwork, indicating careful handling and minimal cosmetic wear. The XE60 is well-suited for urban construction, landscaping, utility installation, and light earthmoving applications where maneuverability and reliability are essential.

  • Year of Manufacture: 2020
  • Make and Model: XCMG XE60
  • Operating Weight Class: Approximately 6 tons
  • Current Location: Guangxi Province, China
  • Condition: Original panels and paint, good mechanical performance
  • Asking Price: CNY 65,000

This machine represents a cost-effective solution for contractors seeking dependable equipment with documented ownership history. Inspection welcomed.

SpecificationsValue
No.1162943
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1162943

Brand Name:

XCMG

Model Number:

XE60

Year:

2020

Location:

Guangxi China

Pub Date:
