Product Description
Acquire proven excavation capability without the premium price tag. This 2021 XCMG XE60 mini excavator delivers 6-ton performance with minimal operational hours, offering exceptional value for contractors seeking reliable equipment at a fraction of new market cost. Powered by a robust Yanmar 4TNV94L engine producing 39.8kW, this compact workhorse combines fuel efficiency with dependable output for demanding jobsites.
Built in Xuzhou and stationed in Huizhou, Guangdong, this machine features premium Rexroth hydraulic pumps and water-cooled technology for sustained performance. Key specifications include:
- Maximum digging depth: 3,830mm with 6,130mm reach radius
- Bucket digging force: 42.5kN for tough material penetration
- Compact footprint: 1,880mm width enables confined space operation
- Dual-speed travel: 4.2/2.2 km/h with 35° climbing capability
- Standard hydraulic breaker circuit for attachment versatility
Smart buyers recognize that low-hour used equipment from established manufacturers provides immediate ROI. With 5,960kg operating weight and 0.09-0.23m³ bucket capacity, this XE60 handles residential, utility, and landscaping projects efficiently. Invest strateg
| Specifications | Value |
|---|---|
| No. | 1024140 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

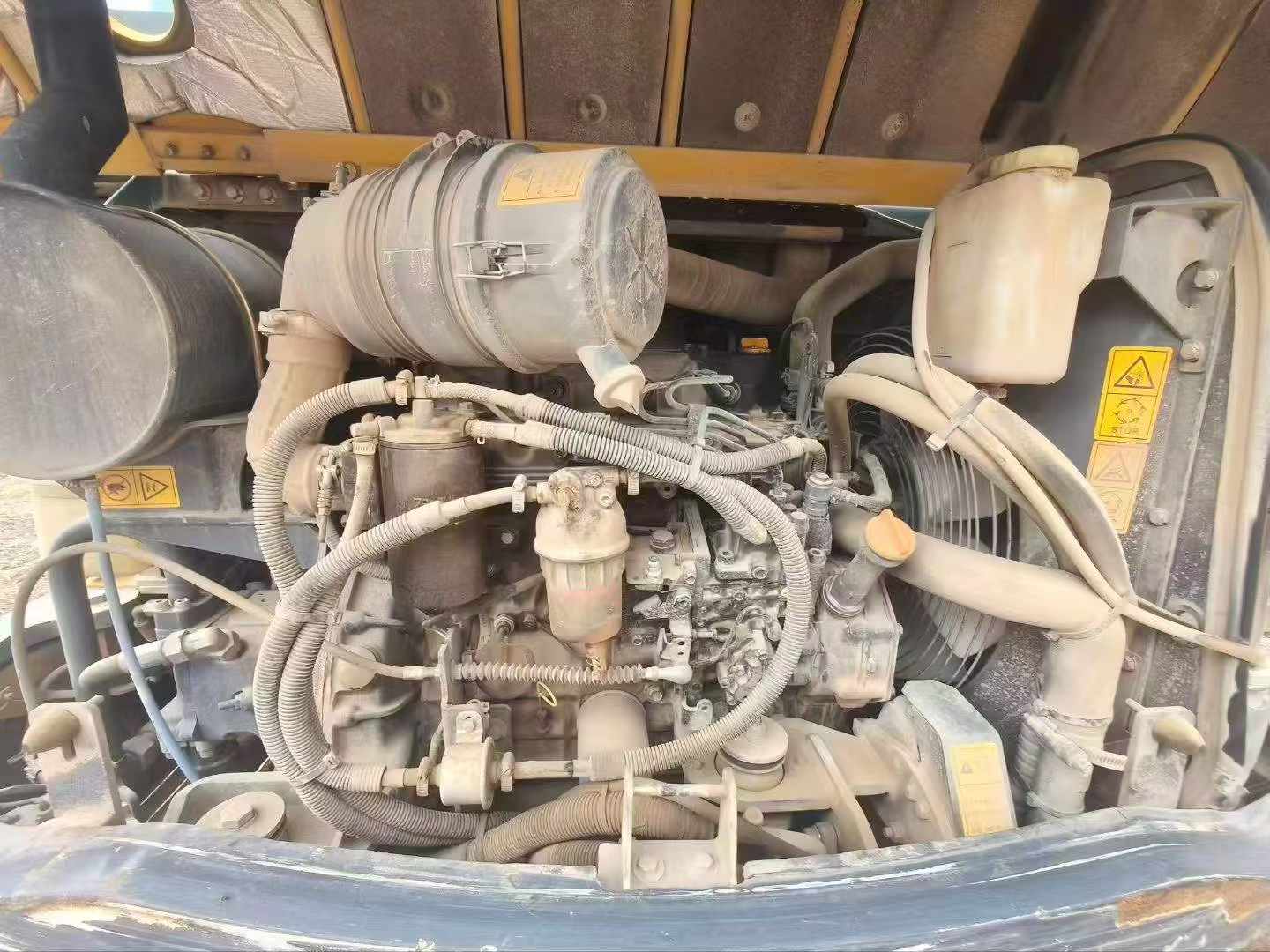

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

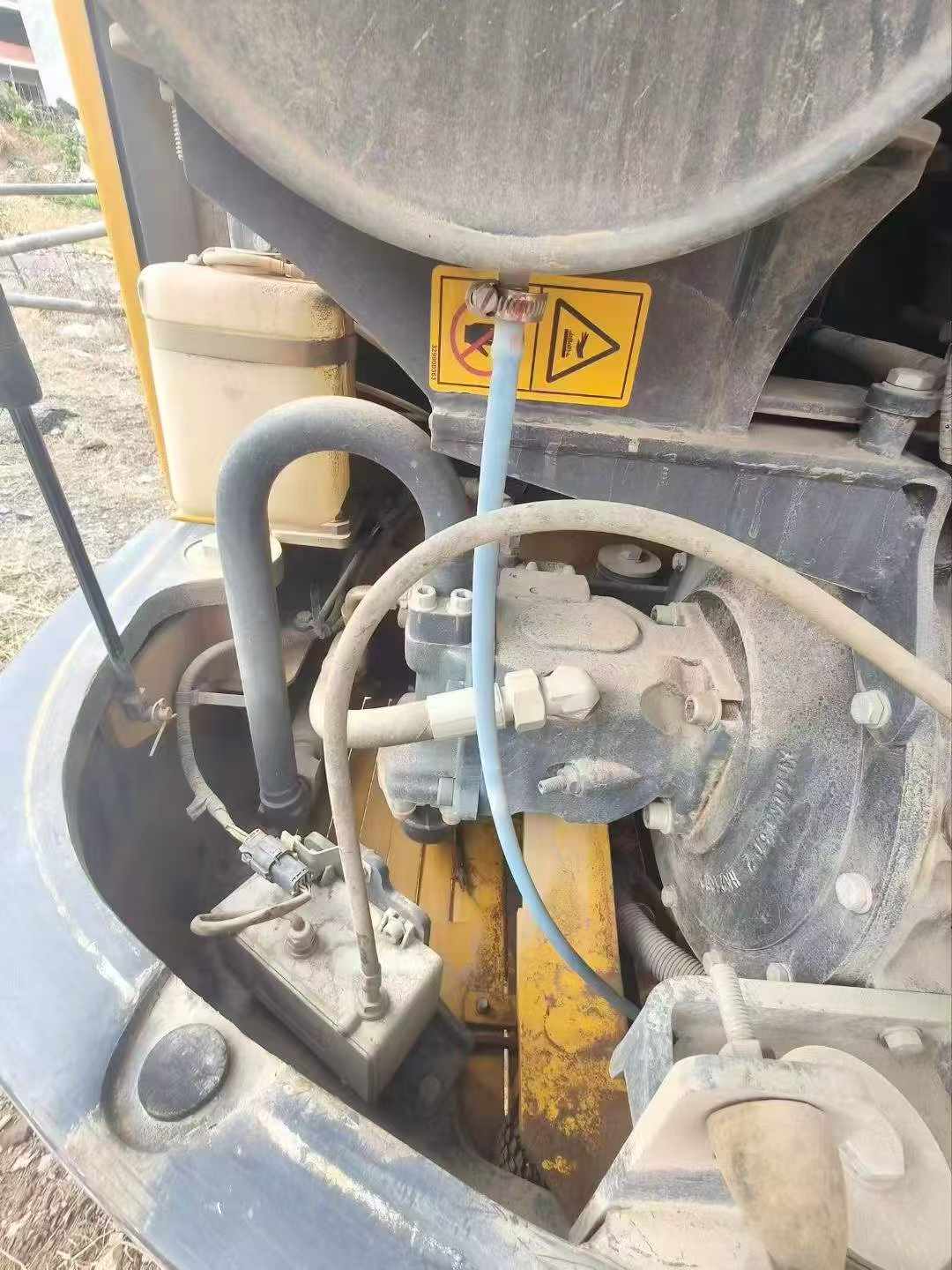

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
