2021 XCMG XE60

1/8

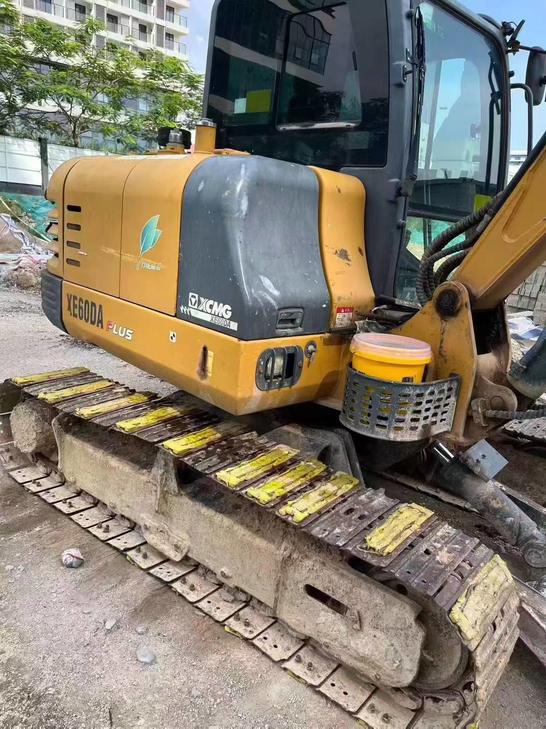

Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5
Buy XCMG XE60 Used Excavator / 6
Buy XCMG XE60 Used Excavator / 7
Buy XCMG XE60 Used Excavator / 8

Product Description

This 2021 XCMG XE60 excavator is available from our Hunan, China location. With approximately 60,000 RMB worth of operational hours, this 6-ton class machine comes equipped with a hydraulic breaker attachment, making it suitable for demolition and breaking applications.

The XE60 represents XCMG's reliable compact excavator line, designed for construction sites, utility work, and light demolition projects. The included hydraulic hammer adds versatility for concrete breaking and rock excavation tasks.

  • Year of Manufacture: 2021
  • Operating Weight: Approximately 6 tons
  • Included: Hydraulic breaker attachment
  • Current Location: Hunan Province, China
  • Condition: Used, operational

This machine offers a cost-effective solution for contractors seeking a compact excavator with breaking capabilities. Inspection available upon request.

SpecificationsValue
No.1144878
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
