2022 XCMG XE60

1/8
Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5
Buy XCMG XE60 Used Excavator / 6
Buy XCMG XE60 Used Excavator / 7
Buy XCMG XE60 Used Excavator / 8

Product Description

2022 XCMG XE60 excavator available from Henan, China. This 6-ton class hydraulic excavator comes equipped with hydraulic breaker attachment and standard bucket, making it suitable for demolition, trenching, and general excavation work. The XE60 features XCMG's reliable engine and hydraulic system designed for compact construction sites and utility projects.

  • Year: 2022
  • Model: XCMG XE60
  • Operating Weight: Approximately 6 tons

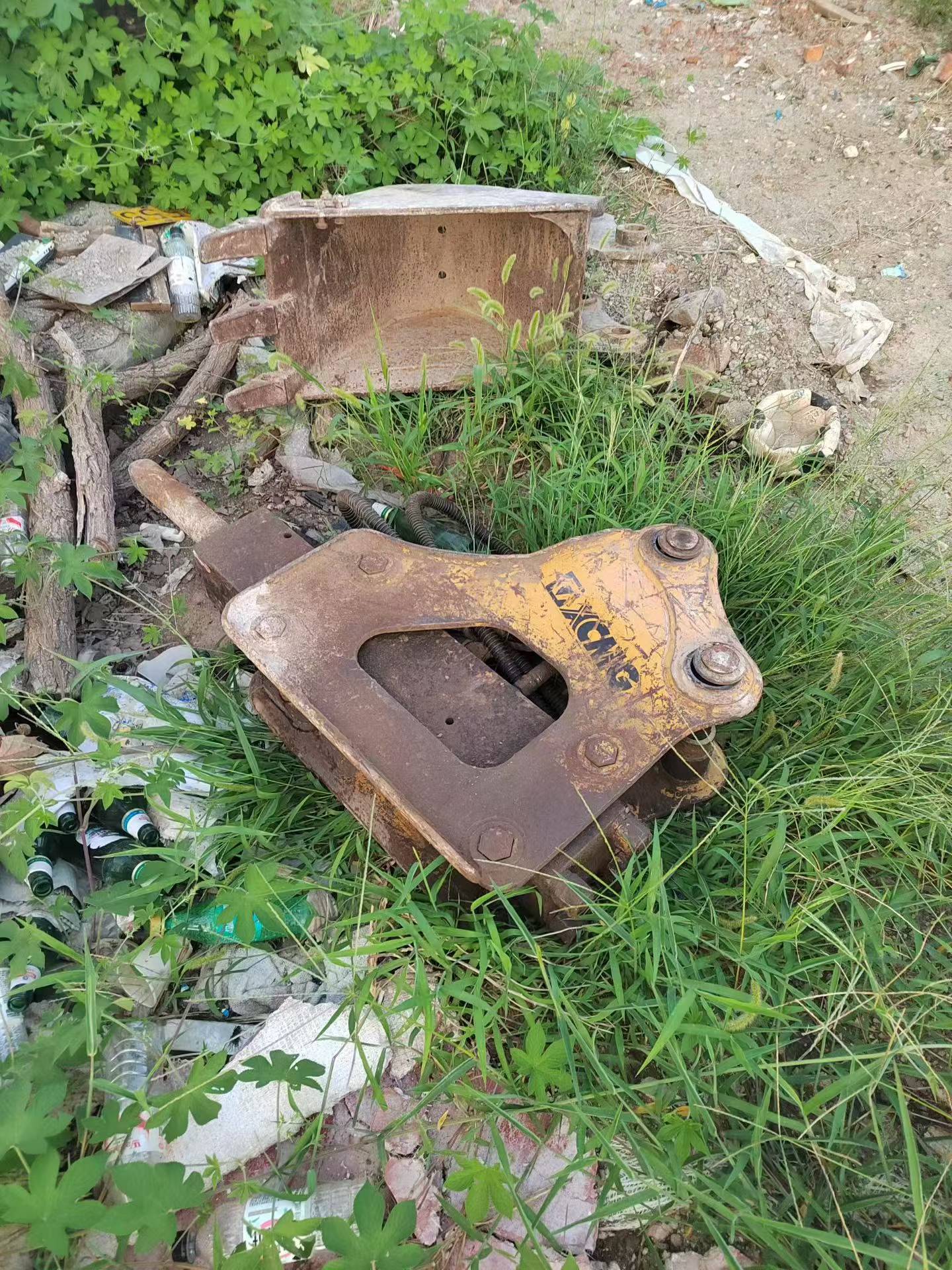

  • Included Attachments: Hydraulic breaker, excavation bucket
  • Location: Henan Province, China
  • Condition: Used

The XE60's compact dimensions provide maneuverability in confined spaces while maintaining digging performance for residential, municipal, and light commercial applications. Hydraulic breaker attachment adds versatility for concrete demolition and rock breaking tasks. Standard maintenance records and operational history available upon request.

SpecificationsValue
No.1144419
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

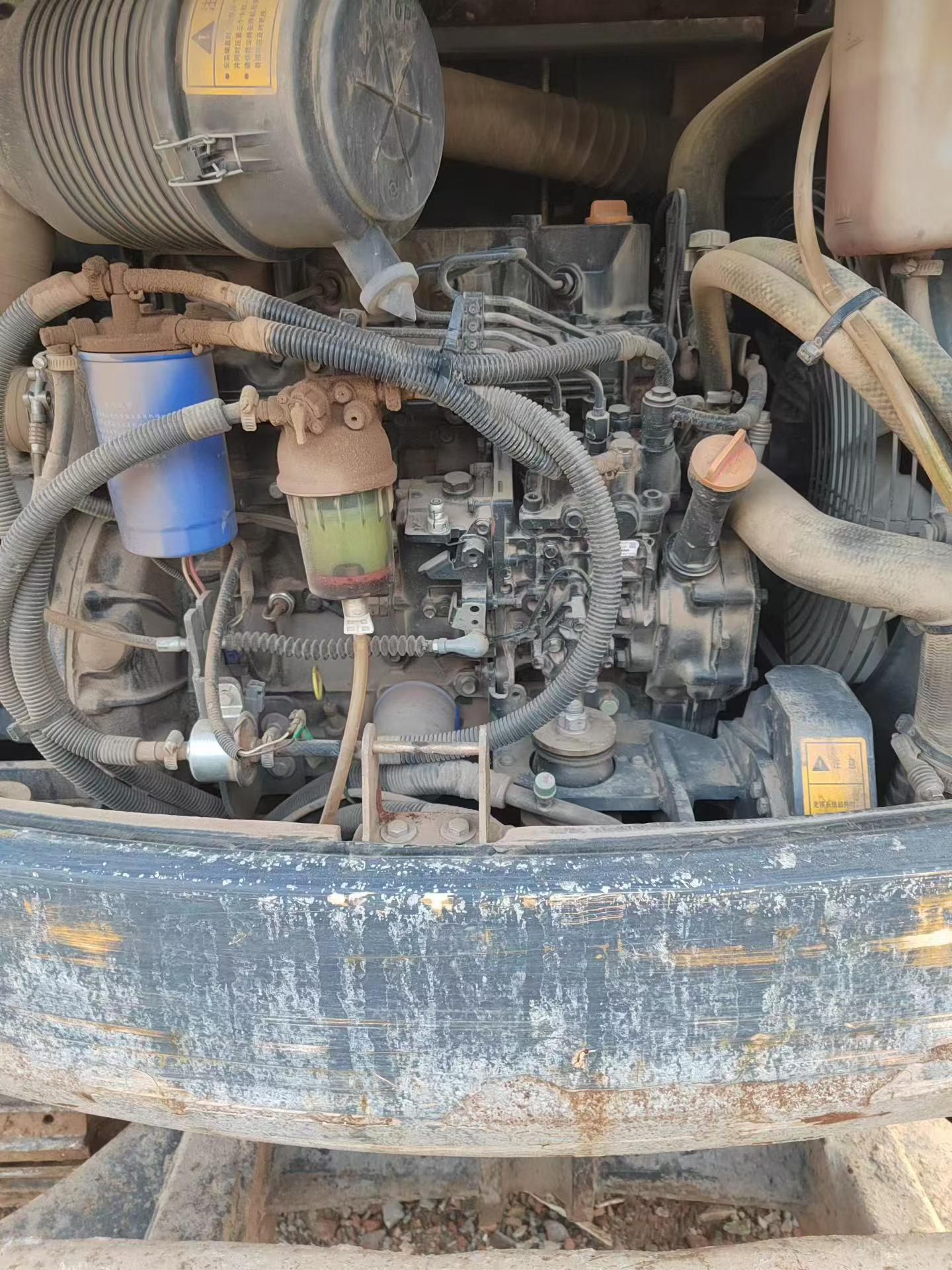

Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1144419

Brand Name:

XCMG

Model Number:

XE60

Year:

2022

Location:

Henan China
