2022 XCMG XE60

1/8
Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5
Buy XCMG XE60 Used Excavator / 6
Buy XCMG XE60 Used Excavator / 7
Buy XCMG XE60 Used Excavator / 8

Product Description

This 2022 XCMG XE60 excavator represents a reliable entry into proven Chinese engineering. Located in Zhejiang, China, this unit shows minimal operational wear consistent with its age. The XE60 is a 6-ton class compact excavator suited for urban construction, landscaping, and utility work where maneuverability matters.

Key features of the XE60 platform include:

  • Compact dimensions for confined job sites
  • Hydraulic pilot controls for precise operation
  • Zero tail swing design in applicable configurations
  • Fuel-efficient powertrain
  • Reliable service network across Asia-Pacific markets

Photos and video documentation are available for remote inspection. This machine offers a cost-effective solution for contractors seeking dependable performance in the mini excavator segment. Contact us for detailed specifications, service records, and shipping arrangements to your location.

SpecificationsValue
No.1145418
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

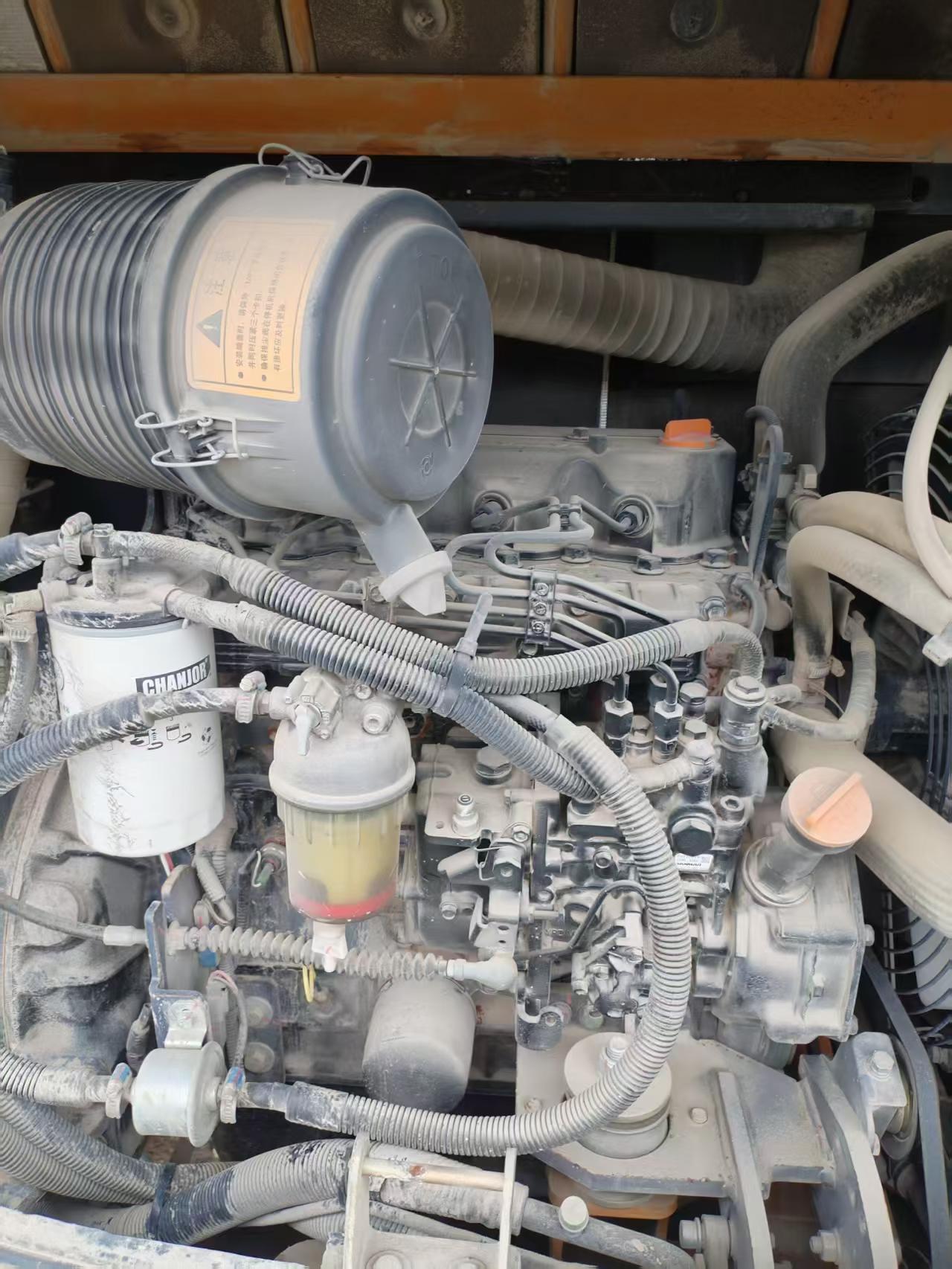

Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
