2022 XCMG XE60

1/8

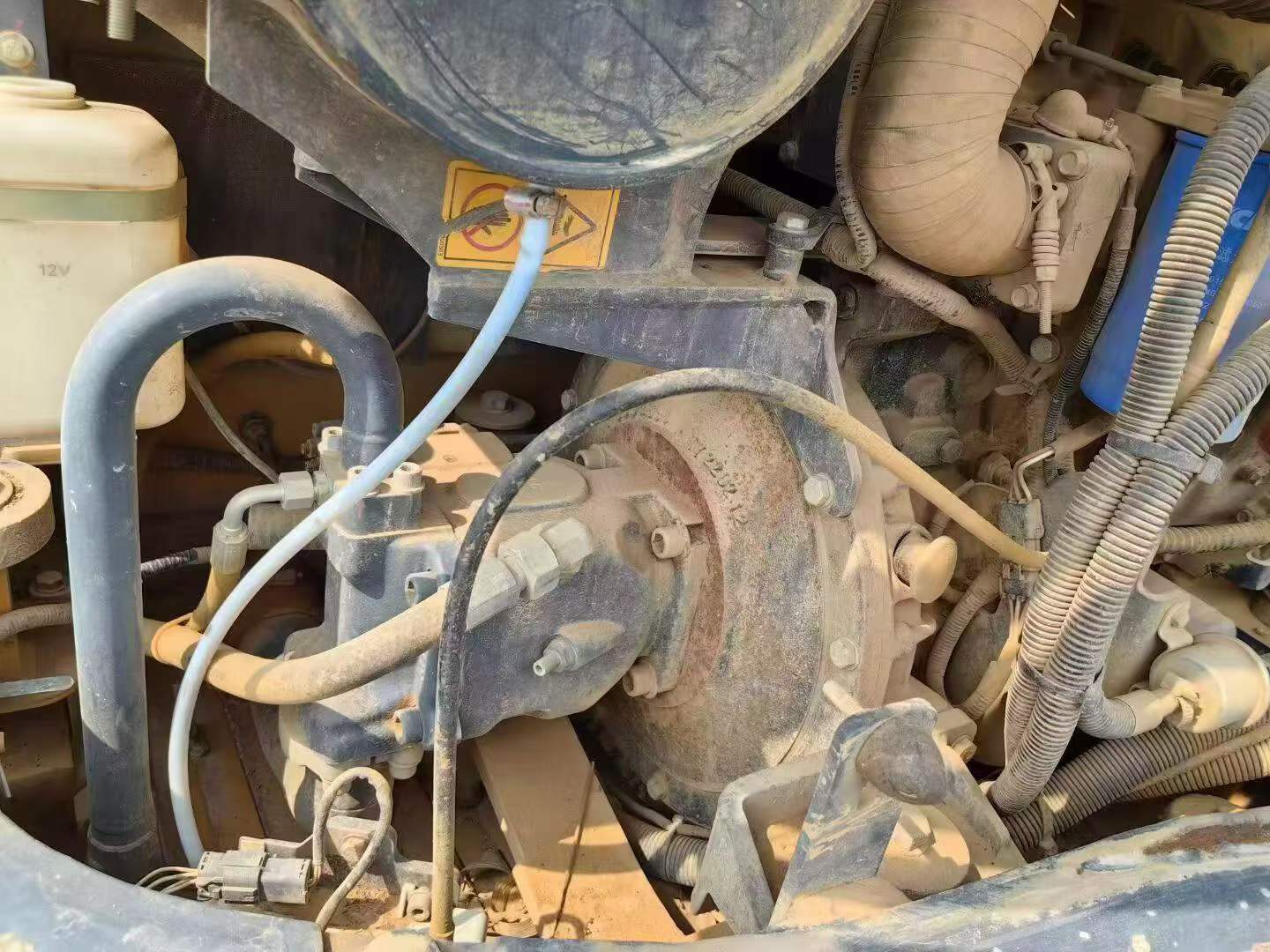

Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5

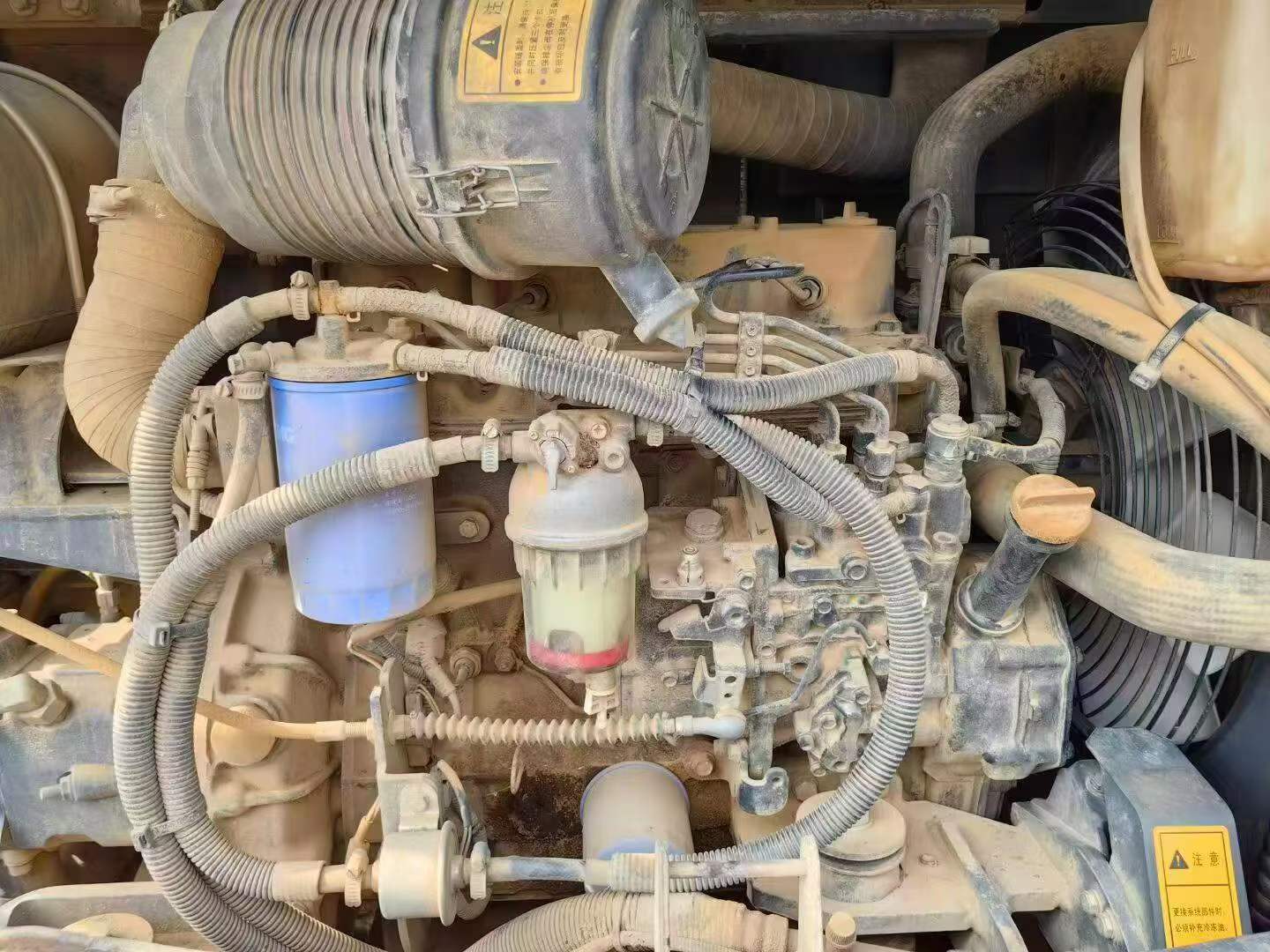

Buy XCMG XE60 Used Excavator / 6

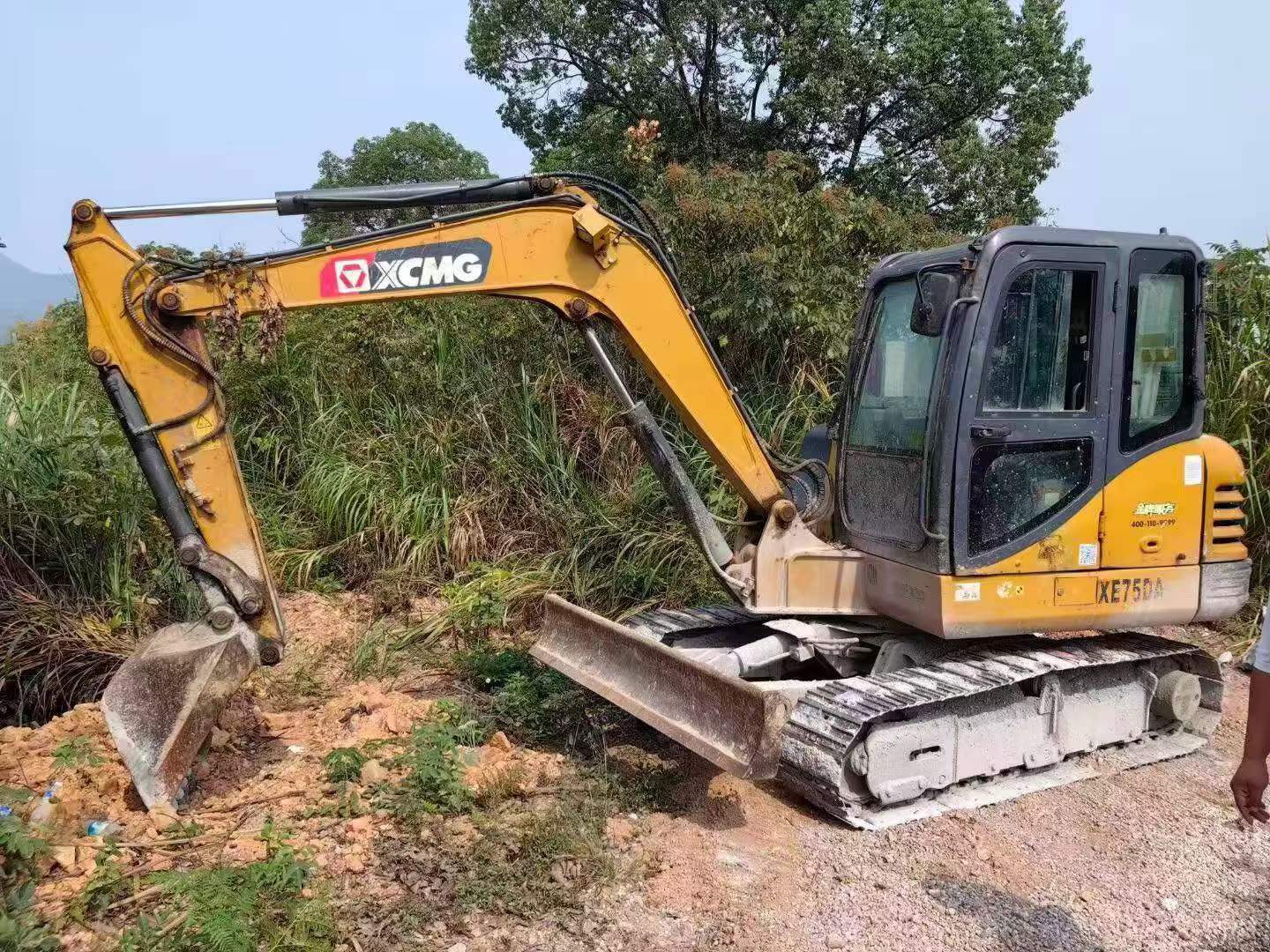

Buy XCMG XE60 Used Excavator / 7

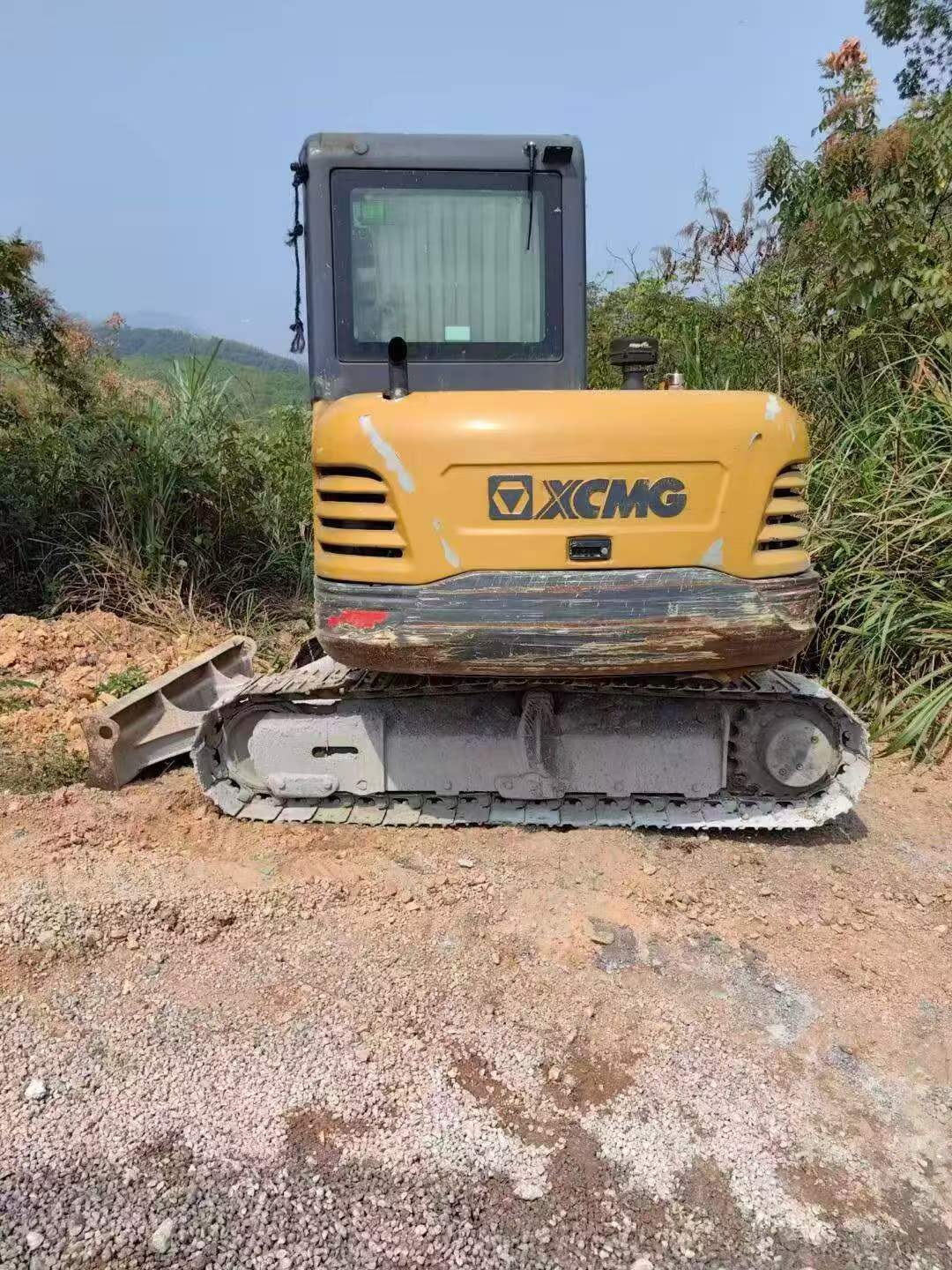

Buy XCMG XE60 Used Excavator / 8

Product Description

This 2022 XCMG XE60 hydraulic excavator is available from Jiangxi, China. With over 60,000 RMB worth of operational history, this 6-ton class machine comes equipped with a hydraulic breaker attachment, expanding its capability beyond standard digging operations to include demolition and rock-breaking applications.

The XE60 represents XCMG's commitment to reliable compact excavator design, suitable for urban construction, utility work, and light demolition projects. The included hydraulic hammer attachment adds immediate value for contractors requiring versatile equipment.

  • Year of Manufacture: 2022
  • Operating Weight Class: 6 tons

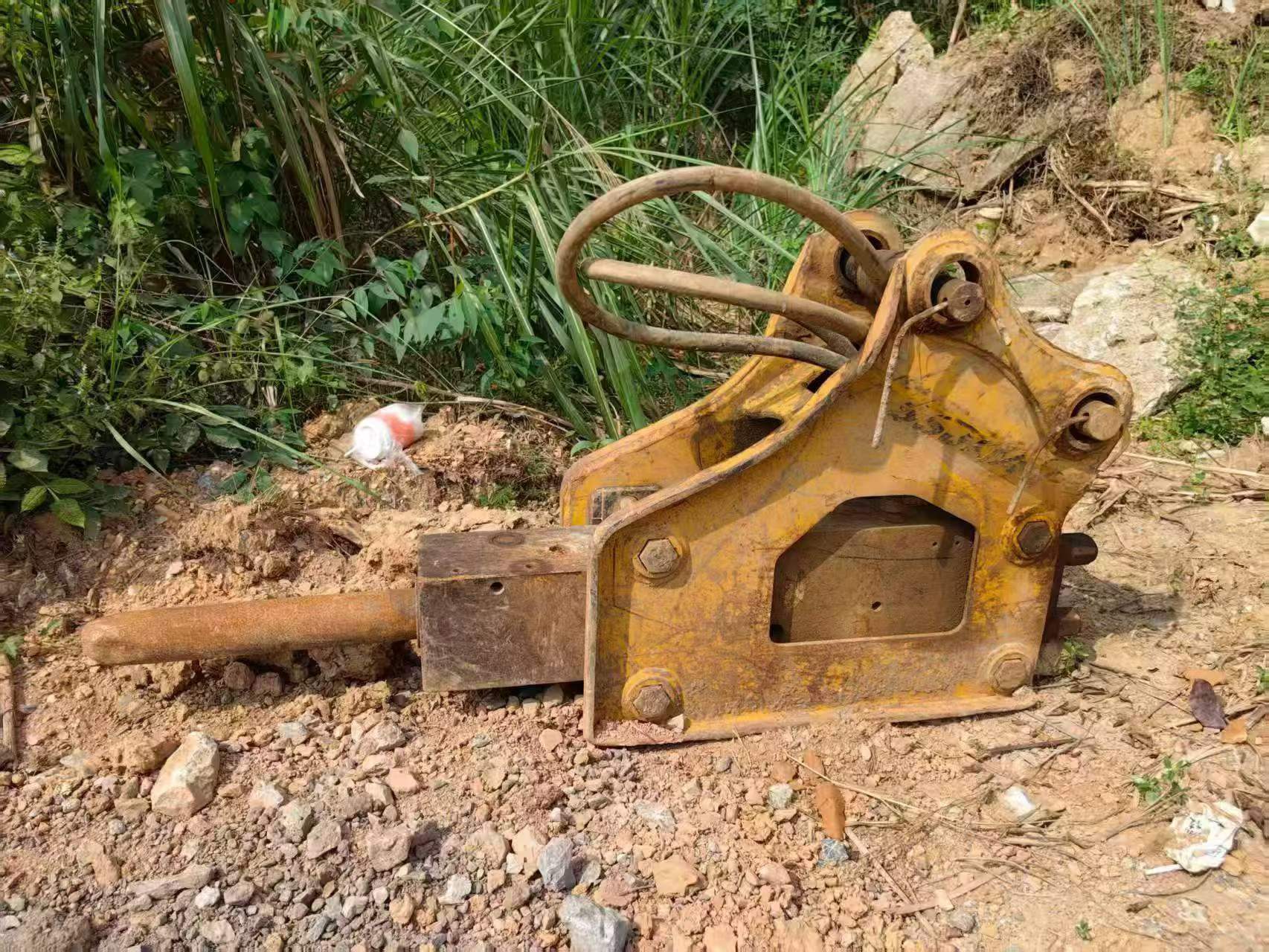

  • Included: Hydraulic breaker attachment
  • Current Location: Jiangxi Province, China
  • Condition: Used, operational

This machine offers an economical entry point for contractors seeking proven XCMG engineering with demolition capability already integrated.

SpecificationsValue
No.1162099
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
