Product Description

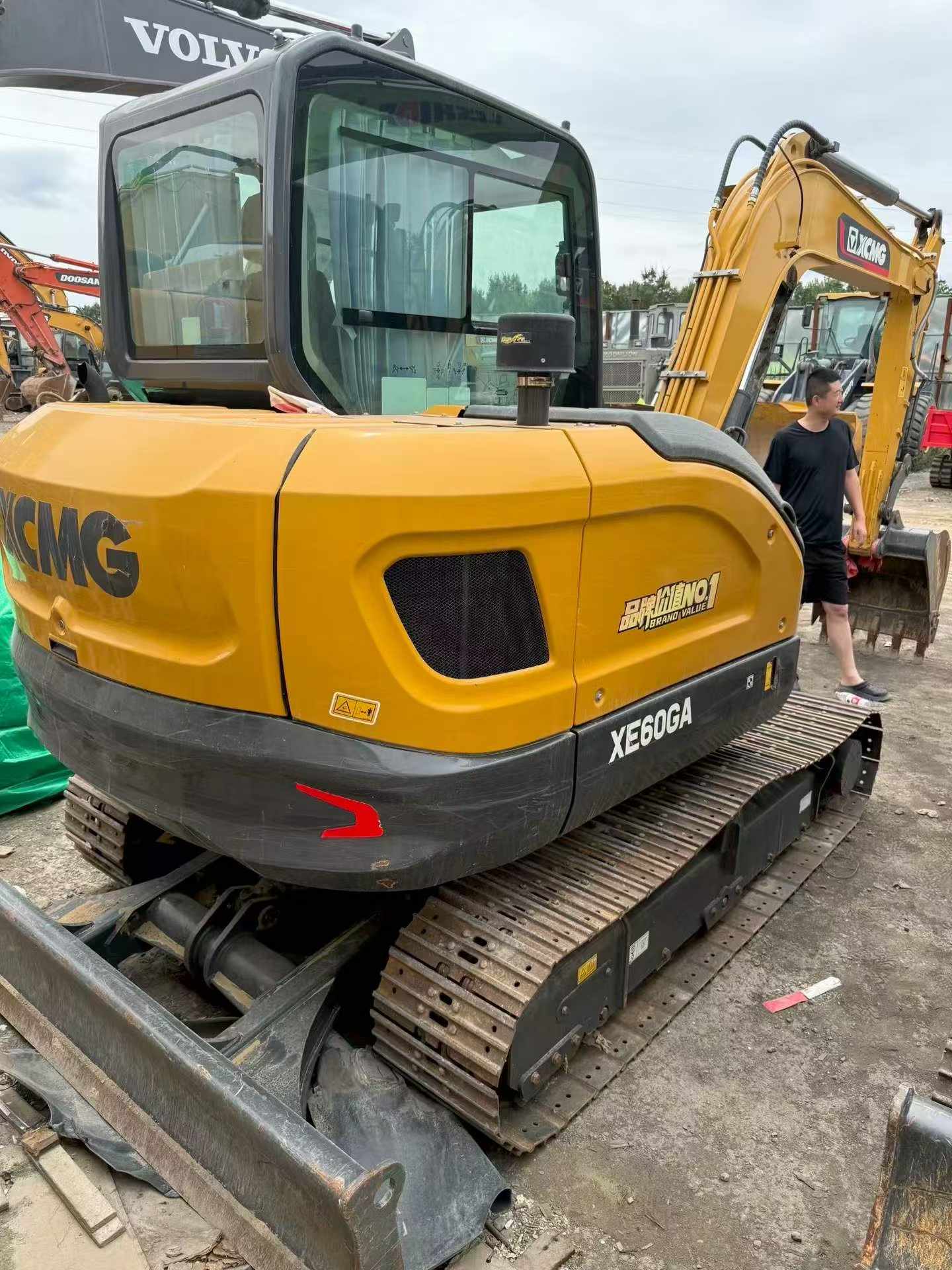

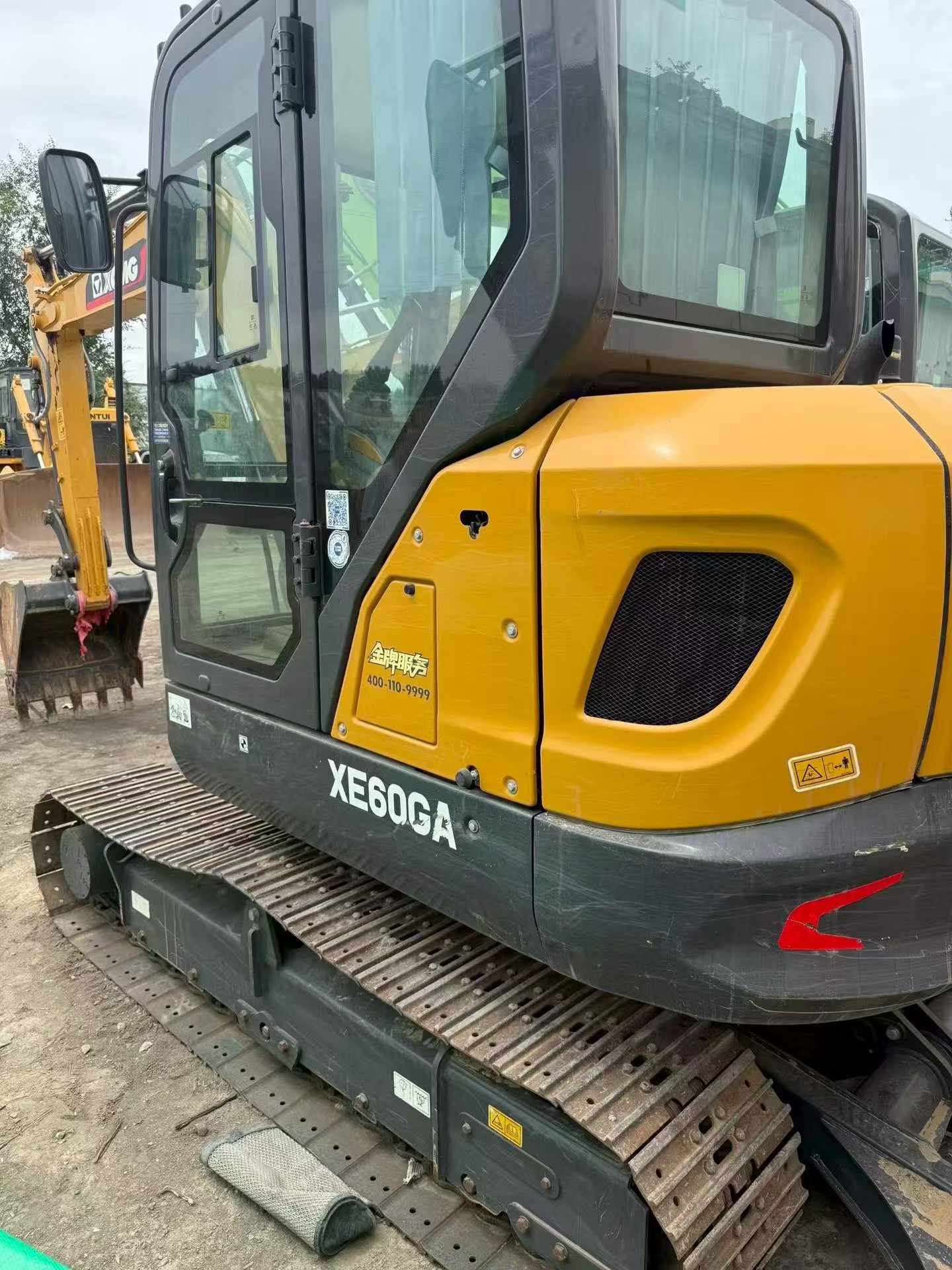

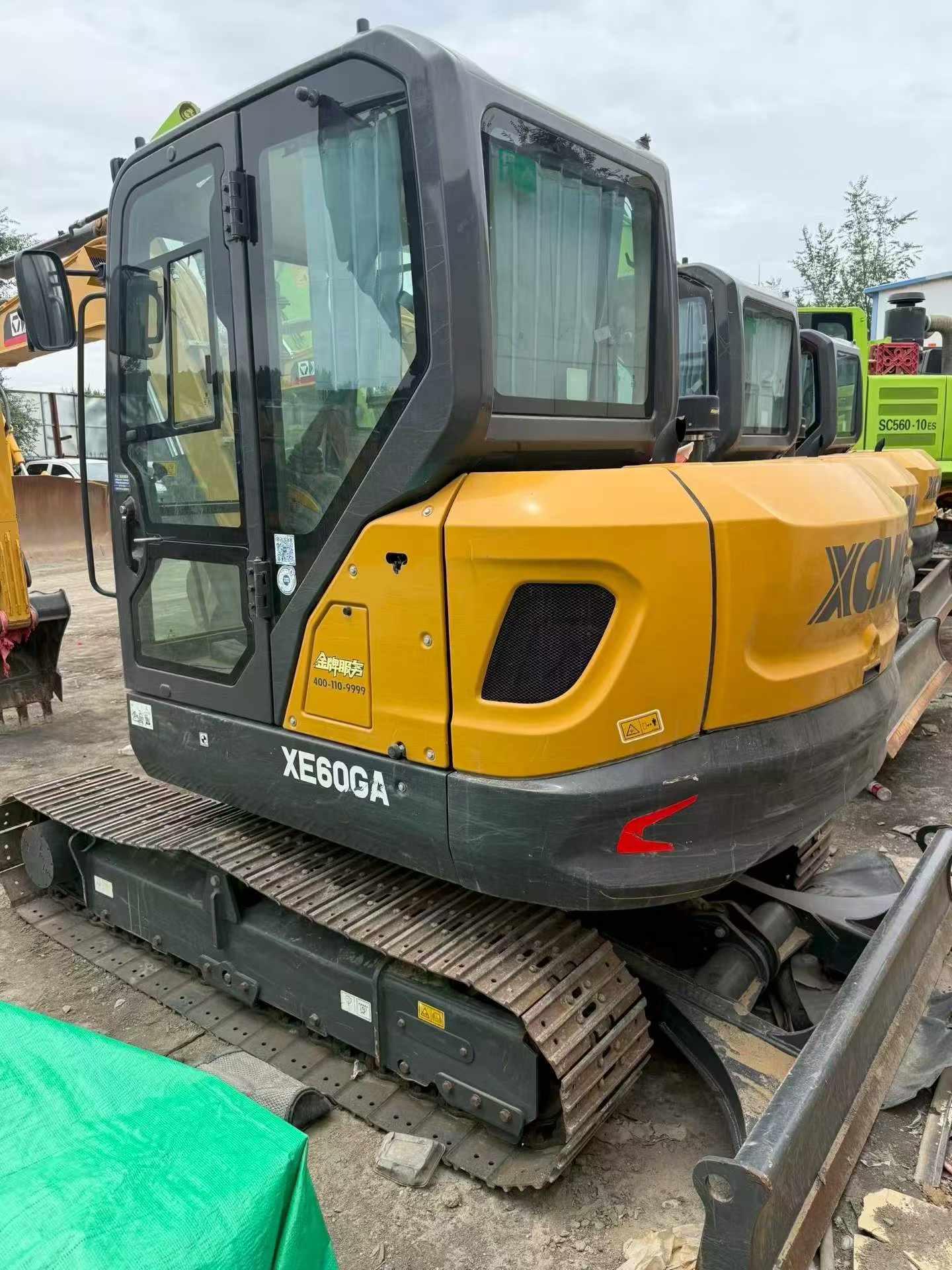

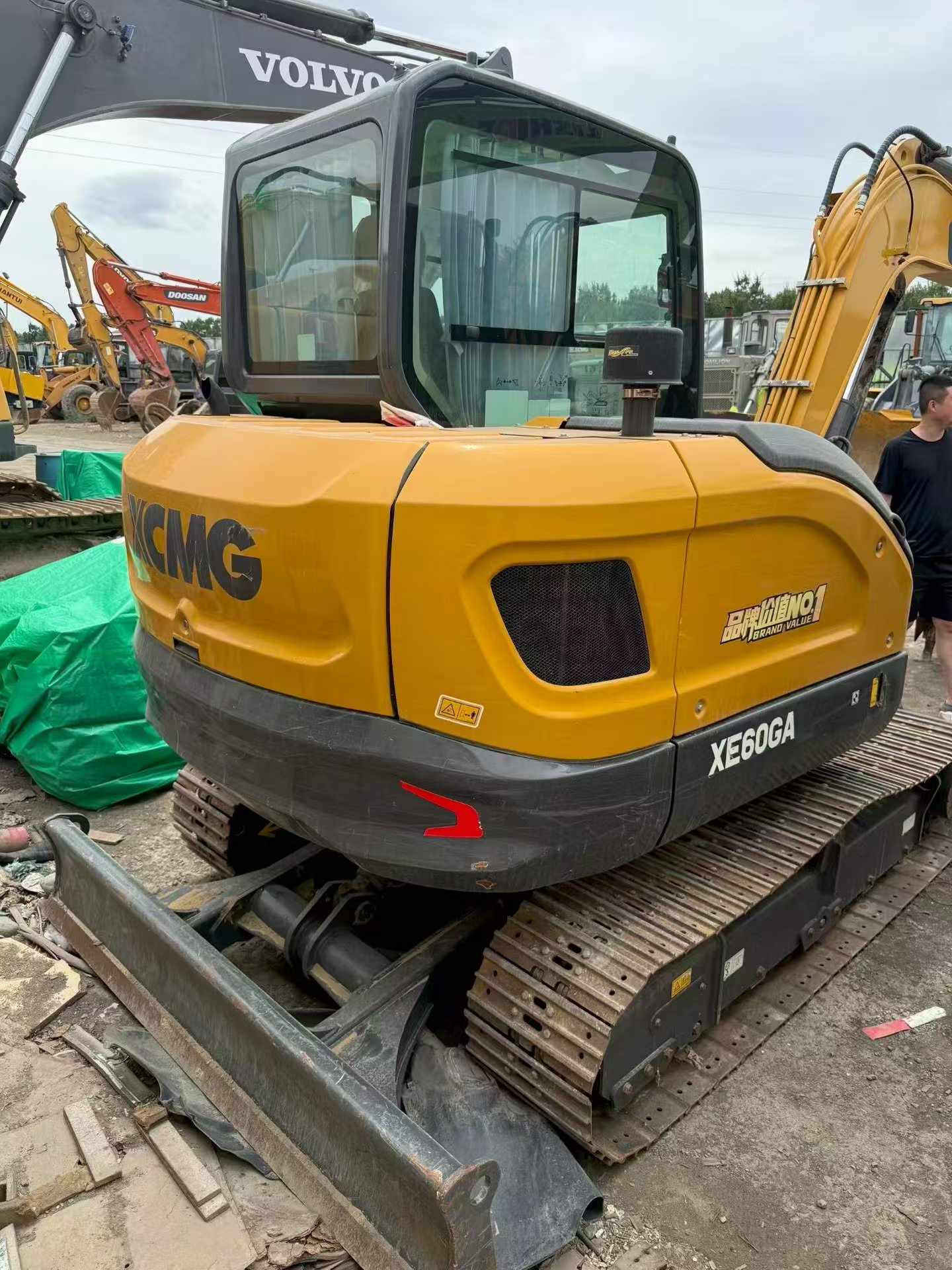

Discover the 2023 XCMG XE60, a nearly new excavator available in Shandong, China. This machine is equipped with a robust Yanmar engine, boasting genuine 600 hours of operation, ensuring reliability and efficiency for your projects. The XE60 features a fully painted undercarriage, maintaining its pristine condition and durability. Ideal for construction and excavation tasks, this model is designed to deliver high performance and ease of maintenance. Currently, we have four units ready for immediate delivery from Xinjiang, providing you with the opportunity to enhance your fleet with a trusted and well-maintained piece of equipment.

  • Year: 2023
  • Brand: XCMG
  • Model: XE60

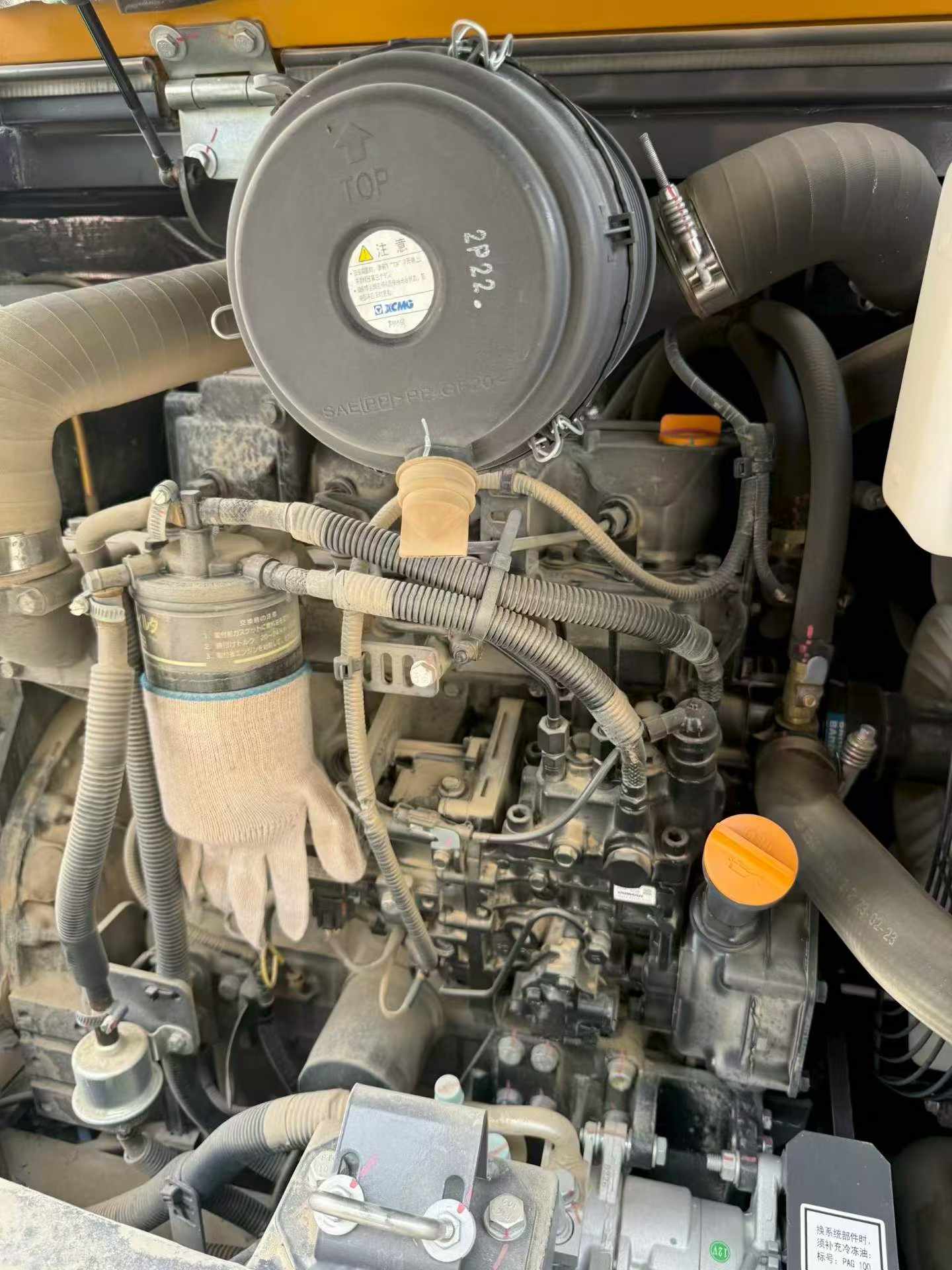

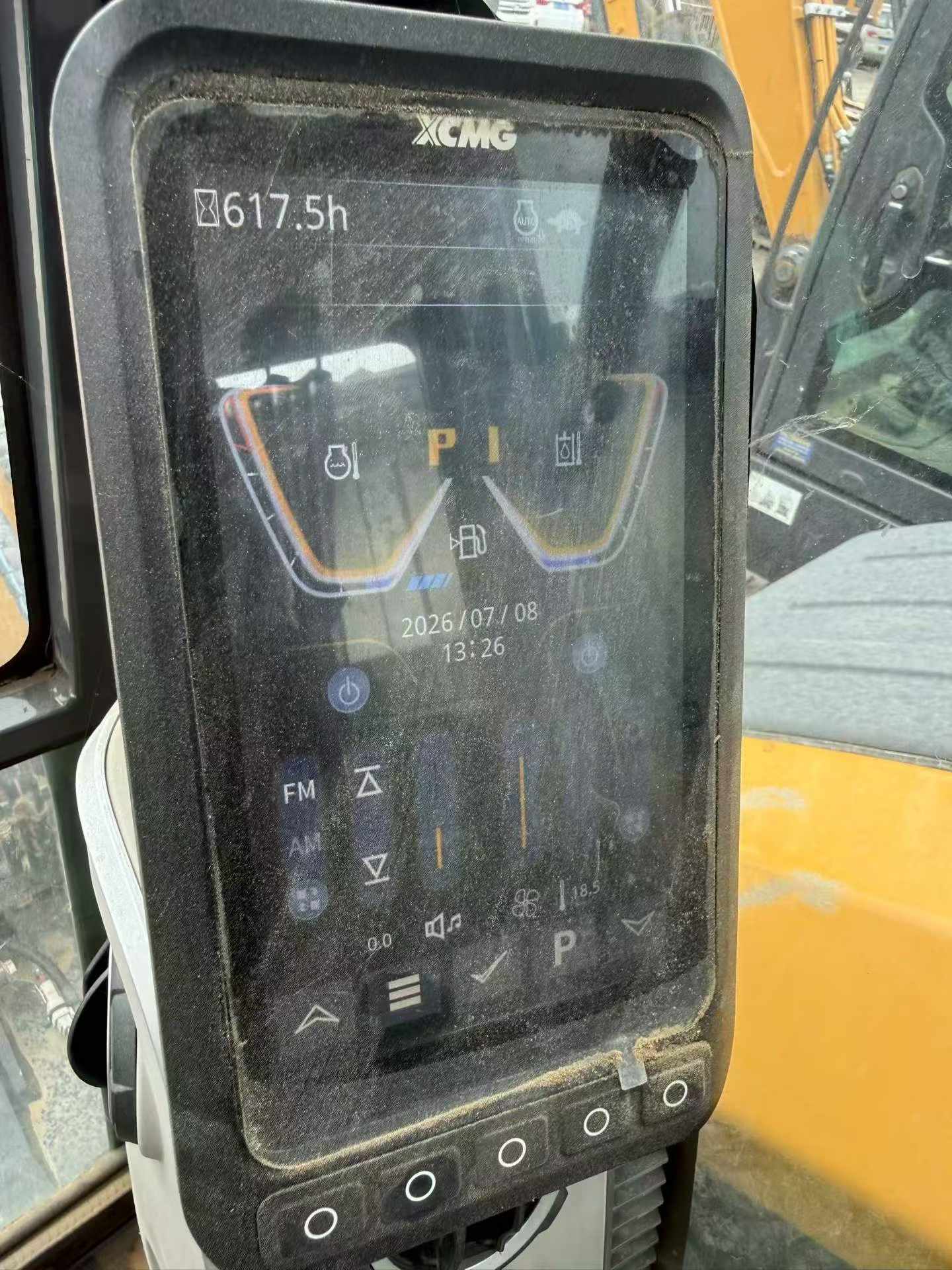

  • Engine: 600-hour Yanmar
  • Condition: Nearly new, fully painted chassis
  • Location: Shandong, China
  • Stock: 4 units available
SpecificationsValue
No.1119734
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
