Product Description

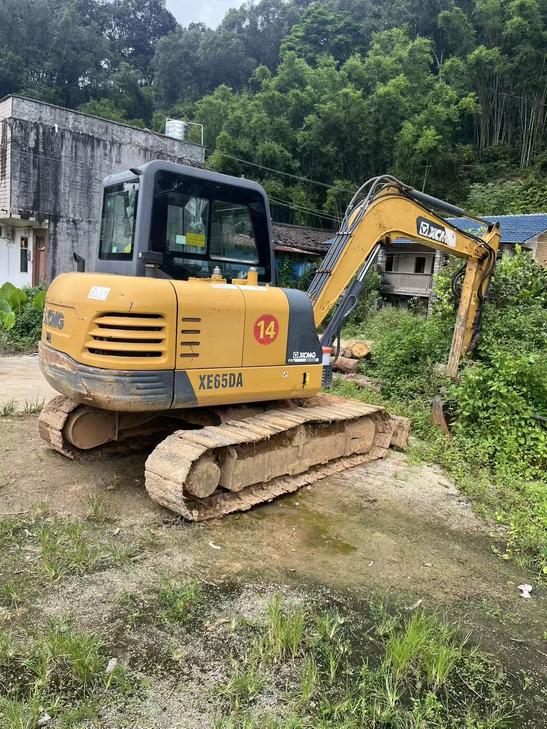

Discover the 2020 XCMG XE65DA, a robust and reliable excavator currently available in Guangxi, China. This machine has been meticulously maintained and is in excellent condition, ready to meet the demands of your construction projects. Ideal for various applications, the XE65DA offers a combination of power, efficiency, and durability that XCMG is known for. Located in Yulin, Bobai, this unit is a prime choice for businesses looking to enhance their fleet with a high-performing, pre-owned excavator.
- Year: 2020
- Brand: XCMG
- Model: XE65DA
- Location: Yulin, Bobai, Guangxi, China
- Condition: Excellent, well-maintained
| Specifications | Value |
|---|---|
| No. | 1131120 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6150 |
| Bucket capacity (m³) | 0.25 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 52 |
| Travel speed (km/h) | 4.2/2.4 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2040 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum height at minimum turning radius (mm) | 1670 |
| Center distance of support wheel (mm) | 2190 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
