Product Description

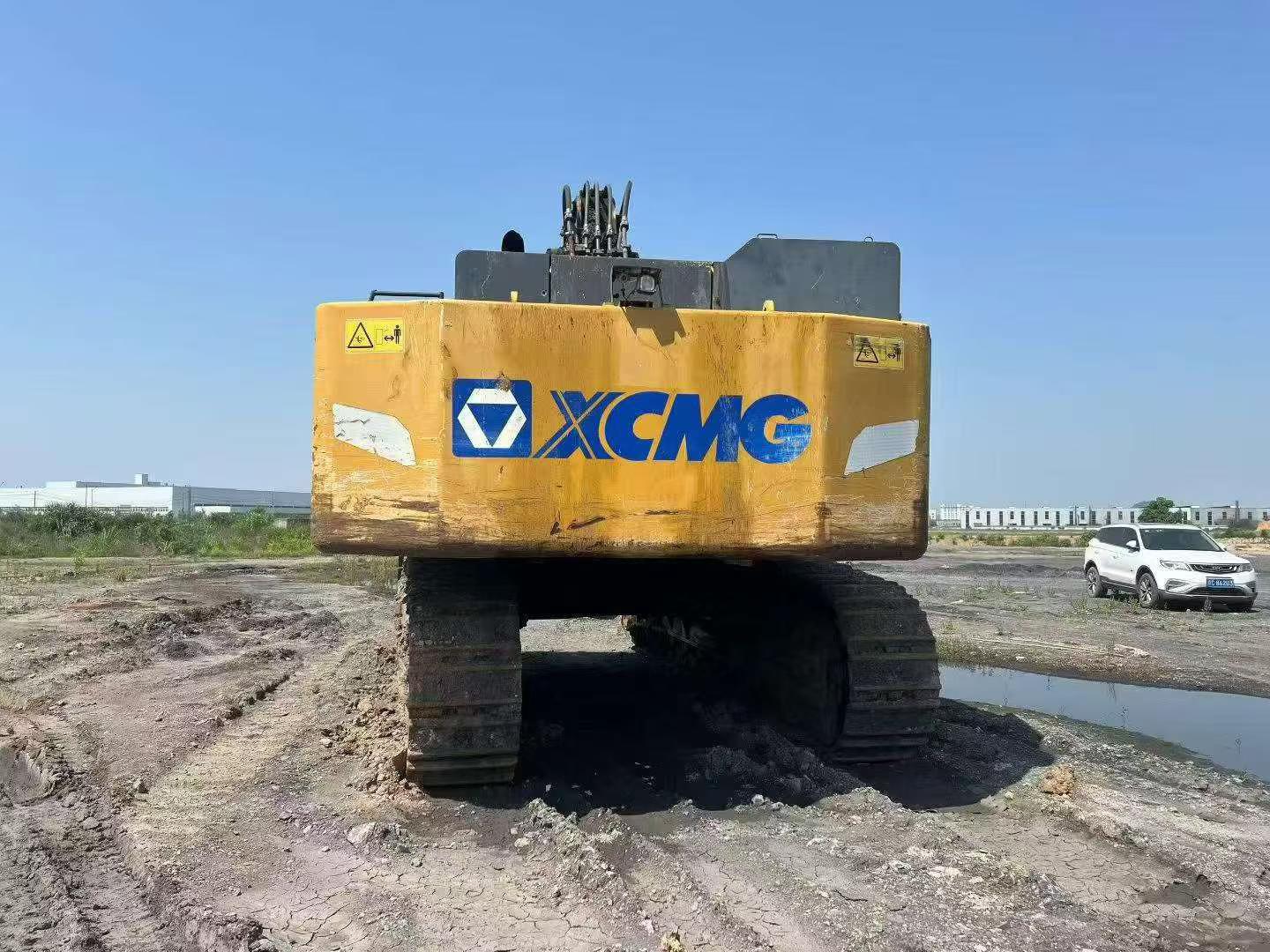

With a working weight of 68,000 kg and a bucket capacity ranging from 3.1 to 3.5 m³, the 2017 XCMG XE700C excavator is built to last. Located in Hunan, this machine boasts a robust design, featuring a CUMMINS QSX15 engine with a rated power of 336 kW at 1800 rpm. Its turbocharged, air-to-air cooling system ensures reliable performance under demanding conditions.

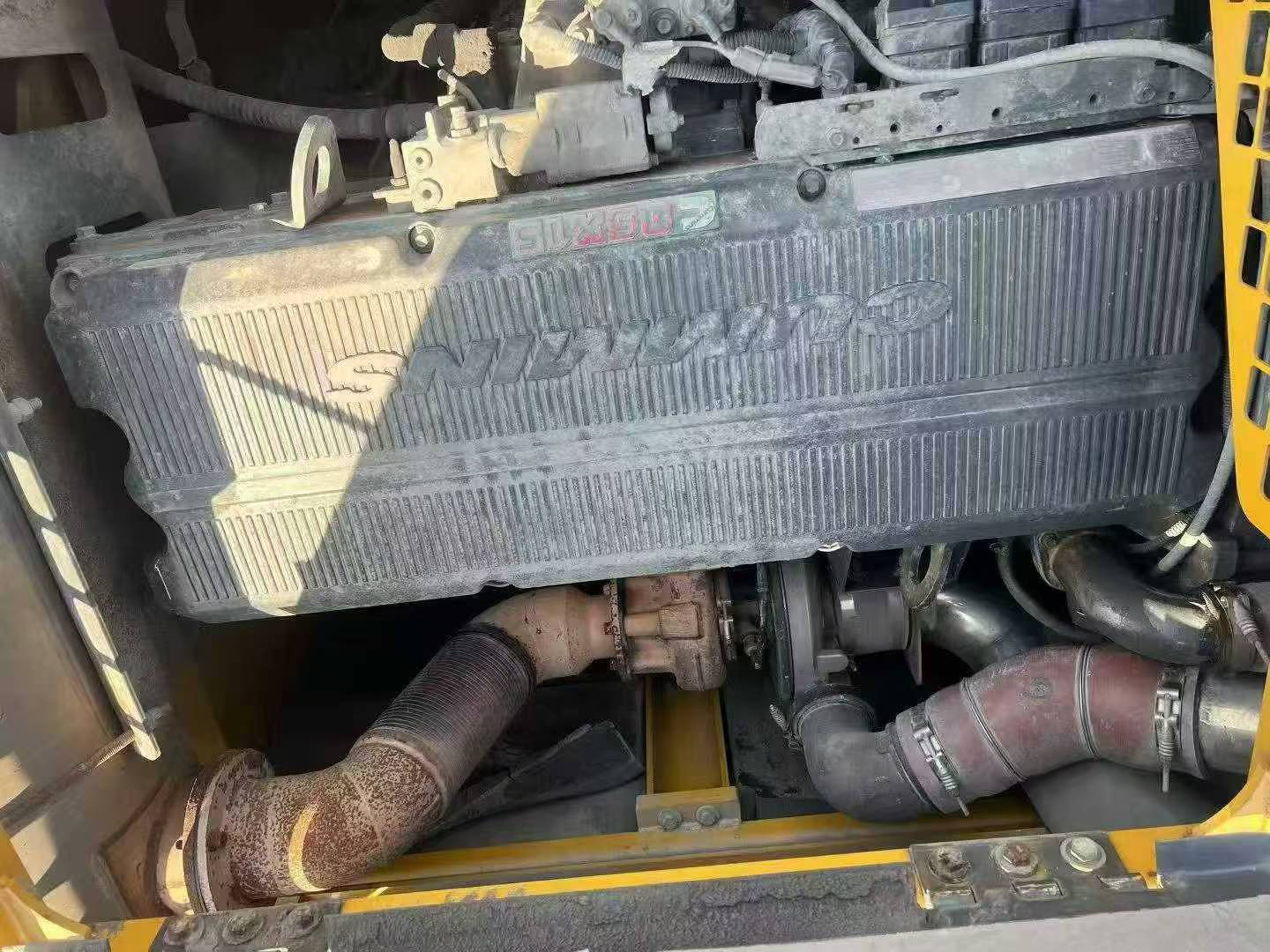

- Powered by a traditional 6-cylinder, 15-liter engine

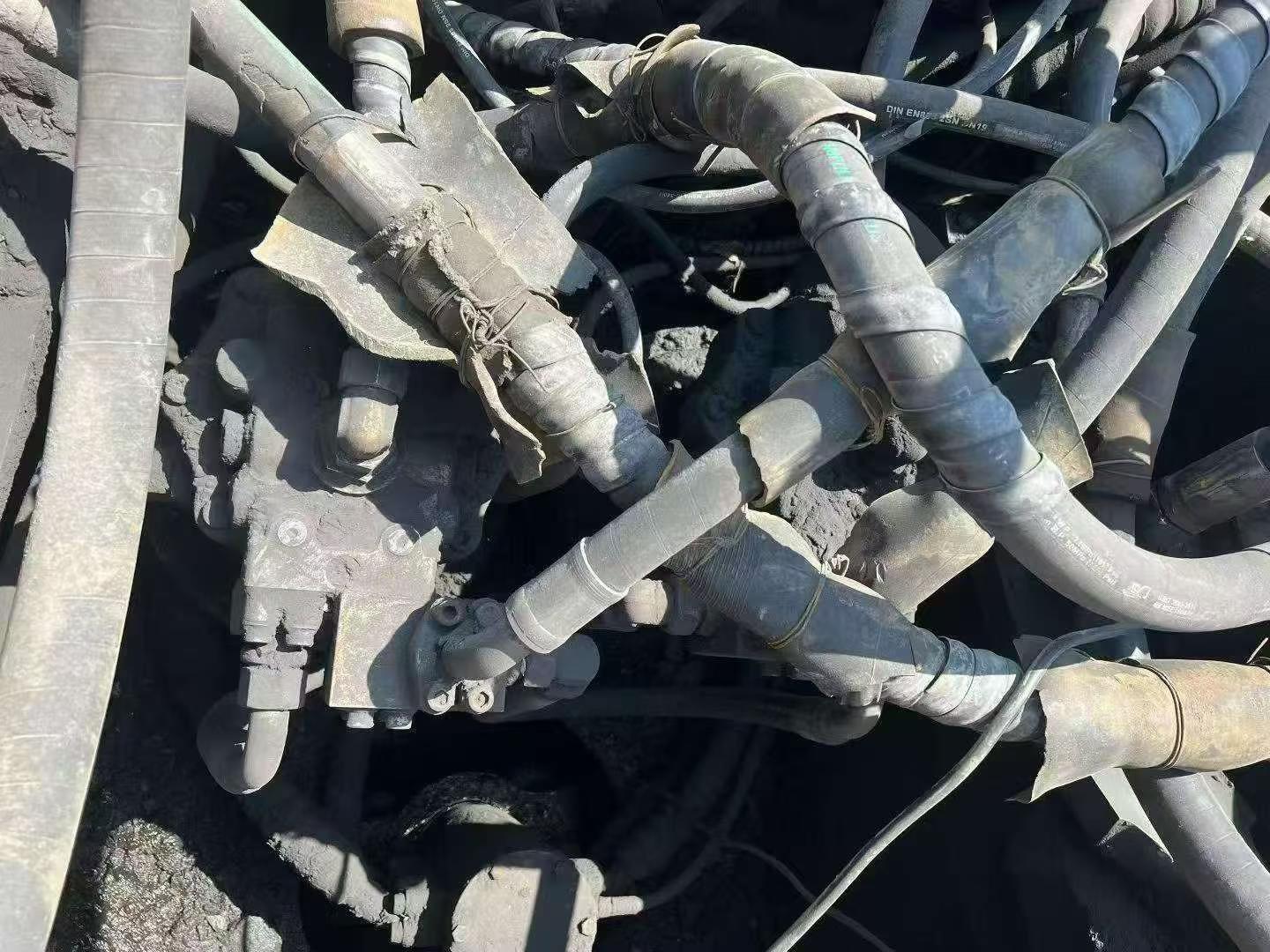

- Equipped with two plunger pumps for efficient hydraulic operation
- Offers a maximum digging force of 370 kN and a rod digging force of 330 kN
- Travel speed up to 4.2 km/h, with a climbing ability of 30°
- Maximum digging radius of 11,580 mm and a maximum digging depth of 6,900 mm
Made in China and originating from Xuzhou, this excavator has proven its durability and reliability over the years. Its ground-specific pressure of 99.1 Kpa and robust construction make it a trusted workhorse for any heavy-duty project.
| Specifications | Value |
|---|---|
| No. | 1033570 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 68000 |
| Bucket capacity (m³) | 3.1-3.5 |
| Boom length (mm) | 6600 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CUMMINS QSX15 |
| Rated power (kw/rpm) | 336/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 99.1 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 370 |
| Rod digging force (kN) | 330 |
| Travel speed (km/h) | 4.2/3.0 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*450 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 980 |
| Hydraulic Tank (L) | 455 |
| Engine Oil changes (L) | 48 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 4280 |
| Total transport height (mm) | 4700 |
| Counterweight ground clearance (mm) | 1552 |
| Minimum ground clearance (mm) | 853 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3900 |
| Track gauge (mm) | 2800/3350 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4680 |
| Maximum digging radius (mm) | 11580 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 11350 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 5500 |
