Product Description

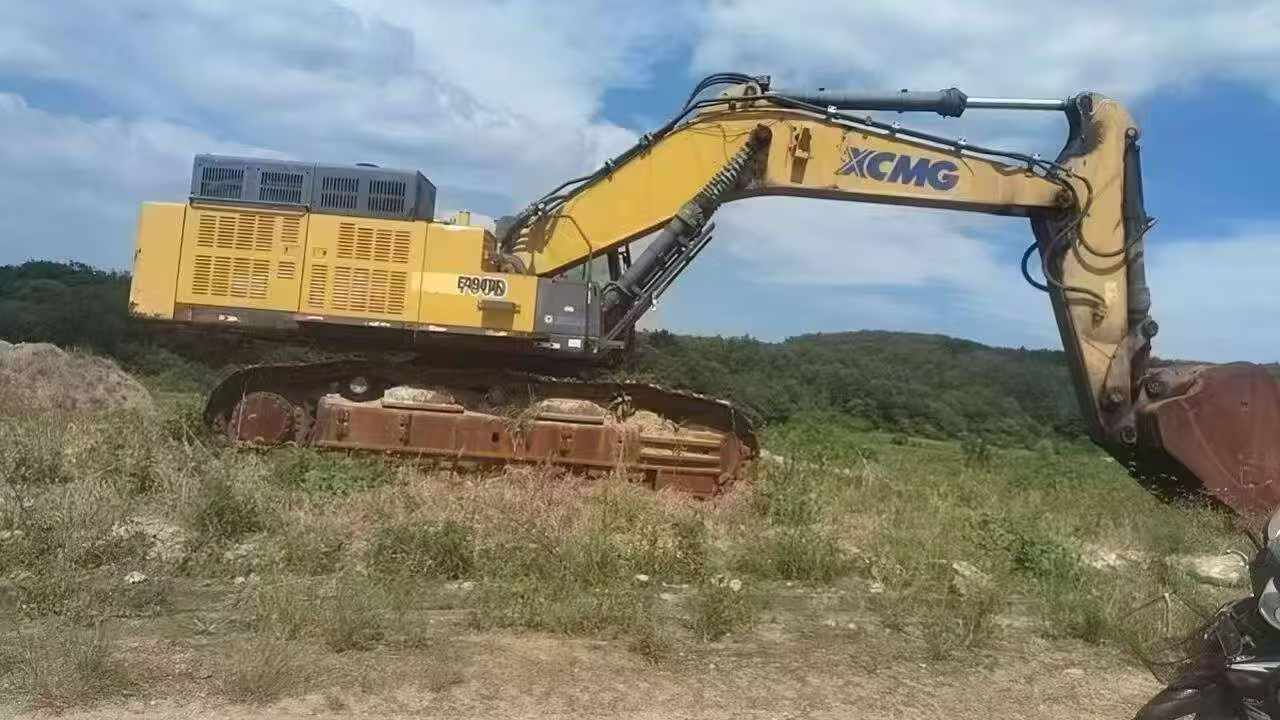

This 2018 XCMG XE700C excavator offers reliable performance for large-scale earthmoving and mining operations. As part of XCMG's flagship hydraulic excavator series, the XE700C is engineered for demanding job sites requiring substantial digging force and operational efficiency. Currently located in Jiangsu, China, this machine represents a cost-effective solution for contractors seeking proven heavy equipment.
- Year of Manufacture: 2018
- Operating Weight Class: 70-ton range
- Application: Mining, quarrying, large excavation projects
- Location: Jiangsu Province, China
- Condition: Used, operational
The XE700C features XCMG's robust hydraulic system and is designed for high-volume material handling. This unit provides an opportunity to acquire Chinese-manufactured heavy machinery at competitive pricing. Ideal for operators familiar with XCMG equipment or those expanding their fleet with dependable used excavators. Inspection welcomed.
| Specifications | Value |
|---|---|
| No. | 1173853 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 68000 |
| Bucket capacity (m³) | 3.1-3.5 |
| Boom length (mm) | 6600 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

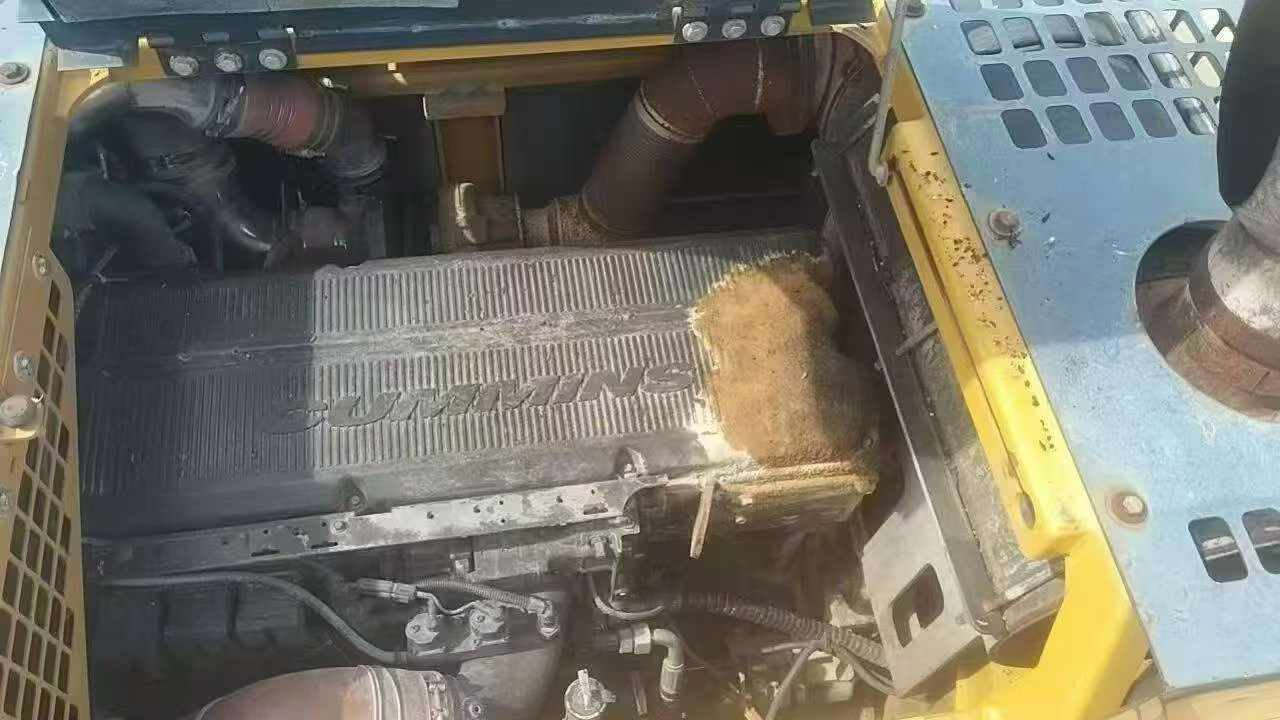

| Engine type | CUMMINS QSX15 |
| Rated power (kw/rpm) | 336/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 99.1 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 370 |
| Rod digging force (kN) | 330 |
| Travel speed (km/h) | 4.2/3.0 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*450 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Hydraulic crushing pipeline is standard | no |

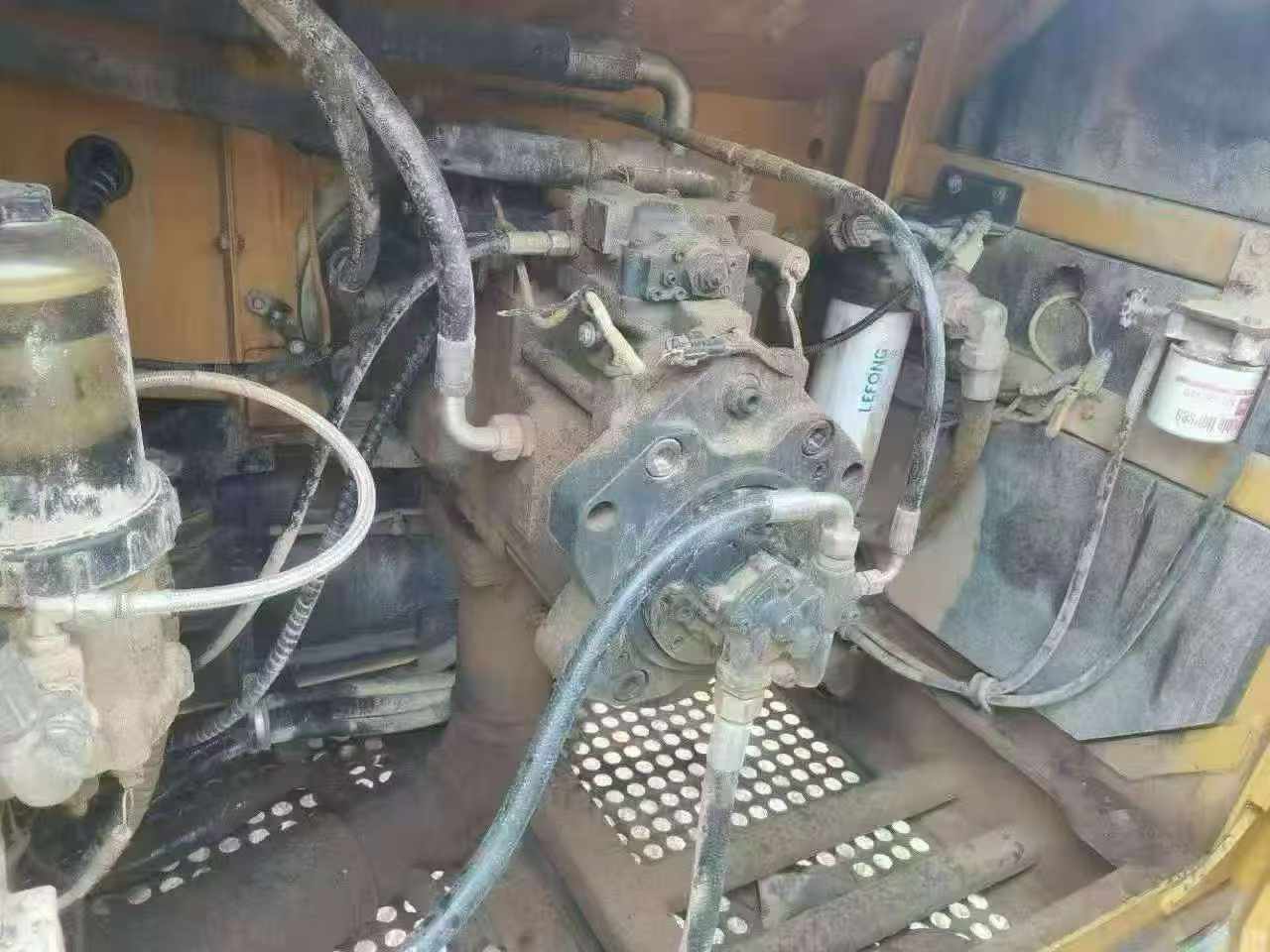

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 980 |
| Hydraulic Tank (L) | 455 |
| Engine Oil changes (L) | 48 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 4280 |
| Total transport height (mm) | 4700 |
| Counterweight ground clearance (mm) | 1552 |
| Minimum ground clearance (mm) | 853 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3900 |
| Track gauge (mm) | 2800/3350 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4680 |
| Maximum digging radius (mm) | 11580 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 11350 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 5500 |
