2020 XCMG XE700C

1/4

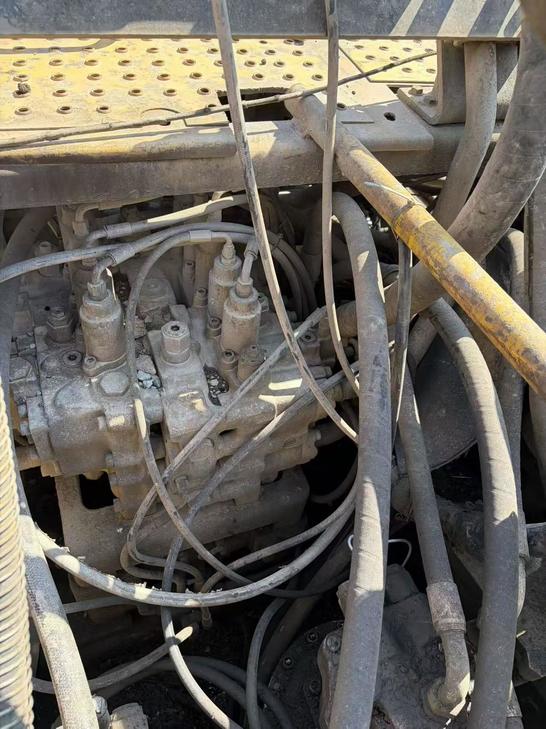

Buy XCMG XE700C Used Excavator / 1
Buy XCMG XE700C Used Excavator / 2
Buy XCMG XE700C Used Excavator / 3
Buy XCMG XE700C Used Excavator / 4

Product Description

This 2020 XCMG XE700C hydraulic excavator represents a proven solution for large-scale earthmoving and mining operations. Currently located in Jiangsu, China, this machine has been fitted with a Weichai engine conversion, offering reliable power delivery for demanding jobsite conditions.

The XE700C is engineered for high-productivity applications where operational efficiency and durability are essential. This unit combines XCMG's robust undercarriage design with enhanced powertrain performance suited to intensive excavation, loading, and material handling tasks.

  • Year: 2020
  • Model: XCMG XE700C
  • Engine: Weichai conversion
  • Location: Jiangsu, China
  • Application: Heavy excavation, mining, large construction projects

Contact us for detailed specifications, service records, and competitive pricing on this heavy-duty excavator.

SpecificationsValue
No.1171364
Tonnage (tons)70
Working weight (kg)68000
Bucket capacity (m³)3.1-3.5
Boom length (mm)6600
Rod length (mm)2900
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCUMMINS QSX15
Rated power (kw/rpm)336/1800
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)15
Working formTurbocharged/air-to-air cooling
Ground specific pressure (Kpa)99.1
Rotation speed (rpm)7
Climbing ability (%)30 °
Bucket digging force (kN)370
Rod digging force (kN)330
Travel speed (km/h)4.2/3.0
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*450
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)980
Hydraulic Tank (L)455
Engine Oil changes (L)48
Total transport length (mm)11940
Total transport width (mm)4280
Total transport height (mm)4700
Counterweight ground clearance (mm)1552
Minimum ground clearance (mm)853
Minimum turning radius of front working device (mm)4750
Back end turning radius (mm)3900
Track gauge (mm)2800/3350
Track plate width (mm)650
Track ground length (mm)4680
Maximum digging radius (mm)11580
Maximum digging depth (mm)6900
Maximum excavation height (mm)11350
Maximum unloading height (mm)7370
Maximum vertical digging depth (mm)5500
see more

Overview

No.1171364

Brand Name:

XCMG

Model Number:

XE700C

Year:

2020

Location:

Jiangsu China

Pub Date:
