Product Description

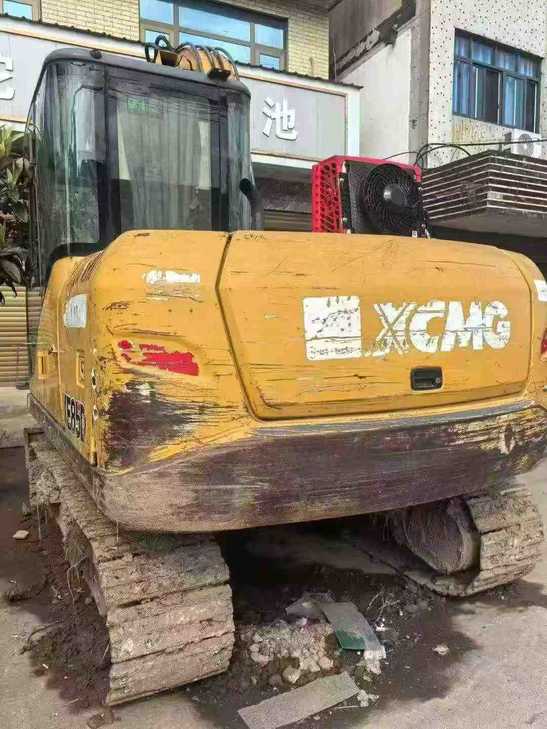

This 2020 XCMG XE75C hydraulic excavator offers reliable performance for medium-duty construction and earthmoving applications. Factory-equipped with an extended boom configuration, this machine provides enhanced reach and versatility for demanding job sites. Currently located in Sichuan, China, this well-maintained unit represents excellent value in the 7.5-ton excavator class.
Key features include:
- Extended boom attachment for superior reach capabilities
- Proven XCMG hydraulic system for consistent performance
- Fuel-efficient engine design optimized for operational economy
- Reinforced undercarriage suitable for varied terrain conditions
- Spacious operator cabin with ergonomic controls
The XE75C combines XCMG's engineering heritage with practical functionality, making it suitable for excavation, trenching, and material handling operations. This competitively priced unit is ready for immediate deployment in your equipment fleet.
| Specifications | Value |
|---|---|
| No. | 1088369 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
