Product Description

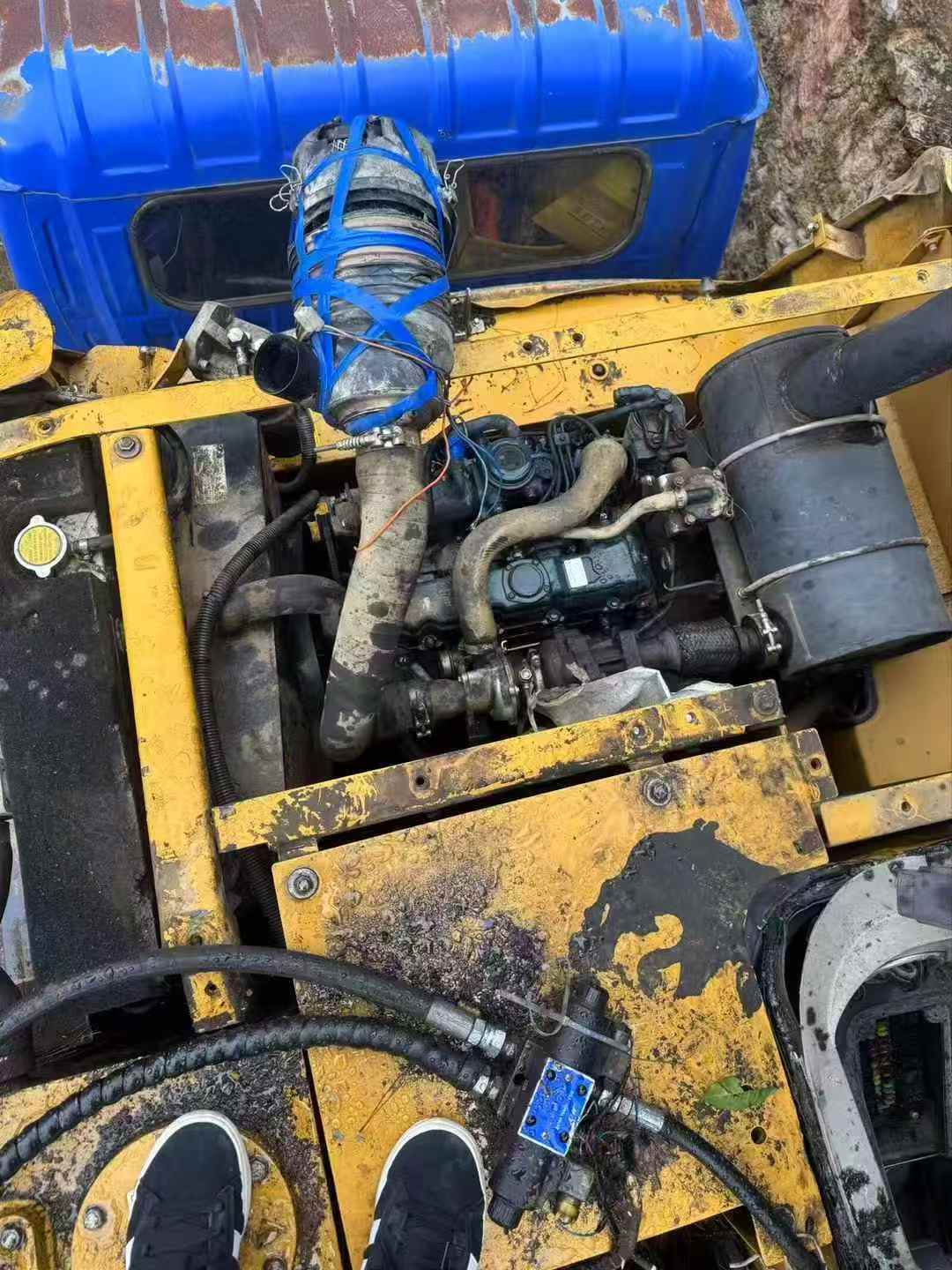

Engineered for precision and daily productivity, this 7-ton excavator delivers exceptional operator control across diverse job sites. Powered by a robust V2607 engine generating 43kW at 2000rpm, the XE75C combines reliable performance with responsive hydraulics and a 160 l/min main pump for smooth, controlled movements. Operators benefit from stable ground pressure of just 33.5kPa, ensuring confident operation on soft terrain without compromising traction or maneuverability.
Cabin visibility remains a standout feature, with strategically positioned glass panels providing clear sightlines to the backhoe bucket and work area. The machine's compact 2230mm transport width paired with a maximum digging radius of 6260mm enables work in confined spaces while maintaining impressive reach. Hydraulic responsiveness translates to precise bucket and arm control, with 57kN bucket digging force and 38kN rod force handling tough material efficiently.
- Working Weight: 7,450 kg
- Bucket Capacity: 0.30 m³
- Maximum Digging Depth: 4,020 mm
- Maximum Digging Height: 7,085 mm
- Fuel Tank: 130 L
- Location: Guizhou, China
| Specifications | Value |
|---|---|
| No. | 1020261 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
