Product Description

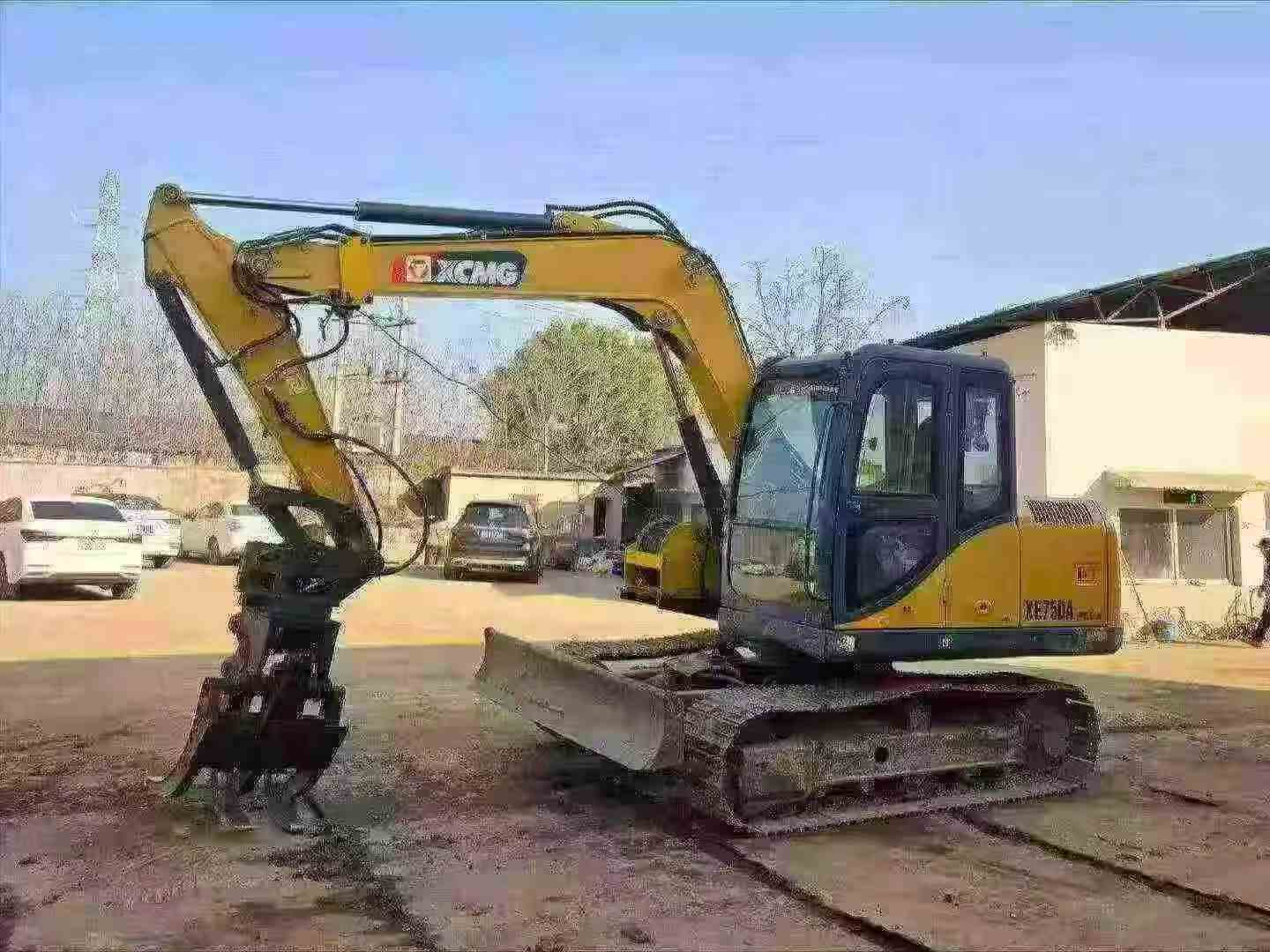

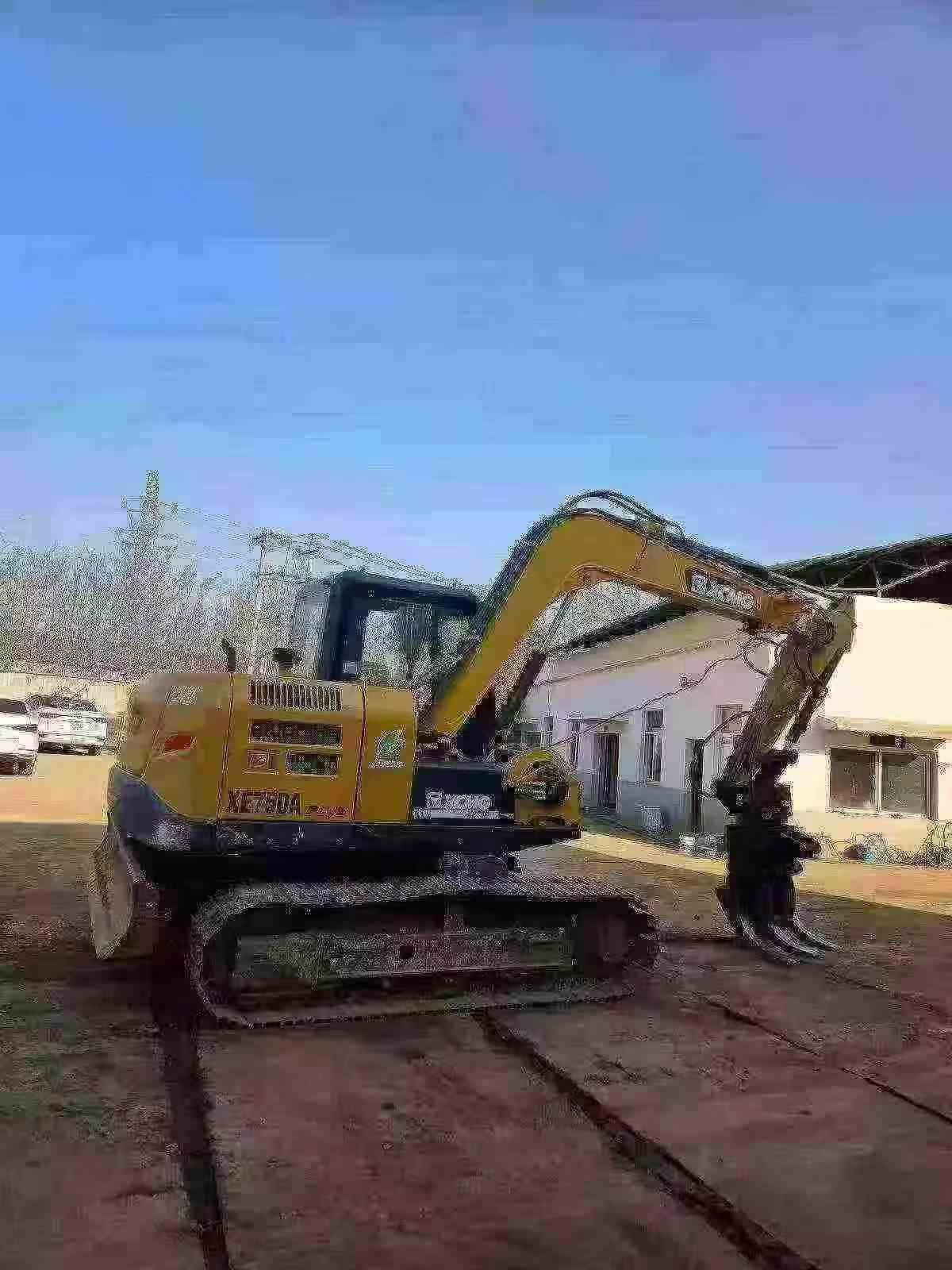

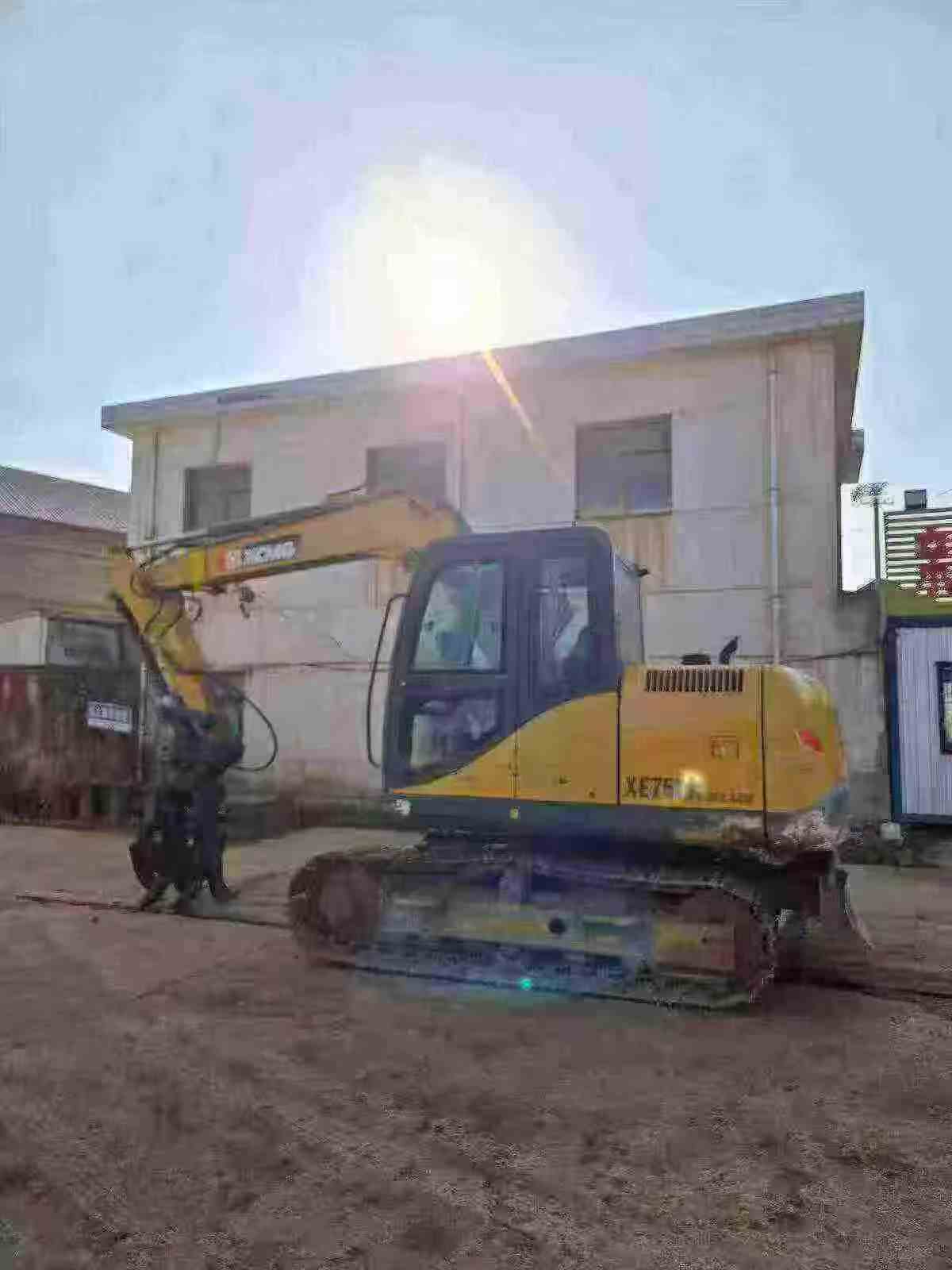

This 2021 XCMG XE75C excavator is equipped with a specialized timber grapple attachment and integrated 5-ton winch system, making it ideal for forestry operations and material handling applications. Recently returned from active service, this machine demonstrates proven field performance in demanding work environments.
Key features include:

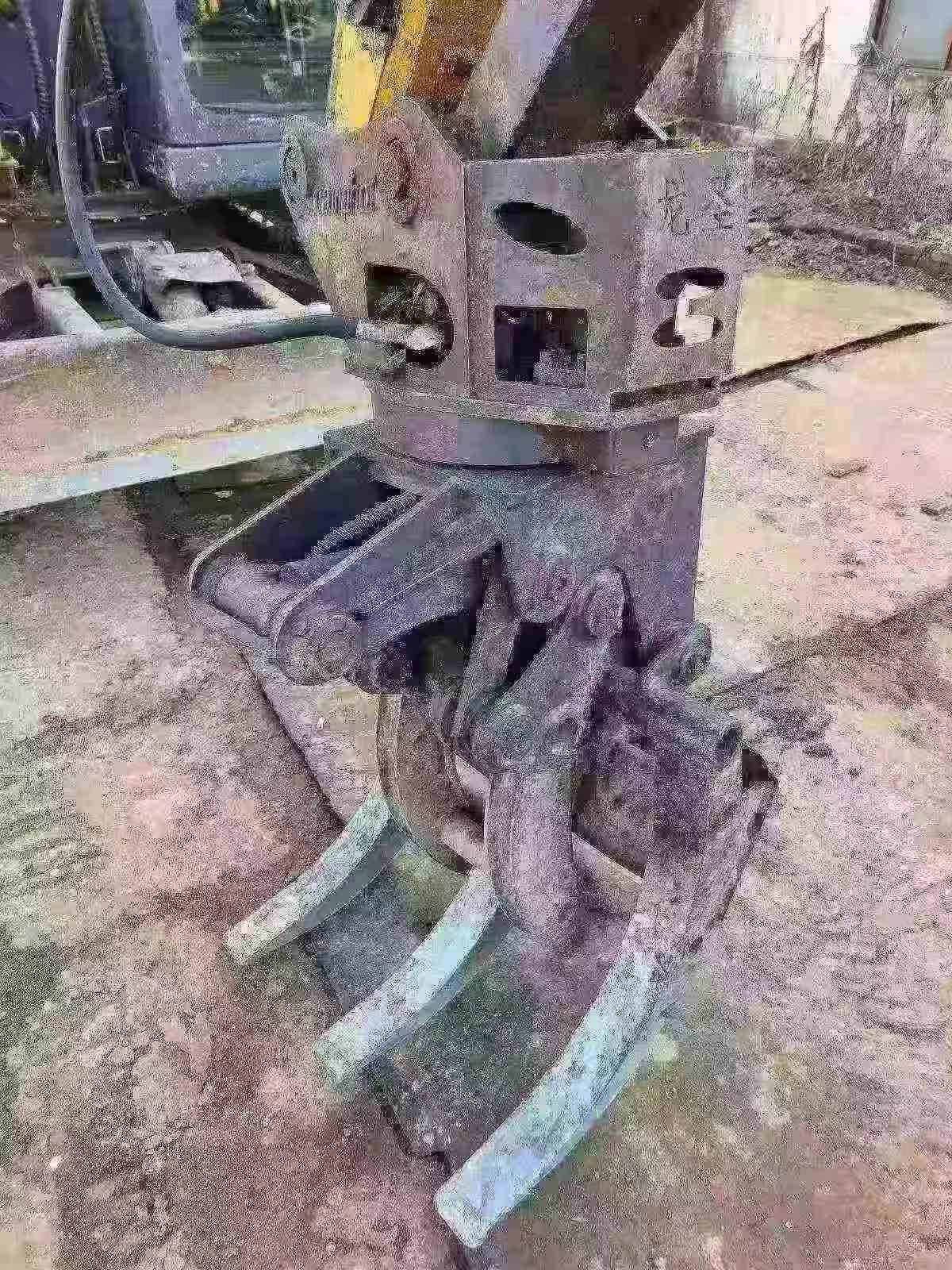

- XCMG XE75C base unit with timber grapple configuration
- 5-ton capacity winch system for controlled lifting operations
- 2021 model year with documented operational history
- Currently located in Anhui Province, China
- Available for purchase or rental arrangements
This excavator offers versatility for contractors seeking reliable equipment for timber handling, land clearing, and auxiliary lifting tasks. The combination of grapple and winch capabilities provides operational flexibility across multiple job site requirements.
| Specifications | Value |
|---|---|
| No. | 1174328 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

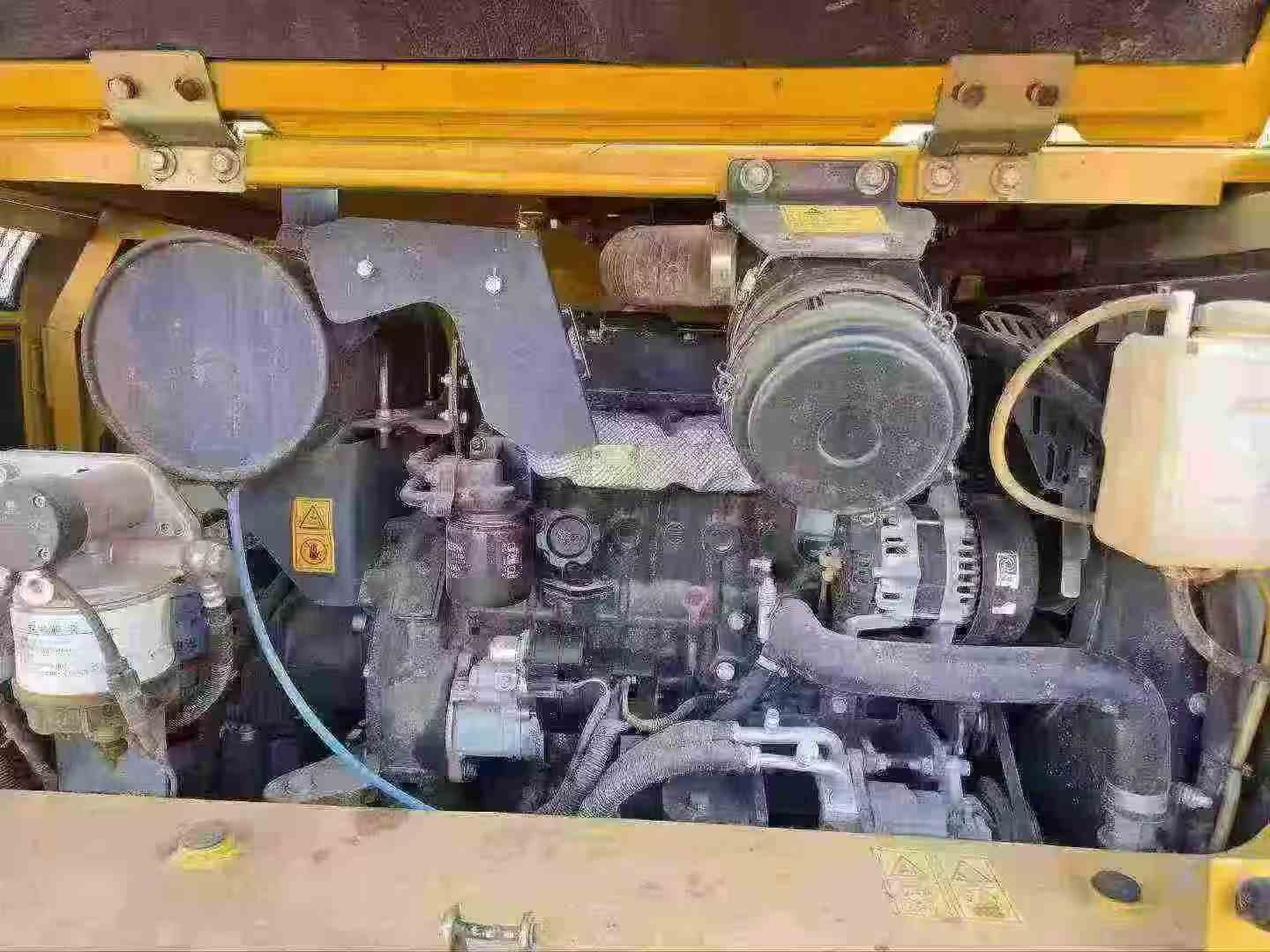

| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
