2017 XCMG XE75D

1/7

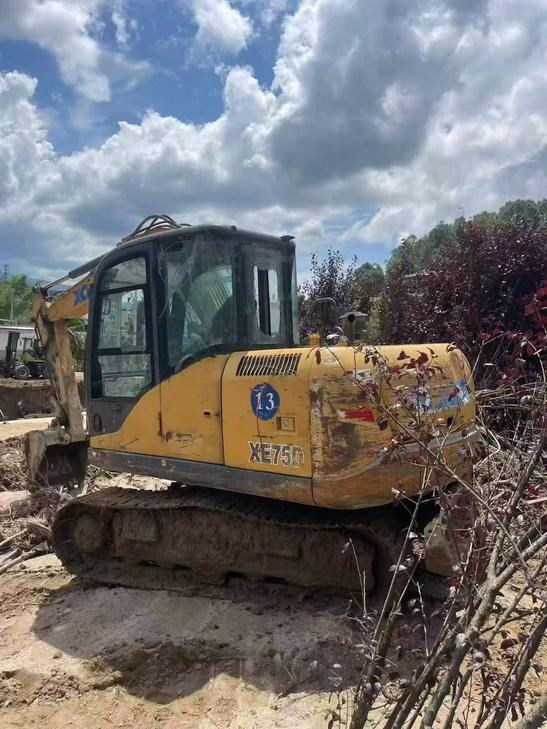

Buy XCMG XE75D Used Excavator / 1
Buy XCMG XE75D Used Excavator / 2
Buy XCMG XE75D Used Excavator / 3
Buy XCMG XE75D Used Excavator / 4
Buy XCMG XE75D Used Excavator / 5
Buy XCMG XE75D Used Excavator / 6
Buy XCMG XE75D Used Excavator / 7

Product Description

This 2017 XCMG XE75D hydraulic excavator offers reliable performance for contractors and operators seeking proven mid-size equipment. With seven years of field operation, this 7.5-ton class machine combines XCMG's robust engineering with practical jobsite versatility. Currently located in Hunan, China, this unit is available from the original owner as direct stock.

The XE75D series is built for demanding construction, landscaping, and utility work. Key features include:

  • 7.5-ton operating weight for excellent stability
  • Fuel-efficient engine with solid power delivery
  • Standard boom and arm configuration
  • Reliable hydraulic system for consistent cycle times
  • Comfortable operator cabin with clear sightlines

This well-maintained excavator is priced competitively at ¥68,000 CNY and ready for immediate deployment. Ideal for businesses expanding their fleet or replacing aging equipment with a cost-effective, proven platform.

SpecificationsValue
No.1164150
Tonnage (tons)7
Working weight (kg)7460
Bucket capacity (m³)0.3
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeV2607-DI-TE3B
Rated power (kw/rpm)43/2000
Maximum torque (N.m)225.8
Number of cylinders (PCS)4
Displacement (L)2.615
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Climbing ability (%)35
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.3
Travel speed (km/h)5.4/2.9
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Working Hydraulic Circuit (Mpa)28
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)130
Hydraulic Tank (L)76
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Counterweight ground clearance (mm)815
Minimum ground clearance (mm)380
Onboard width (mm)2070
Track gauge (mm)1750
Track plate width (mm)450
Track ground length (mm)2195
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)5160
Maximum vertical digging depth (mm)2920
Dodging plate width × height (mm)2200 x 396
see more

Overview

No.1164150

Brand Name:

XCMG

Model Number:

XE75D

Year:

2017

Location:

Hunan China

Pub Date:
