Product Description

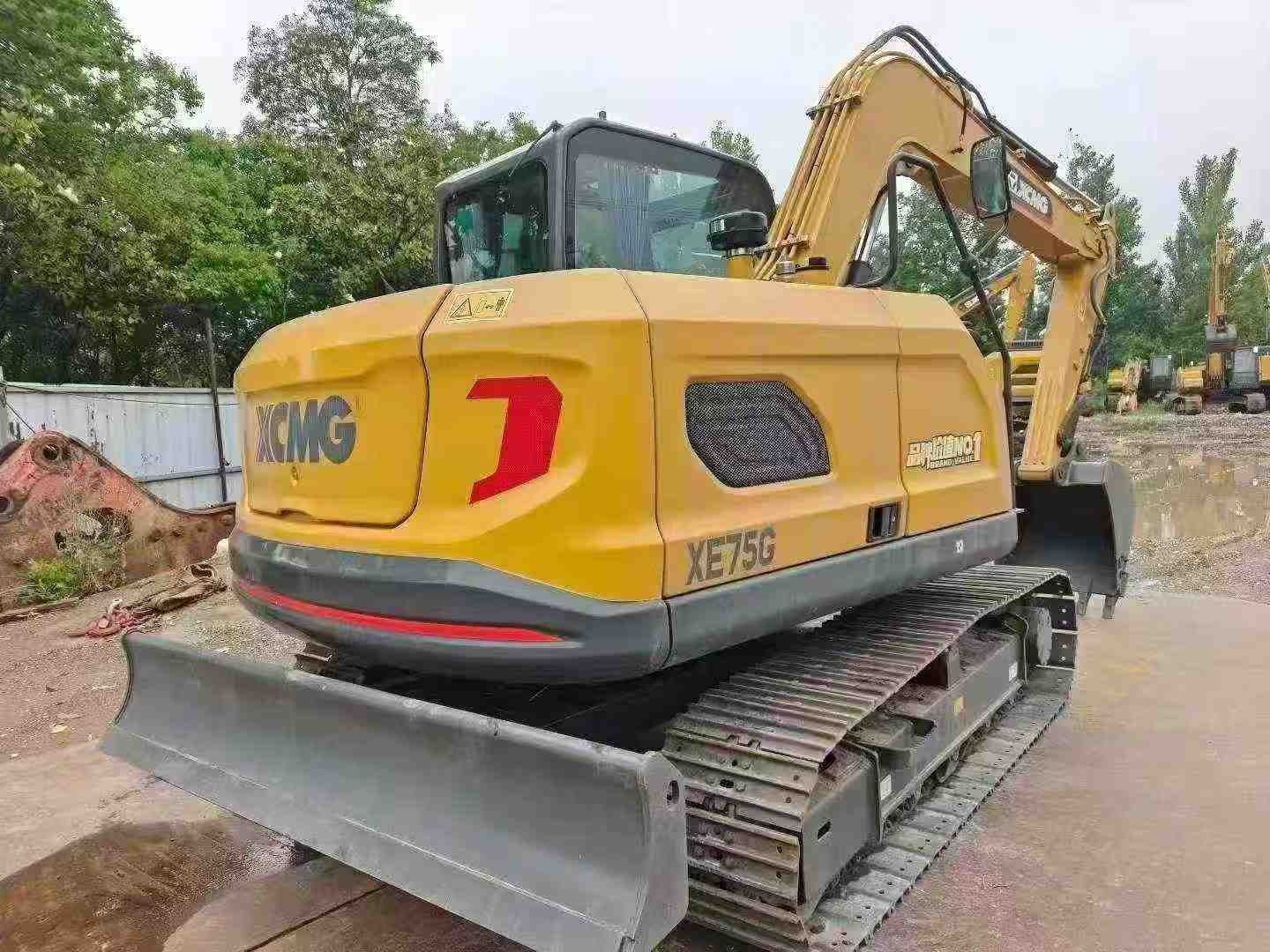

This 2020 XCMG XE75G mini excavator represents a reliable solution for construction and earthmoving operations. Currently available in Jiangsu, China, this 7.5-ton class machine combines XCMG's proven engineering with practical versatility for contractors and equipment rental businesses.
The XE75G is designed for medium-duty excavation, trenching, and material handling applications. Its compact footprint enables operation in confined job sites while maintaining productive performance. XCMG's established service network and parts availability support long-term operational efficiency.
- Operating weight: Approximately 7.5 tonnes
- Suitable for urban construction and infrastructure projects
- Standard hydraulic system for consistent performance
- Multiple attachment compatibility
- Low operational hours typical for 2020 model year
- Ready for immediate deployment
This used excavator offers cost-effective entry into XCMG's mid-range equipment lineup. Available for inspection in Jiangsu, China. Contact us for detailed specifications, current condition reports, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1127178 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Main overflow set pressure (Mpa) | 27.5 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 795 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1800 |
| Back end turning radius (mm) | 1818 |
| Onboard width (mm) | 2050 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
| Bulldozer lift or depth (mm) | 363/346 |
| Dodging plate width × height (mm) | 2200 x 396 |
