2024 XCMG XE75G

1/7
Buy XCMG XE75G Used Excavator / 1

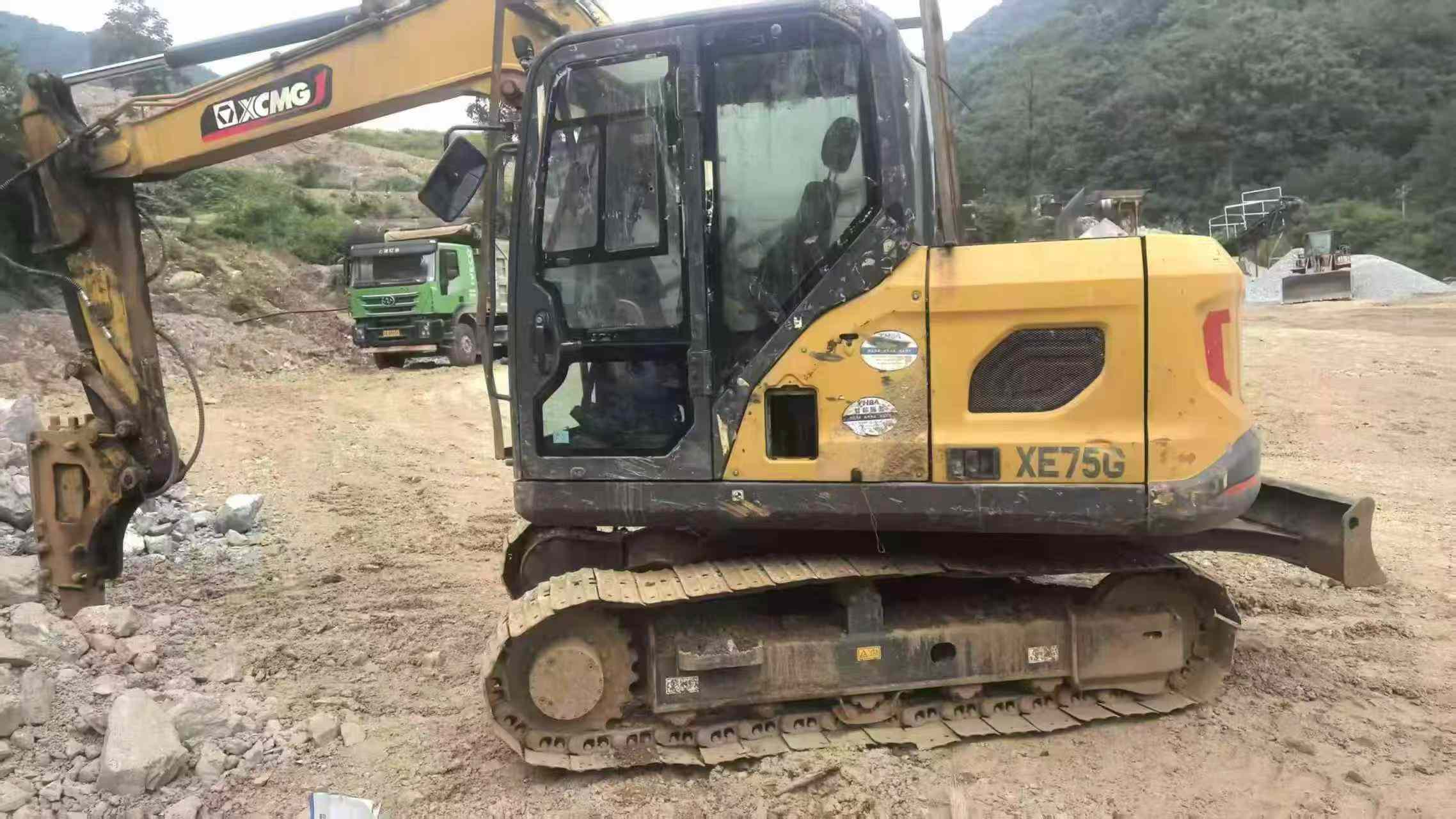

Buy XCMG XE75G Used Excavator / 2

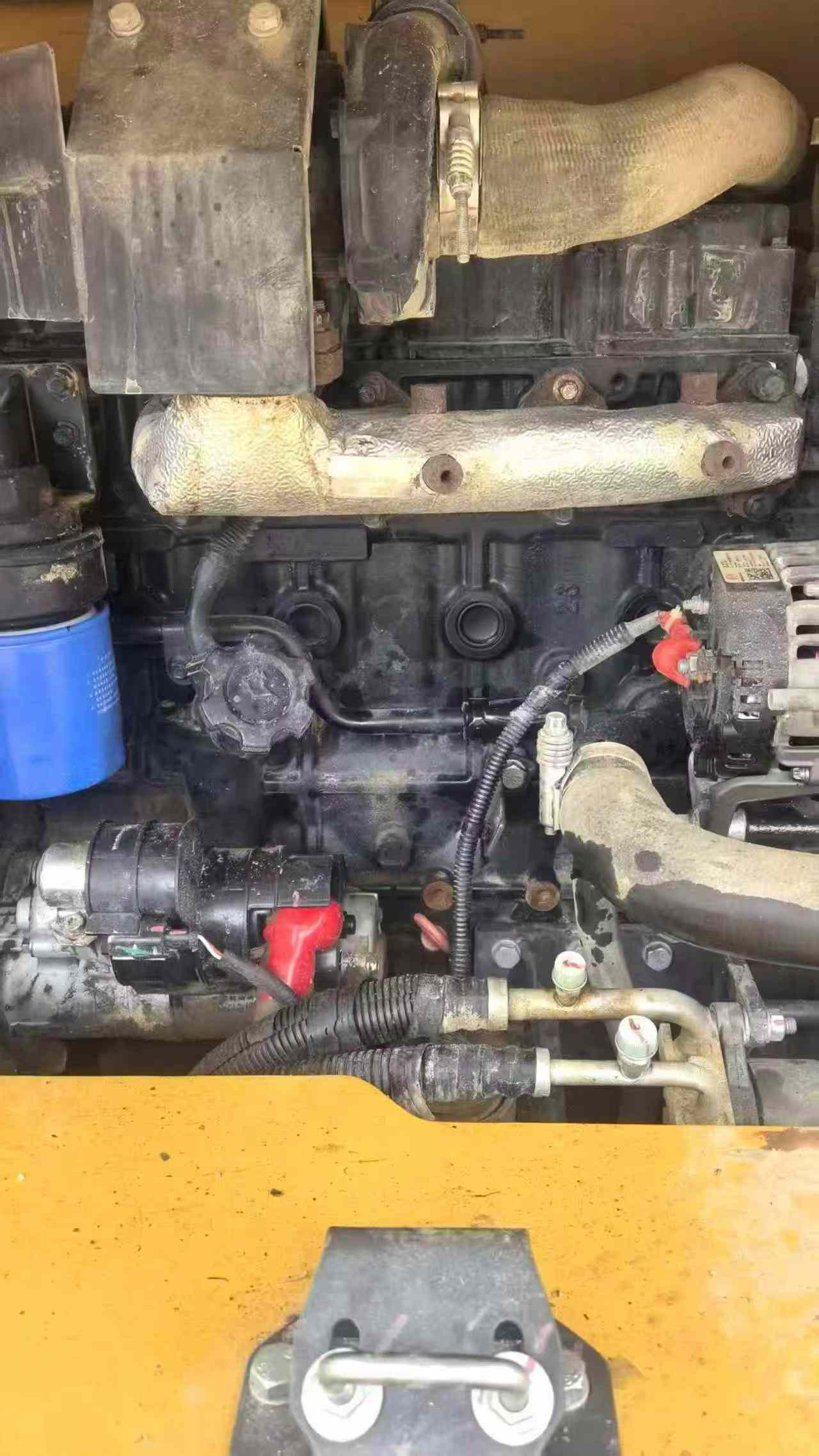

Buy XCMG XE75G Used Excavator / 3

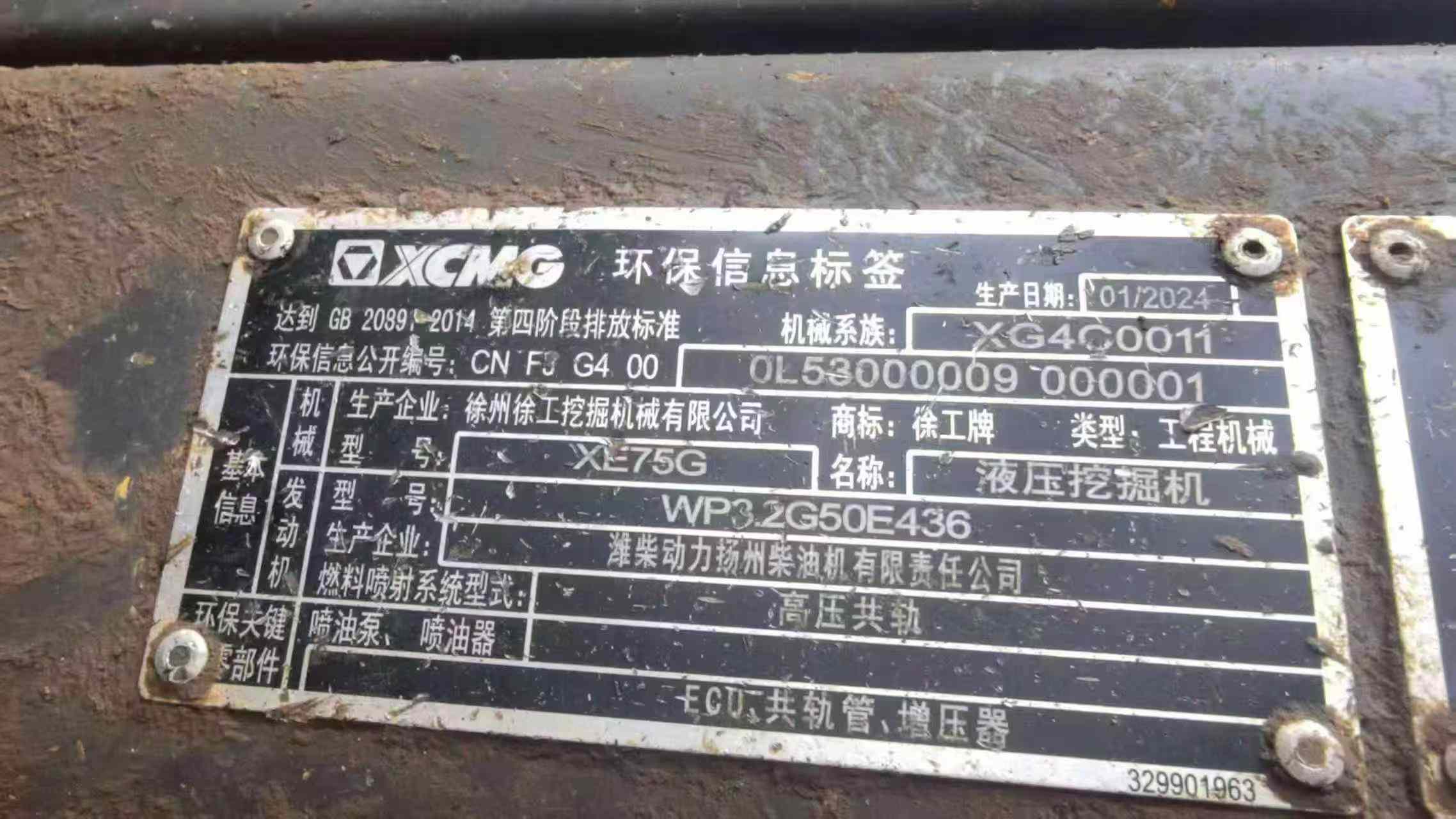

Buy XCMG XE75G Used Excavator / 4

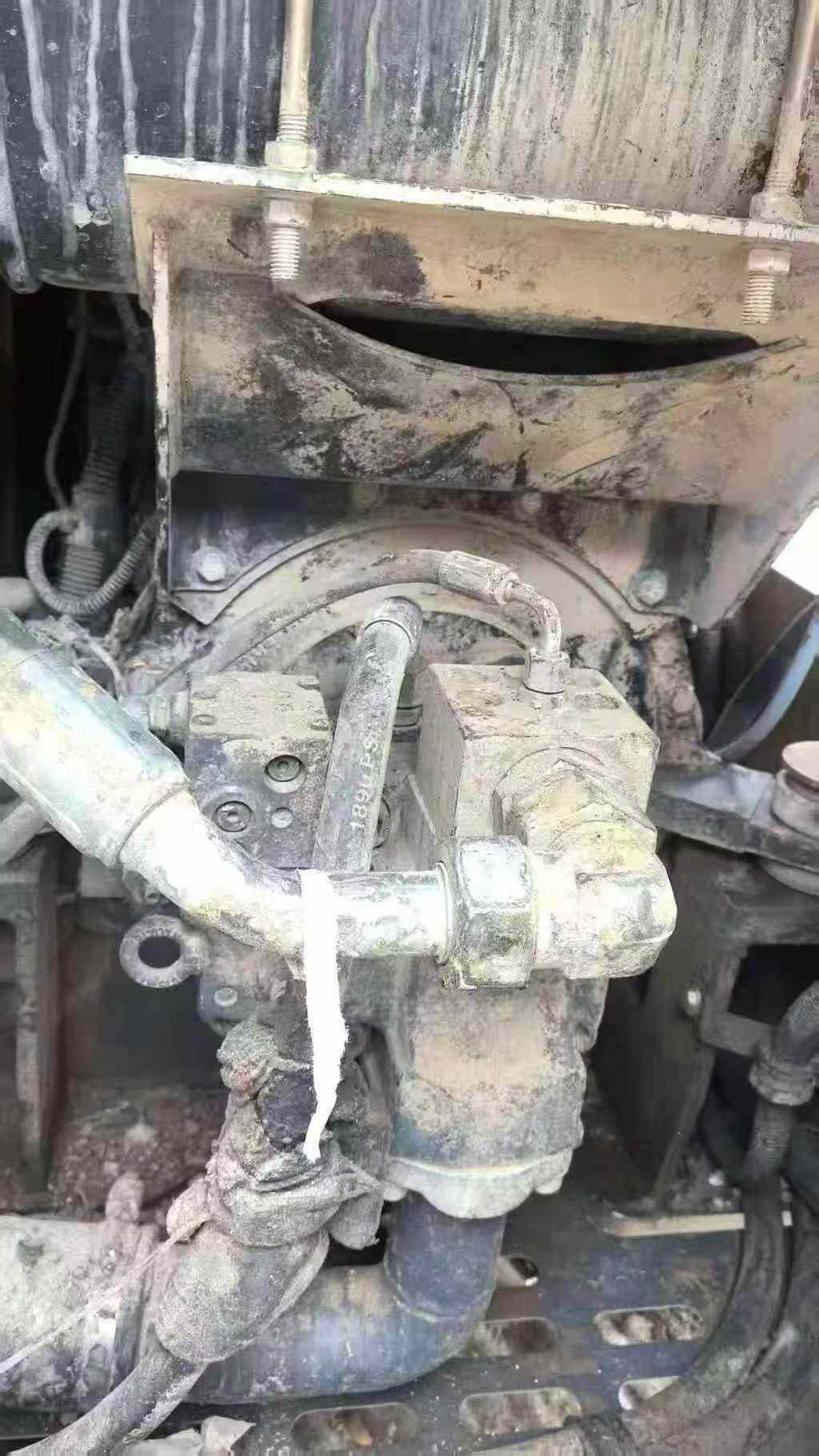

Buy XCMG XE75G Used Excavator / 5

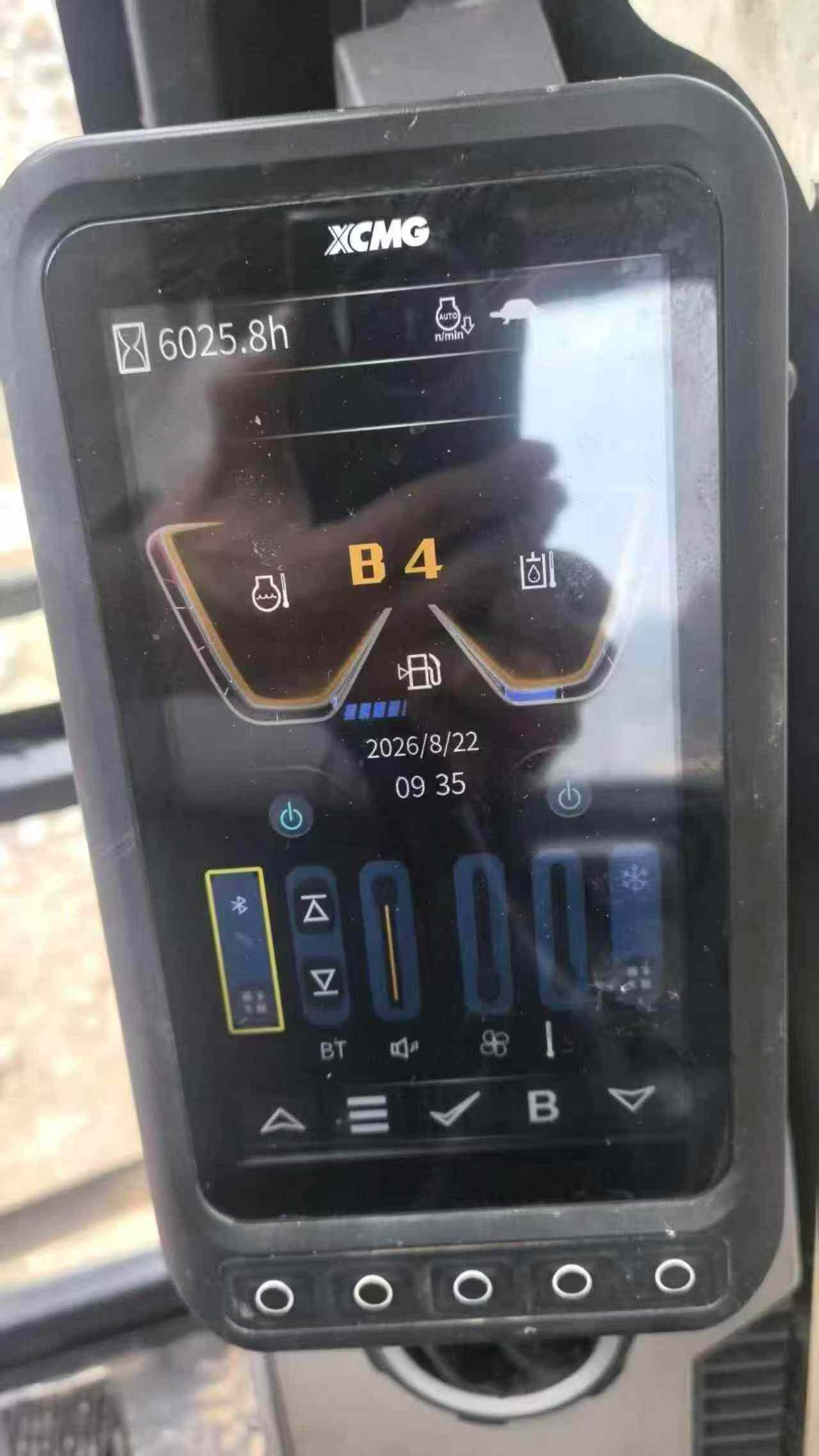

Buy XCMG XE75G Used Excavator / 6

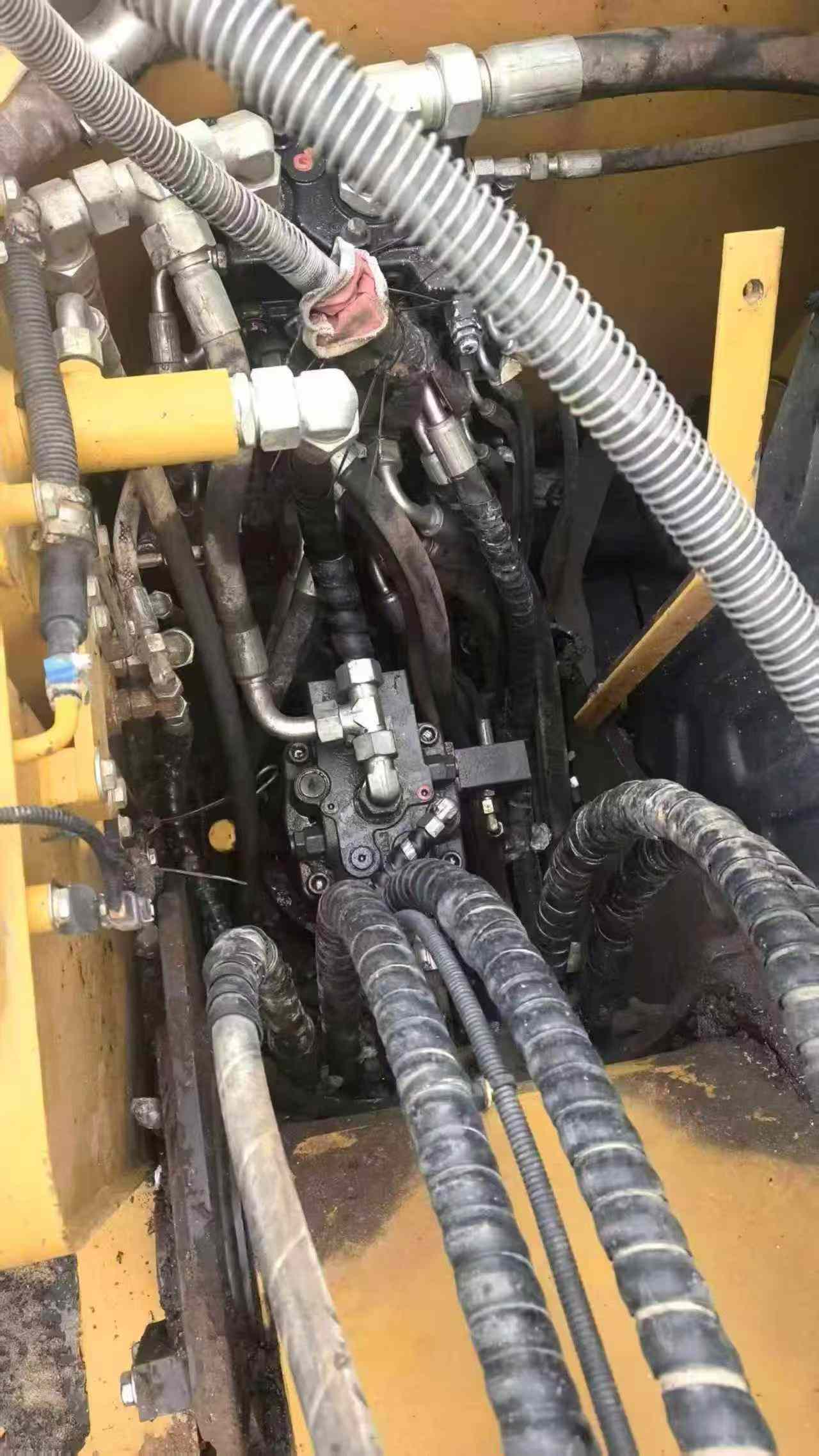

Buy XCMG XE75G Used Excavator / 7

Product Description

Discover the 2024 XCMG XE75G, a robust and reliable excavator designed for a variety of construction and excavation tasks. This machine is currently available in Zhejiang, China, and is offered at an attractive shipping price, making it a cost-effective solution for your heavy machinery needs. The XE75G is known for its durability and efficiency, ensuring that you can tackle tough jobs with ease. Equipped with advanced features and built to last, this excavator is a valuable addition to any fleet.

  • Year: 2024
  • Brand: XCMG
  • Model: XE75G
  • Location: Zhejiang, China
  • Condition: Used, excellent working condition
SpecificationsValue
No.1132148
Tonnage (tons)7
Working weight (kg)7450
Bucket capacity (m³)0.3
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)43/2000
Maximum torque (N.m)255.8/1400-1800
Number of cylinders (PCS)4
Displacement (L)2.6
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.3
Travel speed (km/h)5.4/2.9
Main overflow set pressure (Mpa)27.5
Maximum flow of main pump (l/min)160
Traveling Hydraulic Circuit (Mpa)26.5
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Counterweight ground clearance (mm)795
Minimum ground clearance (mm)380
Minimum turning radius of front working device (mm)1800
Back end turning radius (mm)1818
Onboard width (mm)2050
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2200
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)5160
Maximum vertical digging depth (mm)2920
Bulldozer lift or depth (mm)363/346
Dodging plate width × height (mm)2200 x 396
see more

Overview

No.1132148

Brand Name:

XCMG

Model Number:

XE75G

Year:

2024

Location:

Zhejiang China

Pub Date
