Product Description

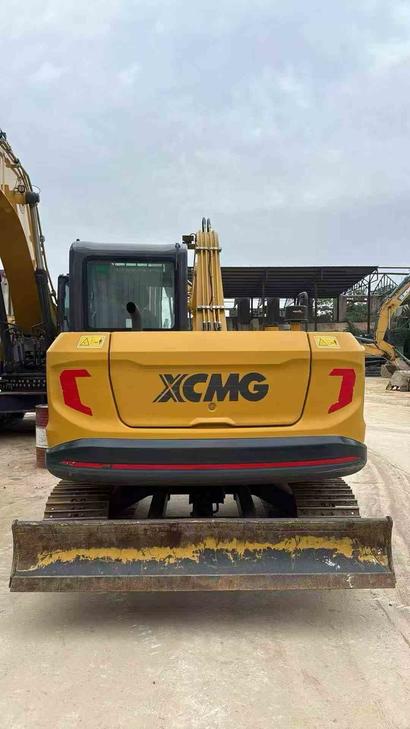

Discover the 2025 XCMG XE75G, a top-tier excavator available for purchase in Jiangsu, China. This machine is in pristine condition, featuring all original parts and components, ensuring reliability and performance. As a no-compromise, high-quality piece of equipment, it has been meticulously maintained and is ready for immediate use. Ideal for a variety of construction and excavation tasks, the XE75G offers a robust solution at a competitive price point.
- Year: 2025
- Brand: XCMG
- Model: XE75G
- Location: Jiangsu, China
- Condition: All original, well-maintained
| Specifications | Value |
|---|---|
| No. | 1081435 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Main overflow set pressure (Mpa) | 27.5 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 795 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1800 |
| Back end turning radius (mm) | 1818 |
| Onboard width (mm) | 2050 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
| Bulldozer lift or depth (mm) | 363/346 |
| Dodging plate width × height (mm) | 2200 x 396 |
