Product Description

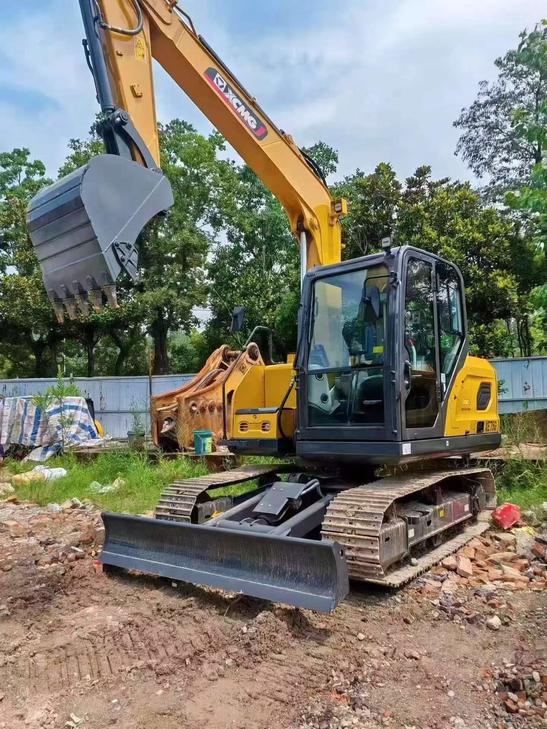

Discover the 2025 XCMG XE75G, a robust and reliable excavator available for immediate purchase. Located in Zhejiang, China, this machine is ready to handle your toughest construction and excavation projects. Known for its durability and efficiency, the XE75G is a preferred choice for professionals who demand performance and reliability.
- Year: 2025
- Brand: XCMG
- Model: XE75G
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1137055 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Main overflow set pressure (Mpa) | 27.5 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 795 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1800 |
| Back end turning radius (mm) | 1818 |
| Onboard width (mm) | 2050 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
| Bulldozer lift or depth (mm) | 363/346 |
| Dodging plate width × height (mm) | 2200 x 396 |
