2025 XCMG XE75G

1/9
Buy XCMG XE75G Used Excavator / 1

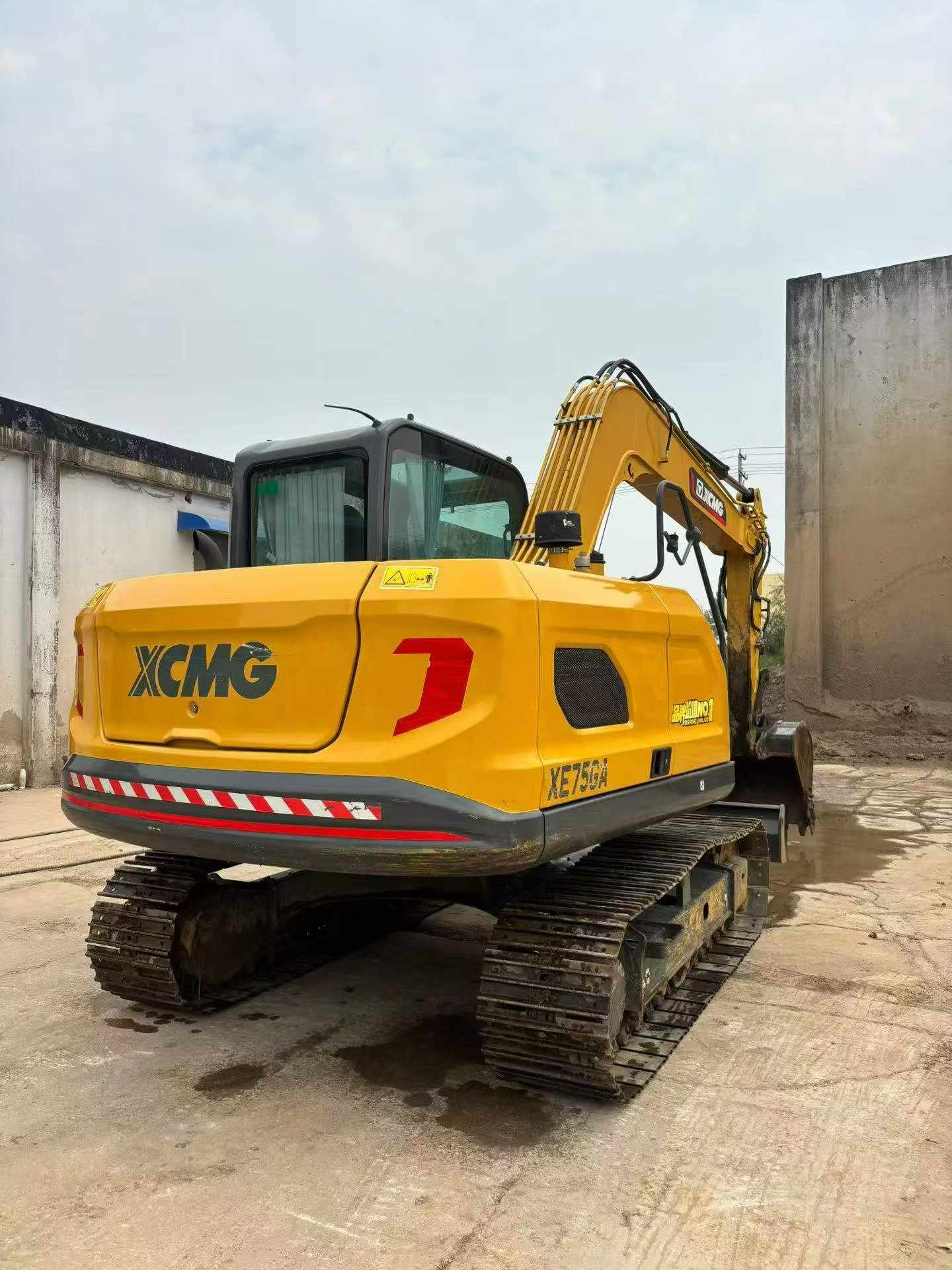

Buy XCMG XE75G Used Excavator / 2

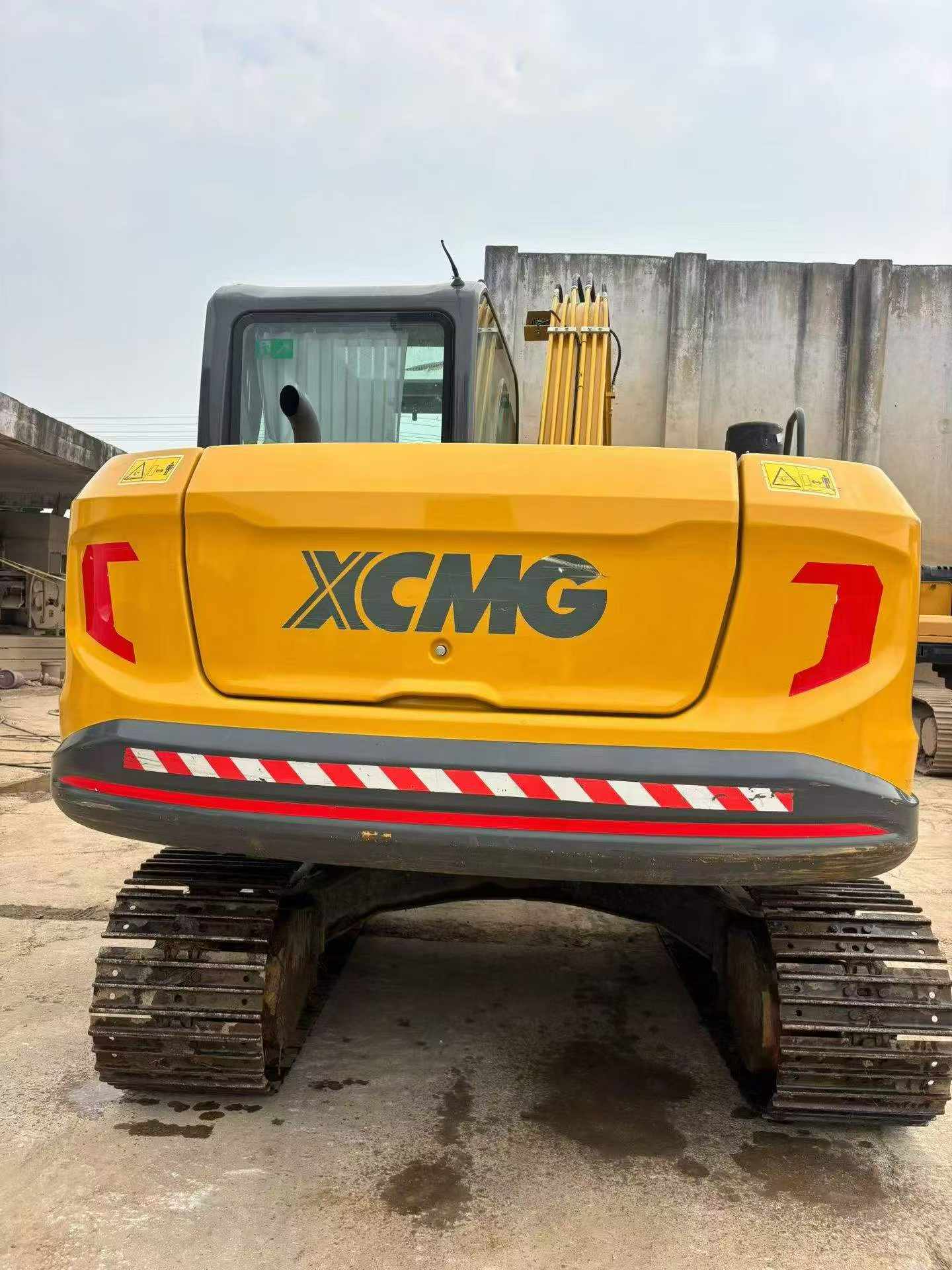

Buy XCMG XE75G Used Excavator / 3

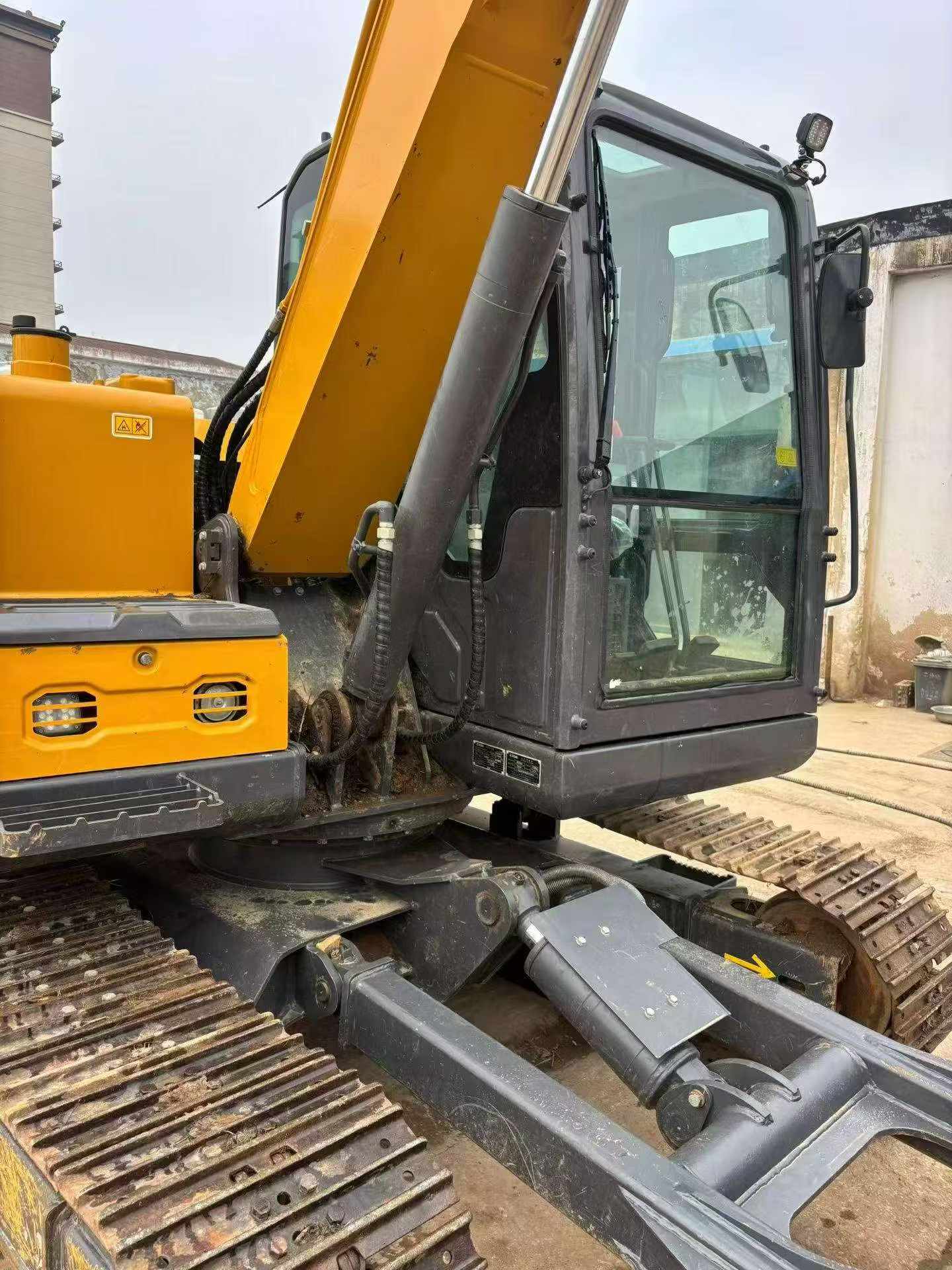

Buy XCMG XE75G Used Excavator / 4

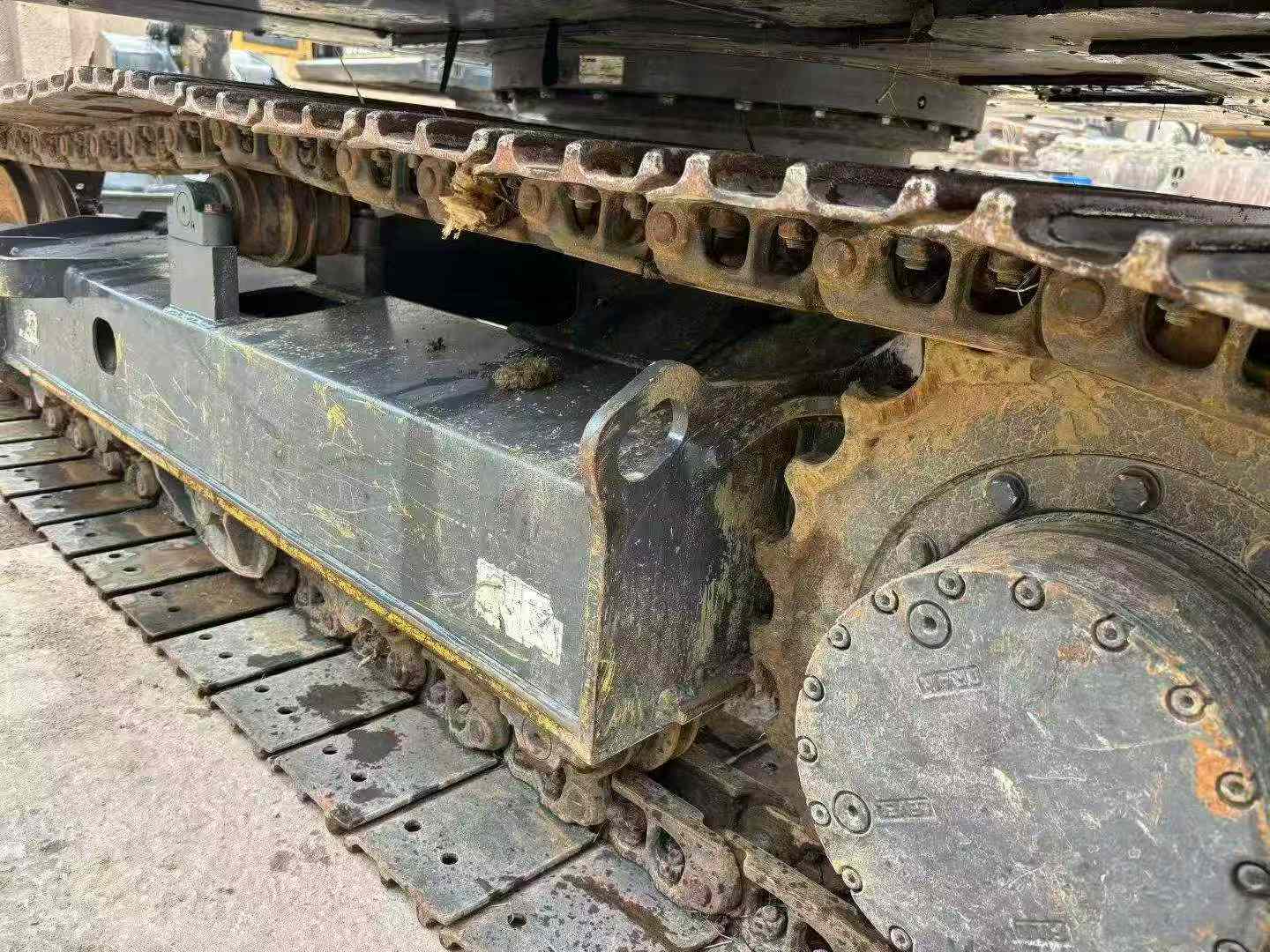

Buy XCMG XE75G Used Excavator / 5

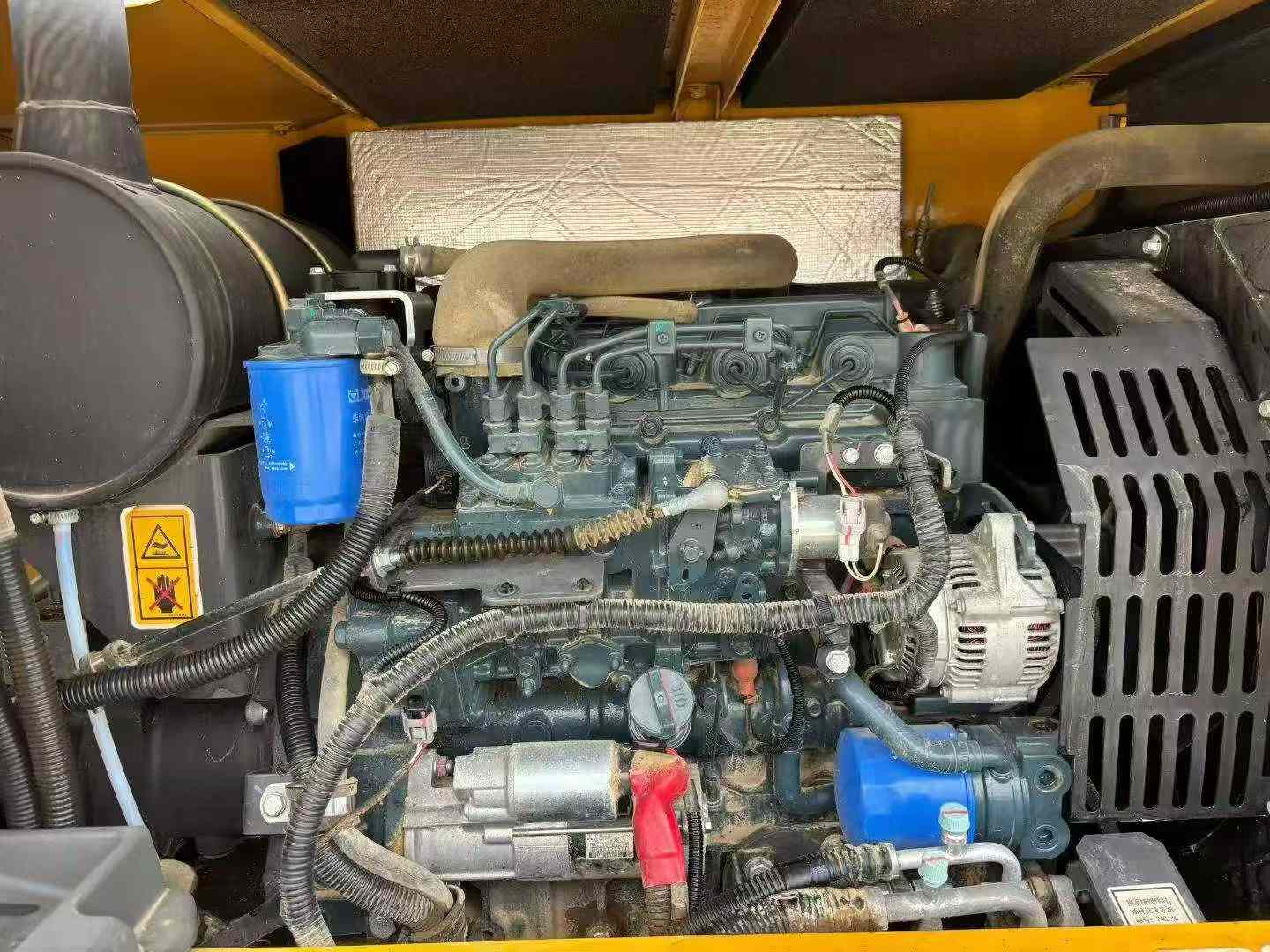

Buy XCMG XE75G Used Excavator / 6

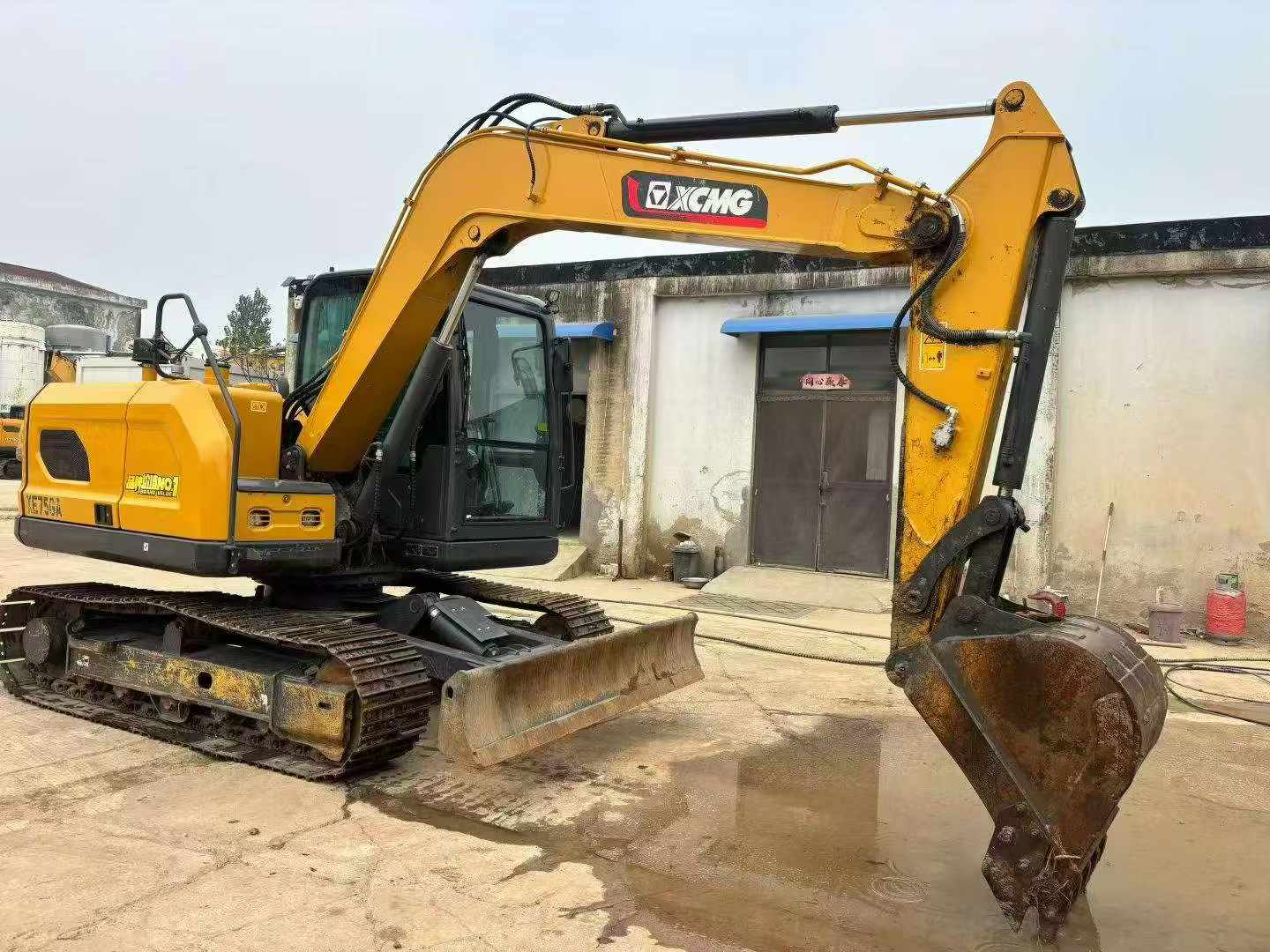

Buy XCMG XE75G Used Excavator / 7

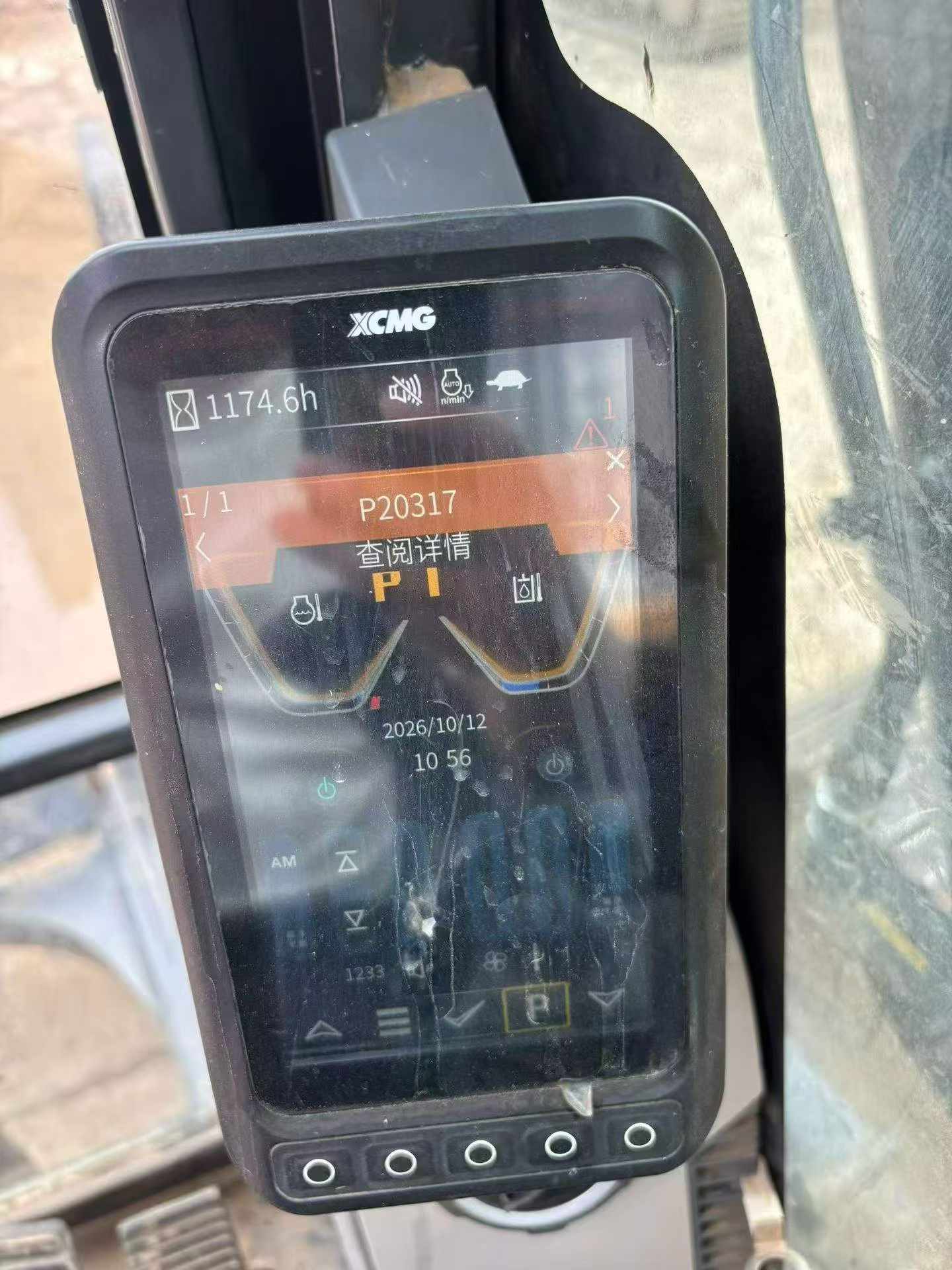

Buy XCMG XE75G Used Excavator / 8

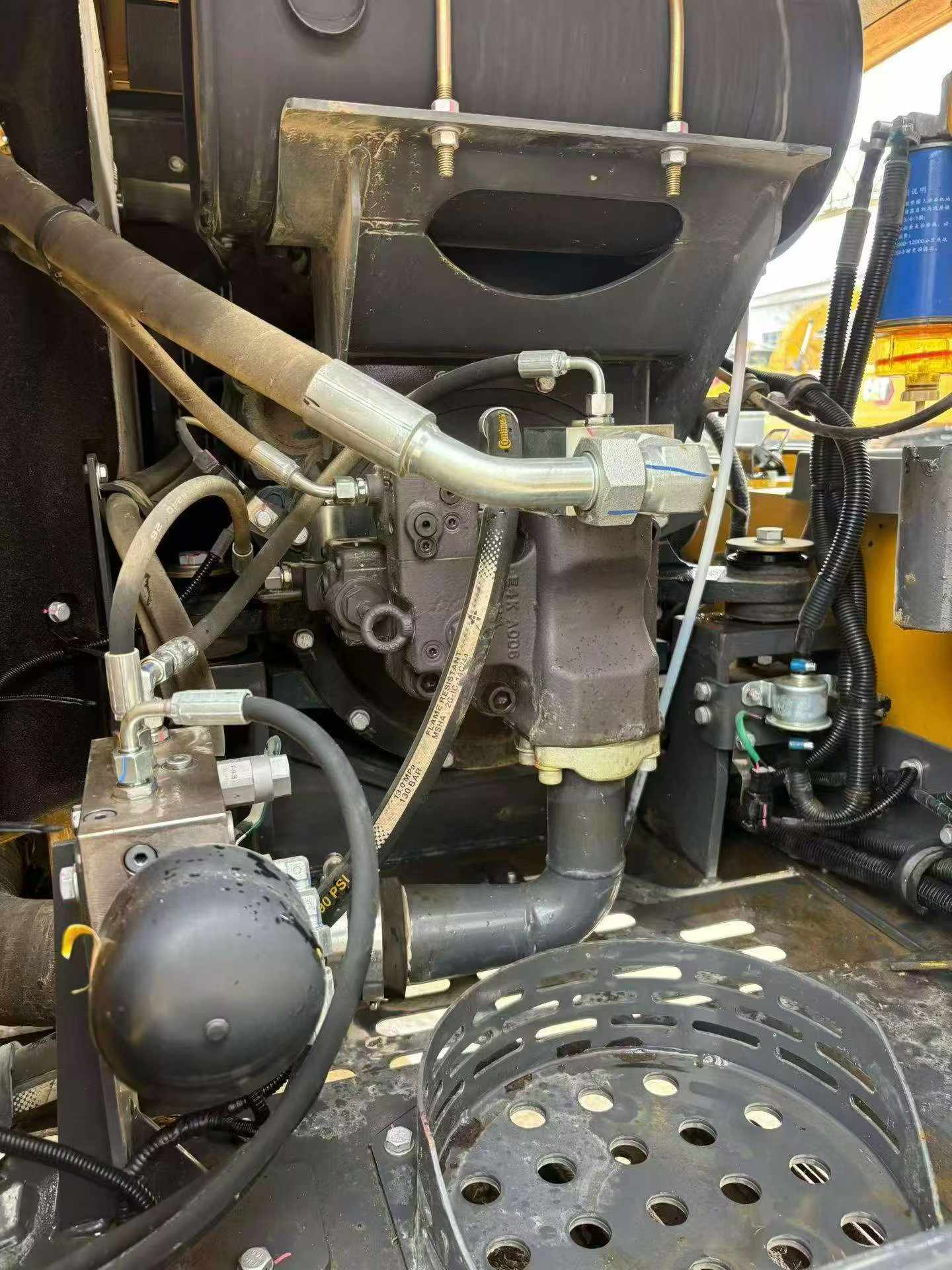

Buy XCMG XE75G Used Excavator / 9

Product Description

This 2025 XCMG XE75G mini excavator is available from Jiangsu, China. With just 1,100 verified hours on the meter, this 7.5-ton class machine represents a lightly used opportunity for contractors seeking reliable performance in confined spaces and light-to-medium excavation work.

The unit retains its factory-original configuration throughout, including all major components and systems. No aftermarket modifications or replacements have been made, ensuring consistency with XCMG's engineering specifications and service protocols.

  • Verified low hours: 1,100
  • Year: 2025
  • Model: XE75G (7.5-ton class)
  • Condition: All-original equipment
  • Location: Jiangsu Province, China

Suitable for urban construction, landscaping, utility installation, and small-scale earthmoving projects. Contact us for inspection arrangements, export documentation assistance, and shipping quotes to your destination port.

SpecificationsValue
No.1167349
Tonnage (tons)7
Working weight (kg)7450
Bucket capacity (m³)0.3
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)43/2000
Maximum torque (N.m)255.8/1400-1800
Number of cylinders (PCS)4
Displacement (L)2.6
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.3
Travel speed (km/h)5.4/2.9
Main overflow set pressure (Mpa)27.5
Maximum flow of main pump (l/min)160
Traveling Hydraulic Circuit (Mpa)26.5
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Counterweight ground clearance (mm)795
Minimum ground clearance (mm)380
Minimum turning radius of front working device (mm)1800
Back end turning radius (mm)1818
Onboard width (mm)2050
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2200
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)5160
Maximum vertical digging depth (mm)2920
Bulldozer lift or depth (mm)363/346
Dodging plate width × height (mm)2200 x 396
see more

Overview

No.1167349

Brand Name:

XCMG

Model Number:

XE75G

Year:

2025

Location:

Jiangsu China
